Vertiv Geist Rack Pdu Branch Metered 1u Input
ITCurry #: V7872516 | Article #: G1035-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

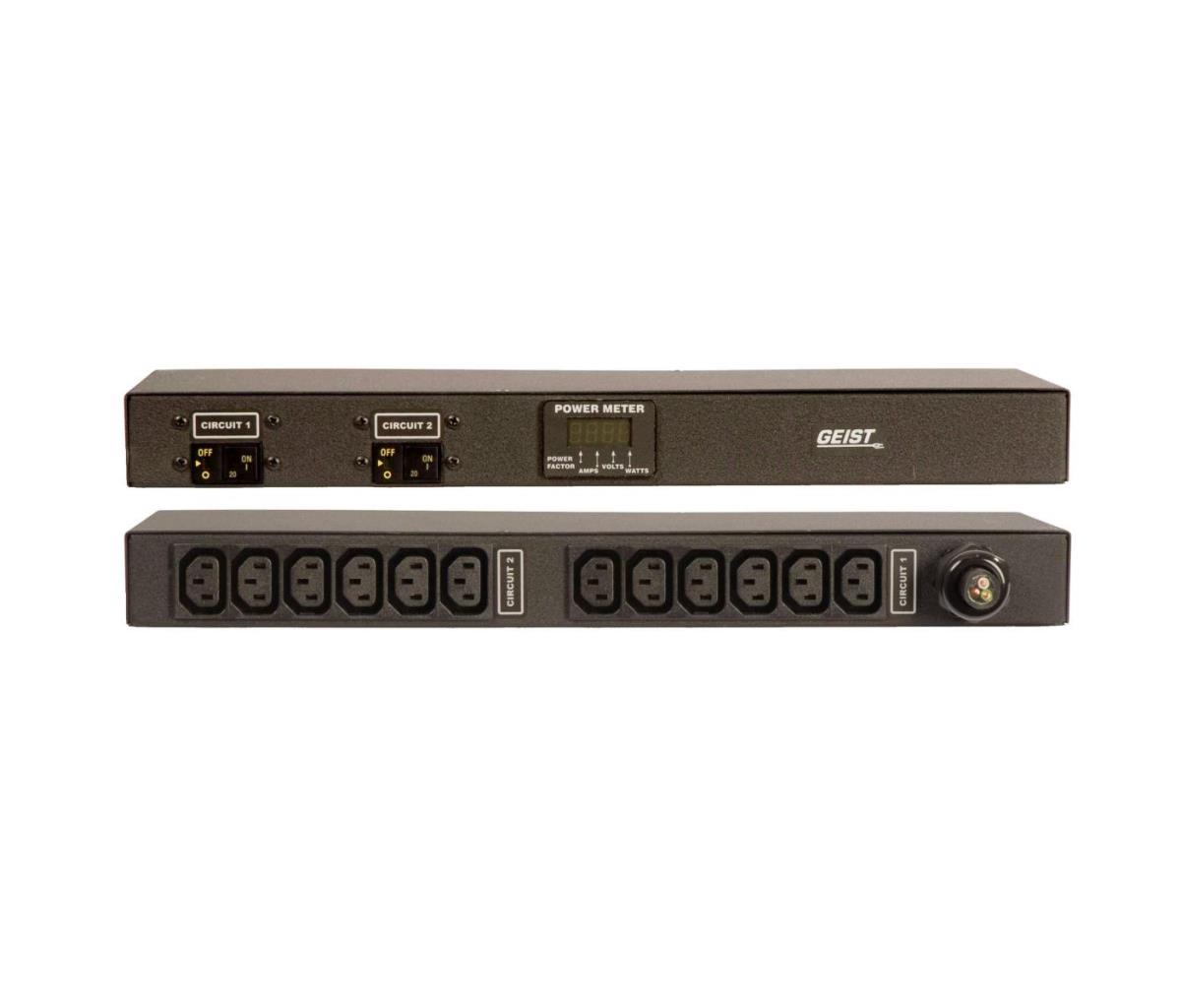

Vertiv Geist Metered rack PDUs (rPDU) deliver reliable power to critical IT equipment within a rack or cabinet. Includes a local LED display to view real-time power data. Every unit is 100% tested for reliability and functionality.
- Reliable power distribution to critical IT equipment.
- Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display.
- Every unit is 100% tested for reliability and functionality to ensure units function as designed.
- North American units are UL listed in accordance with common data center and insurance provider requirements.
- Standard three-year warranty, upgraded to five years with product registration.
- Save time and money by pre-integrating Vertiv Geist rPDUs with the VR Rack. Contact your local sales representative to get started.
- The local LED display provides real-time power data for instant feedback when deploying or moving critical IT equipment.
- Available in vertical and horizontal rackmount form factors.
- Flexibility to meet a broad range of requirements, with a variety of electrical and receptacle configurations available.
- Simple and quick installation in all standard racks or cabinets with included mounting brackets.
- Simple and convenient configuration options for cord lengths and chassis colors.
- TAA compliant.
| Design | |
| PDU types | Metered, Monitored |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| Display | LED |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler |
| Features | |
| Cable length | 3 m |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Power | |
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Maximum power | 7300 W |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 45 øC |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 165 mm |
| Height | 44 mm |
| Packaging data | |
| Package weight | 3.63 kg |
| Warranty | |
| Base Warranty | Non Non |
