Monitor LCD 15in 1517l Intellitouch Anti Glare Black
ITCurry #: M0133352 | Article #: E344758-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

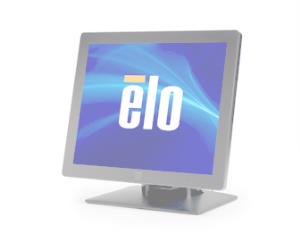

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TFT |
| Touchscreen | Yes |
| Touchscreen technology | Surface acoustic wave |
| Touch technology | Single-touch |
| Response time | 23 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA) |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160ø |
| Viewing angle, vertical | 150ø |
| Display number of colours | 16.2 million colours |
| Horizontal scan range | 31.5 - 60 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38.1 cm |
| Display brightness | 270 cd/mý |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Built-in camera | No |
| Design | |
| Certification | UL, cUL, FCC, IC, CCC, UKCA, VCCI, KCC, e-Standby, Mexico NOM, BSMI Mark, CB, China RoHS, RCM, Argentinian S-Mark |
| Ports & interfaces | |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Height adjustment | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 10.5 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 0.4 W |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC, USB Type-A to USB Type-B, VGA |
| Weight & dimensions | |
| Width (with stand) | 358 mm |
| Depth (with stand) | 197 mm |
| Height (with stand) | 319 mm |
| Weight (with stand) | 4.3 kg |
| Packaging data | |
| Package width | 487 mm |
| Package depth | 231 mm |
| Package height | 485 mm |
| Package weight | 7.3 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Mean time between failures (MTBF) | 50000 h |
| Warranty | |
| Base Warranty | Non Non |
