LCD Monitor - 1304l - 7in - 1920 X 1080 Fhd - Pcap 100 Touch - Black Without Stand
ITCurry #: M0135149 | Article #: E968908-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

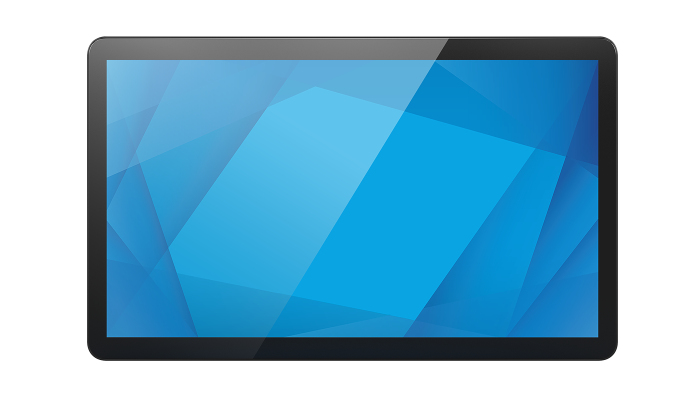

1304L 13-inch Touchscreen Monitor
The 1304L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 13” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 13" touchscreen.
Easily pair the 13-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1304L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing.
Designed with high quality optical bonding, anti-glare coverglass and low-blue light settings - the 1304L 13-inch touchscreen monitor brings the best-in-class solution for viewing comfort and clarity.
Secure your cables into place.
Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.
Connect accessories to the edge.
Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.
Expand the possibilities with touch through.
Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.
Get peace of mind with EloCareSM.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
Display | |
Display diagonal | 33.8 cm (13.3") |
Display resolution | 1920 x 1080 pixels |
HD type | Full HD |
Display type | TFT |
Display brightness | 300 cd/mý |
Touchscreen | Yes |
Touchscreen type | Projected Capacitive (PCAP) |
Contrast ratio (typical) | 600:1 |
Response time | 27 ms |
Viewing angle, horizontal | 170ø |
Viewing angle, vertical | 170ø |
Number of colours | 16.2 million colours |
Native aspect ratio | 16:9 |
Panel type | TFT-LCD |
Effective viewing area | 293.76 x 165.24 mm |
Native refresh rate | 60 Hz |
Features | |
Product colour | Black |
VESA mounting | Yes |
Mean time between failures (MTBF) | 50000 h |
Power | |
Power source type | DC, USB |
Power | 6.5 W |
AC adapter input voltage | 90 - 264 V |
AC adapter output voltage | 12 V |
Weight & dimensions | |
Width | 318.9 mm |
Depth | 25.8 mm |
Height | 194.9 mm |
Weight | 1.2 kg |
Packaging data | |
Package width | 398 mm |
Package depth | 161 mm |
Package height | 278 mm |
Package weight | 3.1 kg |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Operating relative humidity (H-H) | 20 - 80% |
Storage temperature (T-T) | -20 - 60 øC |
Storage relative humidity (H-H) | 10 - 95% |
Technical details | |
Compliance certificates | BIS, BSMI, CB, CE, China Compulsory Certification (CCC), China RoHS, Federal Communications Commission (FCC), Industry Canada (IC), KCC, Norma Oficial Mexicana (NOM), PSE, RCM, REACH, RoHS, UKCA, UL, VCCI, WEEE, cUL |
Audio | |
Built-in speaker(s) | Yes |
Number of speakers | 2 |
RMS rated power | 4 W |
Warranty | |
Base Warranty | Non Non |
