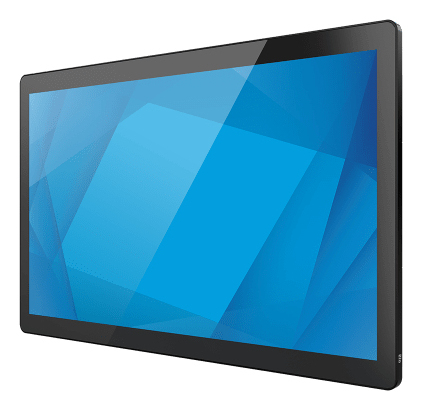

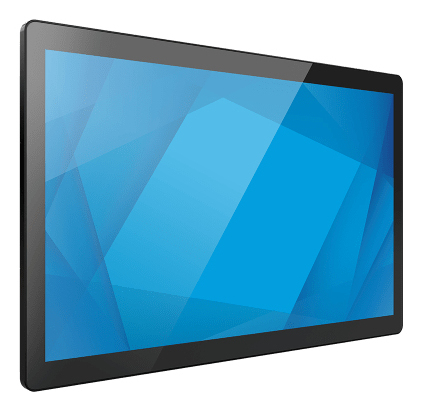

I-series 3 - 15in - Celeron 7305l - 8GB Ram - 128GB Flash - Pcap - Window 10 2021 Ltsc With Stand
ITCurry #: M0134810 | Article #: E700571
Related products
Product Information
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need.
Support for Linux.
For added flexibility, the I-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Touchscreen | Yes |
| HD type | Not supported |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 4:3 |
| Display brightness | 400 cd/mý |
| Display surface | Anti-glare |
| Panel type | TFT |
| Response time | 23 ms |
| Viewing angle, horizontal | 160ø |
| Viewing angle, vertical | 150ø |
| Screen shape | Flat |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Celeron© |
| Processor model | 7305L |
| Processor cores | 5 |
| Processor threads | 5 |
| Processor boost frequency | 1.1 GHz |
| Processor frequency | 1.1 GHz |
| Performance cores | 1 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 1.1 GHz |
| Efficient-core Max Turbo Frequency | 1.1 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 1 |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | M.2 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card model | Intel© UHD Graphics |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| Design | |
| Product colour | Black |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Performance | |
| Product type | All-in-One PC |
| Market positioning | Business |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 10 |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 24 V |
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 5 W |
| Power consumption (off) | 0.5 W |
| Pen | |
| Pen included | No |
| Weight & dimensions | |
| Width (with stand) | 359.5 mm |
| Depth (with stand) | 197.5 mm |
| Height (with stand) | 356 mm |
| Weight (with stand) | 6.7 kg |
| Package width | 497 mm |
| Package depth | 487 mm |
| Package height | 345 mm |
| Package weight | 7.9 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 50 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Compliance certificates | CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI |
| Certification | UL/cUL, FCC, IC, CE, CB |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
| Quick start guide | Yes |
| Power cord included | Yes |
| Other features | |
| 3D | No |
| Mean time between failures (MTBF) | 50000 h |
| Autonomy mode | No |
| Warranty period | 33 year(s) |
| Warranty | |
| Base Warranty | Non Non |
