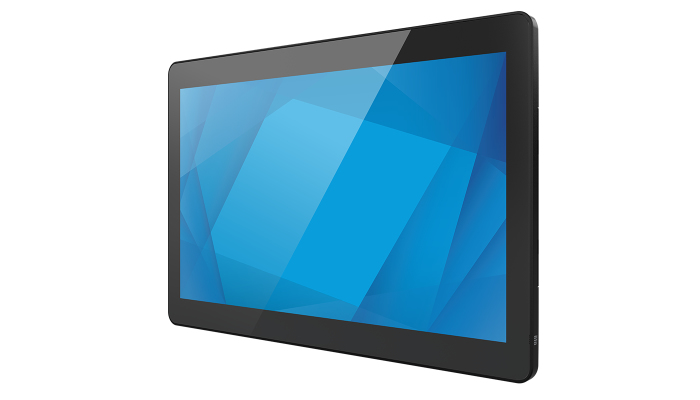

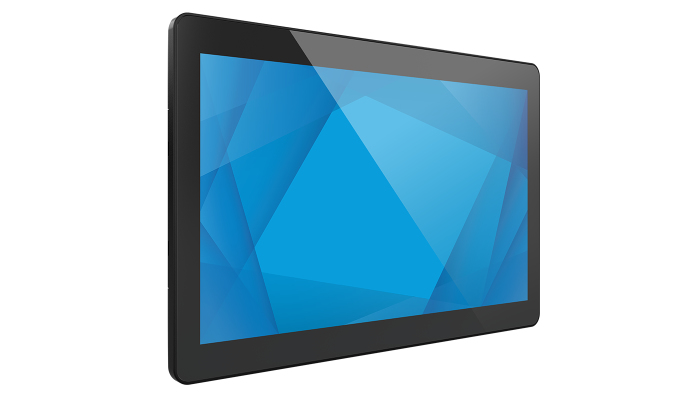

I-series 3 - 15.6in - i3 1215ul - 8GB Ram - 128GB Flash - Pcap - Window 10 2021 Ltsc Without Stand
ITCurry #: M0134801 | Article #: E606120
Related products
Product Information
Completely redesigned
I-Series 3 with Intel.
Brilliant and beautiful,
interactive platform.
- 10-touch TouchPro PCAP
- Fanless, IP54 rated design
- Full HD IPS Touchscreen
- Easy to clean edge-to-edge glass
- 50,000 MTBF
Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

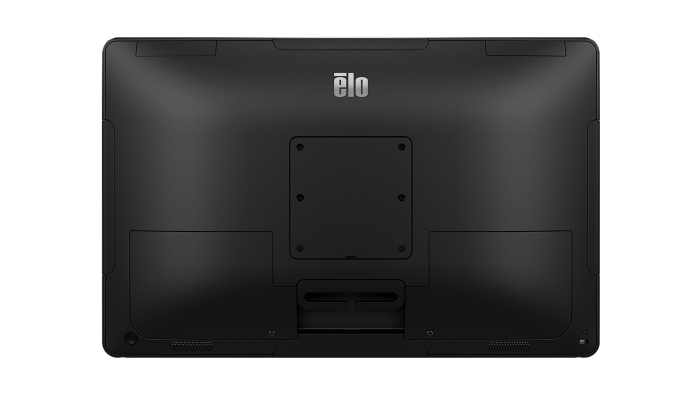

Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display brightness | 350 cd/mý |
| Panel type | LCD |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i3 |
| Processor model | i3-1215UL |
| Processor cores | 6 |
| Processor frequency | 1.2 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core boost frequency | 4.4 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 28 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | DIMM/SO-DIMM |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| On/off button | Yes |
| Performance | |
| Product type | All-in-One PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| HDD user password | Yes |
| Software | |
| Operating system installed | Windows 10 IoT Enterprise |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 24 V |
| Weight & dimensions | |
| Width (with stand) | 384.1 mm |
| Depth (with stand) | 37.2 mm |
| Height (with stand) | 147.7 mm |
| Weight (with stand) | 3.1 kg |
| Package width | 497 mm |
| Package depth | 345 mm |
| Package height | 197 mm |
| Package weight | 5 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S-Mark; Brazil ANATEL; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS CoC |
| Warranty | |
| Base Warranty | Non Non |
