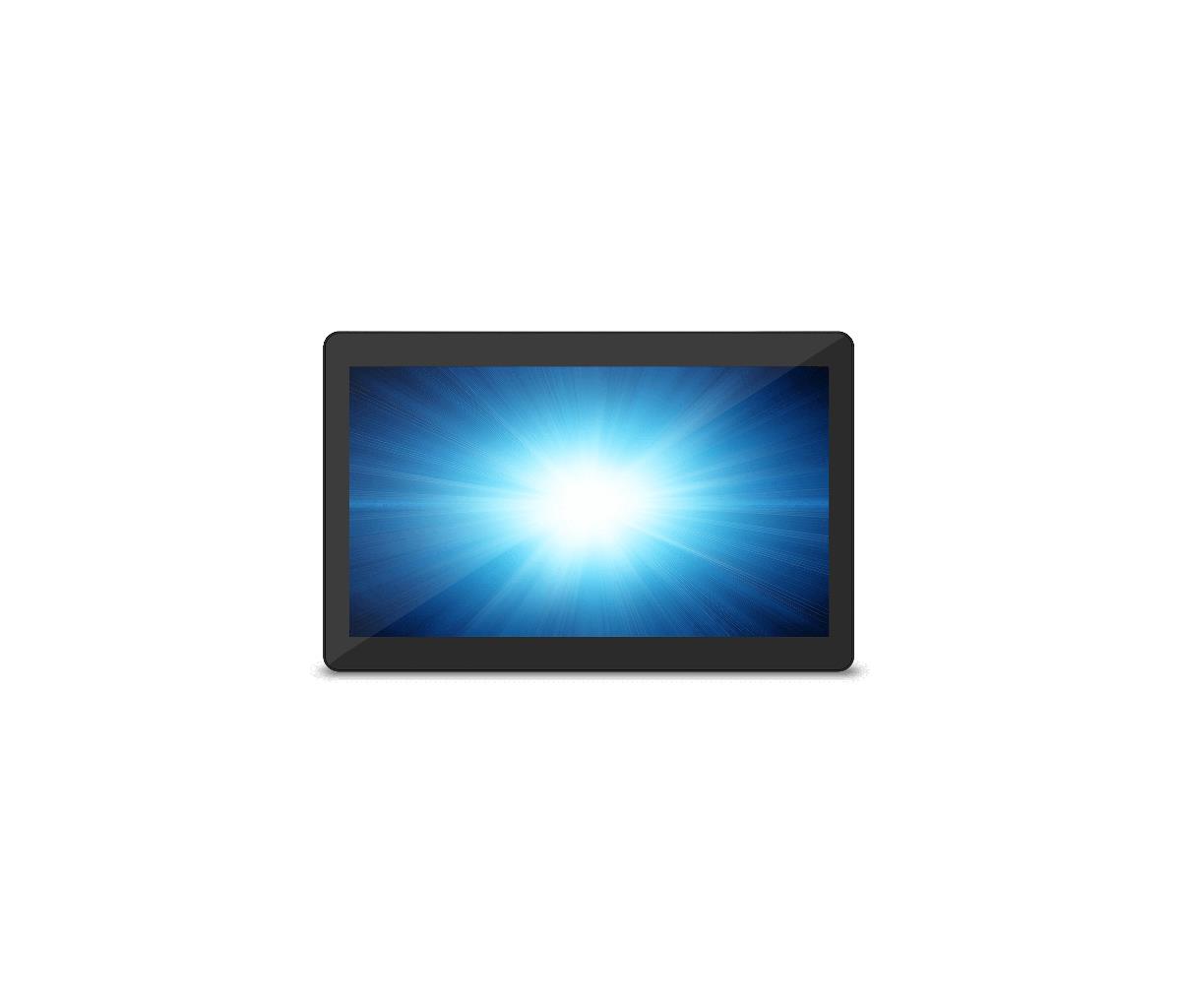

I-series 2 Black - 15in - i5 Vpro 9500te - 8GB Ram - 256GB SSD - Antiglare - Win10 Iot
ITCurry #: M0135026 | Article #: E294312-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
I-Series 2 with Intel
Elo's I-Series 2 with Intel delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Intel-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series with Intel can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Feature-rich
Intel platform.
Windows, ChromeOS
Flex or Linux.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 9th-generation processors and vPro™ platform. Available with Windows 10, ChromeOS Flex or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/mý |
| Panel type | TFT-LCD |
| Response time | 25 ms |
| Screen shape | Flat |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i5 |
| Processor model | i5-9500T |
| Processor cores | 6 |
| Processor threads | 2 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 2.2 GHz |
| Processor cache | 9 MB |
| Processor base power | 35 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | DIMM/SO-DIMM |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA |
| SSD form factor | M.2 |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel© UHD Graphics |
| On-board graphics card model | Intel© HD Graphics 630 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Design | |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Performance | |
| Product type | All-in-One tablet PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Enterprise |
| Power | |
| AC adapter power | 100 W |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width (without stand) | 384.2 mm |
| Depth (without stand) | 246.4 mm |
| Height (without stand) | 43.8 mm |
| Weight (without stand) | 2.2 kg |
| Package width | 462 mm |
| Package depth | 216 mm |
| Package height | 346 mm |
| Package weight | 4.3 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), CB, UKCA, CCC, China Compulsory Certification (CCC), VCCI, Norma Oficial Mexicana (NOM) |
| Warranty | |
| Base Warranty | Non Non |
