Esy15x2 - 2uwb 1 Mt Zb - 4GB Ram - 128GB SSD - No Os - Pcap 10touch In
ITCurry #: M0134256 | Article #: E481651-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

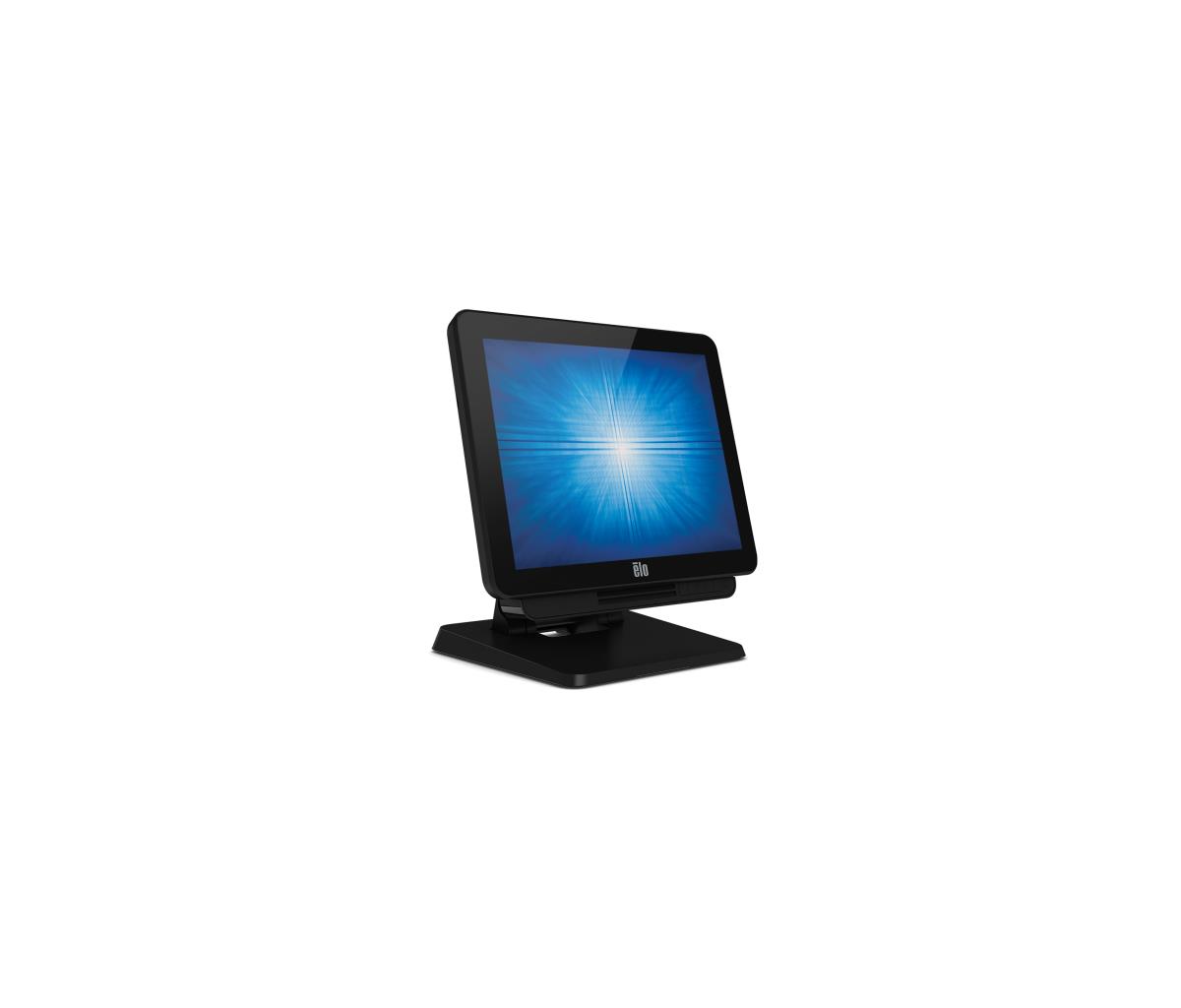

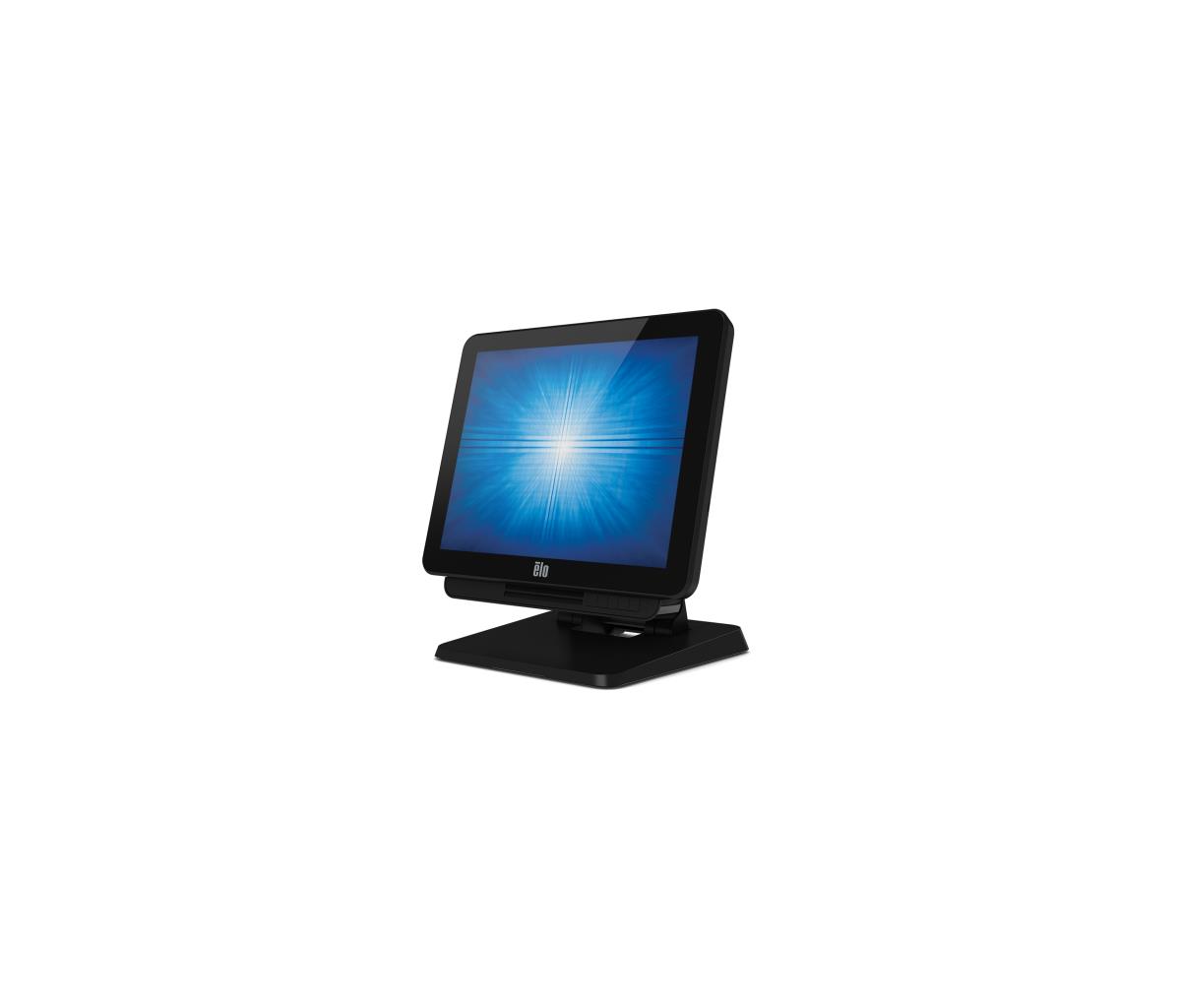

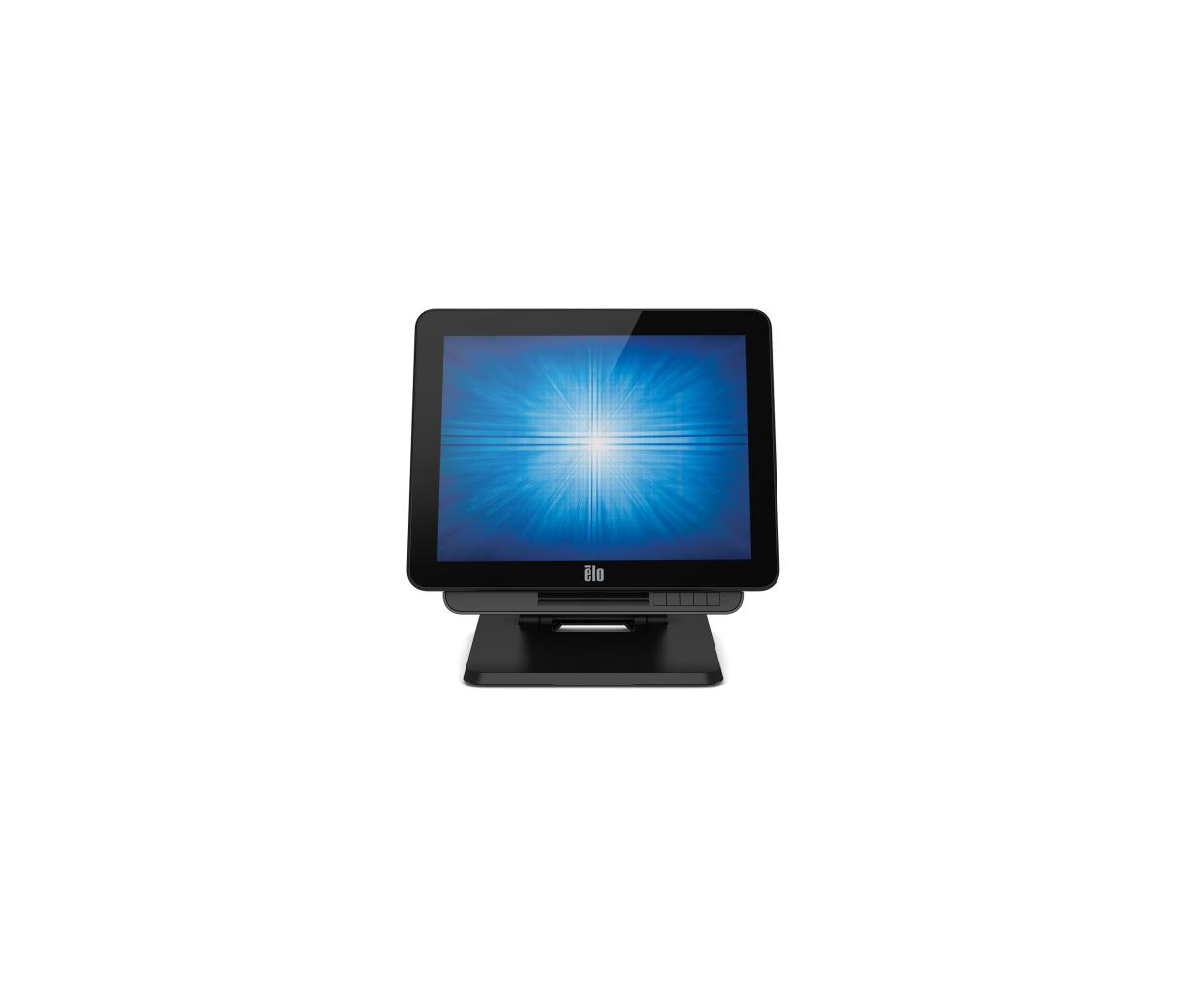

The Elo 15-inch X-Series is an innovative, all-in-one, standard-aspect touchscreen computer that offers a sleek form factor with flexibility, power and endless configuration possibilities. With a compact design, the X-Series is ideal for applications in any retail, self-service or hospitality environment that requires a small footprint POS terminal or kiosk. The highly versatile platform provides maximum configurability and offers you unprecedented freedom of choice in the design of your AiO system.
Configurability

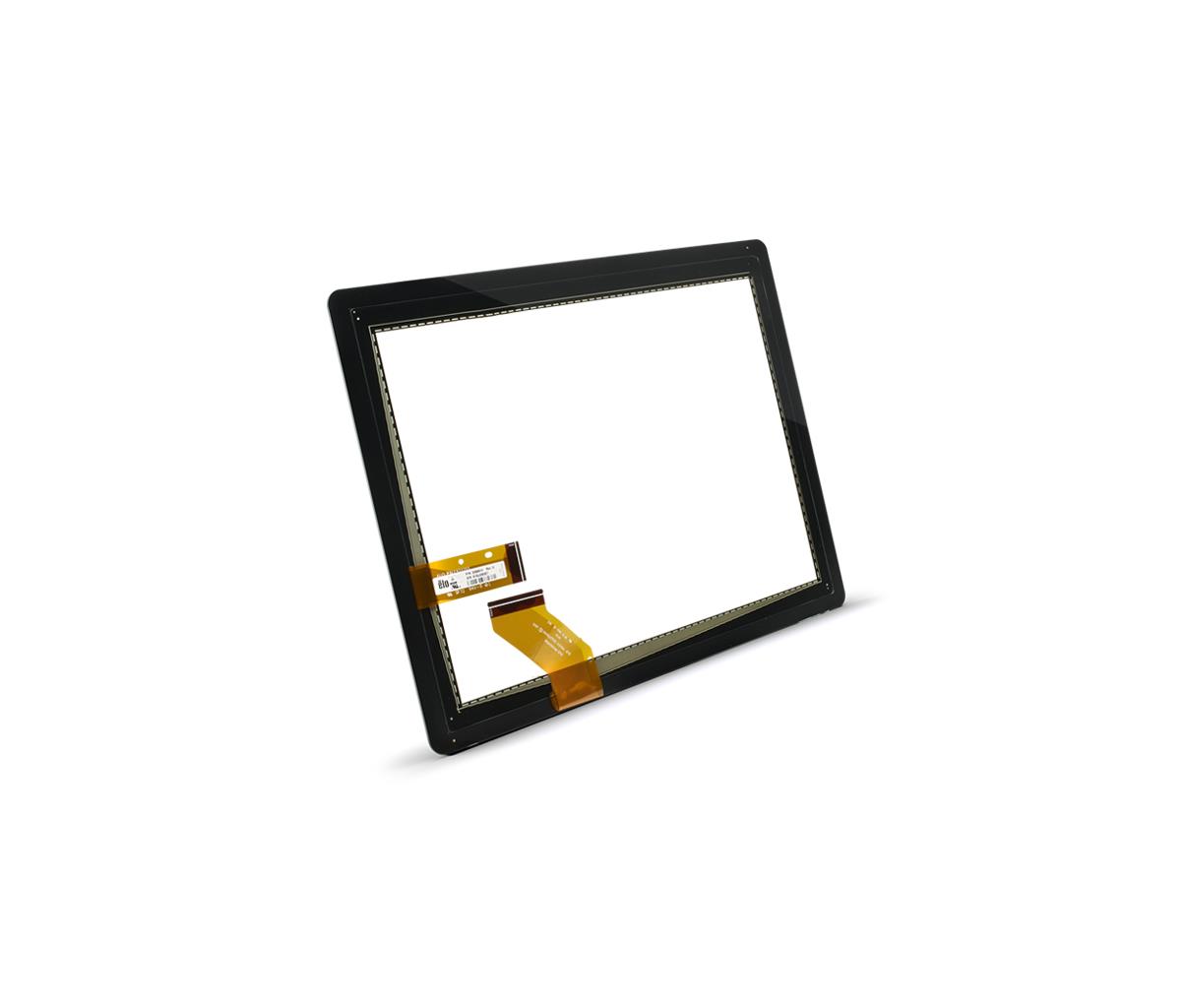

A wide range of size, processor, interface, storage, expansion, operating system and mounting options allows you to further tailor the X-Series to meet your needs. Choose from IntelliTouch® surface acoustic wave (SAW), AccuTouch® five-wire resistive or TouchPro™ projected capacitive (PCAP) touch technologies to meet the demands of your environment. With processor options that scale from the value-based Intel Celeron J1900 to the high-performance Intel Core i5, the Elo X-Series is one of the most powerful systems in its class.
Versatility
Every X-Series system is built with transactions in mind, and the wide assortment of peripheral options reflect just that. Whether for staff- or guest-facing applications, easily attach any combination of up to three peripherals, including an EMV reader, a near-field communication (NFC/RFID) reader, mag stripe reader (MSR), barcode reader or fingerprint scanner to the bezel of the X-Series via a universal snap-in connector. To enhance customer engagement at checkout, choose from a wide array of customer facing displays ranging from 2-line to 20-inch. For self-service applications, transform the Elo X-Series from counter-top terminal to kiosk with the optional wall-mount kit.
Reliability
Rigorously tested and backed by a three-year warranty, the X-Series touchscreen computer delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design easily withstand the adverse conditions associated with most commercial environments. The unique, modular chassis provides easy access to storage and memory for quick, tool-less service.
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Touchscreen | Yes |
| Display type | TFT |
| Display brightness | 212.5 cd/mý |
| Touchscreen technology | Projected capacitive system |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 165ø |
| Viewing angle, vertical | 150ø |
| Response time | 16 ms |
| Effective viewing area | 304.12 x 228.1 mm |
| Aspect ratio | 4:3 |
| Display number of colours | 16.2 million colours |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Maximum internal memory | 16 GB |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1600 MHz |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| SSD capacity | 128 GB |
| SSD interface | Serial ATA |
| Features | |
| Certification | UL, cUL , FCC, IC, TUV, CE, CB, CoC, VCCI, CCC, RCM, SRRC |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Powered USB | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 2 |
| Line-out | Yes |
| Microphone in | Yes |
| Serial ports quantity | 2 |
| RS-232 ports | 1 |
| Design | |
| Chassis type | All-in-One |
| Product colour | Black |
| Software | |
| Operating system installed | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Power supply | 150 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Mean time between failures (MTBF) | 50000 h |
| Weight & dimensions | |
| Width | 368.1 mm |
| Depth | 62.2 mm |
| Height | 312 mm |
| Width (with stand) | 365.2 mm |
| Depth (with stand) | 251.7 mm |
| Height (with stand) | 348.8 mm |
| Weight | 4.31 kg |
| Weight (with stand) | 6.89 kg |
| Packaging data | |
| Package width | 482 mm |
| Package depth | 442 mm |
| Package height | 352 mm |
| Package weight | 7.41 kg |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Warranty | |
| Base Warranty | Non Non |
