Esy00i4 Backpack - 3399 - 4GB Ram - 32GB Flash - Linux Debian - Black
ITCurry #: M0134774 | Article #: E143585-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Scale your deployments.
The Elo Backpack is a powerful, commercial-grade Linux PC designed to simplify scaling Elo’s enterprise Linux platform across sizes and form factors. Simply pair the Elo Backpack Linux device with any Elo touchscreen from 7-65 inches to create a consistent deployment that is cost effective and optimized for commercial use.
Experience the Elo approach to Linux.
With decades of development and customizations made to support global enterprise customers, Elo’s Linux-based platform offers Linux device drivers, uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors.
Built for any use.
From digital signage and self-service kiosks to point of sale, kitchen display systems (KDS) and automation controls, the Elo Backpack Linux PC offers the connectivity, performance and durability to power almost any application.
Small footprint.
Purpose-built to accommodate compact spaces, the Elo Backpack Linux device offers a small footprint in both size and weight.
Universal
VESA mount.
Easily secure the Elo Backpack Linux PC to any counter or in a kiosk with the built-in 75mm or 100mm VESA mount.
Commercial-grade
performance.
Equipped with Rockchip 6-core processor and your choice of Debian 10 distributions or newer, the Elo Backpack Linux PC delivers the performance your business needs.
Connect it all.

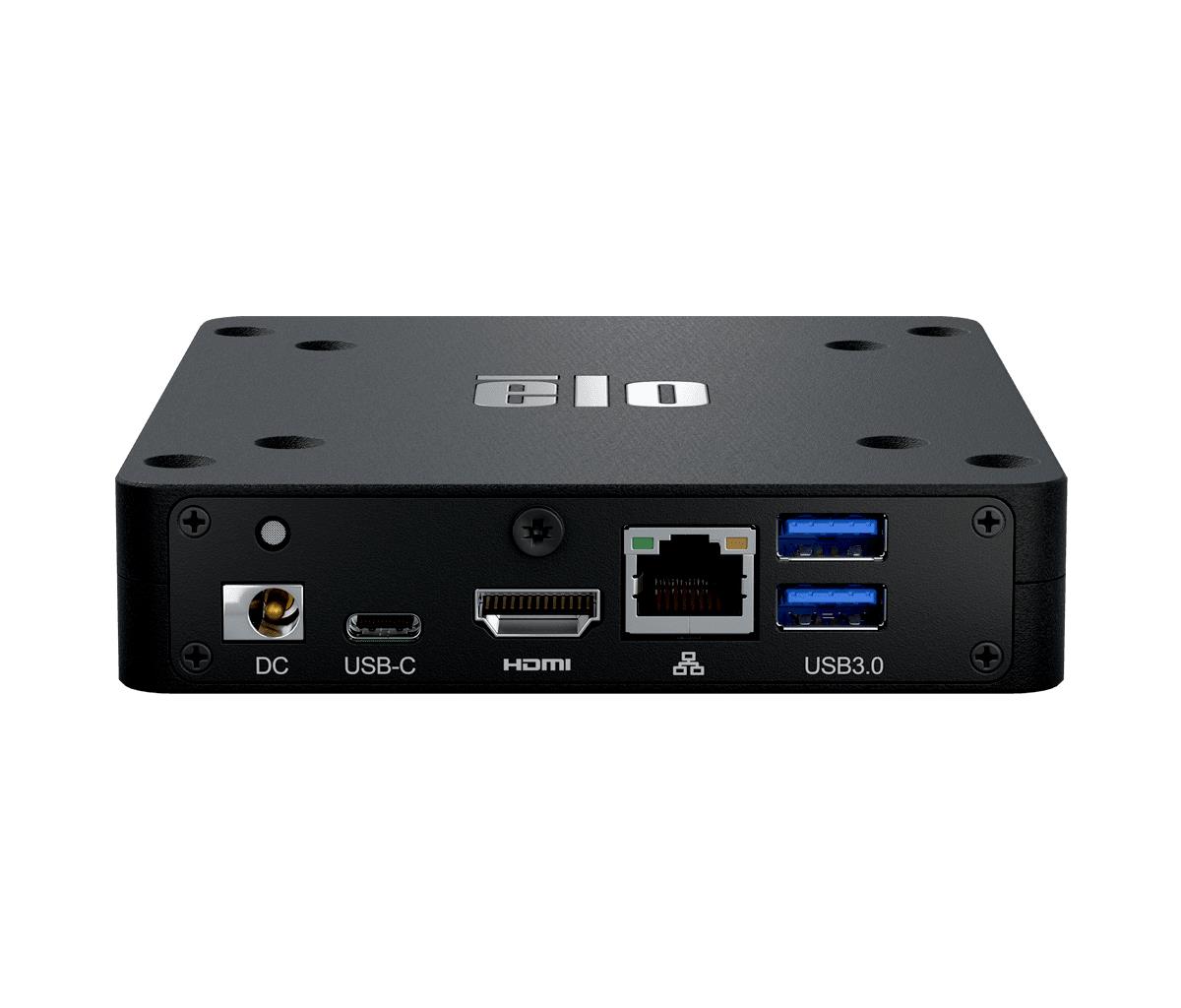

The Elo Backpack Linux device offers 4x USB 3.0, Ethernet, Bluetooth, Wi-Fi, HDMI, USB-C output, micro-SD, GPIO and Wi-Fi antennas.
Your Backpack.
Your solution.
From 7-65 inch, the Backpack adds a powerful Linux OS to Elo touchscreen monitors, open frames and large format interactive displays.
| Processor | |
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3399 |
| Processor cores | 8 |
| Memory | |
| Internal memory | 4 GB |
| Storage | |
| Total storage capacity | 32 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Chassis type | Desktop |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Product colour | Black |
| Software | |
| Operating system installed | Linux |
| Power | |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.28 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 50 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 114 mm |
| Depth | 139 mm |
| Height | 25.4 mm |
| Weight | 370 g |
| Package width | 371 mm |
| Package depth | 210 mm |
| Package height | 62 mm |
| Package weight | 370 g |
| Display | |
| Display included | No |
| Warranty | |
| Base Warranty | Non Non |
