Elopos Z30 - 15.6in - Elkhart Lake J6426 - 8GB Ram - 128GB Flash - Pcap - No Os Without Cfd
ITCurry #: M0134797 | Article #: E984089-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
EloPOS Z30 with Intel.
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and your choice of Windows 10, ChromeOS Flex and Linux, the EloPOS Z30 brings one of the sleekest form factors to the market.

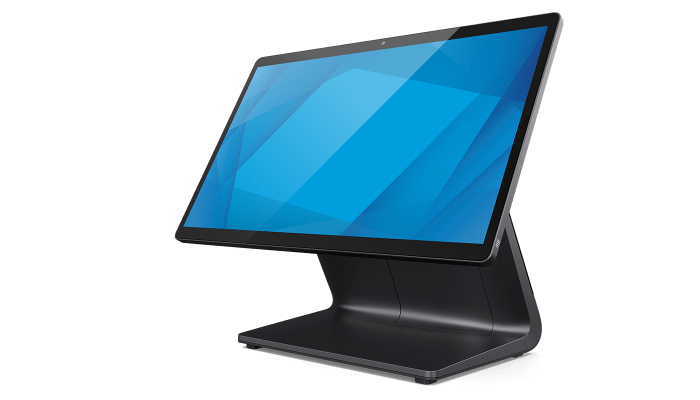

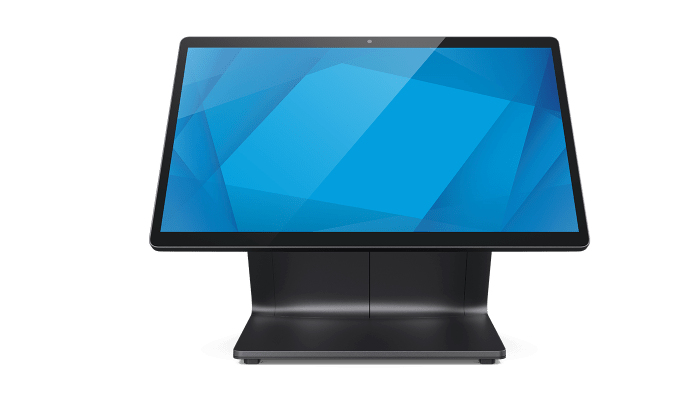

Powerful Touchscreen
The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.
Conceal Your Cables
Keep your counter clean with the integrated cable routing system.
Integrated I/O
From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
Single Cable Connection
Connect a secondary display with a single USB-C cable that provides touch, video and power.

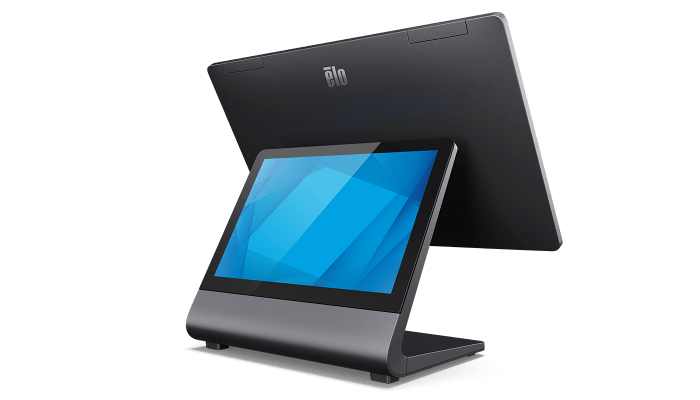

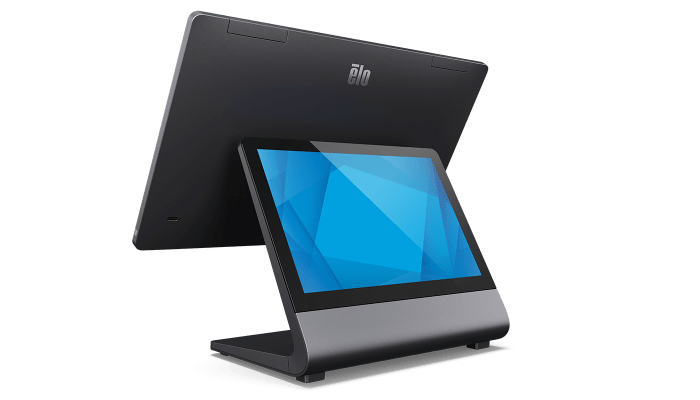

Interactive display for customers.
With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.
Commercial-grade performance.
Built with the reliability-tested performance and security of Intel 11th Generation processors and integrated Trusted Platform Modules, the EloPOS Z30 delivers the dependability businesses need.
Secure it.
The Z30 is designed to stay in place without being secured, but if permanent mounting is required,
easily affix your POS terminal to any counter or surface.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Get peace of mind with EloCare.
- Advance Unit Replacement
- Extended Warranty
- Professional Services
Retailers across the globe rely on Elo's POS Solutions everyday.
Your success is our success. We work side-by-side to help ensure selection, deployment and updates are executed properly so you can focus on your business.
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display type | LCD |
| Display brightness | 255 cd/mý |
| Touchscreen technology | Projected capacitive system |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170ø |
| Viewing angle, vertical | 170ø |
| Response time | 25 ms |
| Effective viewing area | 344 x 194 mm |
| Aspect ratio | 16:9 |
| Display number of colours | 16.2 million colours |
| Second display | Yes |
| Second display diagonal | 25.6 cm (10.1") |
| Processor | |
| Processor manufacturer | Intel |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| NVMe | Yes |
| Graphics | |
| Graphics card manufacturer | Intel |
| Graphics card | UHD Graphics |
| Features | |
| Certification | UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Network | |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| RJ-12 ports quantity | 1 |
| DC-in jack | Yes |
| Design | |
| Product colour | Grey |
| Software | |
| Operating system installed | No |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Power supply | 150 W |
| Power consumption (typical) | 32 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Relative humidity | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 362.8 mm |
| Depth | 180.4 mm |
| Height | 298.7 mm |
| Weight | 4 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 460 mm |
| Package depth | 270 mm |
| Package height | 399 mm |
| Package weight | 6.4 kg |
| Packaging content | |
| Quick start guide | Yes |
| Warranty | |
| Base Warranty | Non Non |
