AiO Touch Computer X7-15 15in Intelit+ Zero-bezel Dual-touch 4GB Win7 Pro Moq:50
ITCurry #: M0133527 | Article #: E220646-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

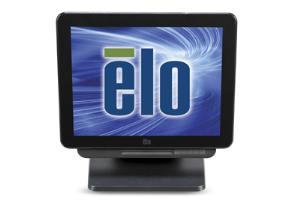

The new Elo X-Series 15-inch and 17-inch All-in-One (AiO) touchcomputers bring style, flexibility and functionality to point-of-sale (POS), point-of-information (POI) and point-of-service applications within retail and hospitality environments. Configuration customization, serviceability and performance combine to deliver touchcomputing that adapts to your existing hardware, software and connectivity requirements.
The X-Series AiO touchcomputers are available with industry-leading touchscreen technologies from Elo including AccuTouch micro-bezel 5-wire resistive, IntelliTouch surface acoustic wave, IntelliTouch zero-bezel surface acoustic wave (SAW) and IntelliTouch Pro Projected Capacitive (PCAP).
The fan-less models utilize the Intel Celeron Quad-Core processor for environments where noise may be an issue. Higher performance, the fan-cooled models feature 4th Generation Intel Core i3, i5 and i7 processors and HD2500 graphics. A wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options make the X-Series a versatile and powerful AiO solution.
The X-Series configuration choices meet the diverse needs of a wide variety of POS, POI and point-of-service venues, including retail and hospitality display units, customer loyalty systems and in-store kiosks, just to name a few.
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Touchscreen | Yes |
| Display brightness | 225 cd/mý |
| Touchscreen technology | Surface acoustic wave |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 165ø |
| Viewing angle, vertical | 150ø |
| Response time | 16 ms |
| Effective viewing area | 304.12 x 228.1 mm |
| Aspect ratio | 4:3 |
| Display number of colours | 16.78 million colours |
| Processor | |
| Processor frequency | 2.7 GHz |
| Processor family | Intel© CoreT i7 |
| Processor generation | 4th gen Intel© CoreT i7 |
| Processor model | i7-4790T |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Memory | |
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1600 MHz |
| Storage | |
| Total storage capacity | 320 GB |
| Storage media | HDD |
| HDD capacity | 320 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| Graphics | |
| Graphics card manufacturer | Intel |
| Graphics card | HD Graphics 4600 |
| Features | |
| Certification | UL/cUL, FCC, TUV, CE, CB, Mexico COC, Argentina S-mark (power brick only), C-Tick, VCCI, CCC |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| RS-232 ports | 2 |
| Design | |
| Chassis type | All-in-One |
| Product colour | Black |
| Software | |
| Operating system installed | Windows 7 Professional |
| Power | |
| Power consumption (typical) | 59 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Mean time between failures (MTBF) | 50000 h |
| Weight & dimensions | |
| Width | 365.2 mm |
| Depth | 67.2 mm |
| Height | 348.8 mm |
| Weight | 4.8 kg |
| Weight (with stand) | 7.5 kg |
| Packaging data | |
| Package width | 482 mm |
| Package depth | 442 mm |
| Package height | 352 mm |
| Package weight | 9.6 kg |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Warranty | |
| Base Warranty | Non Non |
