The DuraVision DX0211-IP can connect to an IP camera or switch and supply video data to a connected monitor. It does not require a PC, software or any other hardware to operate, which greatly simplifies installation and saves time and labour costs. Its HDMI output supports 4K UHD resolution, while its decoding performance allows up to 16 Full HD video feeds.
Integrated solution
The DuraVision DX0211-IP can connect to an IP camera or switch and supply video data directly to a connected monitor. It does not require a PC, software or any other hardware to operate, which greatly simplifies installation and saves time and labour costs. This also eliminates several of the potential points of failure typically associated with a conventional setup by significantly reducing the amount of equipment needed to manage sensitive visual data.
Box solution features innovative decoding technology
The DuraVision DX0211-IP features the innovative decoding technology used in EIZO’s unique IP decoding monitors in an external box format. It decodes and compresses multiple feeds from IP cameras in order to display video data in real-time. It can be used in conjunction with different monitor sizes and resolutions, making it ideal for video walls and multi-monitor environments.
Video decoding
The DuraVision DX0211-IP can decode and compress H.265 (HEVC) (H.265 support is planned for the end of 2019), as well as H.264 and MJPEG codecs, displaying them in real-time in order to assess any situation quickly. The decoding technology also ensures a high fps (frames per second) for displayed content, even when streaming high-resolution video data. For example, 16 Full HD (1920 x 1080) video feeds displayed simultaneously on a single monitor consistently achieve 20 fps.
4K output
The DuraVision DX0211-IP features two HDMI outputs that support 4K UHD resolution (3840 x 2160) on up to two monitors (currently supports a single monitor; dual-monitor support is planned for the end of 2019). This allows users to flexibly combine different resolutions in a viewing environment, such as a Full HD and 4K displays.
Live streaming directly from IP cameras
Connecting IP cameras directly to the DuraVision DX0211-IP facilitates the live streaming of video data without a decentralised recording solution, such as edge recording or cloud archiving. This offers the ideal solution for scenarios that require live streaming, but for which the storage of recorded images is not permitted.
VMS-independent fallback solution
VMS forms the basis for reliable video playback in modern VSS solutions. Even though the platform is protected from foreseeable events thanks to server redundancy, the VMS solution that establishes a connection to the operators via a client should be seen as a critical point. If this system comes under attack or is disabled, the IP decoding solution which operates independently of the VMS can provide a redundant solution. To achieve this, it is simply connected directly to the surveillance cameras, the network connection of which continues to operate.

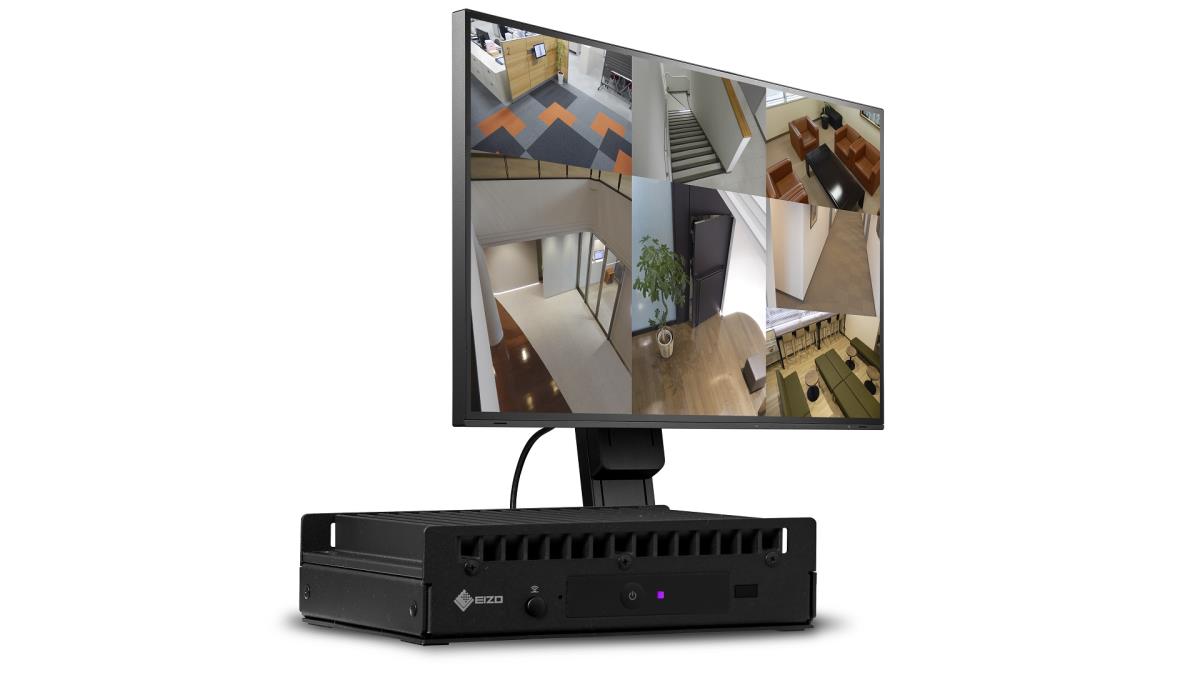

Adjustable screen layout
You can easily adjust the layout of the video streams with seven default options, displaying up to 32 screens per monitor via the user-friendly web UI (currently supports up to 16 channels/screens on a single monitor; support for 32 channels per monitor is planned for the end of 2019). The flexible arrangement of screens on each monitor in a custom layout also allows you to fulfil individual viewing needs. By means of a custom layout, you can merge individual windows to focus on one specific area, or split them to see more than one on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.
Customisable event response
The web API supports customisable integration with the local VMS. This allows events or alarm monitoring to be communicated from the VMS to the IP decoding box, instructing it to respond to a given event. The DuraVision DX0211-IP then adjusts the display of the receiving monitor to operate accordingly.
Functionality with leading VMS
EIZO works with pioneers in the security and surveillance industry to ensure technical compatibility and functional support with various VMS (video management systems).
Genetec Security Centre plug-in
EIZO and Genetec collaborated to design a plugin that fulfils many sought-after end user requirements for security systems across the world. By integrating the Genetec™ Security Centre video wall framework, users can easily setup and manage EIZO’s DuraVision IP decoding monitors and IP decoding box remotely. Using the Security Centre interface, operators can simply drag and drop the video feed from registered cameras to the desired position and the settings will be automatically reflected on the target monitor. The number and layout of the video feeds can also be easily configured on the same screen. DuraVision IP decoding solutions can also respond to dynamic instructions from Security Centre when specific events occur, such as expanding the screen in response to unauthorised access.
Secure investment with support for over 250 cameras
The DuraVision DX0211-IP supports cameras with ONVIF Profile S, Axis VAPIX and Panasonic protocols for flexible installation and guaranteed interoperability with a wide range of products. A direct connection via RTSP is also available (direct URI) (currently supports ONVIF Profile S; Axis VAPIX and Panasonic protocol support is planned for the end of 2019)
| Storage | |
| Hot-swap drive bays | No |
| RAID support | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| USB 2.0 ports quantity | 1 |

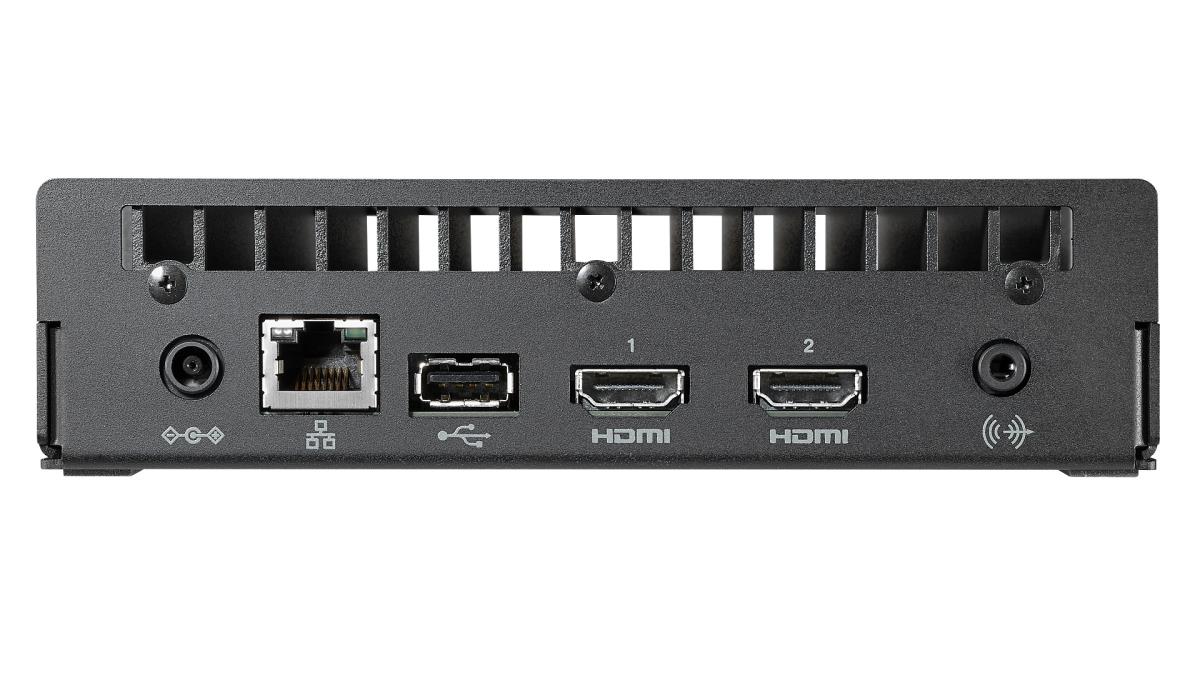

| HDMI ports quantity | 2 |
| HDMI output | Yes |
| Audio in/out | Yes |
| Features | |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840x216 1920x1080 |
| Supported aspect ratios | 4:3, 5:4, 16:9 |
| Video compression formats | H.256, H.264, M-JPEG |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VESA mounting | Yes |
| Certification | CE |
| Design | |
| On/off switch | Yes |
| Power | |
| Power consumption (max) | 25.5 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (Power over Ethernet (PoE)) | 21.5 W |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 44.2 mm |
| Height | 130 mm |
| Weight | 800 g |
| Packaging content | |
| Cables included | AC, HDMI |
| Quick installation guide | Yes |
| Warranty | |
| Base Warranty | Non Non |
