Desktop Monitor - FlexScan EV2360 - 23in - 1920x1200 (WUXGA) - White - IPS 5ms w/Speakers
ITCurry #: 28012791 | Article #: EV2360-WT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
High Resolution in a Space-Saving Design
The EV2360 uses a 22.5-inch IPS panel – the smallest amongst EIZO's frameless models. The small-footprint monitor has a width of just 499 mm and a high native resolution of 1920 x 1200. It shows 11% more content than a conventional monitor with a full HD (1920 x 1080) resolution, reducing the need for frequent scrolling in some applications.
Lower Impact on the Environment
1. Relief for Your Eyes and the Environment
The EV2360 implements EIZO's proprietary EcoView technologies, which cut power consumption by as much as 40% compared to displaying at maximum brightness and help to eliminate eyestrain when viewing the monitor for long periods.
Auto EcoView: Automatically adjusts the screen’s brightness according to changes in the ambient lighting
EcoView Optimizer 2: Fine-tunes the balance between brightness and gain according to the content displayed on the screen.
Furthermore, as part of its efforts to maintain environmentally responsible manufacturing, EIZO developed the monitor without flame retardant in the plastic body to improve recyclability. EIZO also uses recyclable packing for the boxes the monitor is shipped in.
2. Rest Assured with Major Sustainability Standards
The monitor is certified by worldwide comprehensive sustainability certifications such as EnergyStar, EPEAT, and TCO Certified Generation 9. This provides evidence to companies that need to verify conformance with their own procurement requirements according to ESG (environmental, social, and governance) investment or SDGs policy.
Optimized for Hot Desking
1. Take Your Settings with You
EIZO's Screen InStyle proprietary software's Color Briefcase allows you to effortlessly maintain your individual screen preferences and take them with you, even to different monitors. Your settings are automatically reflected simply by connecting your laptop to a monitor supported by Screen InStyle. This is useful in environments with hot-desking or shared workspaces, providing enhanced comfort and work efficiency.
2. The Perfect Position
The stand features wide range height adjustment, tilt, and swivel, while saving space and remaining stylish. You can adjust your monitor to the perfect position with ease.
3. Refreshing White with Frameless Design
The EV2360 comes with a white cabinet option with matching cables. Compared to black, white monitors offer a refreshing change that brightens the office with style. The frameless design further sophisticates the look.
Say Goodbye to Tired Eyes
The EV2360 is equipped with functions to help prevent eye fatigue, so you can concentrate on work throughout the day without tiring.
Auto Brightness Control
To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.
Clear View from All Angles
The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.
Reduce Blue Light by 80%
In the visible light spectrum, blue light has wavelengths adjacent to ultraviolet light. Compared to the factory preset setting of 6500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents. When used in conjunction with Auto EcoView dimming function, blue light can be reduced by as much as 80%.
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV2360 utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.
Minimum Brightness of Approximately 1 cd/m2
In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.
Anti-Glare Coating
The EV2360 is treated with an anti-glare coating to reduce screen reflections caused by ambient lighting. The coating scatters incoming light, reducing the amount of light reflected into your eyes.
Additional Convenience

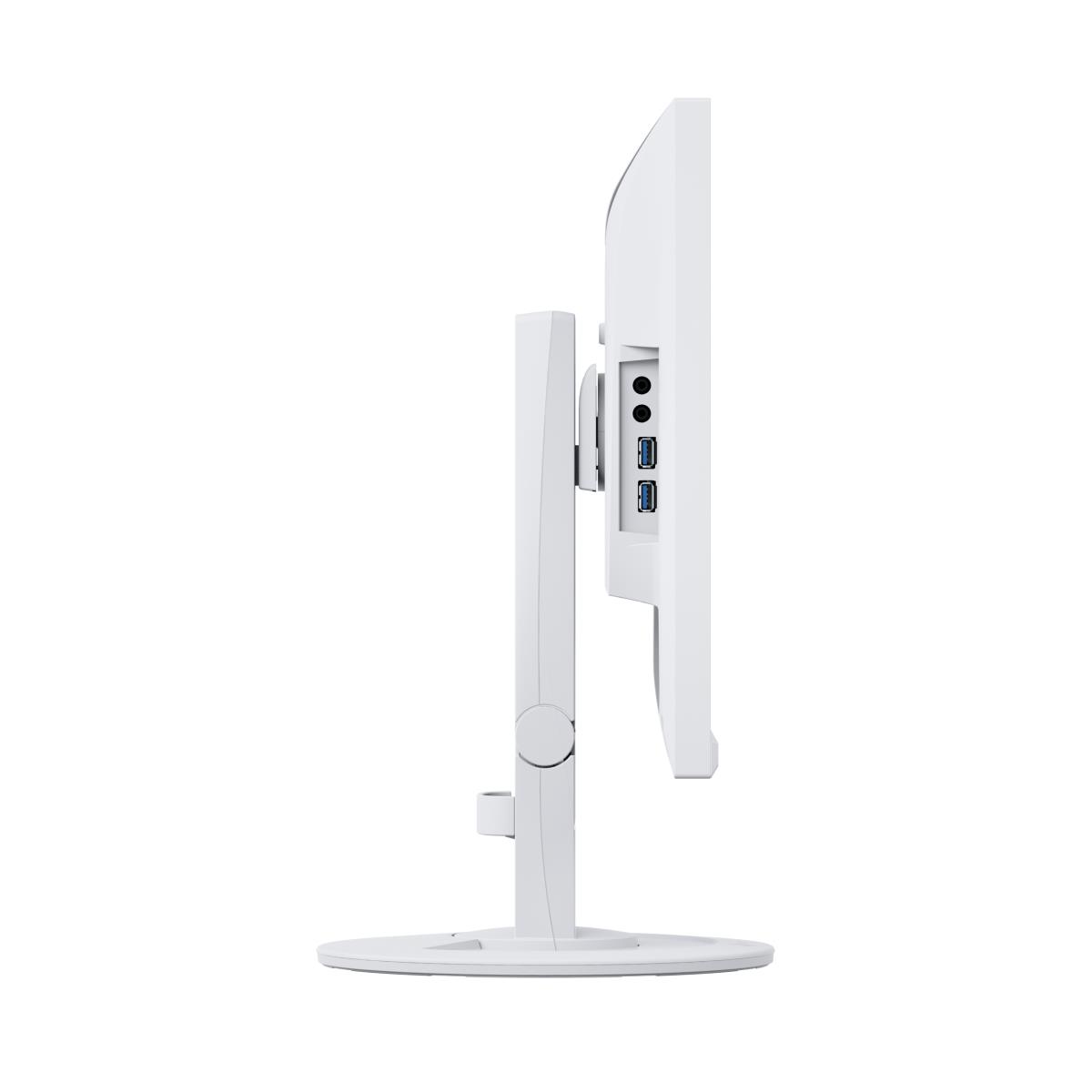

Connectivity on the Side and Back
The monitor is equipped with three input terminals: DisplayPort, HDMI® and D-Sub. Two USB Type-A ports and a headphone jack are also installed for convenient connection with peripheral devices.
Free Up Your Workspace with a Stand Bracket
The PCSK-03R is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely.
Care for the Environment and You
Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.
| Display | |
| Display diagonal | 57.1 cm (22.5") |
| Display resolution | 1920 x 1200 pixels |
| HD type | WUXGA |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Panel type | IPS |
| Backlight type | LED |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/mý |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.254 x 0.248 mm |
| Pixel density | 101 ppi |
| Horizontal scan range | 31 - 75.5 kHz |
| Vertical scan range | 59 - 61 Hz |
| Viewable size, horizontal | 48.8 cm |
| Viewable size, vertical | 29.7 cm |
| Viewable size diagonal | 57.2 cm |
| Colour gamut standard | sRGB |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Design | |
| Market positioning | Business |
| Product colour | White |
| Frameless design | Yes |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Headphone out | Yes |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | Yes |
| Height adjustment | 14 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90ø |
| Swivelling | Yes |
| Swivel angle range | 0 - 344ø |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35ø |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Swedish |
| Power | |
| Energy efficiency class (SDR) | C |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 10.5 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 346698 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width (with stand) | 499 mm |
| Depth (with stand) | 233 mm |
| Height (with stand) | 333.9 mm |
| Weight (with stand) | 5.5 kg |
| Width (without stand) | 499 mm |
| Depth (without stand) | 53.6 mm |
| Height (without stand) | 321.3 mm |
| Weight (without stand) | 3.4 kg |
| Packaging content | |
| Stand included | Yes |
| Cables included | AC, DisplayPort, USB |
| Warranty | |
| Base Warranty | Non Non |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Silver, TCO |
| Other features | |
| Compliance certificates | BIS, BSMI, CB, CCC, CE, China RoHS, EAC, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, cTUVus, VCCI, WEEE |
| Certification | CE, CB, TšV/GS, TšV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TšV/Blue Low Light Content, TšV/Flicker Free, RCM, cTšVus, FCC-B, CAN ICES-3 (B), TšV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, BIS, BSMI, EAC |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
