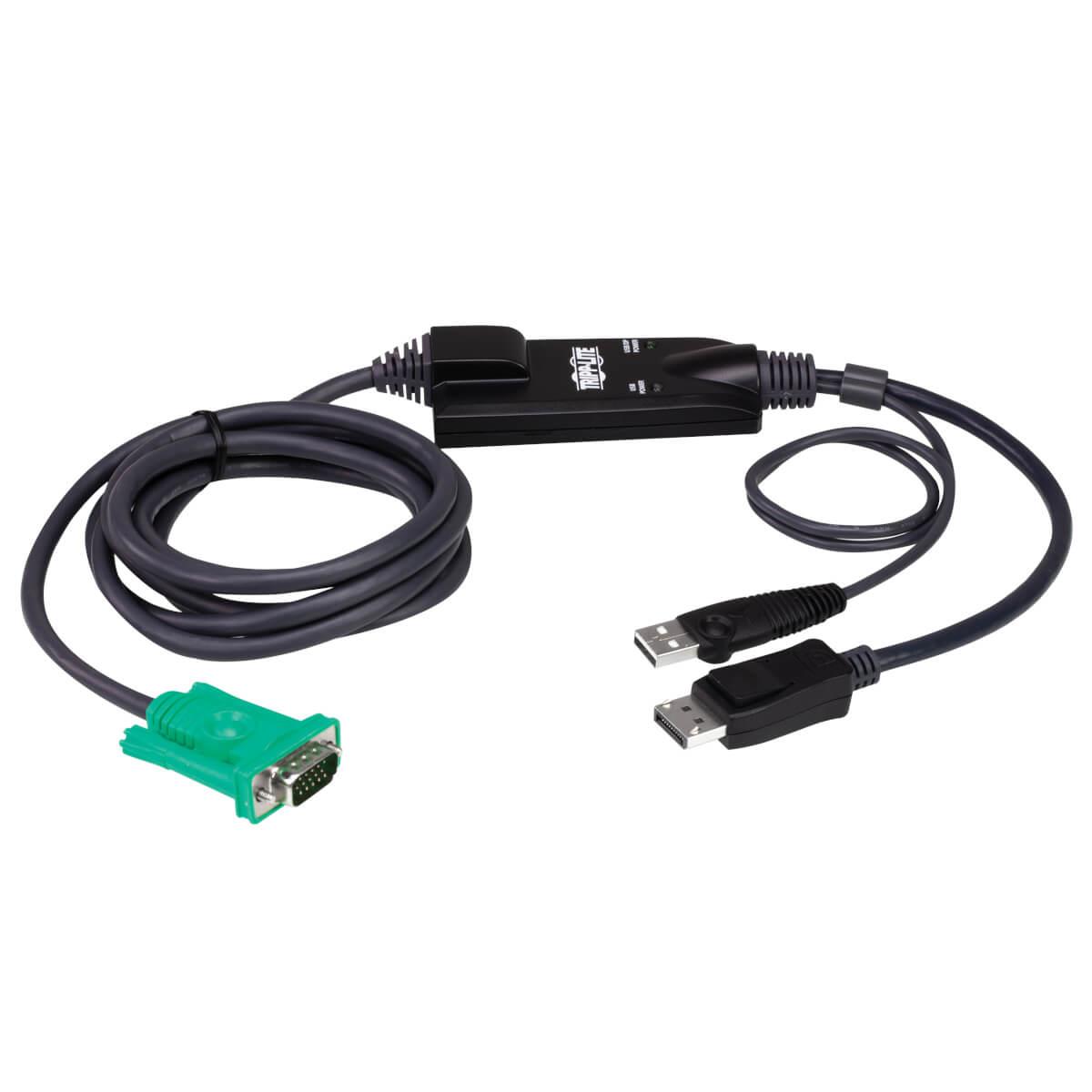

TRIPP LITE VGA to DisplayPort and USB-A Adapter Cable Kit for Tripp Lite B020-U and B022-U KVM, 1.8m
ITCurry #: 57907126 | Article #: P778-006-DP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Connect Your Computer’s DisplayPort and USB Ports to a KVM Switch

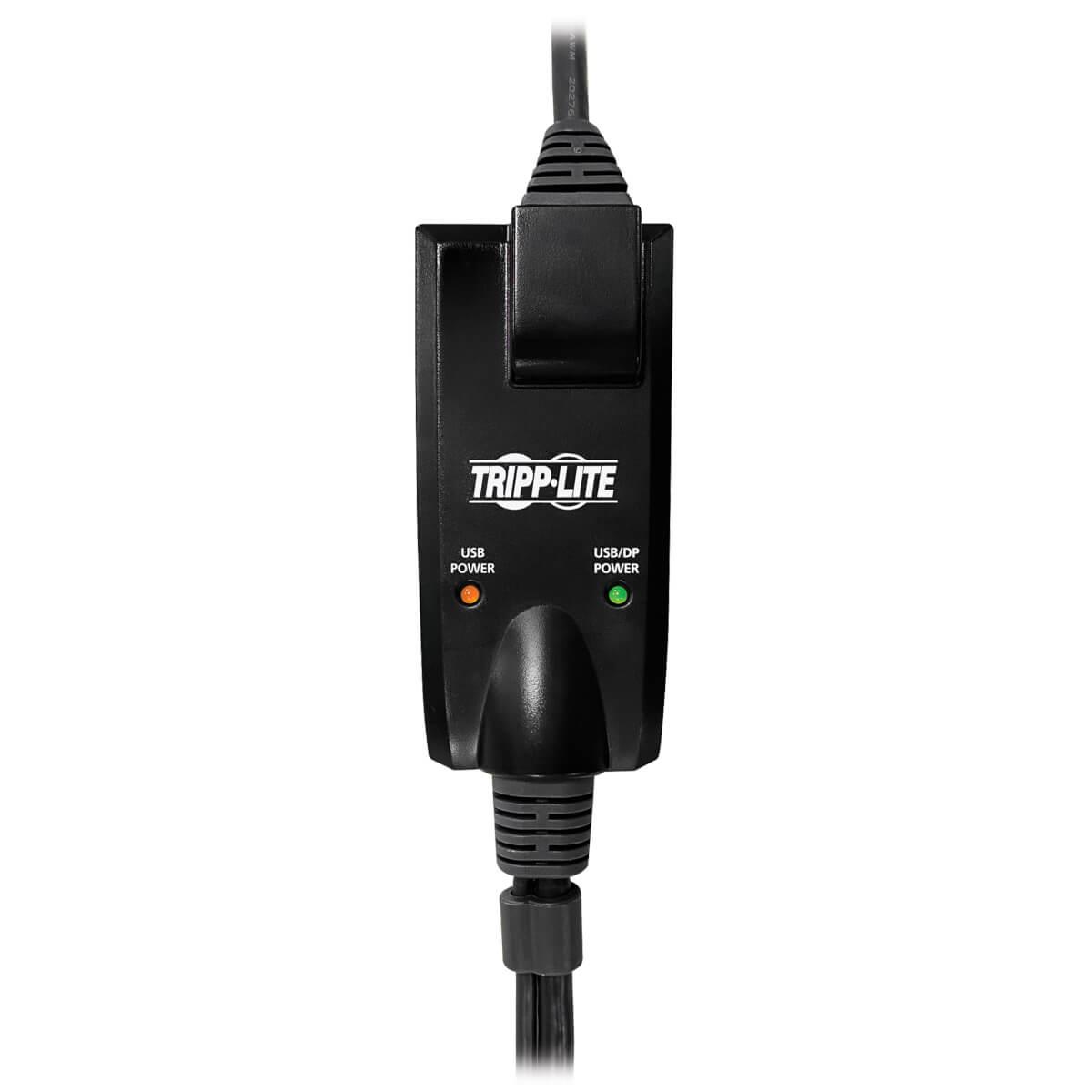

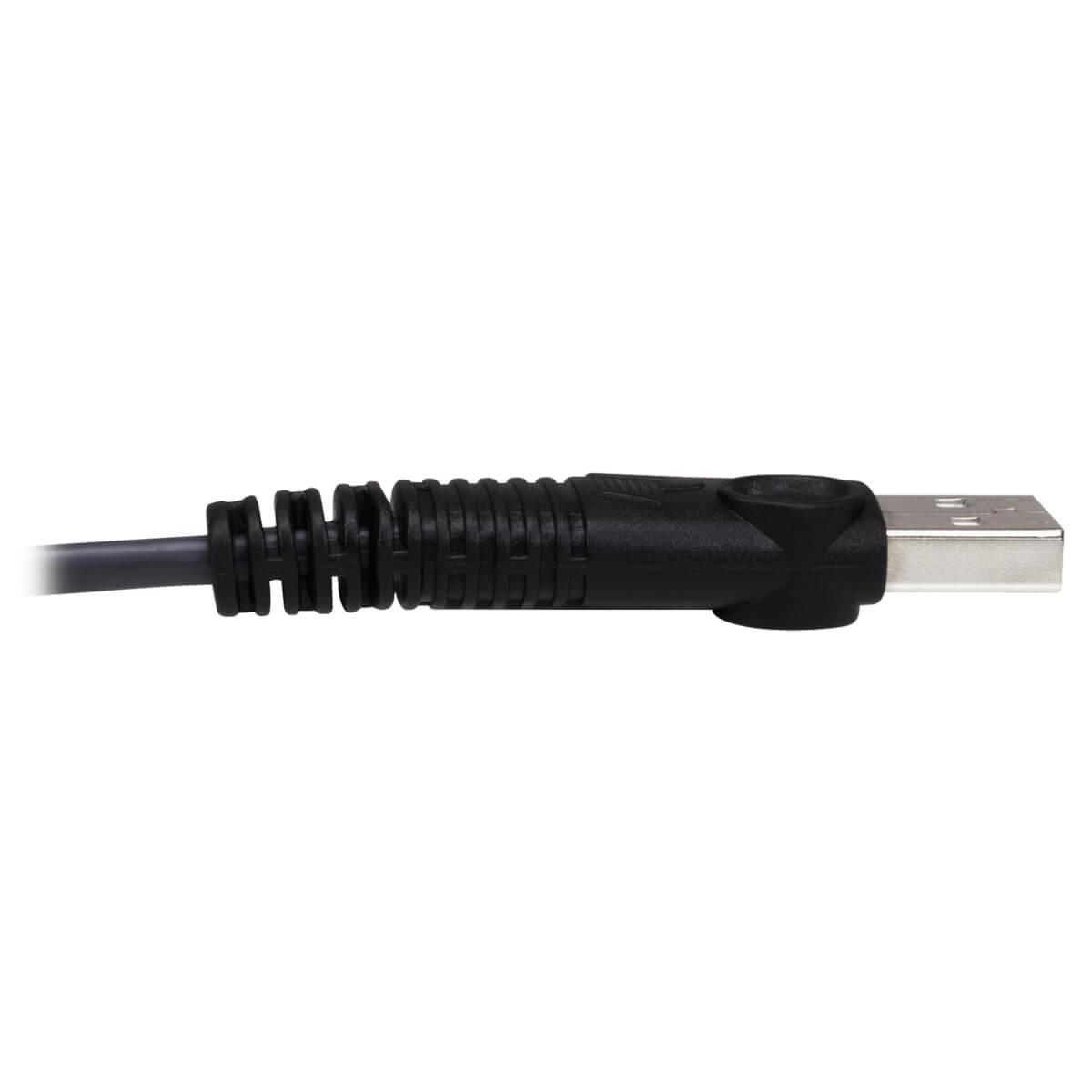

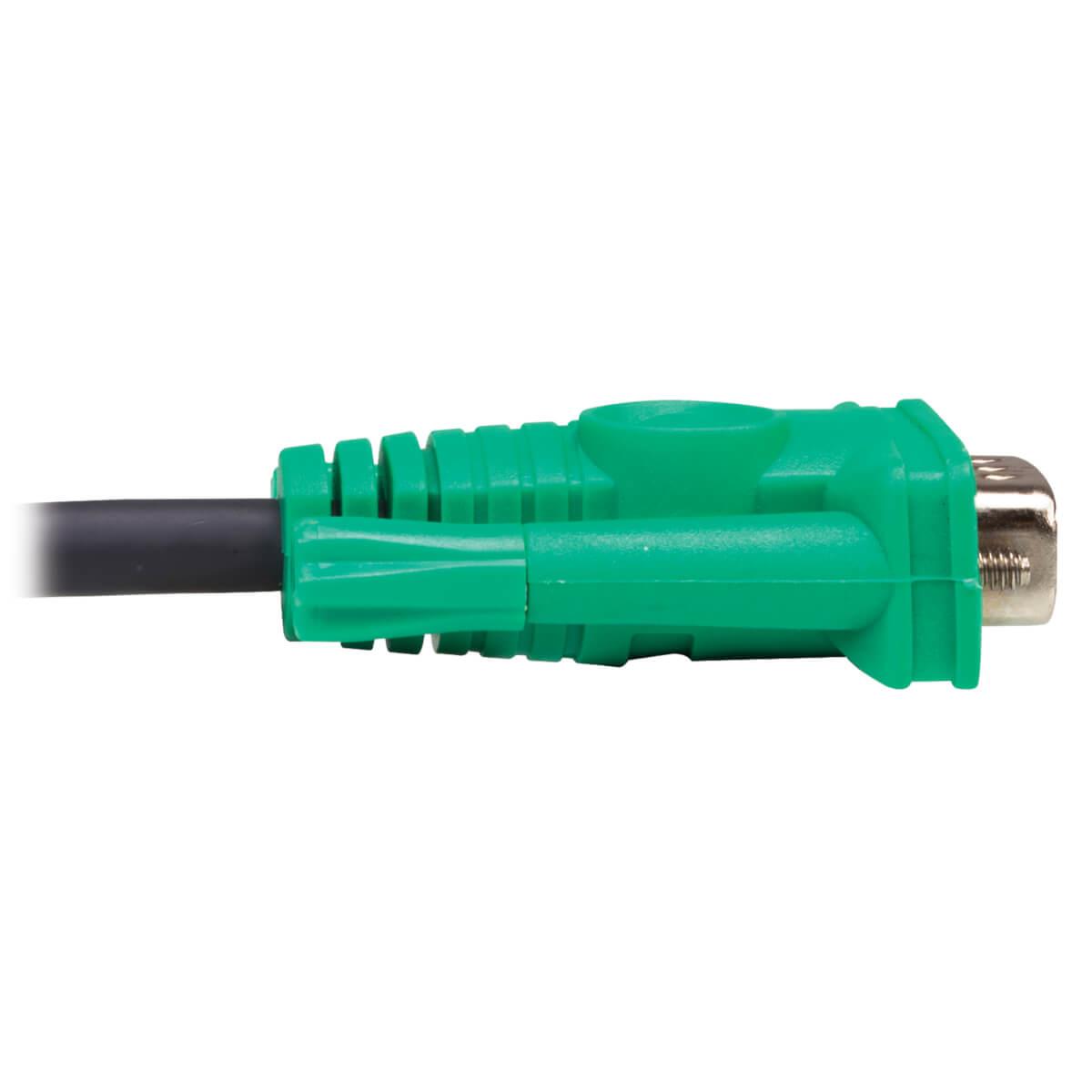

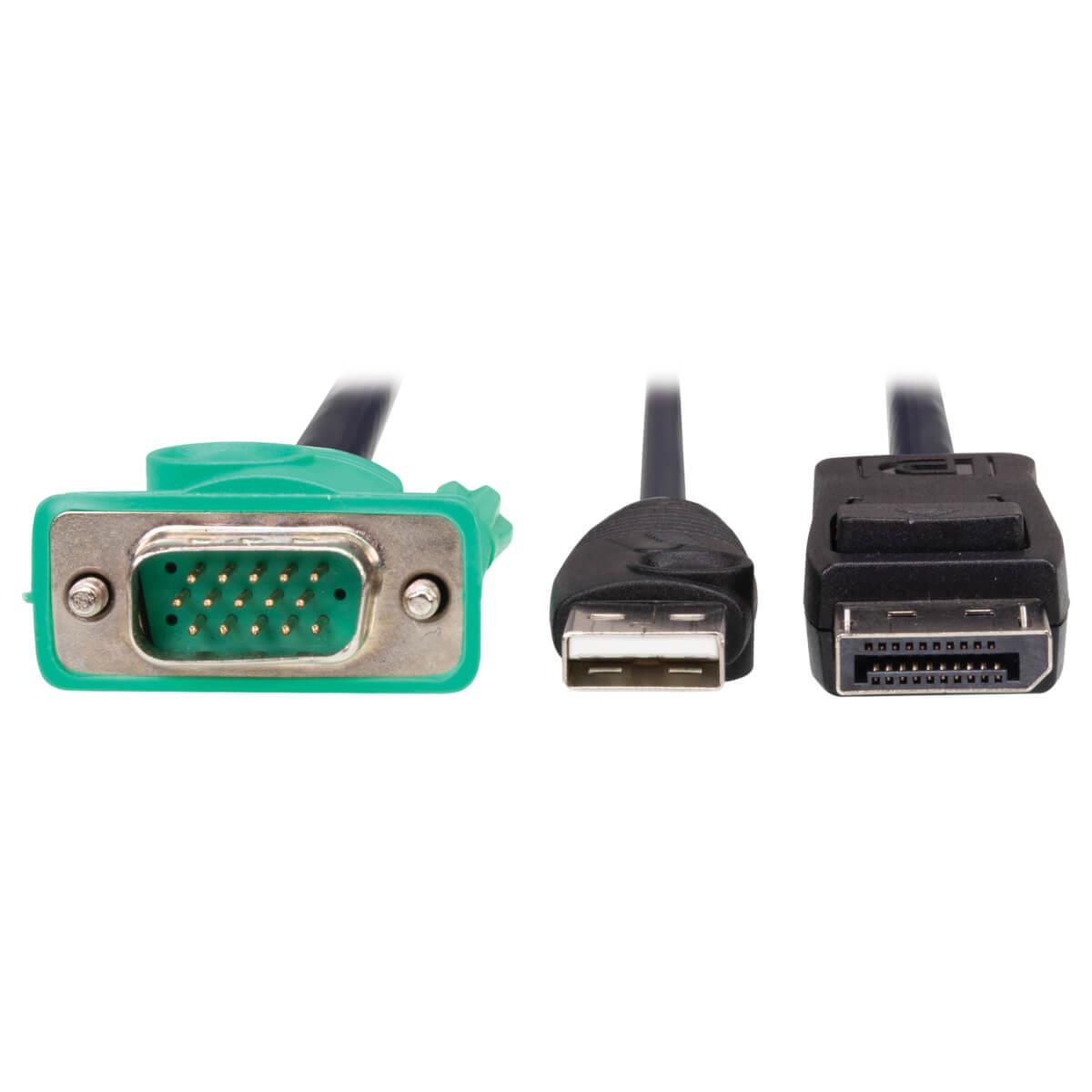

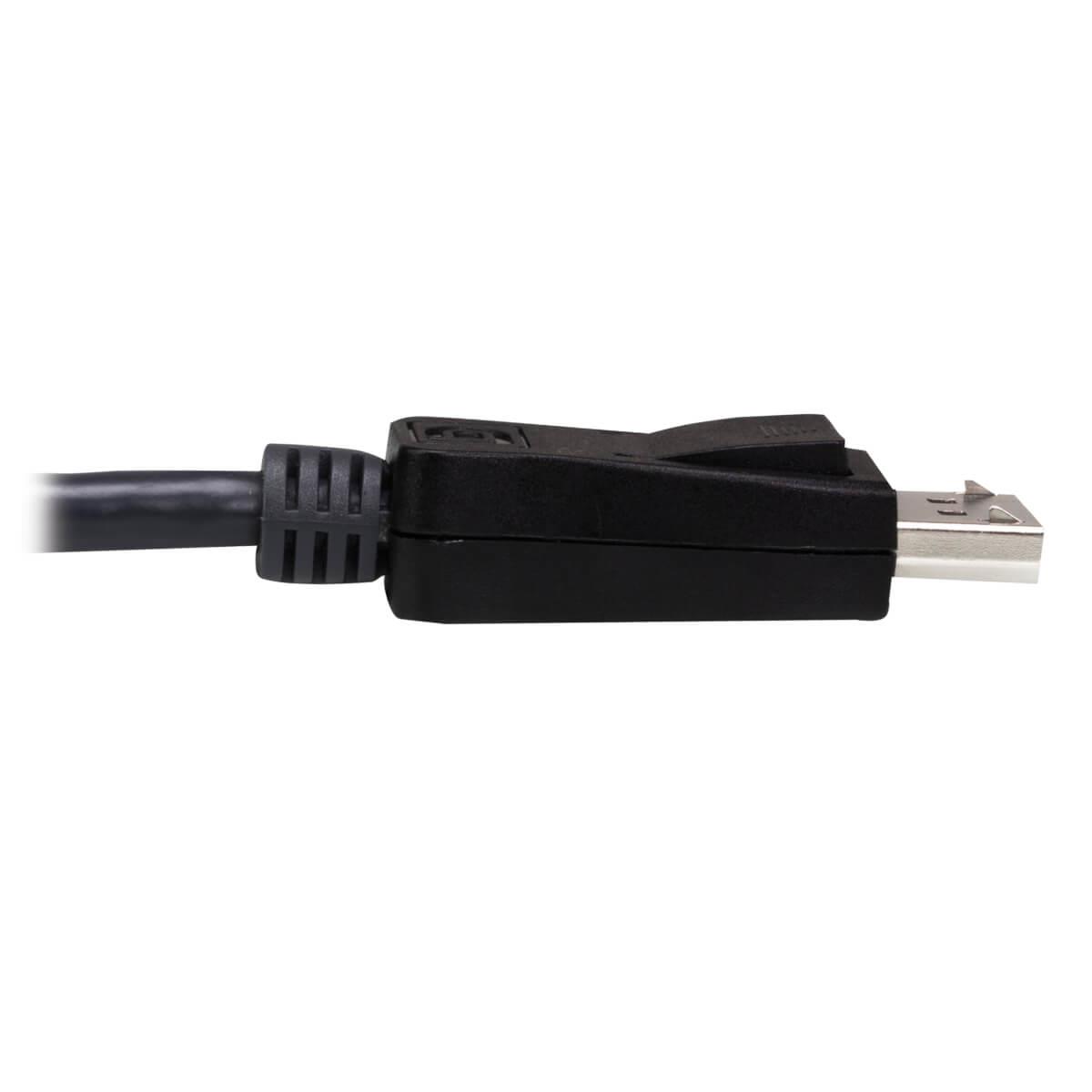

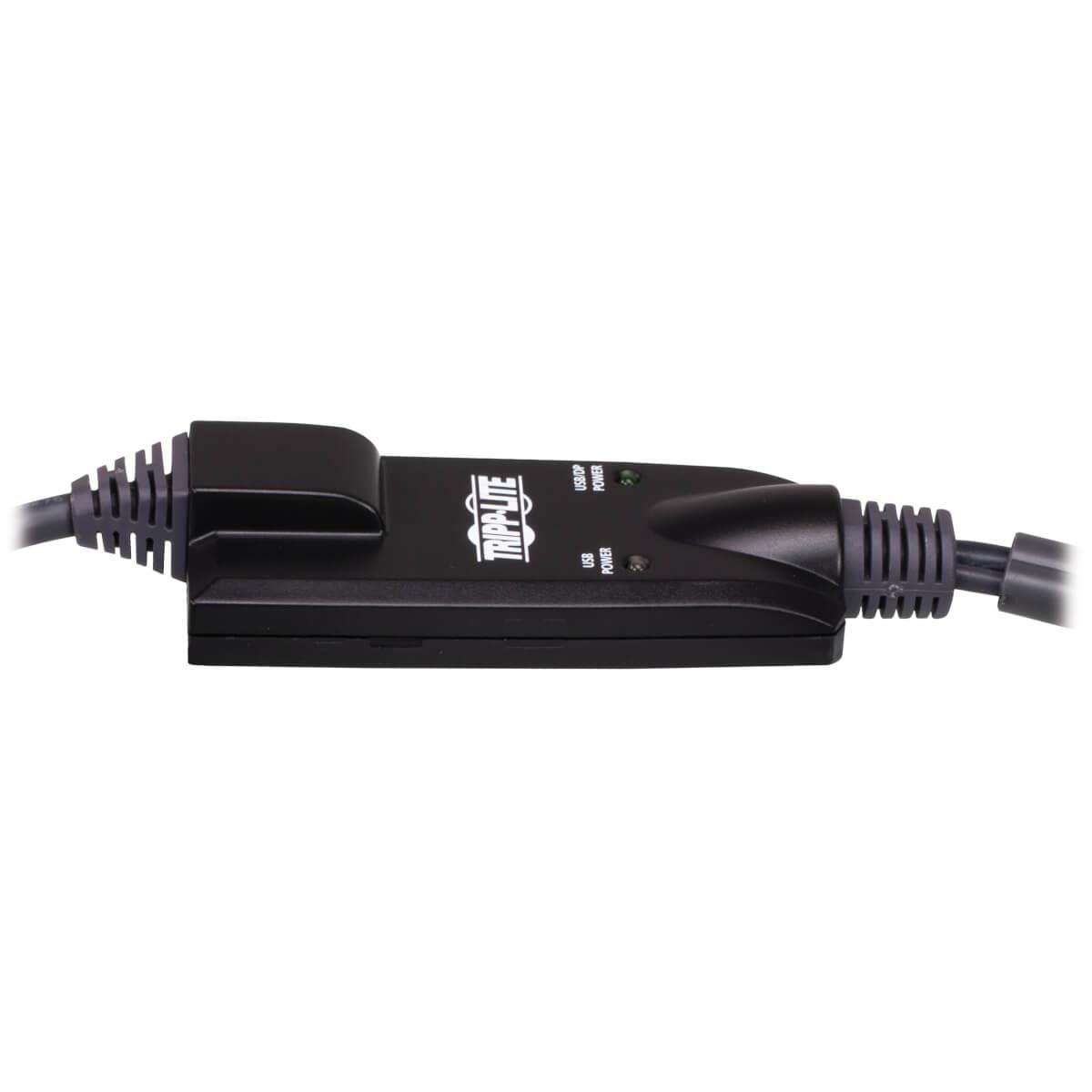

This convenient cable kit saves you money by combining necessary cables into one bunch. For use with B020-U and B022-U KVM switches, the P778-006-DP features male DisplayPort and USB-A connectors for your server or computer and a male HD15 connector for the KVM. The DisplayPort 1.1-compliant cable supports HD resolutions up to 1920 x 1080 (1080p) at 60 Hz with 36-bit Deep Color. The USB 2.0 cable supports 480 Mbps speeds. The bus-powered cable kit requires no software or external power adapter. A sliding switch on the back of the housing lets you decide between USB power mode or USB + DP power mode with LEDs indicating which mode you have chosen.
Performance | |
Product colour | Black, Green |
Cable length | 1.83 m |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | DisplayPort |
Connector 1 gender | Male |
Connector 2 gender | Male |
Maximum video resolution | 1920 x 1080 pixels |
Cable jacket material | Polyvinyl chloride (PVC) |
Country of origin | China |
Technical details | |
Master (outer) case GTIN (EAN/UPC) | 10037332263350 |
Packaging data | |
Package width | 160 mm |
Package depth | 119.1 mm |
Package height | 61 mm |
Package weight | 320 g |
Logistics data | |
Harmonized System (HS) code | 8544.42.2000 |
Master (outer) case width | 490 mm |
Master (outer) case length | 338.1 mm |
Master (outer) case height | 337.8 mm |
Master (outer) case gross weight | 11.2 kg |
Products per master (outer) case | 40 pc(s) |
Warranty | |
Base Warranty | Non Non |
