TRIPP LITE Swivel/Tilt Wall Mount for 13" to 27" TVs and Monitors
ITCurry #: 57904798 | Article #: DWM1327SE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

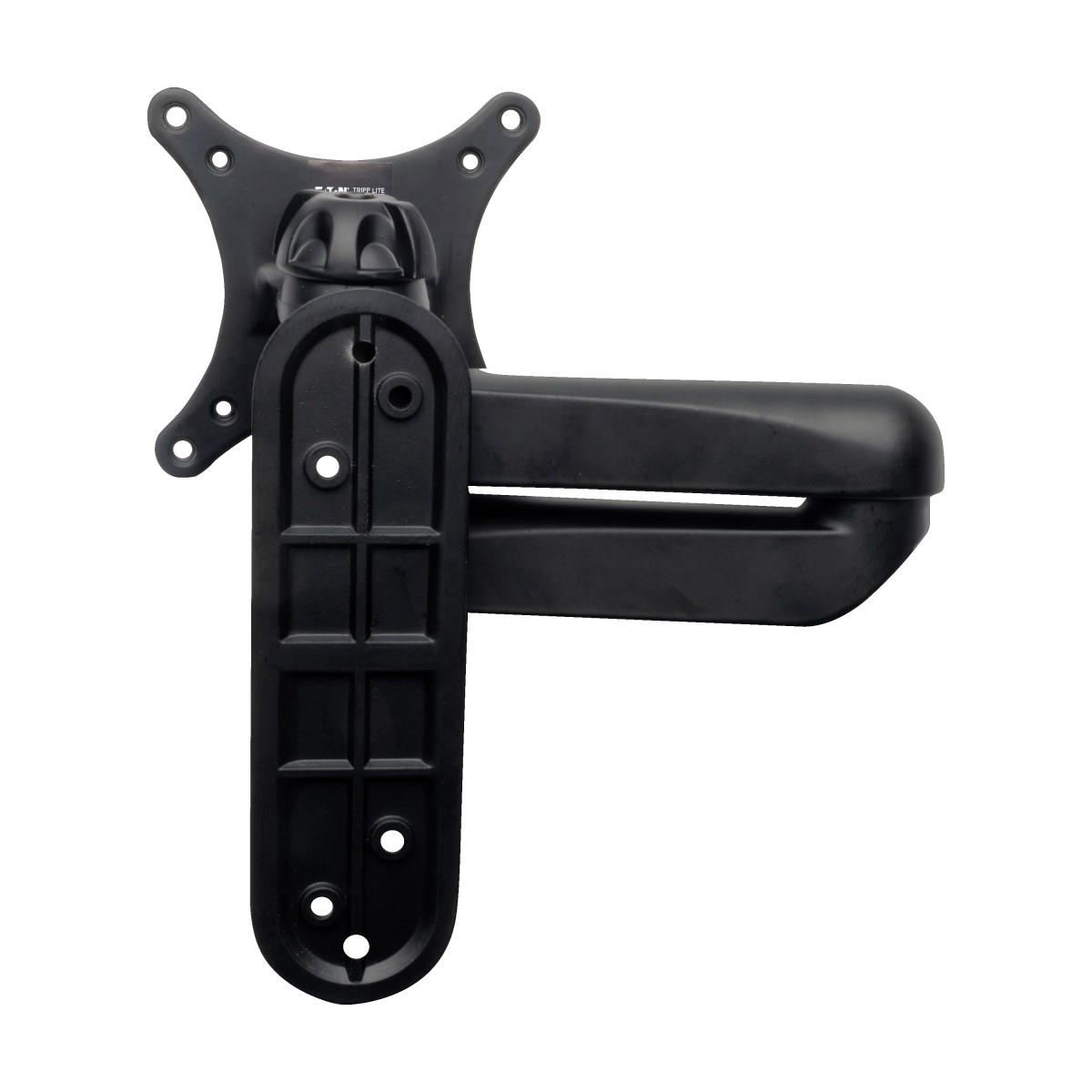

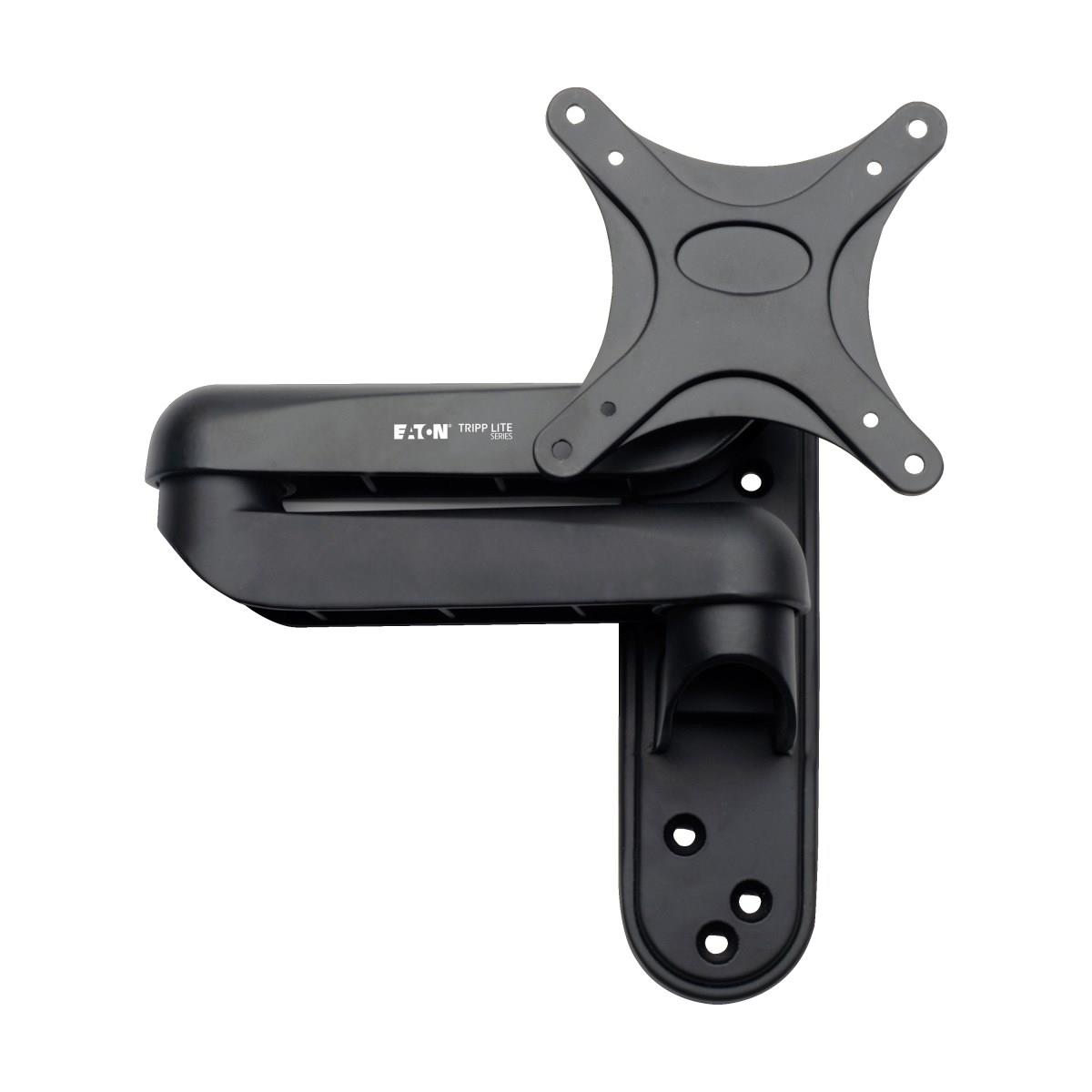

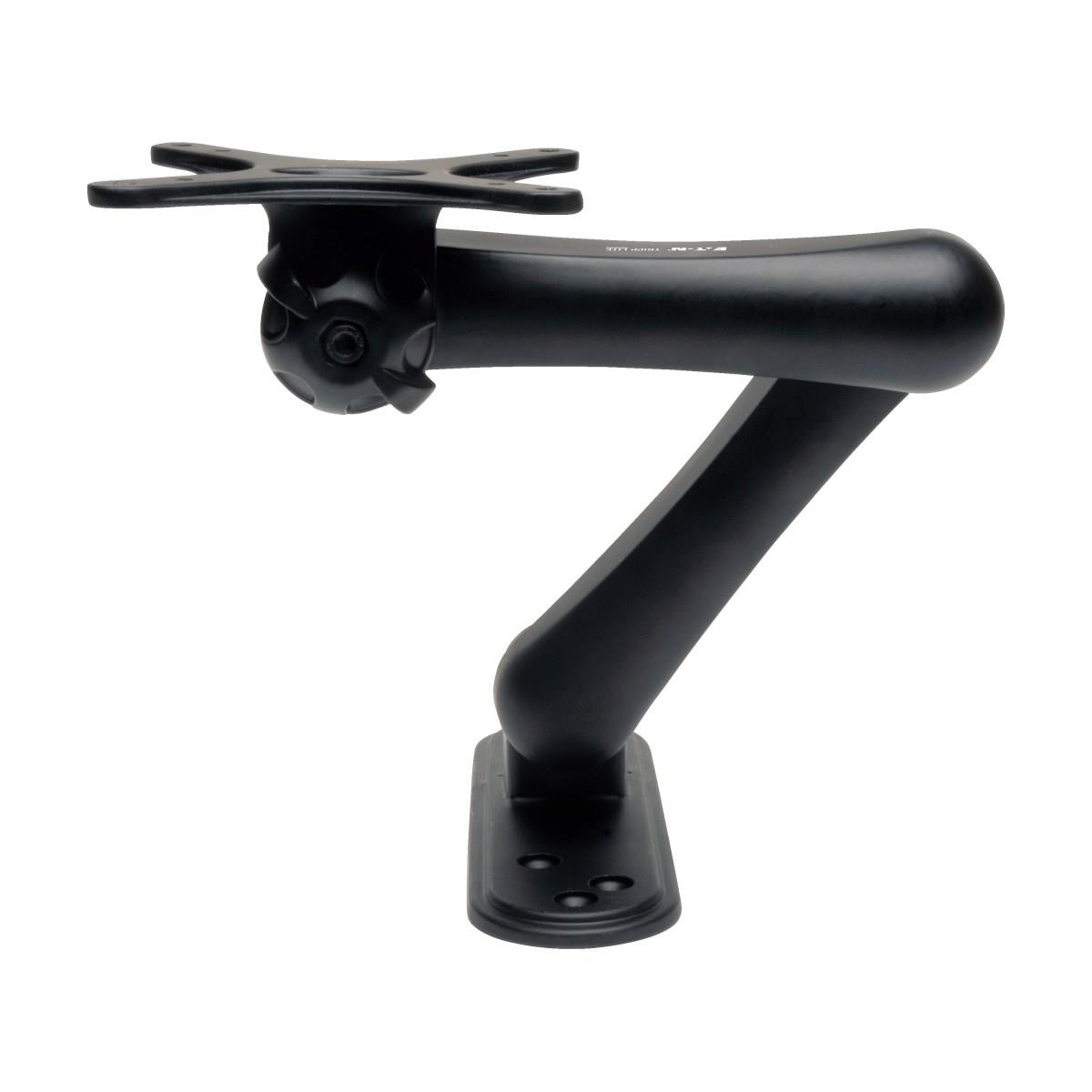

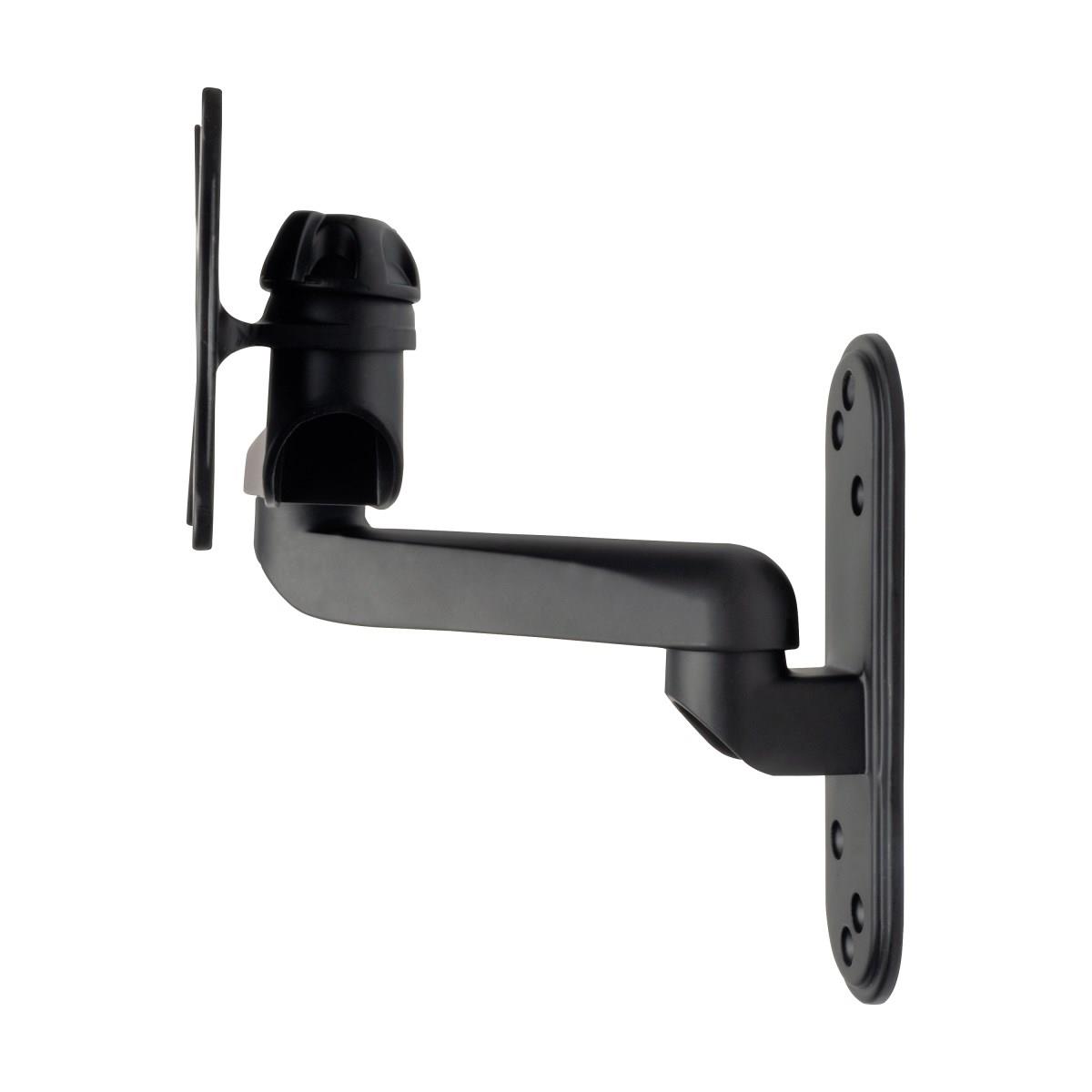

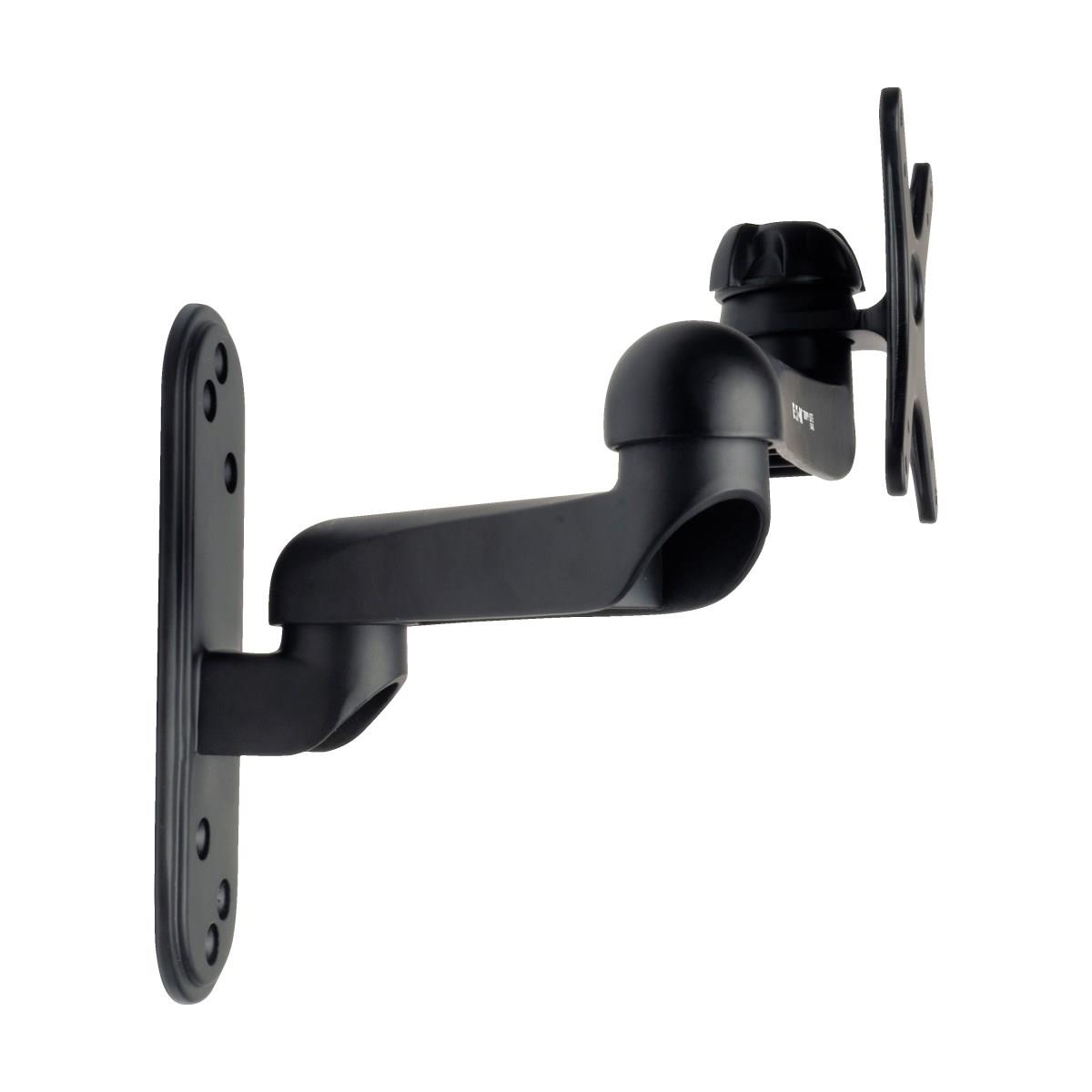

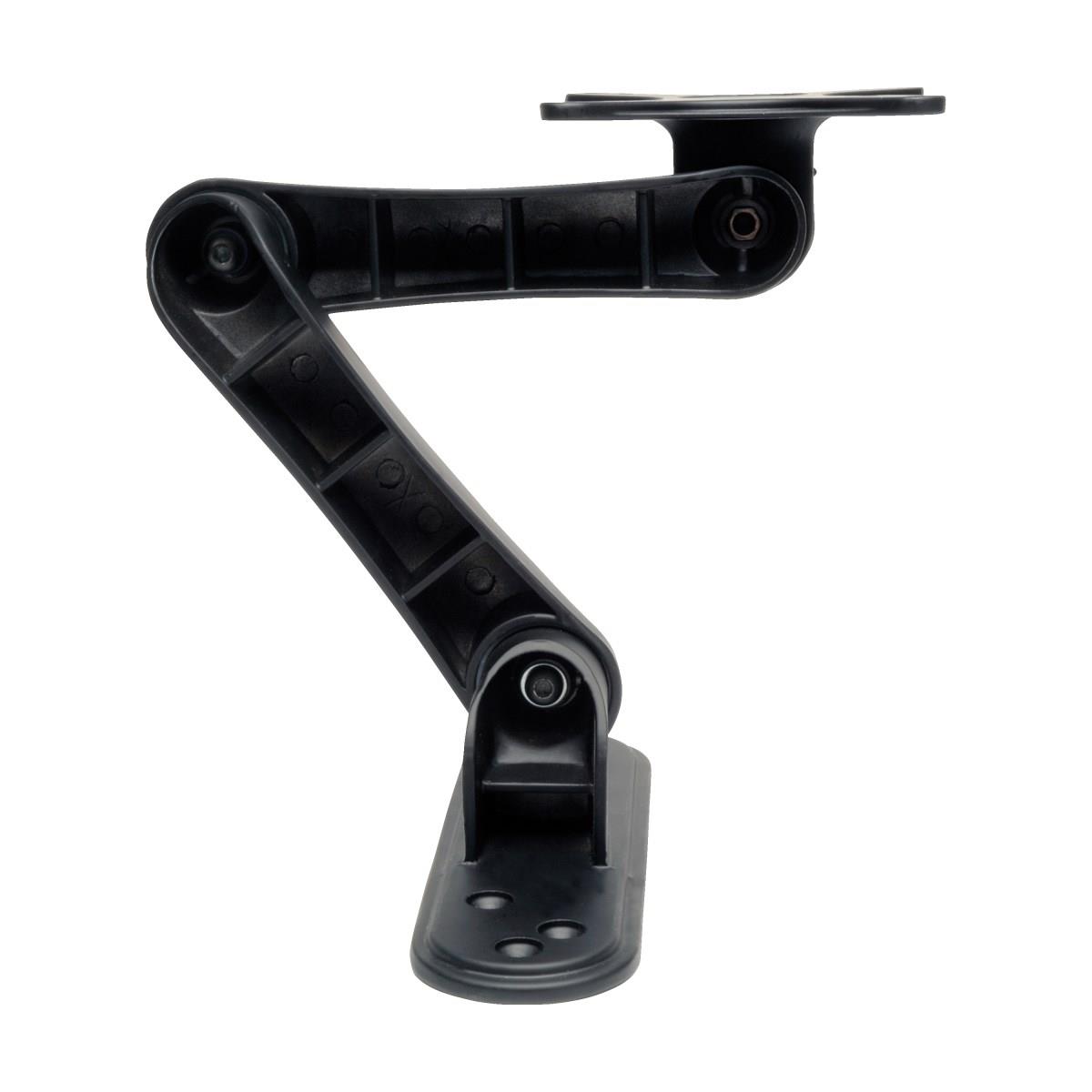

The VESA-compliant DWM1327SE Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home, office, hotels, bars and restaurants, it fits most flat-panel displays from 13 to 27 inches.
The full-motion swivel arm can be adjusted for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 180° swivel and -15° to +15° tilt capability minimizes glare and provides comfortable viewing from multiple angles.

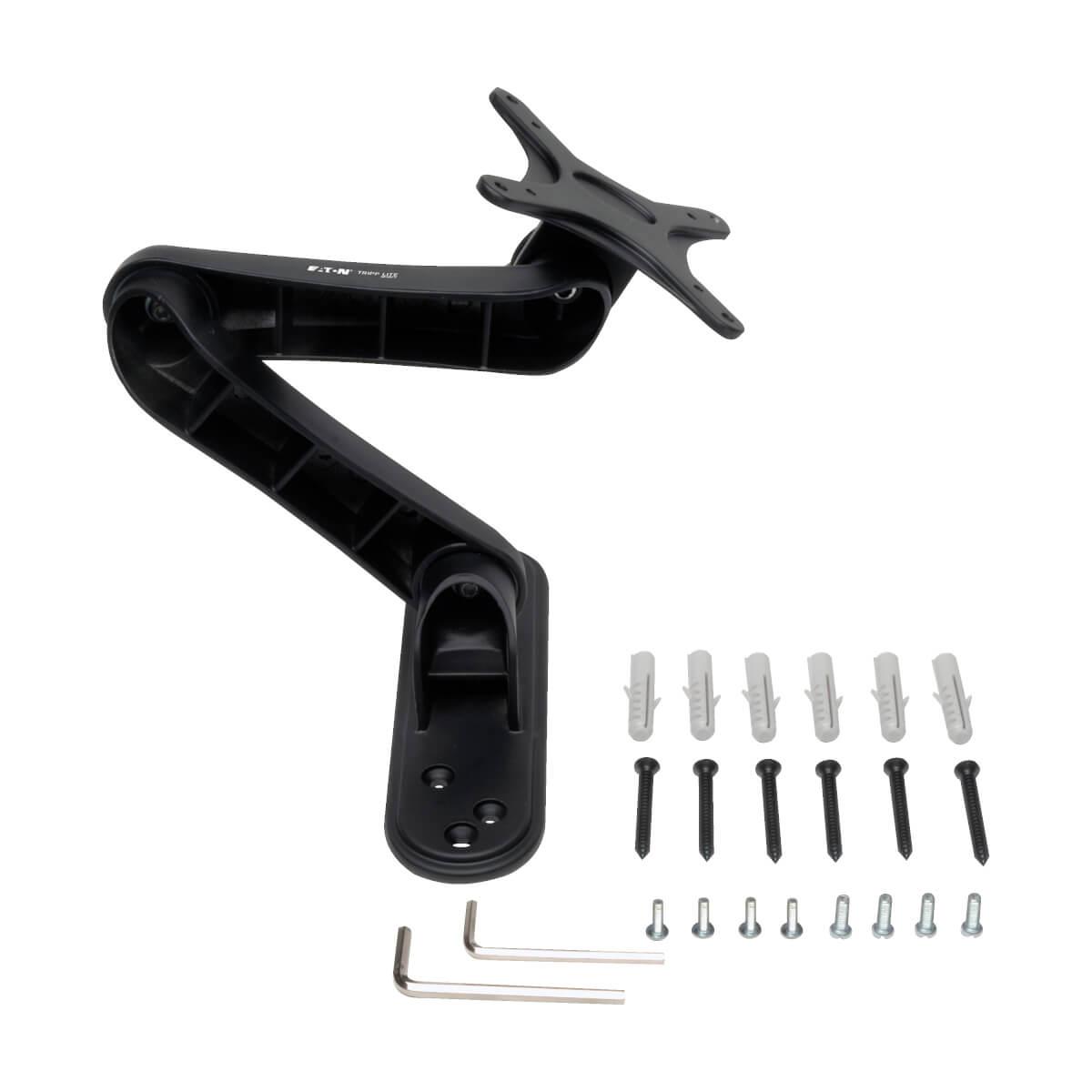

Durable all-metal frame with scratch-resistant powder-coated finish supports up to 33 lbs (14.9 kgs). Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 100 x 75 mm, and 100 x 100 mm.
| Mounting | |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 33 cm (13") |
| Number of displays supported | 1 |
| Maximum screen size | 68.6 cm (27") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Ergonomics | |
| Tilt angle range | -15 - 15ø |
| Swivel angle | 180ø |
| Design | |
| Product colour | Black |
| Technical details | |
| Country of origin | China |
| Weight & dimensions | |
| Width | 116.8 mm |
| Depth | 406.4 mm |
| Height | 209.8 mm |
| Weight | 980 g |
| Packaging data | |
| Package width | 71.1 mm |
| Package depth | 279.4 mm |
| Package height | 238.8 mm |
| Package weight | 1.25 kg |
| Logistics data | |
| Master (outer) case width | 457.2 mm |
| Master (outer) case length | 492.8 mm |
| Master (outer) case height | 304.8 mm |
| Master (outer) case gross weight | 14.8 kg |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332183511 |
| Harmonized System (HS) code | 85299097 |
| Warranty | |
| Base Warranty | Non Non |
