TRIPP LITE SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet, Wide
ITCurry #: 57906332 | Article #: SRW9UDPVRT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
9U Wall-Mount Enclosure Houses EIA-Standard 19 in. Rack Equipment up to 20.5 in. Deep

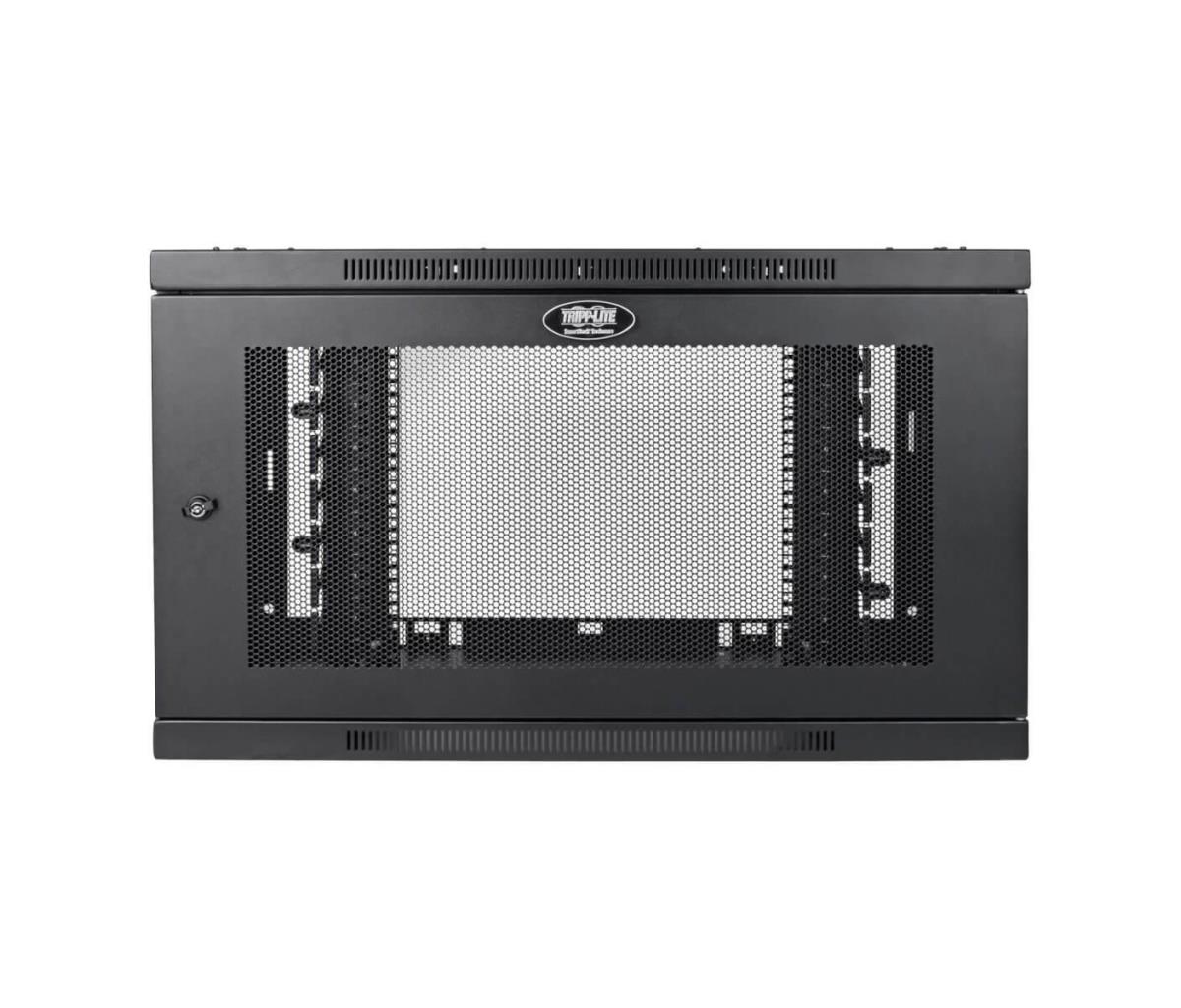

This SmartRack® rack cabinet is designed to house 9U of equipment, such as network switches and patch panels. It's recommended for branch offices, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kg).
Lockable for Simple and Secure Equipment Access

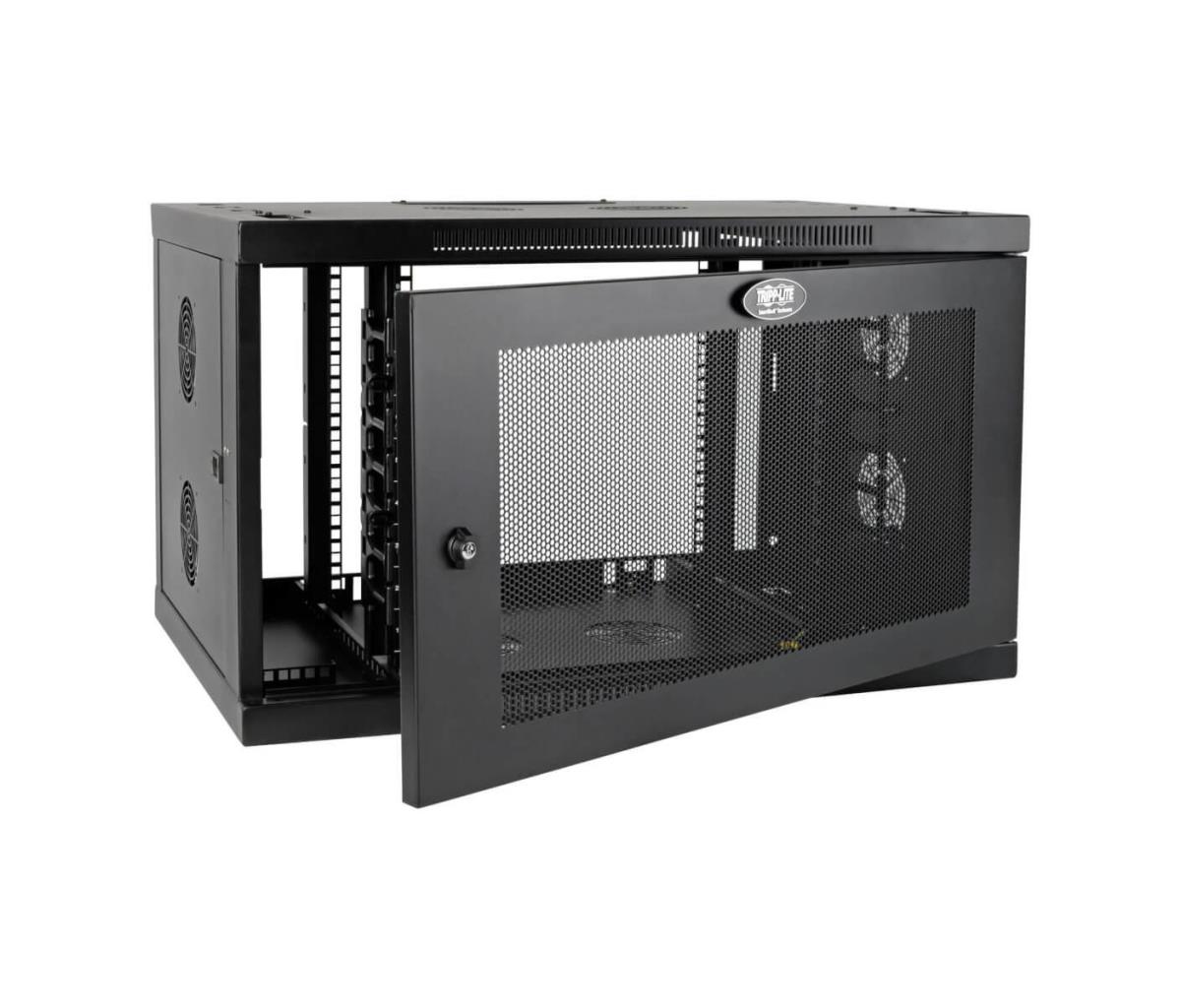

The front door and side panels lock securely to help prevent damage, tampering or theft. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom access ports allow easy cable routing through the cabinet.
Generous Airflow Keeps Equipment Cool

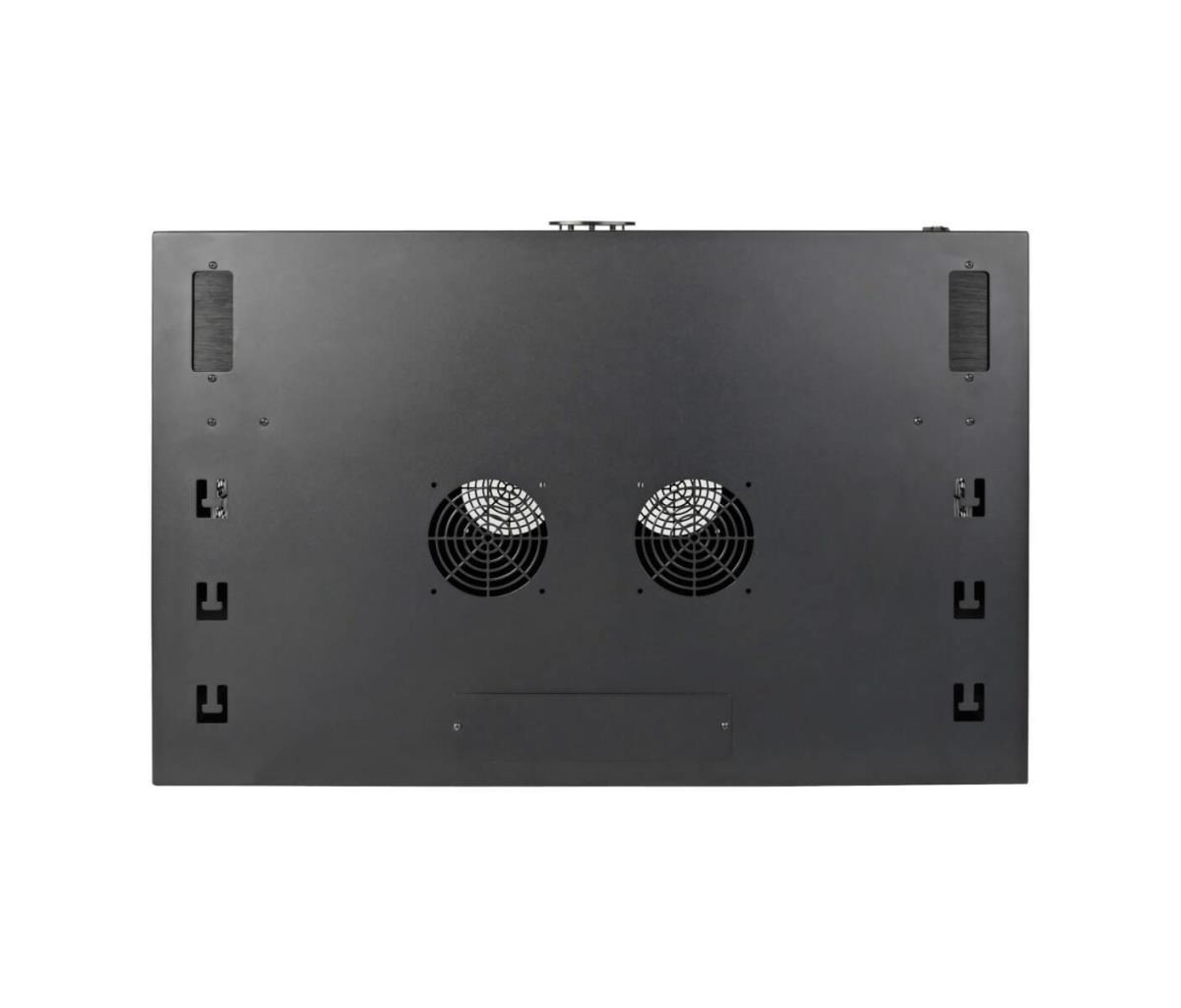

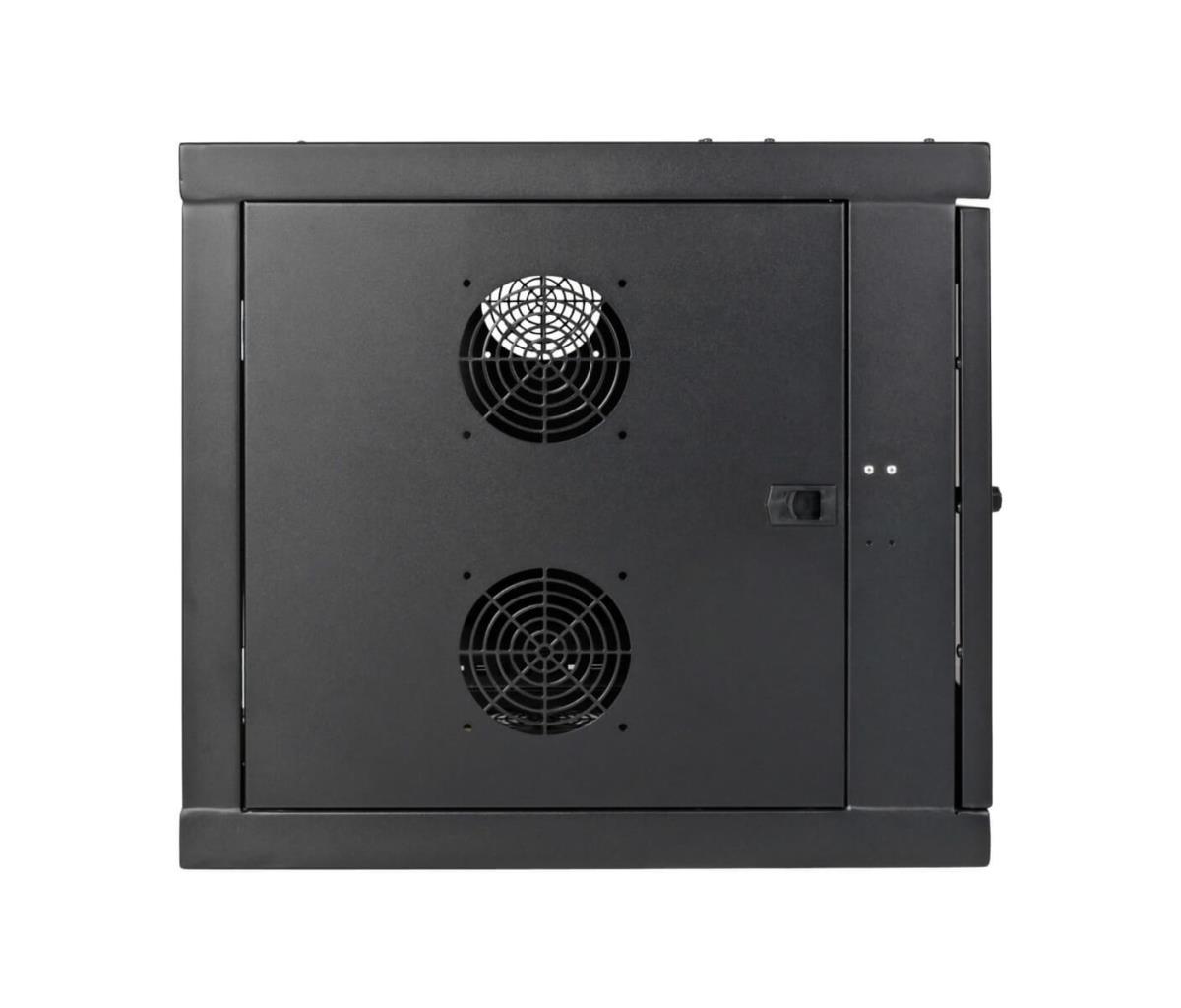

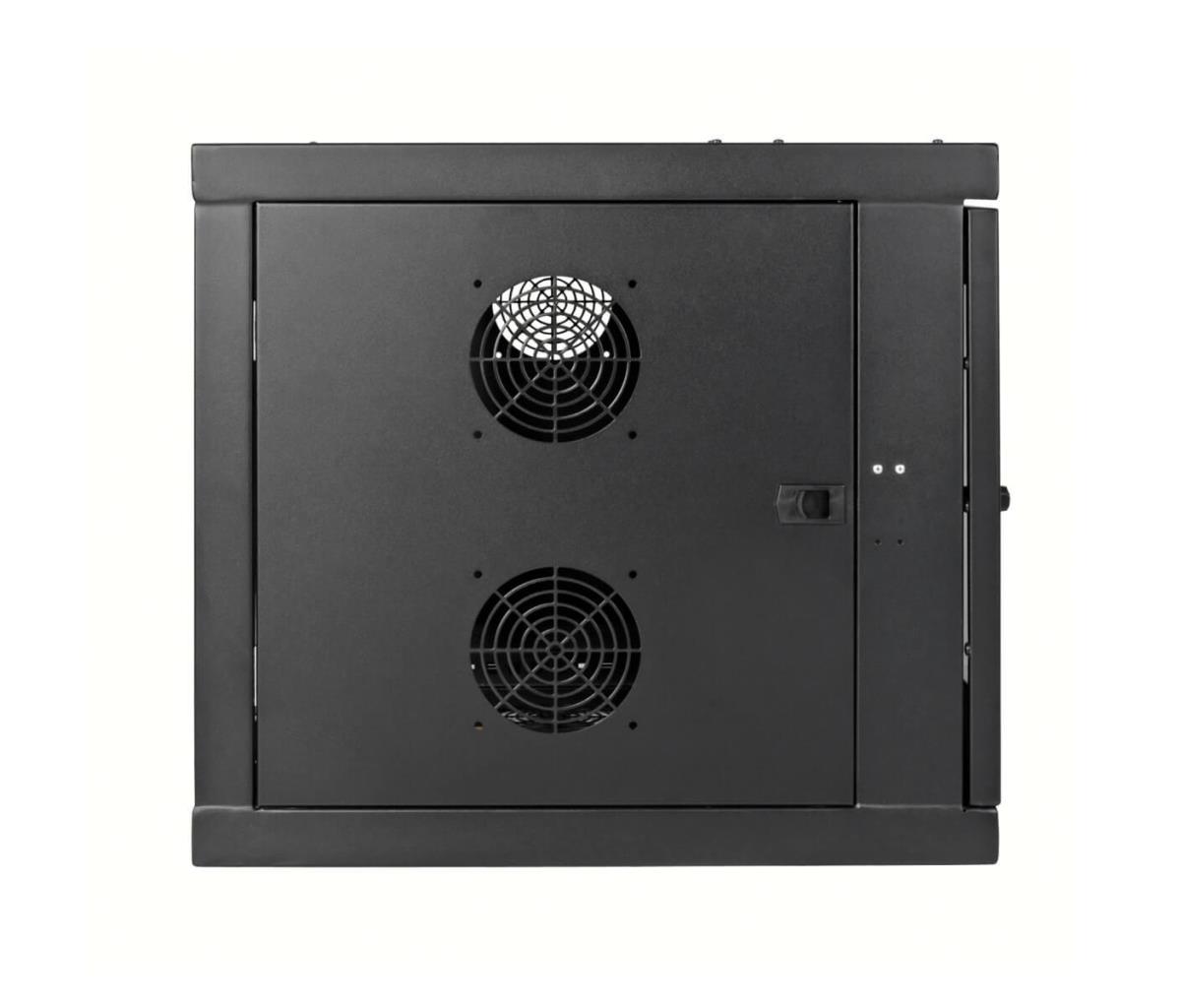

Round ports built into the top, bottom and both sides are designed for optional ventilation fans (such as SRFANWM, sold separately) that keep your equipment cool and functioning at their peak.
Designed with Extra Width for Easier Cable Access and Better Airflow

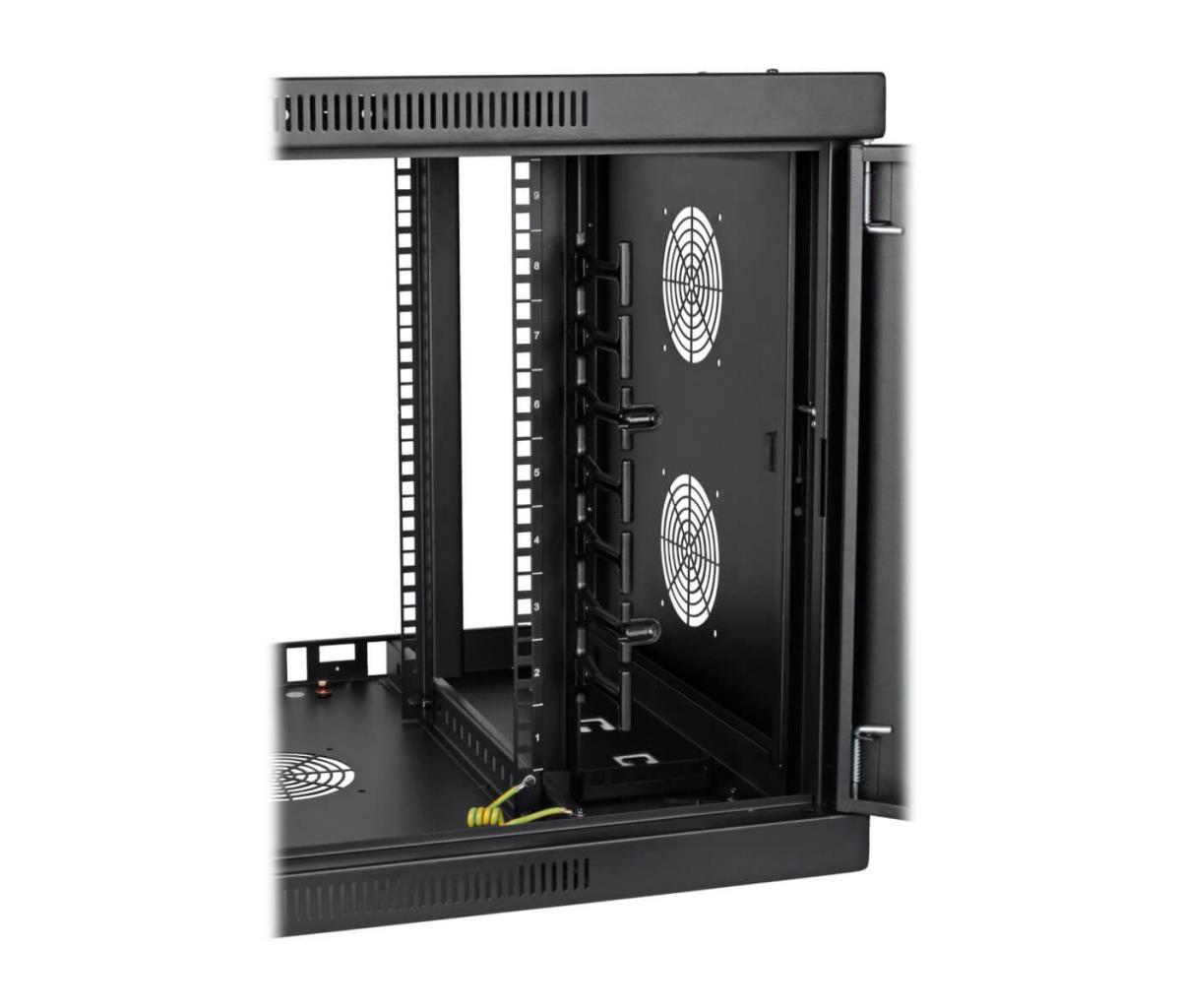

The SRW9UDPVRT is three inches wider than standard-width wall-mount racks. Combined with two vertical cable managers in front and two cable pass-through ports on top, the extra width provides convenient cable management along the front of the rack. This allows easier cable access from the front and increases airflow by minimizing rear cable clutter that can obstruct vents. Cutouts on top of the rack can be used to secure cable bundles.
Easy Enclosure and Equipment Installation

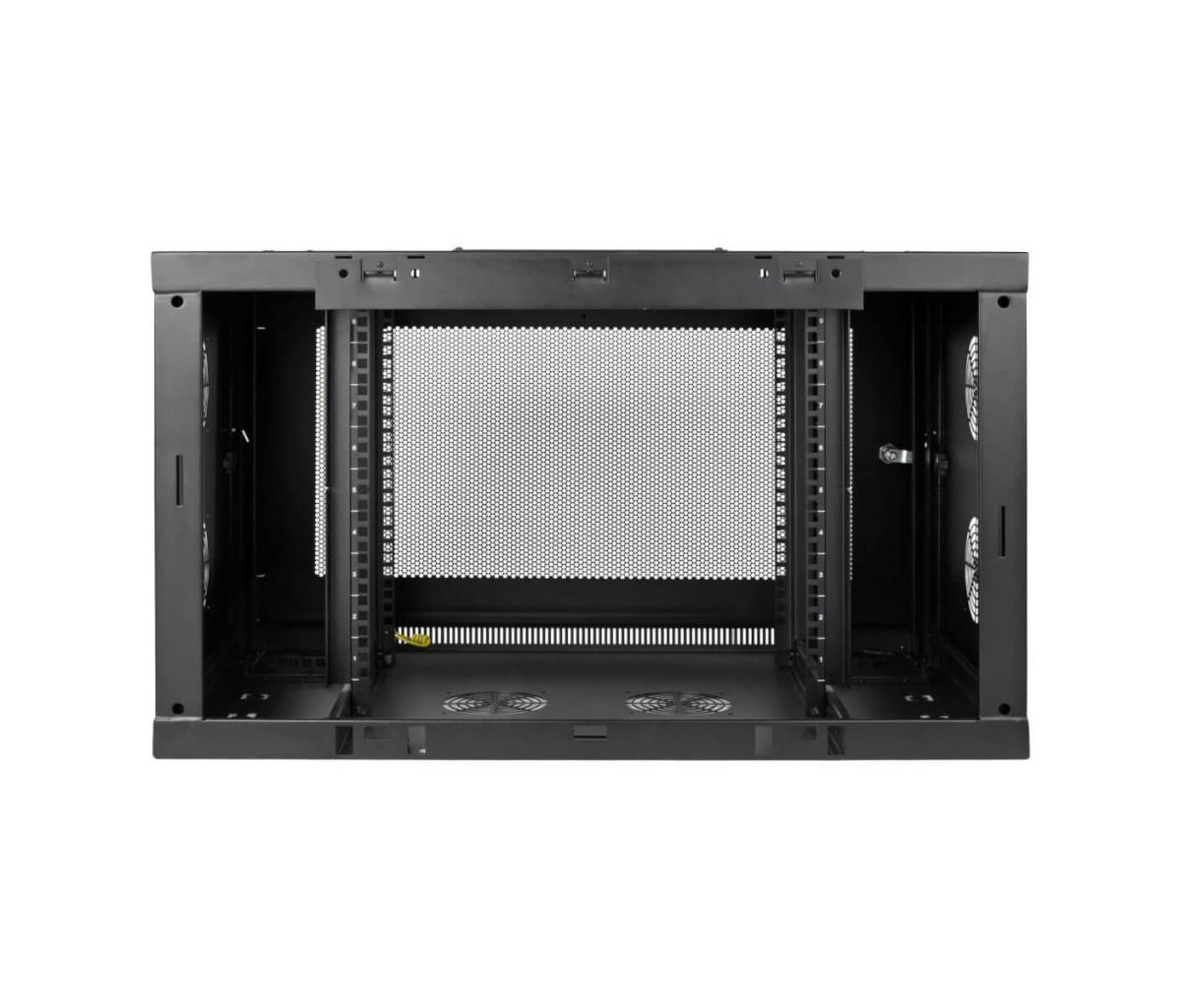

This 9U server rack comes fully assembled and ready to mount to the wall with user-supplied hardware. The side panels can be removed for convenient installation, maintenance and replacement of equipment. Front and rear mounting rails adjust independently to accommodate equipment up to 20.5 inches deep, including network switches and patch panels.
Meets Payment Card Industry Standards
The SRW9UDPVRT provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.
| Features | |
| Rack capacity | 9U |
| Type | Wall mounted rack |
| Maximum weight capacity | 91 kg |
| Product colour | Black |
| Key lock | Yes |
| Cable management | Yes |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Width | 752.4 mm |
| Depth | 551.5 mm |
| Height | 503.7 mm |
| Weight | 23.5 kg |
| Packaging data | |

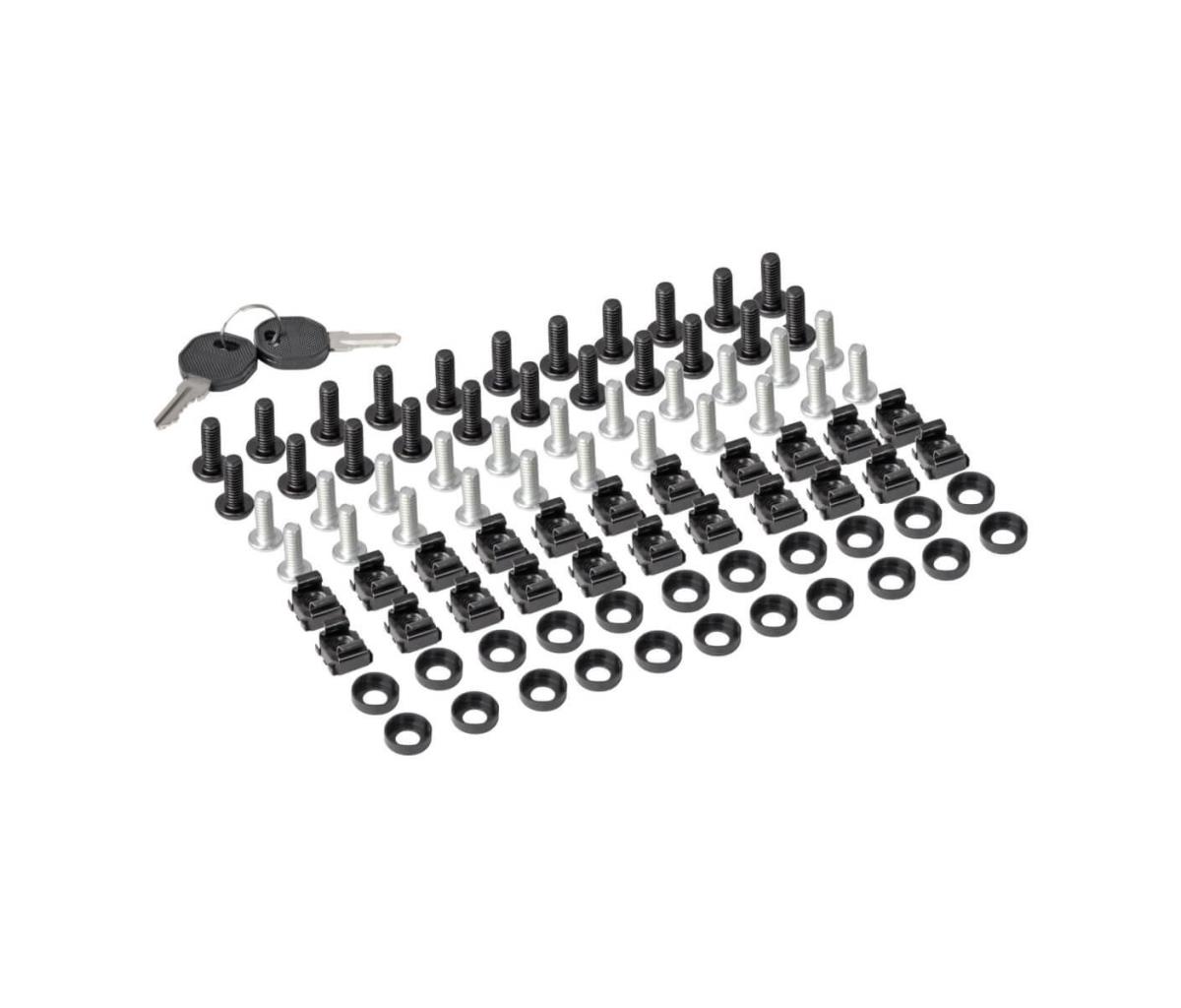

| Nuts included | Yes |
| Number of nuts | 22 |
| Screws included | Yes |
| Number of screws | 44 |
| Number of washers included | 22 |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 619.8 mm |
| Package depth | 819.9 mm |
| Package height | 585 mm |
| Package weight | 26.3 kg |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 619.8 mm |
| Master (outer) case length | 819.9 mm |
| Master (outer) case height | 585 mm |
| Master (outer) case gross weight | 26.3 kg |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
