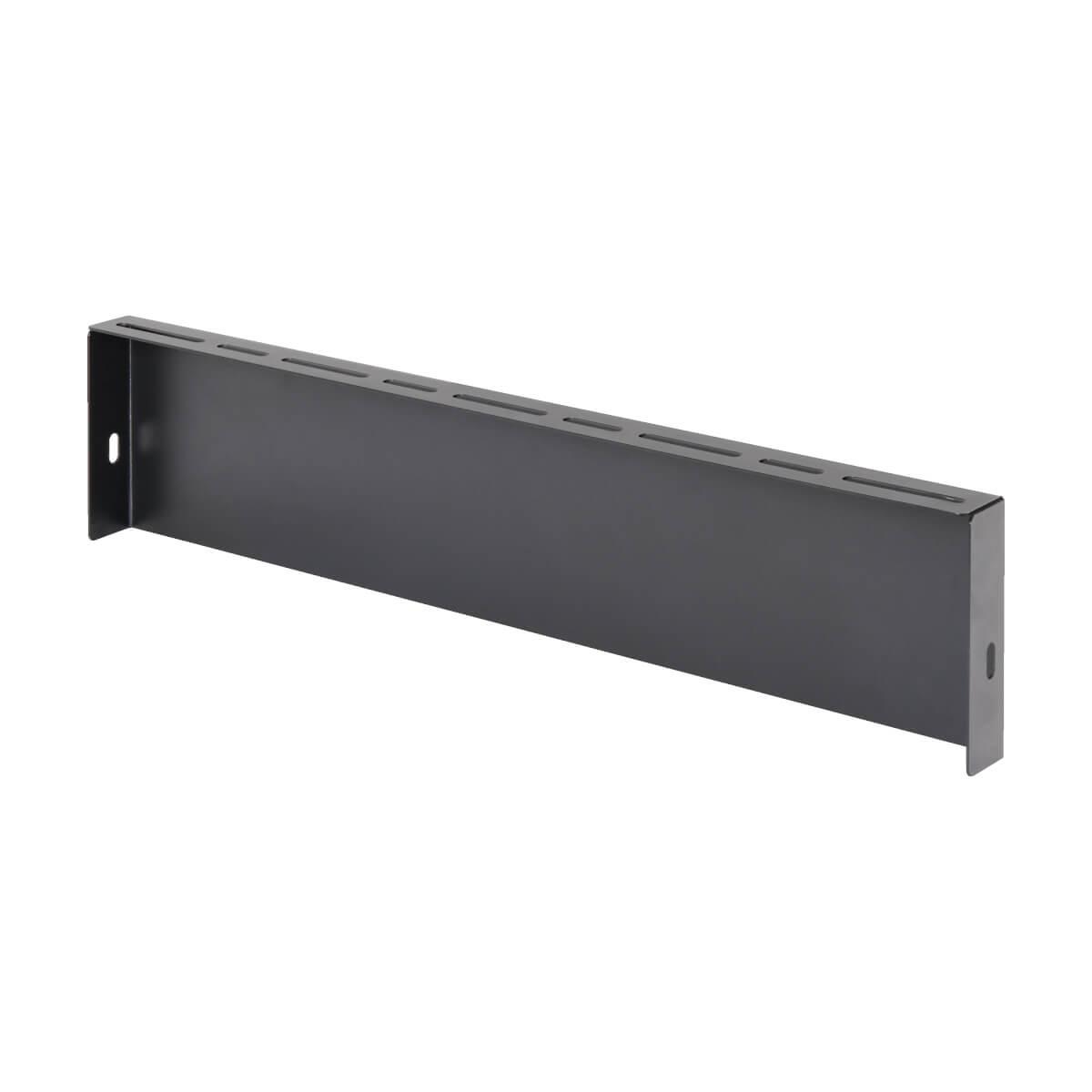

Riser Panels Designed for Standard-Width 600 mm Server Racks
These SmartRack® riser panels attach to the underside of the aisle containment system’s upper support beams. This is to fill the gap between the telescopic beams (SRCTMTTLBM, sold separately) and your rack cabinets. All necessary installation hardware is included. The 3U SRCTMTR600SH measures 600 millimeters (24 inches) wide and 133 millimeters (5.2 inches) high to fit 45U standard-width rack enclosures.
Aisle Containment System Manages Airflow for More Cooling Efficiency
Upon installation in your data center or server room, the modular, easy-to-assemble Aisle Containment System contains the air in a hot aisle or cold aisle, essentially creating a room within the aisle, while still keeping the aisle accessible. No costly contractor or HVAC specialist is required to install the system, which can be expanded or adapted to meet your needs. Assorted frame kits, beam kits, sliding double-door kits, roof panel kits and adapter riser panel kits (all sold separately) are necessary to assemble a hot or cold Aisle Containment System that accommodates the dimensions of your aisle and the rack enclosures within it.
| Features | |
| Type | Panel kit |
| Product colour | Black |
| Country of origin | China |
| Weight & dimensions | |
| Width | 607.1 mm |
| Depth | 39.9 mm |
| Height | 133.1 mm |
| Weight | 2.5 kg |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Package width | 726.9 mm |
| Package depth | 145 mm |
| Package height | 210.1 mm |
| Package weight | 3.1 kg |
| Packaging content | |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332214369 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 750 mm |
| Master (outer) case length | 439.9 mm |
| Master (outer) case height | 310 mm |
| Master (outer) case gross weight | 15.2 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 7308.90.6000 |
| Warranty | |
| Base Warranty | Non Non |
