TRIPP LITE NetDirector DVI USB Server Interface Unit with Virtual Media and CAC (B064-IPG Series) USB and DVI
ITCurry #: 57905275 | Article #: B055-001-UDV-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

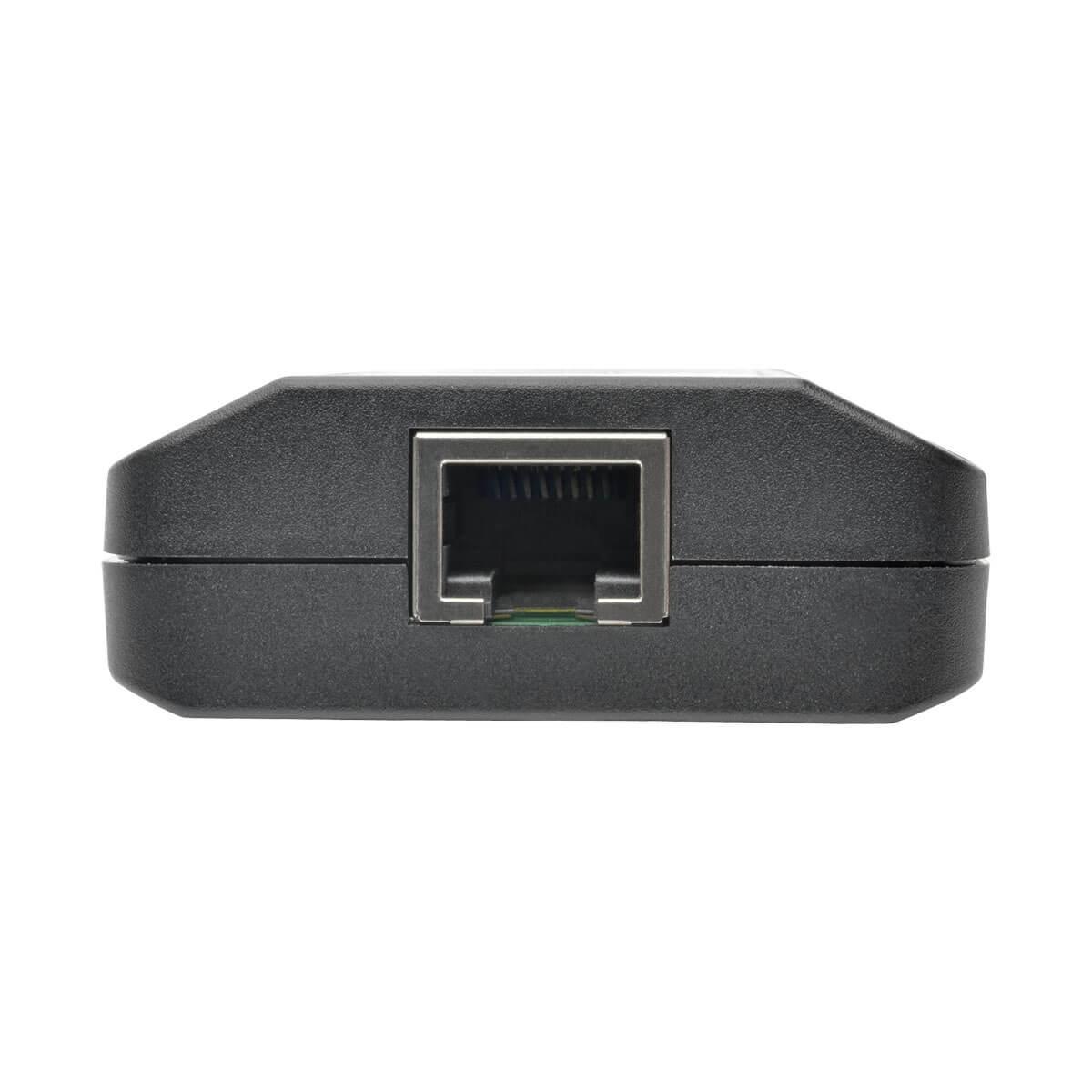

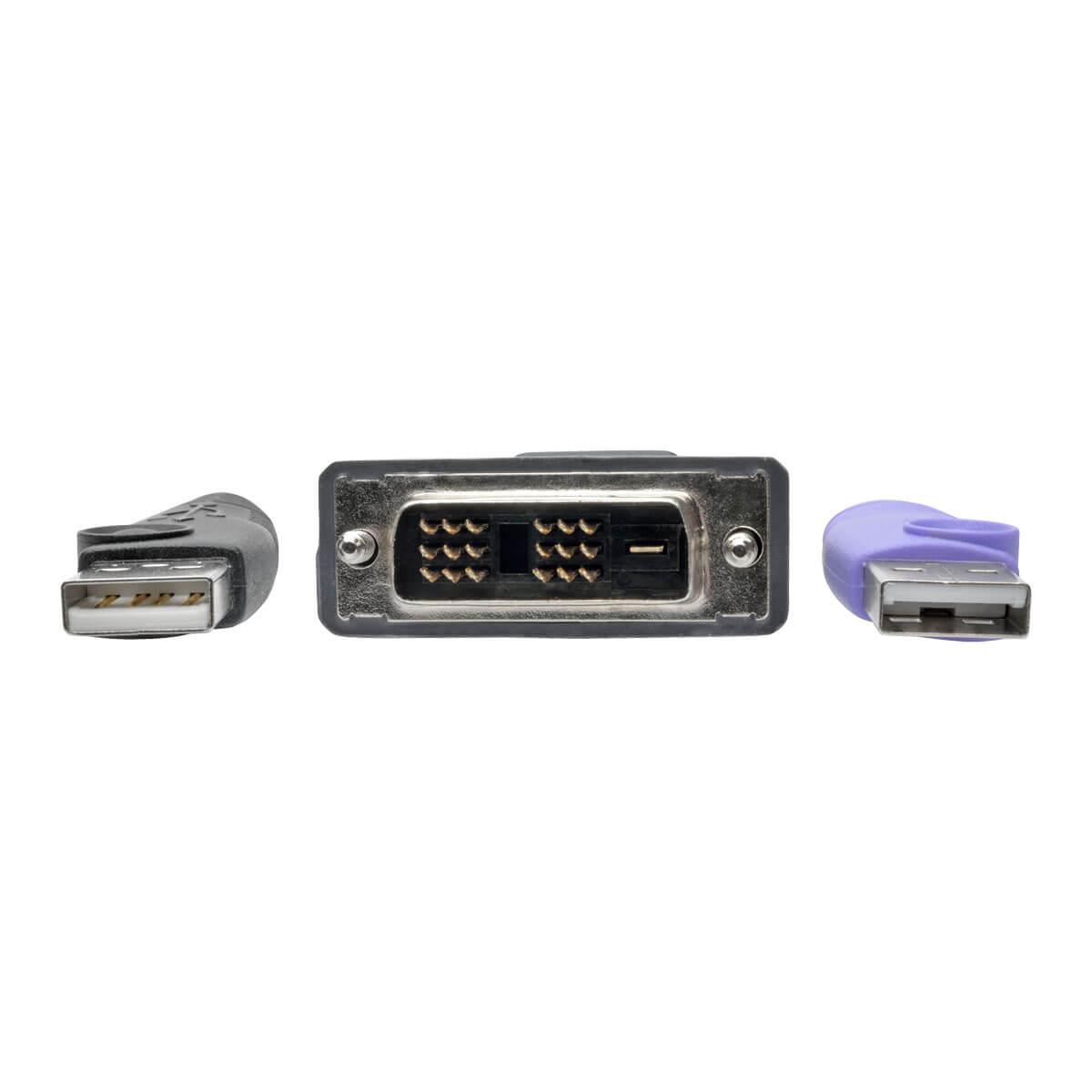

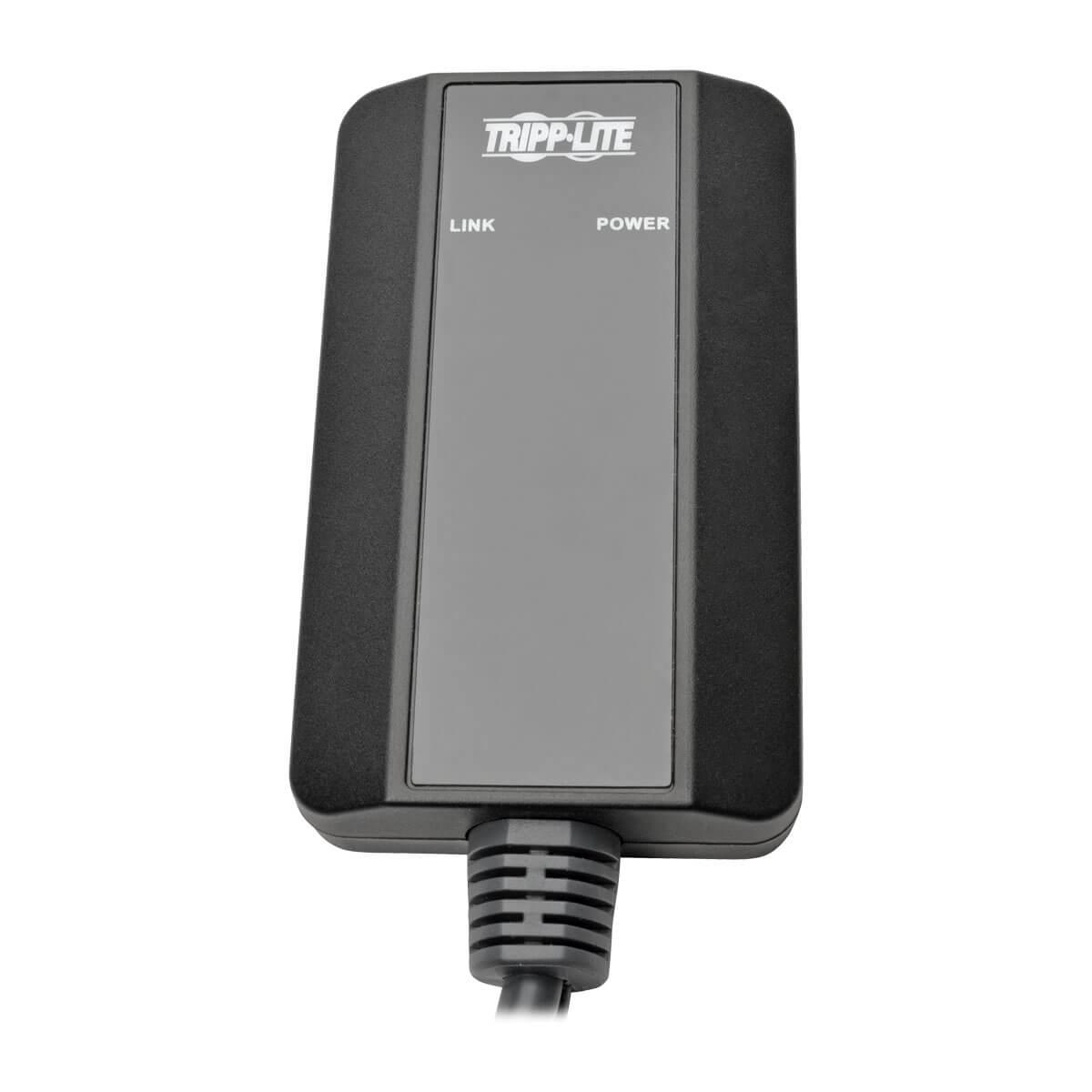

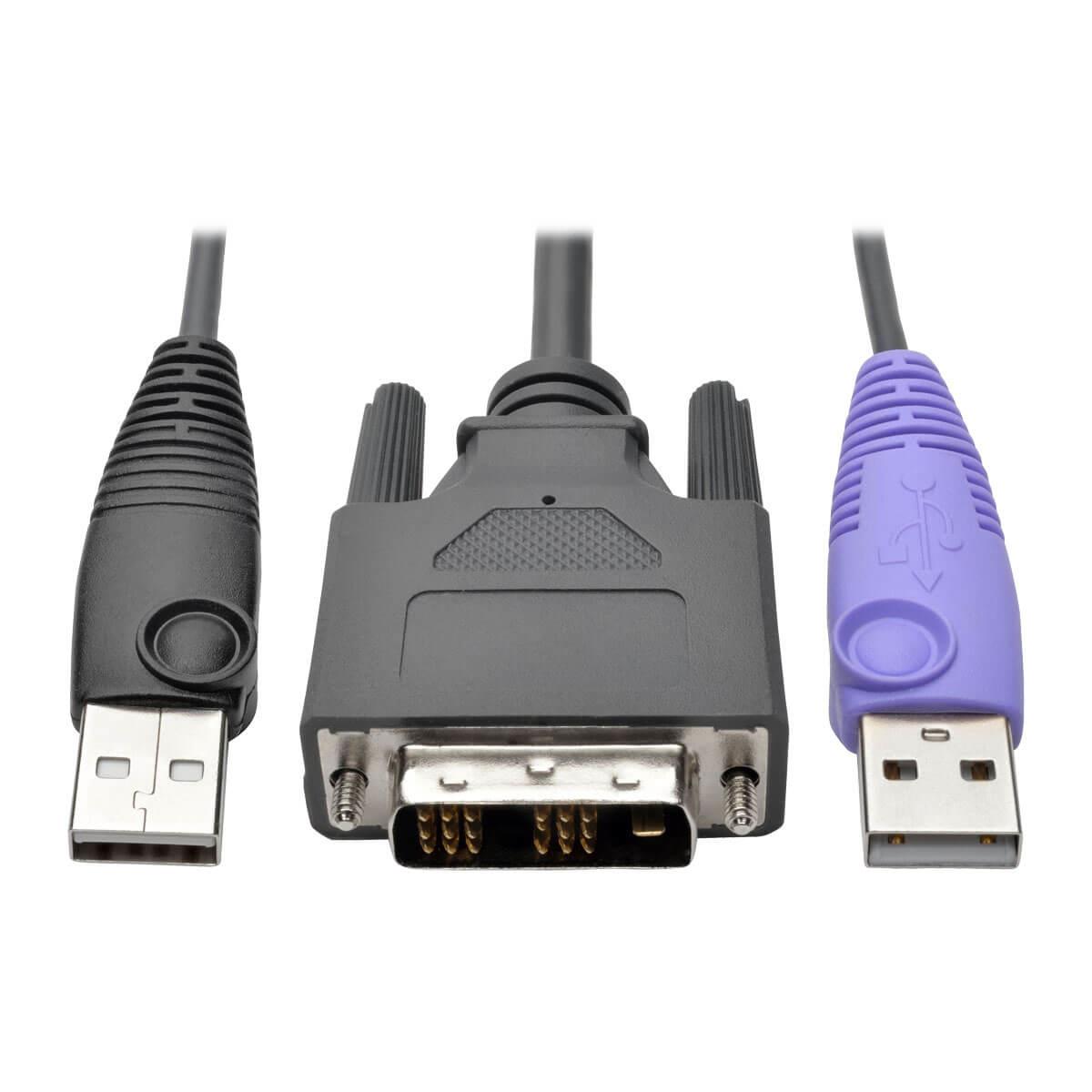

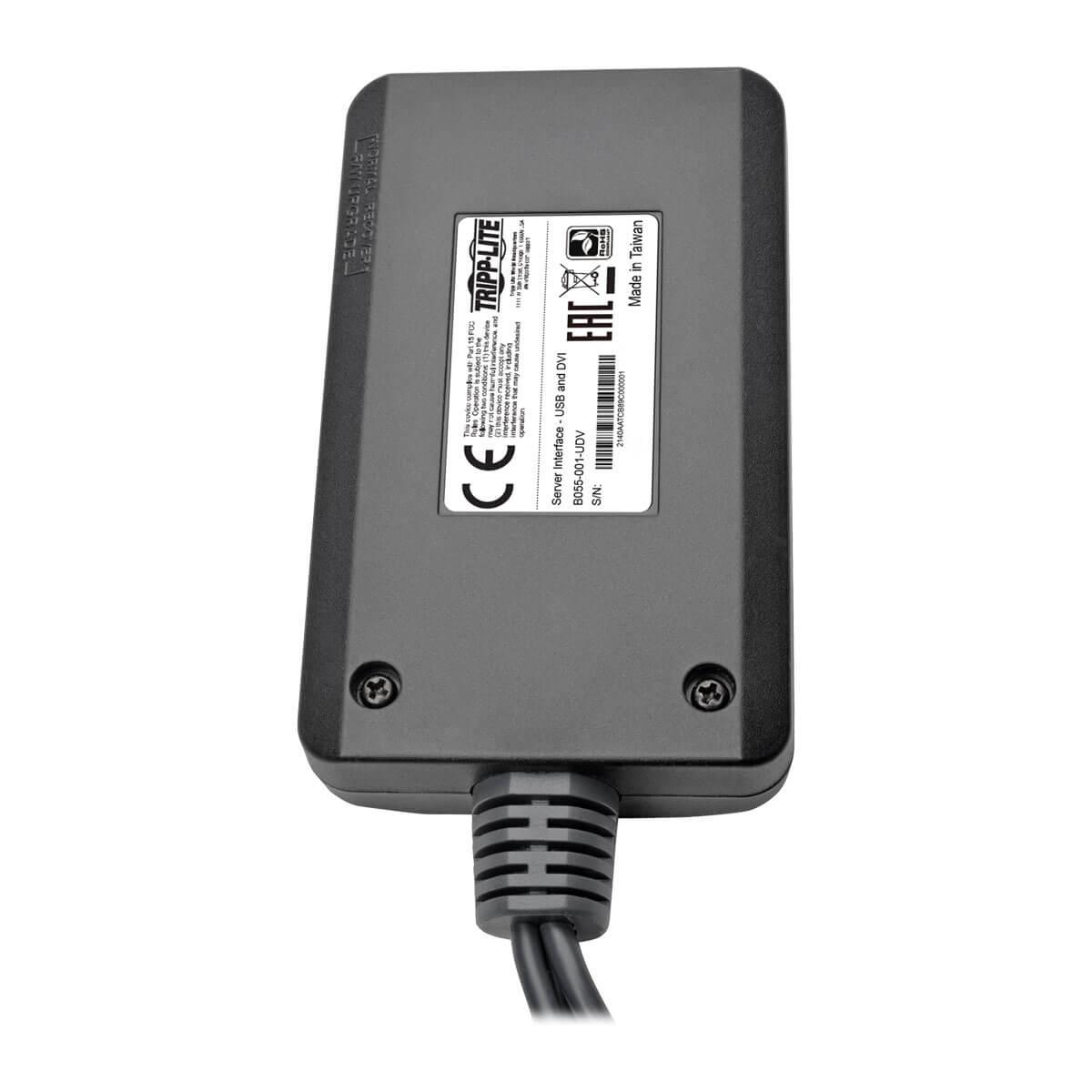

The B055-001-UDV NetDirector® DVI USB Server Interface Unit connects a server, computer or CAC reader with DVI and/or USB ports to a B064-IPG Series KVM switch with v1.0.071 or later firmware installed. Using Cat5e/6 cabling, you can locate the KVM switch up to 164 feet (50 meters) from the server.
Allowing the server to access the KVM switch’s Virtual Media functionality via low-cost Cat5e/6 cable eliminates the need for bulky KVM cables. This frees up precious space in your server cabinet, and allows for better ventilation and longer cable runs. Running cable through conduit and other tight spaces takes advantage of the increased flexibility when setting up your network application.
No software or external power supply is needed. The unit’s compact, lightweight design is plug-and-play for immediate installation and deployment. It complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Note: SIUs that were purchased prior to that of your KVM switch may require a firmware upgrade in order for them to work properly (see Maintenance under OSD Operation section of your B064-Series KVM Owner's Manual for details)
| Technical details | |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332198102 |
| Compliance certificates | RoHS |
| Performance | |
| Product colour | Blue, Purple |
| Connector 1 | RJ-45 |
| Connector 2 | DVI + 2 x USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Country of origin | Taiwan |
| Packaging data | |
| Package width | 121.9 mm |
| Package depth | 121.9 mm |
| Package height | 43.2 mm |
| Package weight | 230 g |
| Logistics data | |
| Harmonized System (HS) code | 8544.42.9090 |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 228.6 mm |
| Master (outer) case length | 256.5 mm |
| Master (outer) case height | 269.2 mm |
| Master (outer) case gross weight | 3.81 kg |
| Products per master (outer) case | 20 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
