TRIPP LITE Height-Adjustable TV Wall Mount for 70 to 90in Flat-Panel Interactive Displays
ITCurry #: 57907147 | Article #: DWM7090HD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

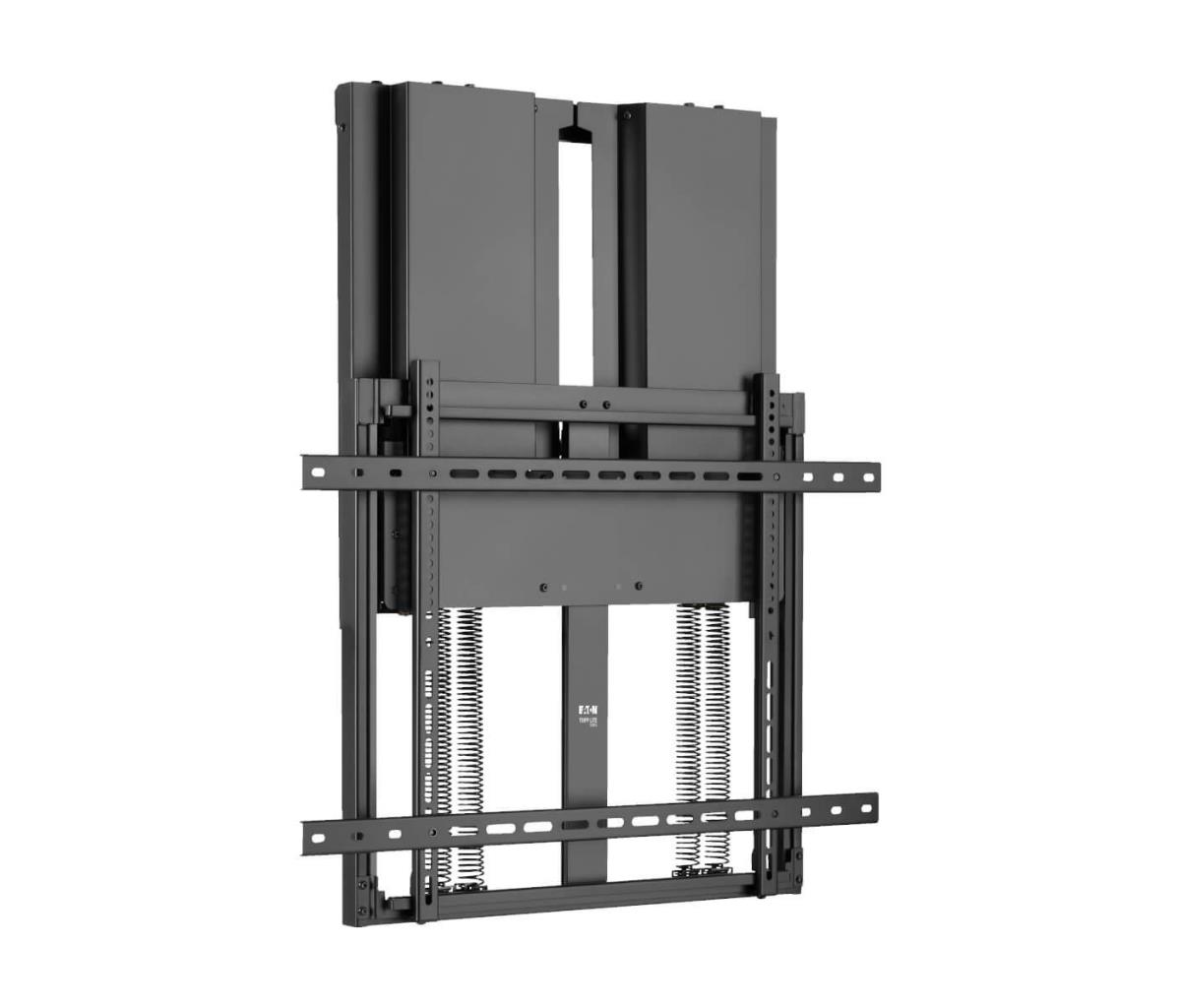

TV Wall Mount Secures Your Interactive Touchscreen Display at Arm’s Length
The VESA-compliant DWM7090HD mounts your television, monitor, whiteboard or interactive display to a wood stud, brick or concrete wall with the included hardware. Recommended for conference rooms, boardrooms and classrooms, this wall mount supports most popular brands of interactive touchscreen displays, including Promethean, Balance Box and Balt.
Glides Up and Down with Just a Touch for Perfect Viewing
Intricately designed counterbalanced springs allow the connected display to glide up and down the wall, allowing users of all sizes to adjust and work at the interactive touchscreen. With 15.7 inches (40 centimeters) of vertical movement, the DWM7090HD provides easy fingertip control for everyone.
Durable All-Metal Construction Built to Last
This height-adjustable TV wall mount is made from heavy-duty steel with a powder-coated black finish that resists scratches and blends smoothly into any room décor. It is compatible with most flat-screen televisions, monitors and interactive digital whiteboards between 70 and 90 inches and supports 132 to 198 pounds (90 kilograms).
VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this TV wall mount supports the following VESA mounting hole patterns: 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 400 x 500, 400 x 600, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 700 x 400, 700 x 500, 700 x 600, 800 x 500 and 800 x 600.
| Mounting | |
| Minimum screen size | 177.8 cm (70") |
| Maximum weight capacity | 90 kg |
| Maximum screen size | 2.29 m (90") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 600 mm |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,600 x 400,600 x 600,600 x 300,600 x 500,700 x 400,700 x 500,700 ž 600,800 x 400,800 x 500,800 x 600 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Distance to the wall (max) | 12.7 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Weight & dimensions | |
| Width | 840 mm |
| Depth | 127 mm |
| Height | 1039.9 mm |
| Weight | 25.7 kg |
| Packaging data | |
| Package width | 739.1 mm |
| Package depth | 739.1 mm |
| Package height | 140 mm |
| Package weight | 28.9 kg |
| Logistics data | |
| Master (outer) case width | 795 mm |
| Master (outer) case length | 795 mm |
| Master (outer) case height | 154.9 mm |
| Master (outer) case gross weight | 32 kg |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332268836 |
| Harmonized System (HS) code | 8302.50.0000 |
| Warranty | |
| Base Warranty | Non Non |
