TRIPP LITE HDMI In-Line Signal Booster/Extender 1920x1200 at 24Hz/1080p (HDMI F/F) Up to 45m
ITCurry #: 57903847 | Article #: B122-000-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

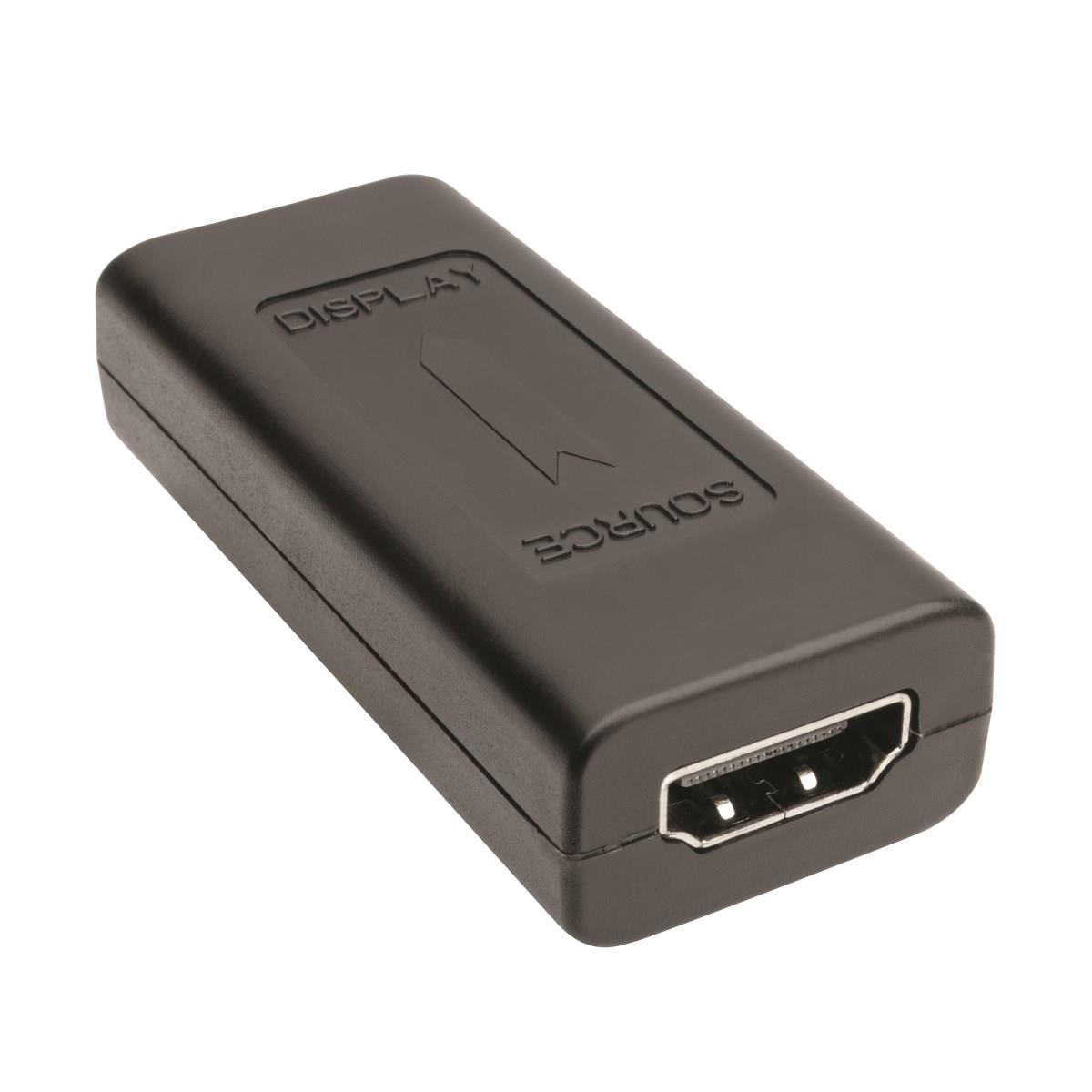

The B122-000 HDMI Signal Extender increases the distance a 1080p at 24 Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 feet (4.9 meters). It supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p at 24 Hz, as well as a maximum distance of 150 feet (45.7 meters) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p at 24 Hz (or 1920 x 1200) signal more than 75 feet (22.9 meters), use cable made with 24 AWG wiring, such as the P568-100-HD. 24 AWG HDMI cable is also needed when extending a 3D signal more than 50 feet (15.2 meters). A 3D signal can be extended up to 125 feet (38.1 meters) using 24 AWG HDMI cable. Simply connect the longer cable between the source and the B122-000 and the shorter cable (16 feet or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
| Features | |
| Type | AV repeater |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5, Cat5e |
| Maximum transfer distance | 45.72 m |
| Audio system | Multichannel |
| Supported video modes | 1080p |
| Ports & interfaces | |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Packaging data | |
| Package width | 116.8 mm |
| Package depth | 152.4 mm |
| Package height | 33 mm |
| Package weight | 140 g |
| Technical details | |
| Country of origin | Taiwan |
| Logistics data | |
| Master (outer) case width | 167.6 mm |
| Master (outer) case length | 340.4 mm |
| Master (outer) case height | 142.2 mm |
| Master (outer) case gross weight | 730 g |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332133141 |
| Warranty | |
| Base Warranty | Non Non |
