EPDU METERED OUTPUT20XC13 : 4XC19 MO 0U (C20 16A 1P)
ITCurry #: N4835149 | Article #: EMOB22
slide 2 of 11
Price:
832.60
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 7 to 11 of 14
Product Information
Meter the Input, branch, individual outlets & IT equipment across A and B feed

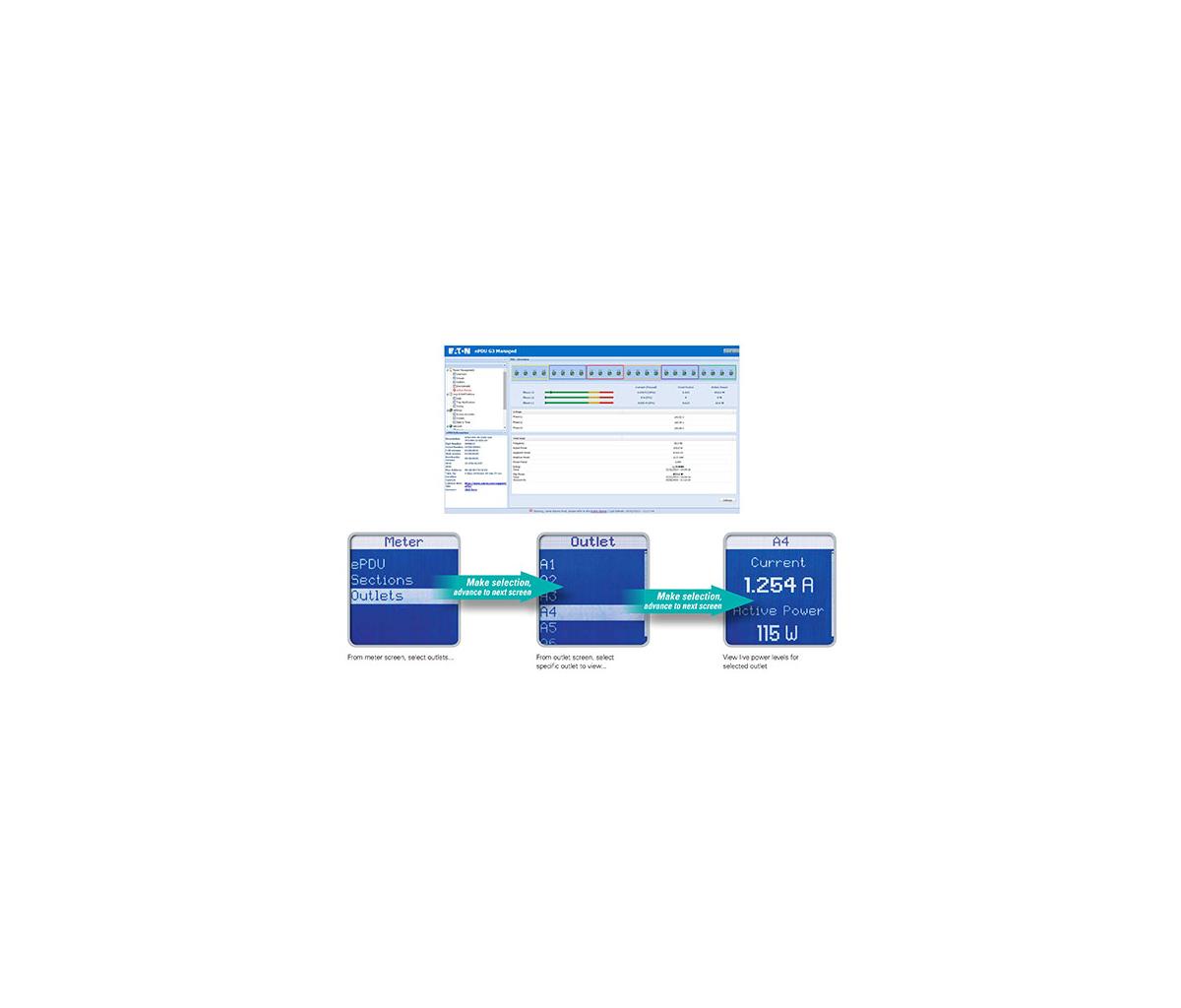

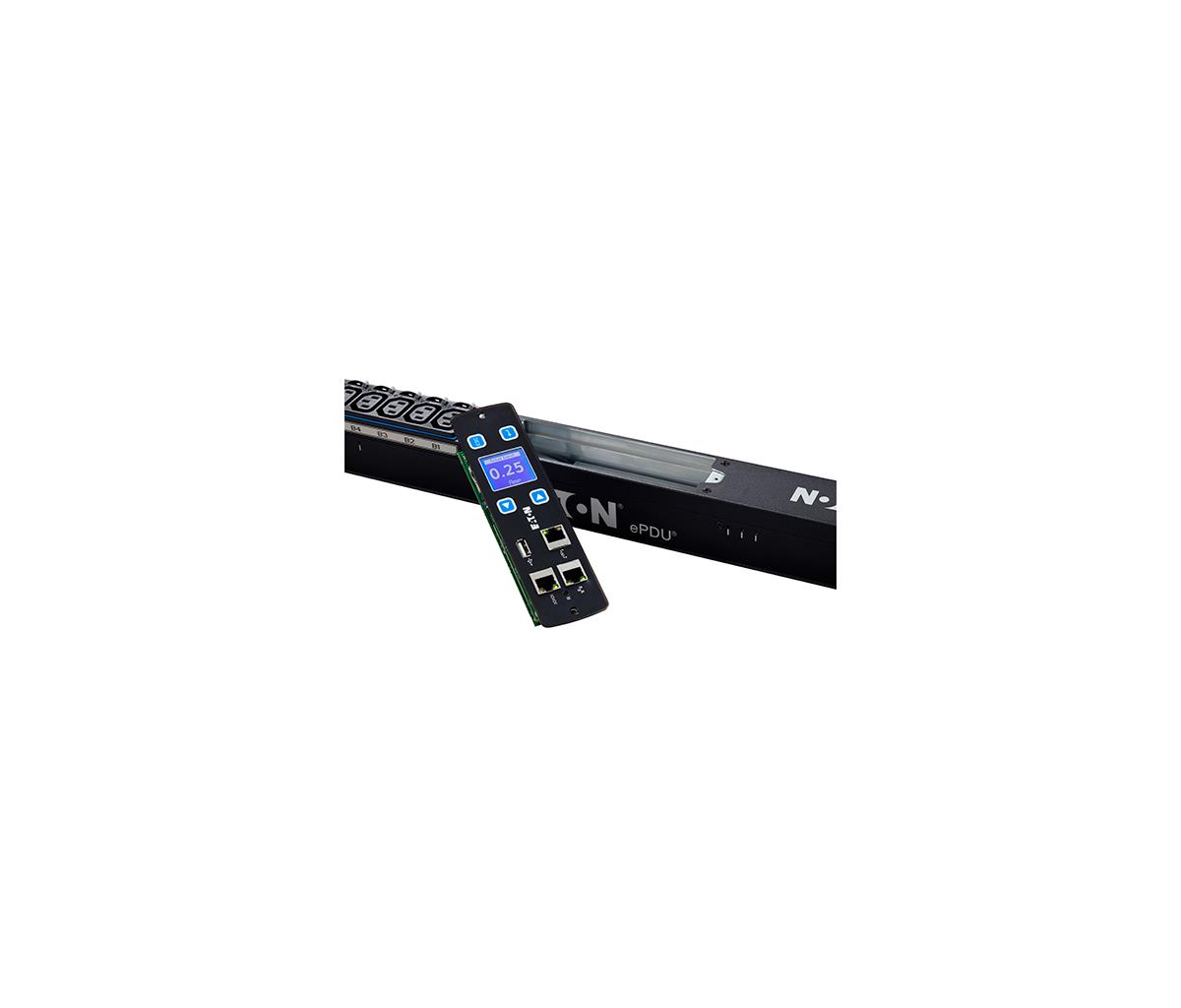

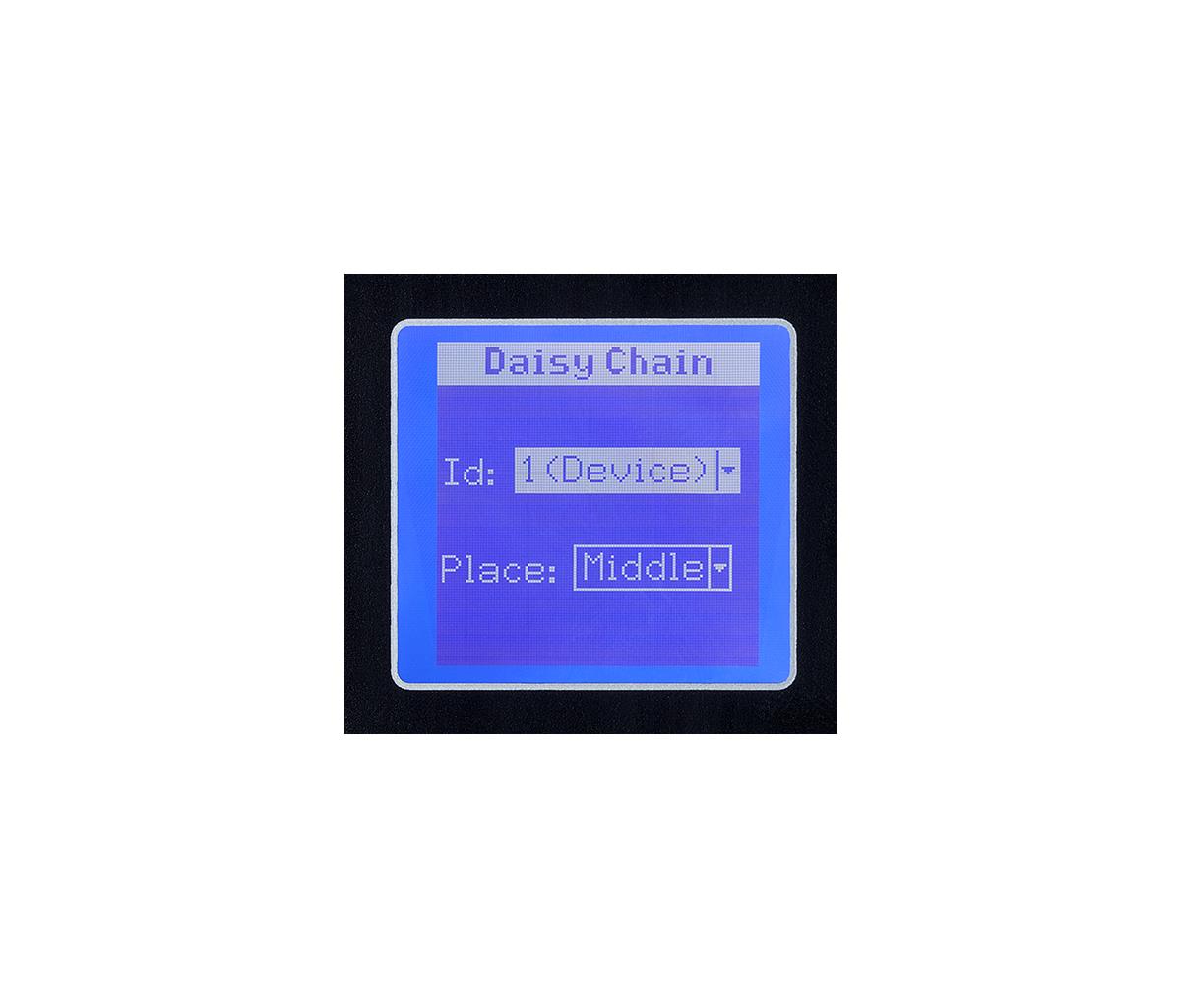

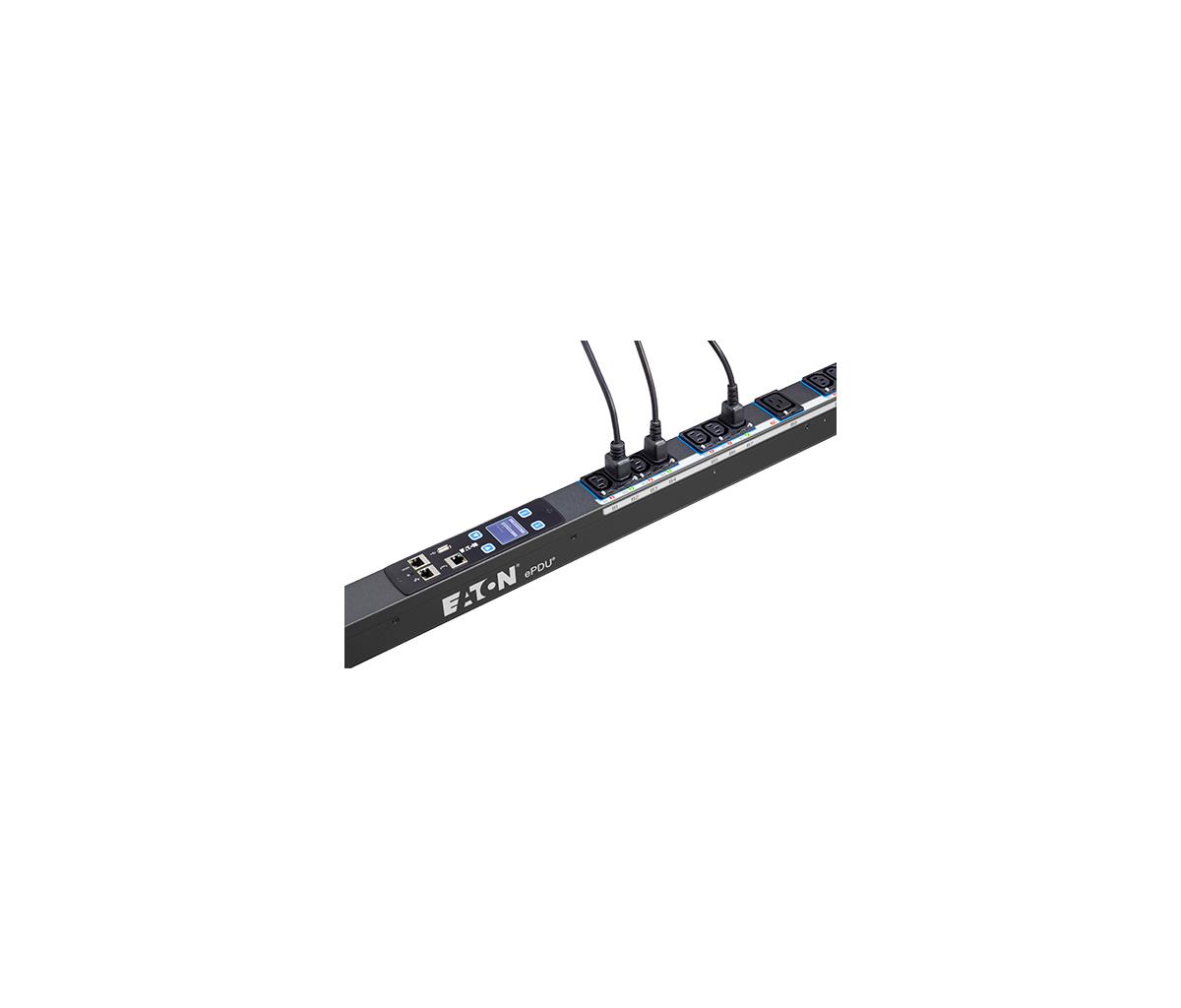

ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
| Design | |
| PDU types | Metered |
| Type | Single-phase |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Cable colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Output connections | 20 x C13 & 4 x C19 |
| Features | |
| LED indicators | Yes |
| Cable length | 3 m |
| Certification | CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010 EN 55024:2010 ISO 9001:2008 / ISO 14001:2004 |
| Management features | |
| Management protocols | SNMP, Telnet |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | Network, USB |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Maximum input current per phase | 16 A |
| Maximum power | 3700 W |
| Weight & dimensions | |
| Width | 53 mm |
| Depth | 1604 mm |
| Dimensions (WxDxH) | 53 x 1604 x 52 mm |
| Height | 52 mm |
| Weight | 2.1 kg |
| Packaging data | |
| Package weight | 4.3 kg |
| Warranty | |
| Base Warranty | Non Non |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 øC |
| Technical details | |
| Compliance certificates | RoHS |
