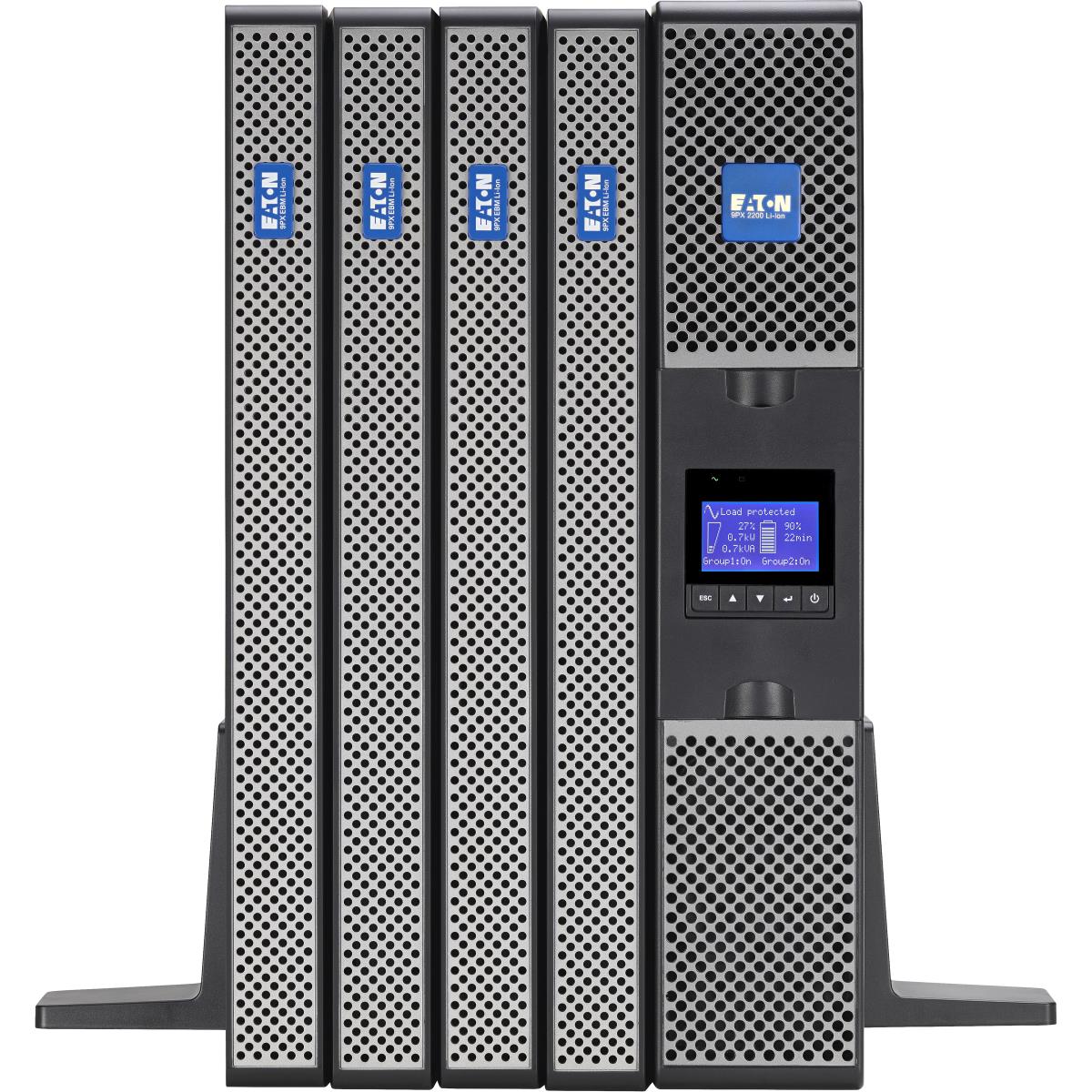

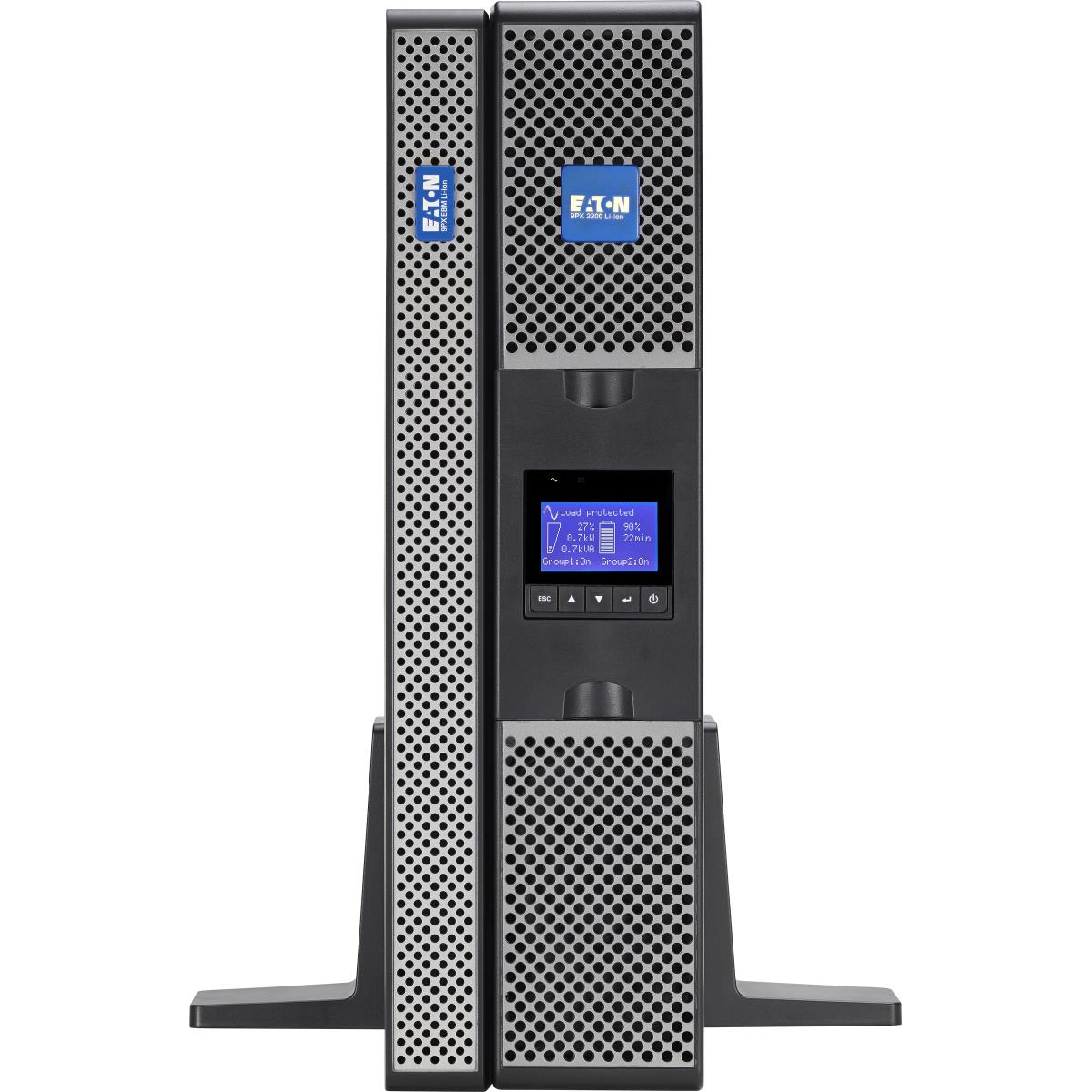

Eaton 9PX EBM 72V RT1U Li-Ion

ITCurry #: N4836503 | Article #: 9PXEBM72RT1U-L
Price:
1824.87 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

Product Information

Warranty
Base Warranty Non Non
Features
UPS topology Double-conversion (Online)
Output power capacity 2.2 kVA
Output power 2200 W
Waveform Pure sine
Input operation voltage (min) 176 V
Input operation voltage (max) 276 V
Input frequency 40/70 Hz
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Output frequency 50/60 Hz
Number of input phases 1
Efficiency 93.5%
Noise level 40 dB

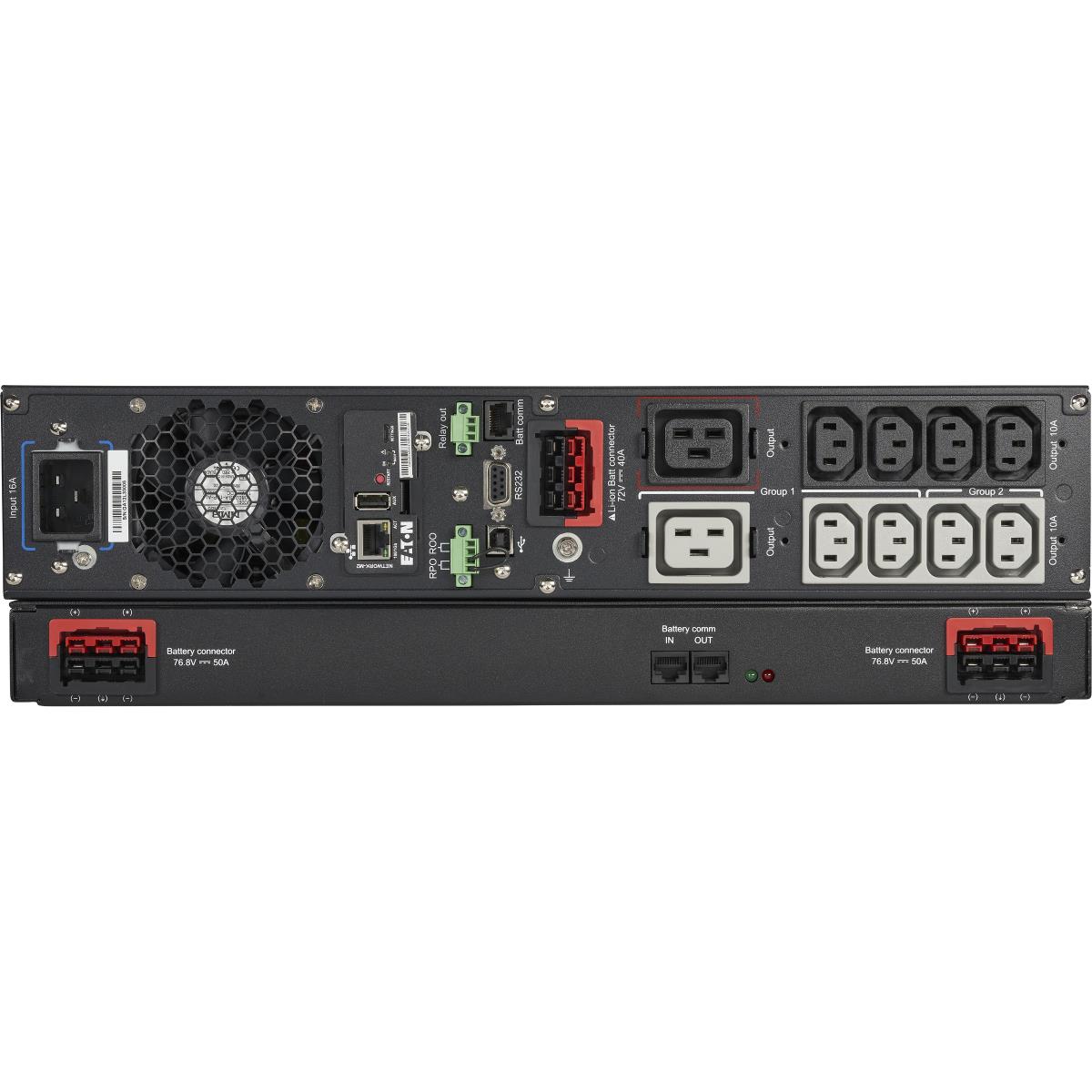

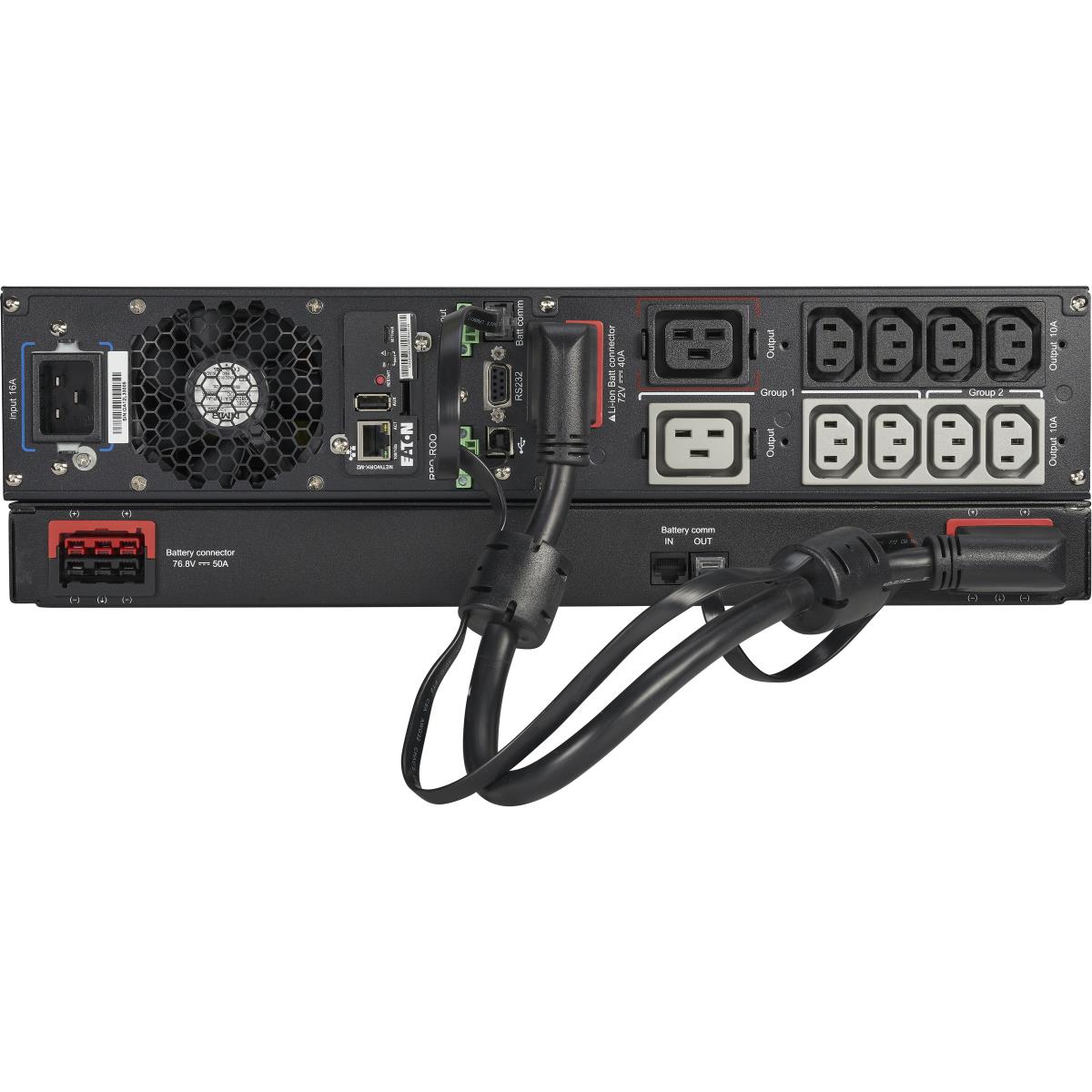

Ports & interfaces
AC outlet types C13 coupler, C19 coupler
Power plug C20 coupler
AC outlets quantity 10 AC outlet(s)
USB port Yes
USB 2.0 ports quantity 1
RS-232 ports 1
Battery
Battery technology Lithium-Ion (Li-Ion)
Battery voltage 72 V
Design
Form factor Rackmount/Tower
Rack capacity 1U
Product colour Black, Silver
Display type LCD
LED indicators Yes
Certification IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CB report (TUV) / EAC
Operational conditions
Operating temperature (T-T) 0 - 40 øC
Technical details
Sustainability certificates ENERGY STAR
Compliance certificates CE
Weight & dimensions
Width 438 mm
Depth 603 mm
Height 42 mm
Weight 17.4 kg
Packaging data
Rack mount kit Yes
