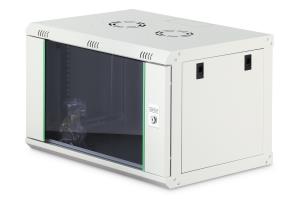

Wall mounting cabinet - 9U Dynamic Basic 478x600x600mm, White (RAL 7035)
ITCurry #: M9236915 | Article #: DN-19 09U-6/6-EC-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
- Optimized air ventilation and exhaustion

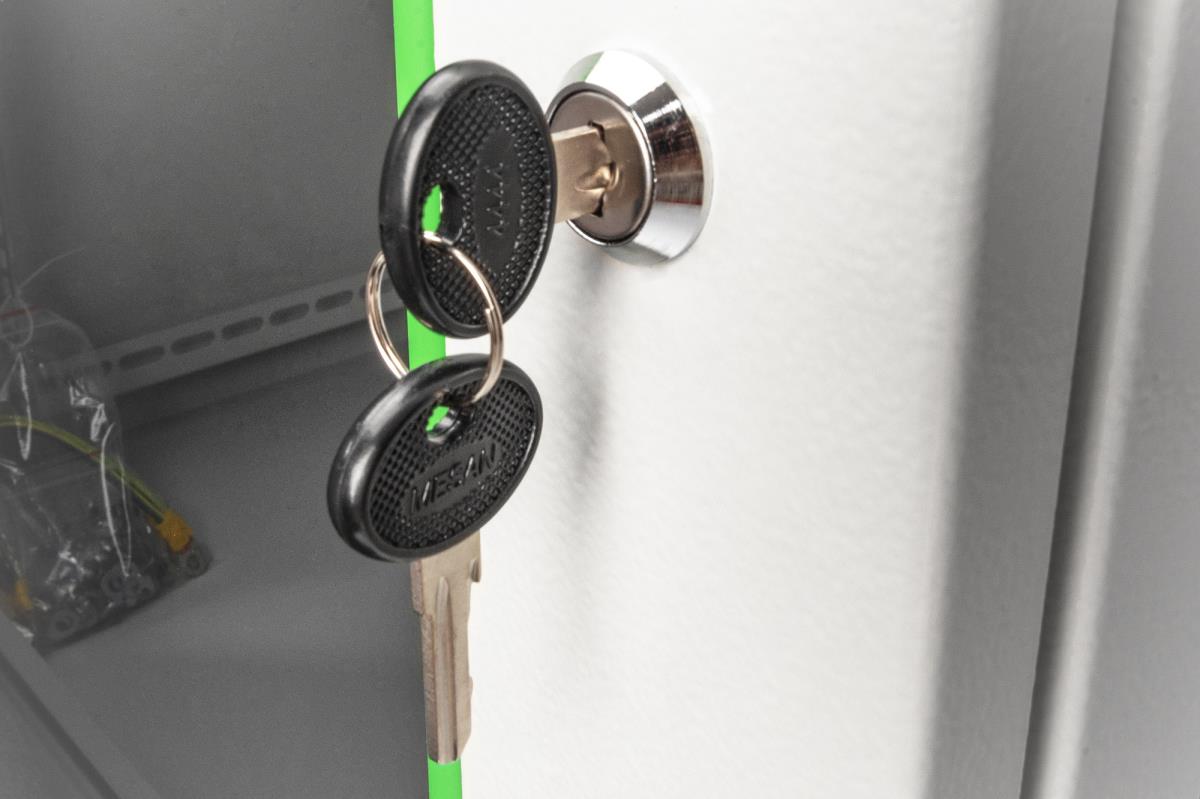

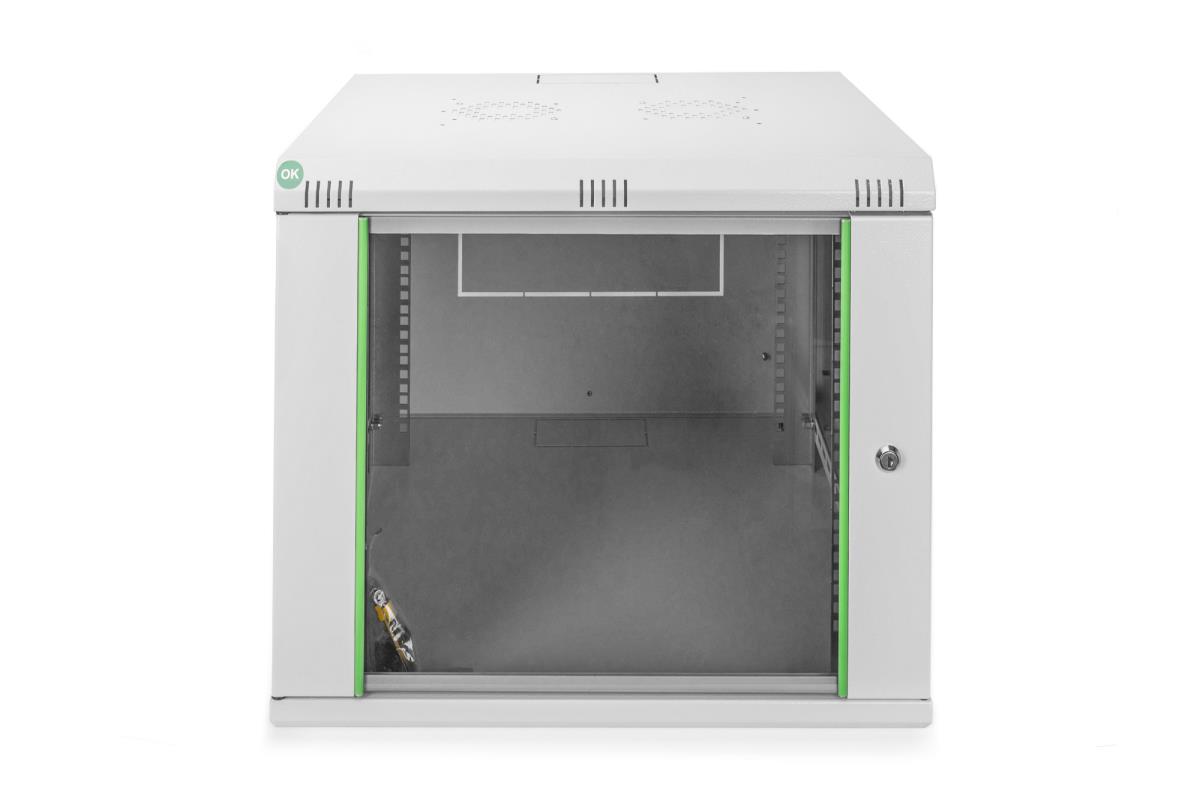

- Lockable glass door ensures safety

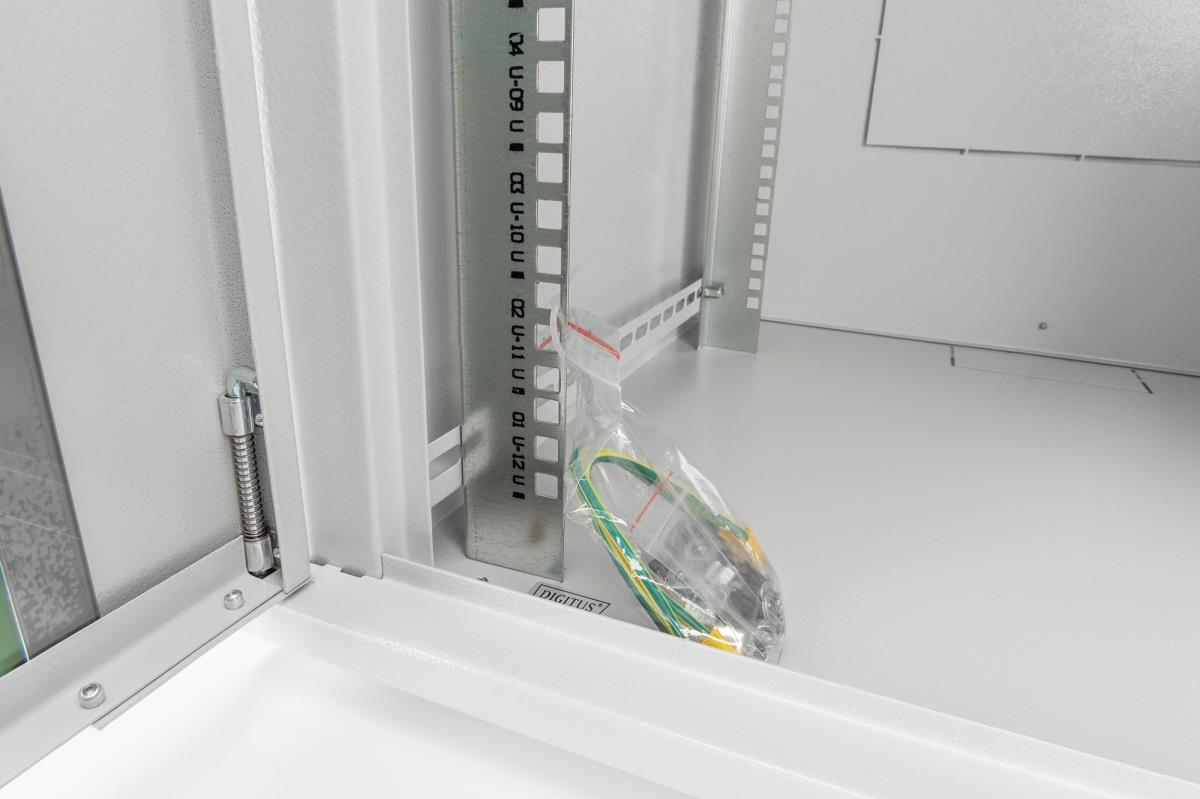

- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized

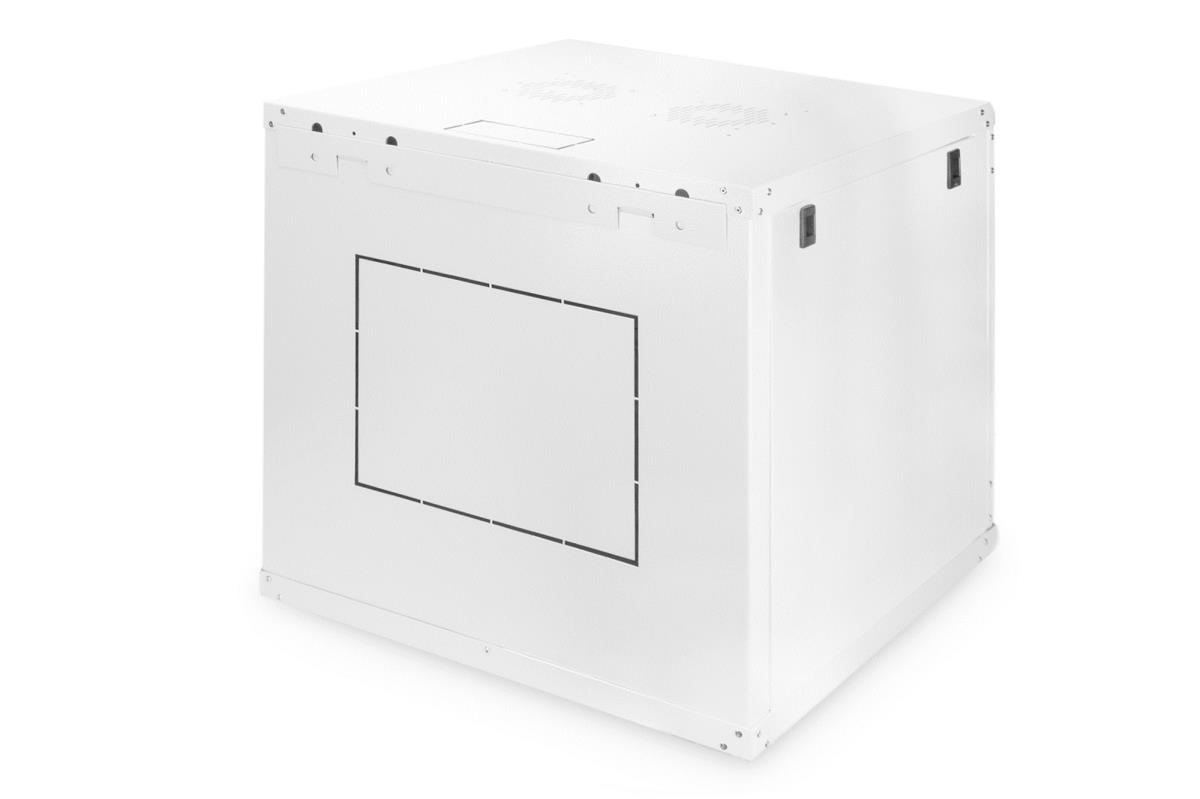

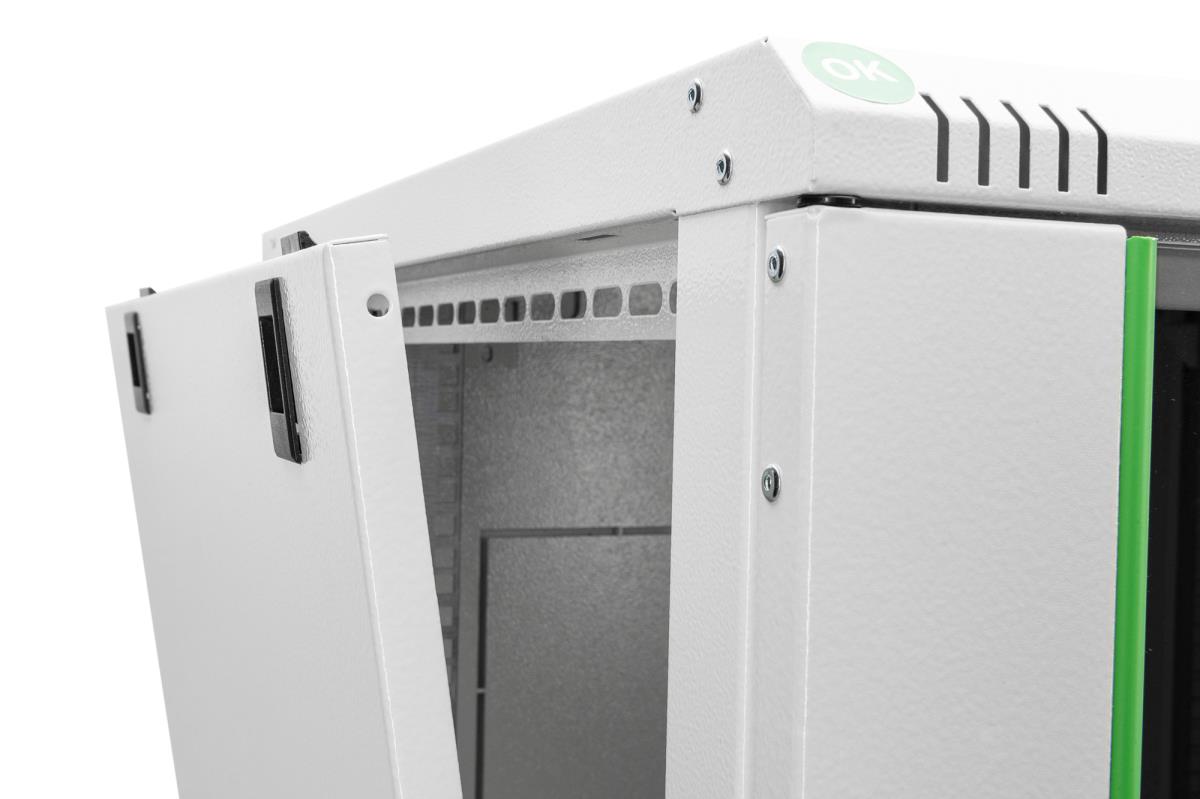

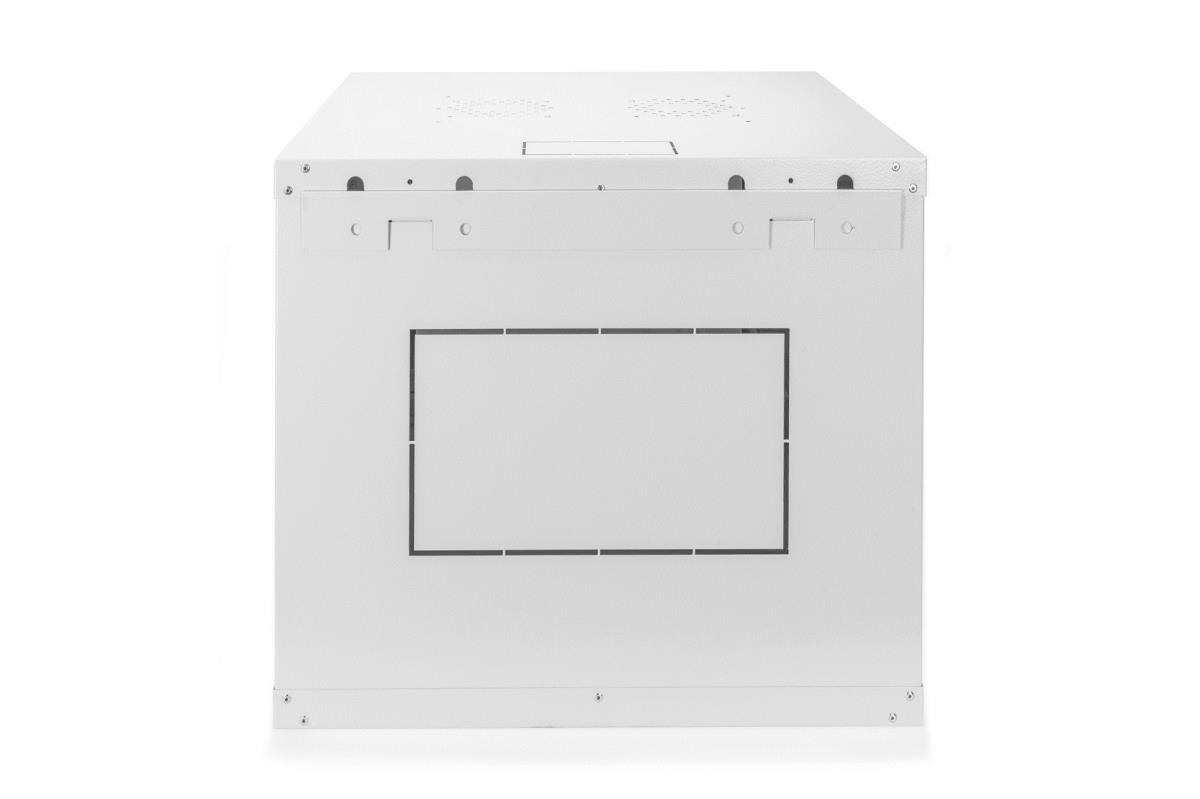

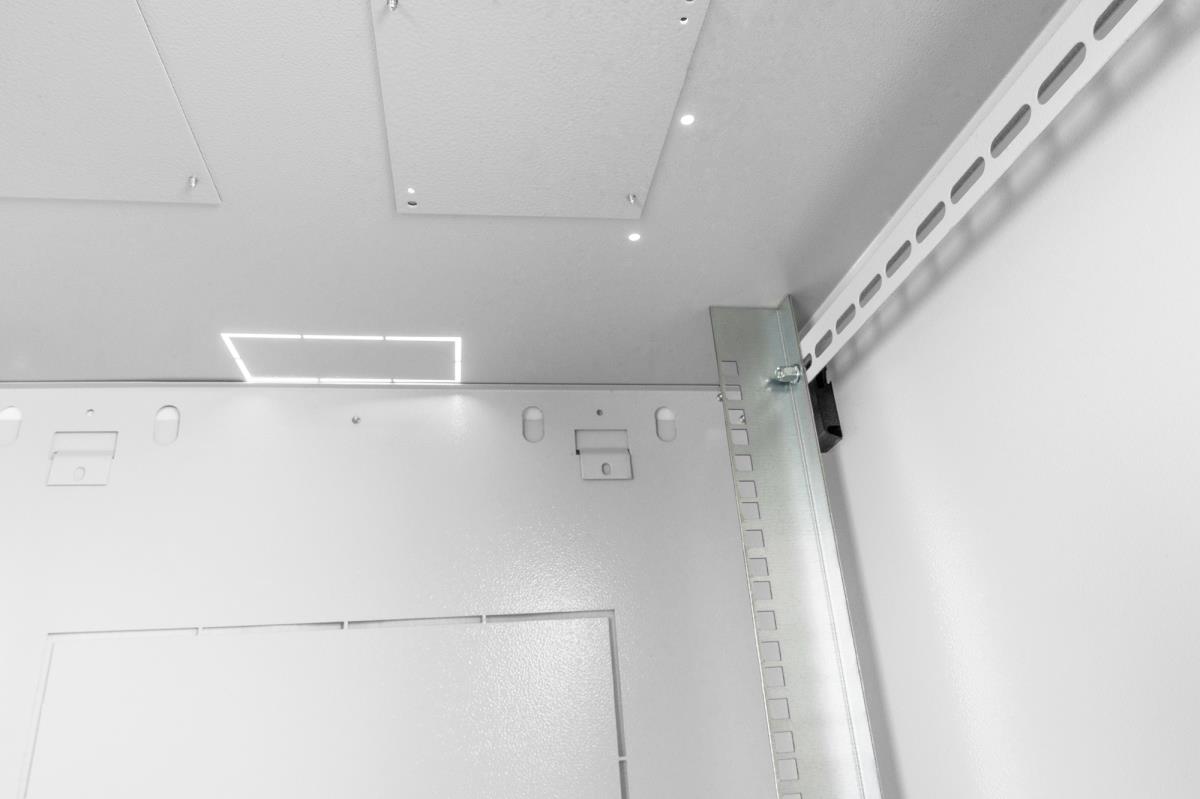

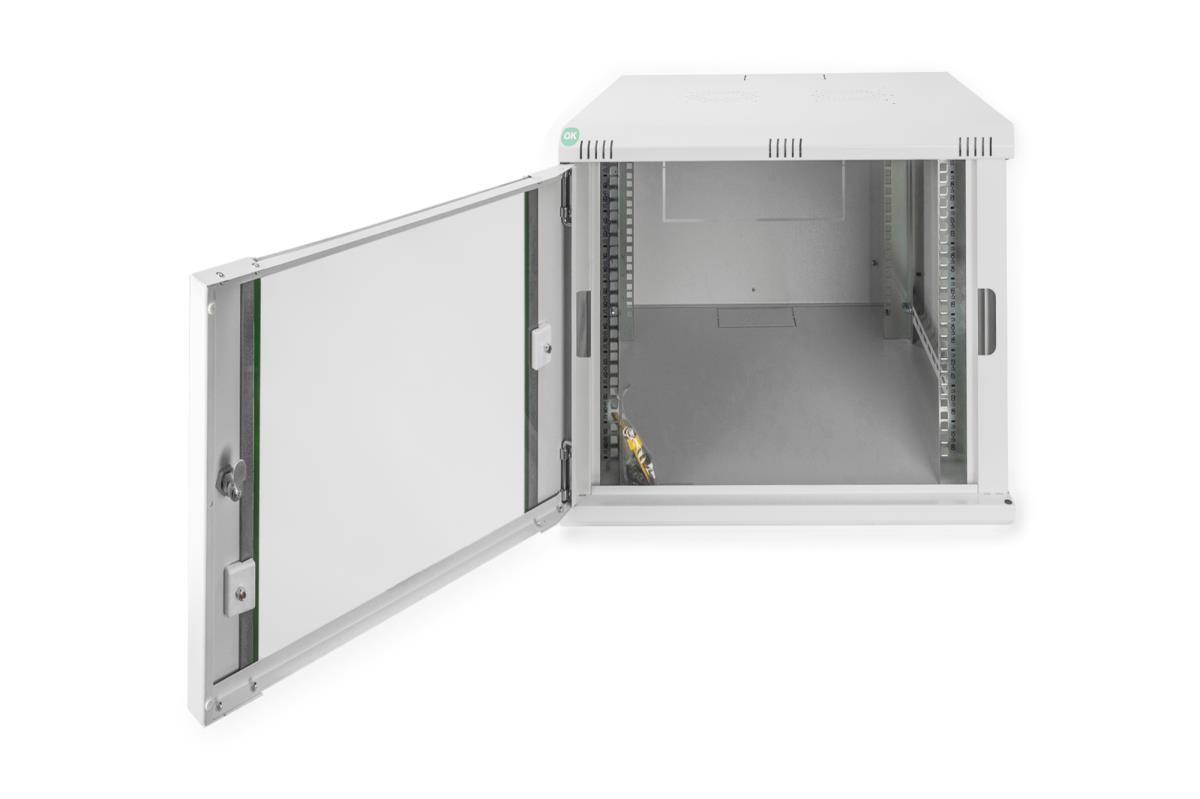

The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.
| Features | |
| Rack capacity | 9U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Product colour | Grey |
| Material | Galvanized steel, Glass |
| Front door construction | Glass |
| Side panel construction | Steel |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Adjustable mounting rails | Yes |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 505 mm |
| Packaging data | |
| Package width | 630 mm |
| Package depth | 520 mm |
| Package height | 505.1 mm |
| Package volume | 203112 cmü |
| Package weight | 20 kg |
| Logistics data | |
| UK Trade Tariff code | 94032080 |
| Country of origin | China |
| Harmonized System (HS) code | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
