USB hard drive enclosure - NVMe 40 Gbps USB 4.0 Aluminium tooling
ITCurry #: M9239531 | Article #: DA-71158-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DA-71158 M.2 NVMe SSD enclosure will become your preferred solution for high-capacity storage with super-fast data transfer speeds of up to 40 Gbps.

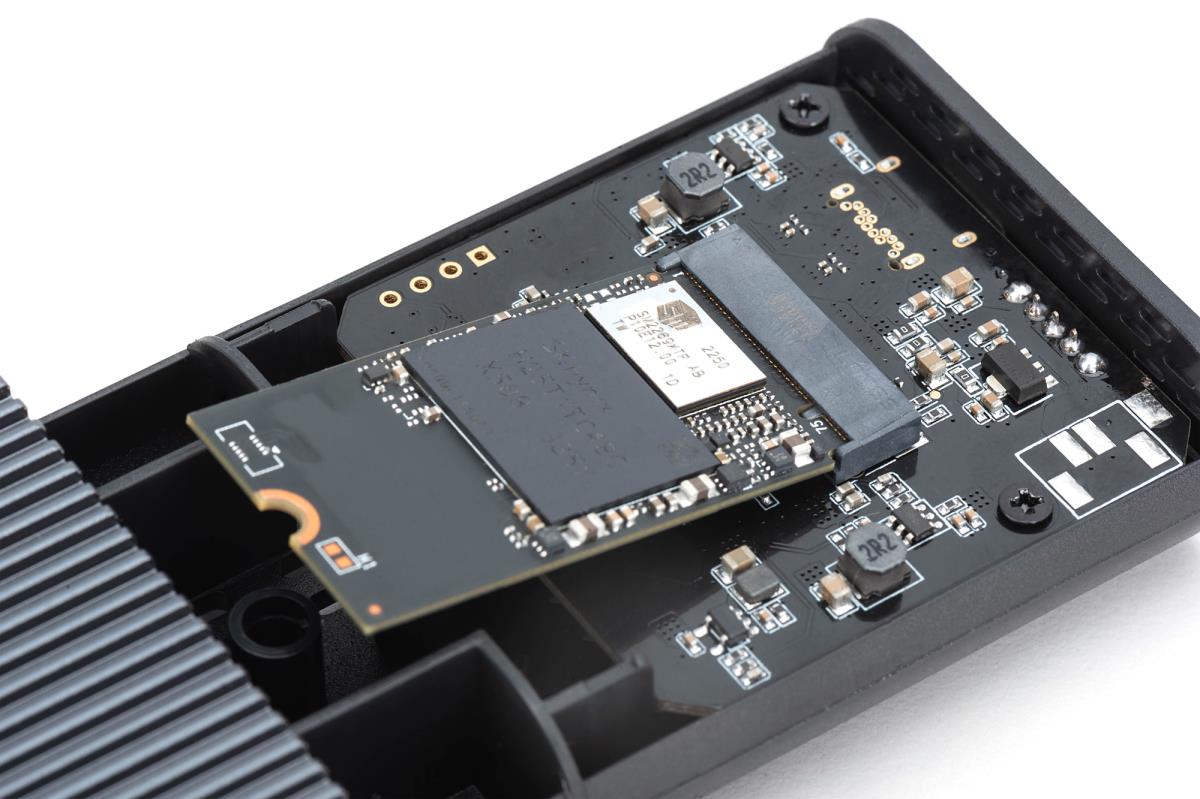

- Wide compatibility: Supports M.2 modules in 2230, 2242, 2260 and 2280 formats, compatible with a wide range of SSDs.
- High capacity: Offers up to 8 TB of storage space for all your files and data.
- Fast data transfer: Data transfer rate of 40 Gbps for fast file transfers and smooth performance.
- USB 4.0 interface: Latest USB technology with backwards compatibility to USB 3.2, 3.1, 3.0, 2.0 and 1.1.
- Plug and play: Simply connect via USB and get started straight away.
- Cross-platform support: Compatible with Windows, macOS, Linux, Google Chrome OS, Android and iOS.
- Robust chipset: ASM2464PD chipset for reliable and efficient performance.
- LED activity indicator: Integrated LED indicator for monitoring the status of your SSD.

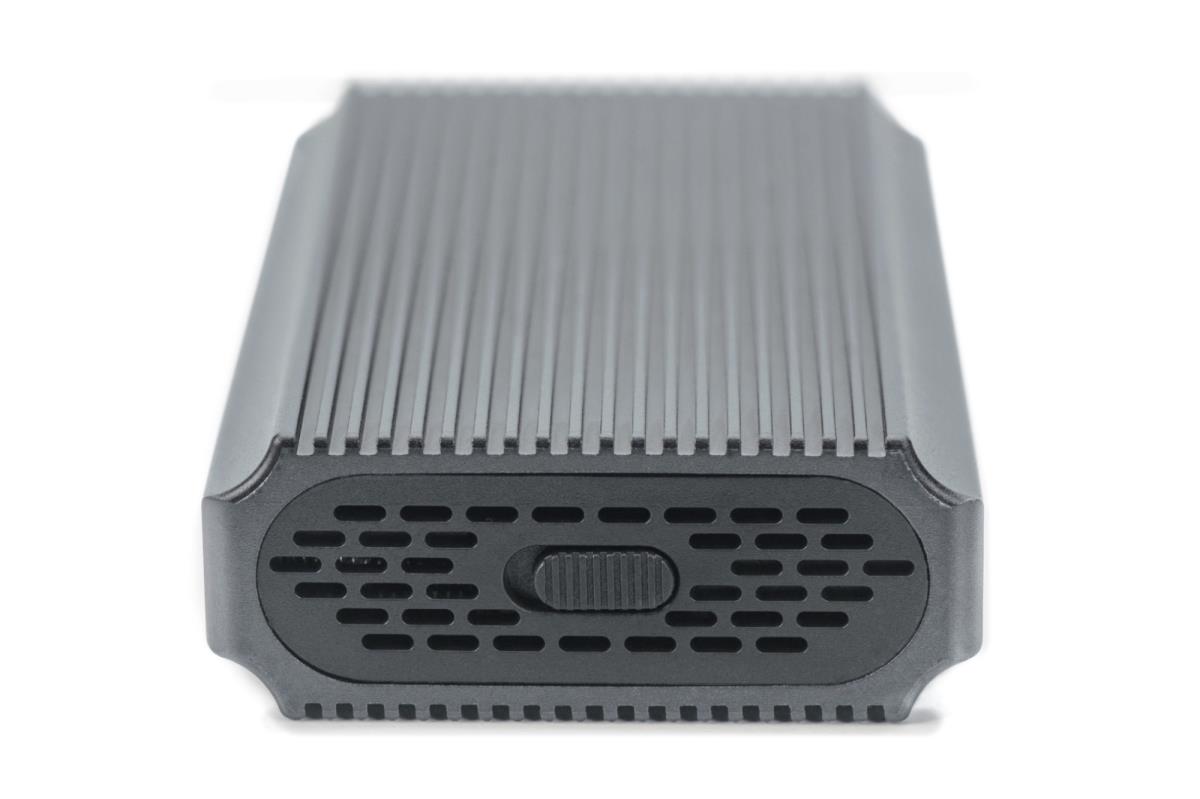

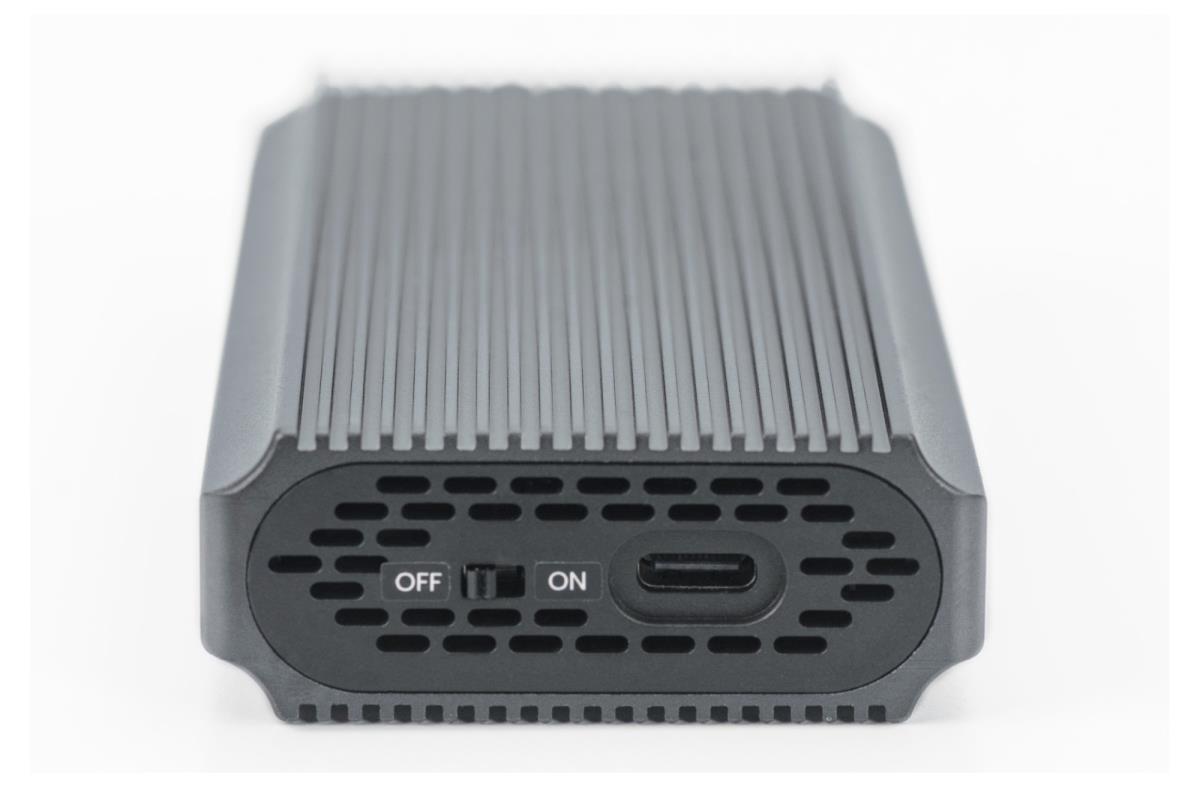

- Durable and stylish: aluminum housing in Pantone 430C with excellent passive heat dissipation.
- Portable design: Compact and lightweight with dimensions of 116x60x20 mm and a weight of only 150 g.

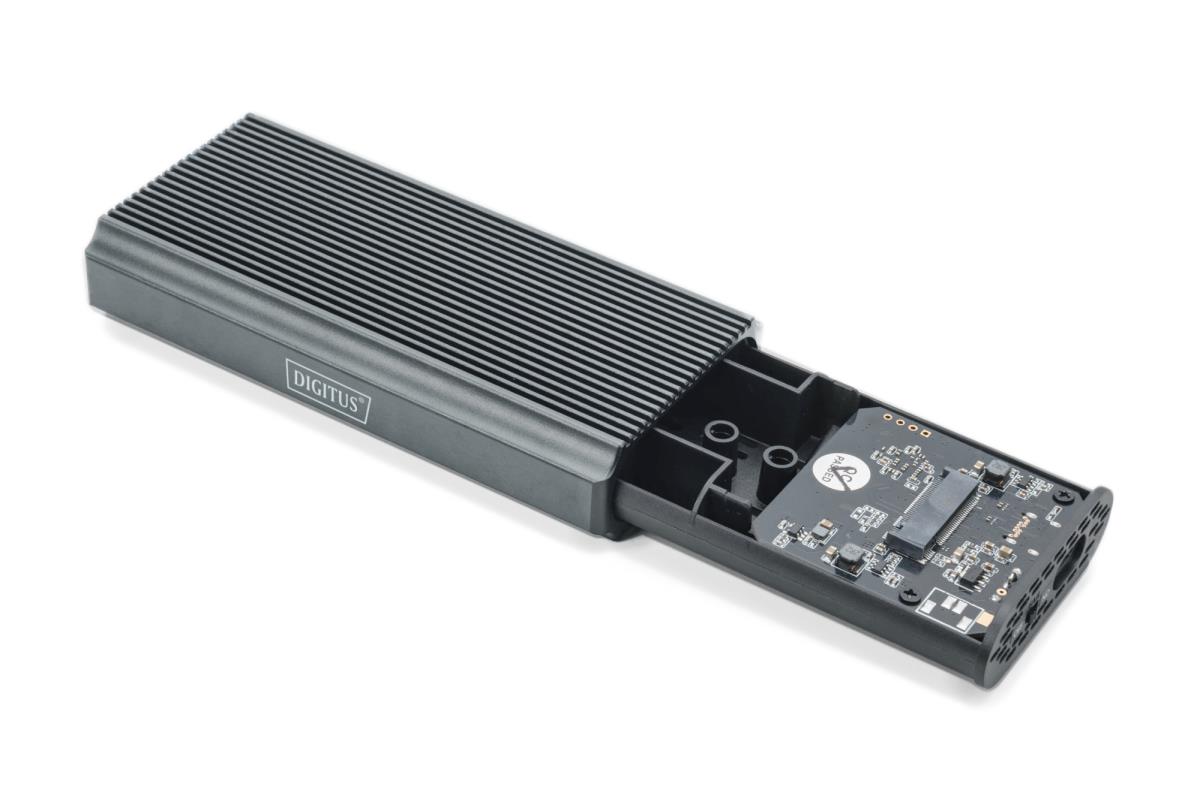

The DA-71158 USB hard disk enclosure sets new standards in terms of speed and performance for NVMe SSDs. With impressive data transfer rates of 40 Gbps for NVMe, it enables lightning-fast file transfers and seamless performance. The USB 4.0 interface is backwards compatible with USB 3.2, 3.1, 3.0, 2.0 and 1.1, ensuring maximum flexibility. It supports M.2 modules in the 2230, 2242, 2260 and 2280 formats and a maximum storage capacity of up to 8 TB, making it ideal for a wide range of SSDs. The tool-free design ensures quick and easy installation with the included mounting hardware, while the robust ASM2464PD chipset ensures reliable and efficient performance. An integrated LED indicator makes it easy to monitor SSD status, and the durable Pantone 430C aluminum housing provides excellent passive heat dissipation. With compact dimensions of 116x60x20 mm and a weight of only 150 g, the housing is perfect for mobile use. It supports plug-and-play and is powered directly via the USB port. The enclosure is compatible with Windows (11, 10, 8, 7, XP, 2004), macOS, Linux (2.4.x or higher), Google Chrome OS (9.x or higher), Android and iOS and offers comprehensive support for USB-C products.
| Storage | |
| Number of storage drives supported | 1 |
| Storage drive size | M.2 |
| Supported storage drive interfaces | M.2 |
| Supported storage drive heights | 22 mm |
| Supported storage drive lengths | 30,42,60,80 mm |
| NVMe | Yes |
| Maximum storage capacity | 8 TB |
| Ports & interfaces | |
| USB connectivity | Yes |
| USB version | USB4 Gen 2x2 |
| Design | |
| Product type | SSD enclosure |
| Product colour | Grey |
| Material | Aluminium |
| LED indicators | Yes |
| On/off switch | Yes |
| Performance | |
| Data transfer rate | 40 Gbit/s |
| Chipset | JMS581DL |
| Plug and Play | Yes |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 116 mm |
| Depth | 60 mm |
| Height | 20 mm |
| Weight | 150 g |
| Package width | 93 mm |
| Package depth | 152 mm |
| Package height | 38 mm |
| Package weight | 240 g |
| Packaging content | |
| Cables included | USB Type-C |
| Quick installation guide | Yes |
| Warranty | |
| Base Warranty | Non Non |
