Universal TV Ceiling Mount 37-70IN 560-910 mm black

ITCurry #: M9238512 | Article #: DA-90421
Price:
40.17 Ex VAT
Shipping:
FREE Shipping on orders over 100€ Ex VAT.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

Variable Ceiling Bracket for Flat and Curved Displays up to 70" / 50 kg, Height-Adjustable

- Universally suitable for displays from 37" to 70"
- Load capacity: 50 kg
- Suitable for flat and curved displays
- Variable telescopic height adjustment (35 cm)
- Adjustable mounting plinth - also suitable for sloping roofs with up to 60° inclination
- Freely selectable inclination from 0° to -25° for optimal viewing angle
- Cable management: Within the tube structure
- Quick-release monitor bracket (suspension device) - for easy installation
- Integrated level for perfect alignment

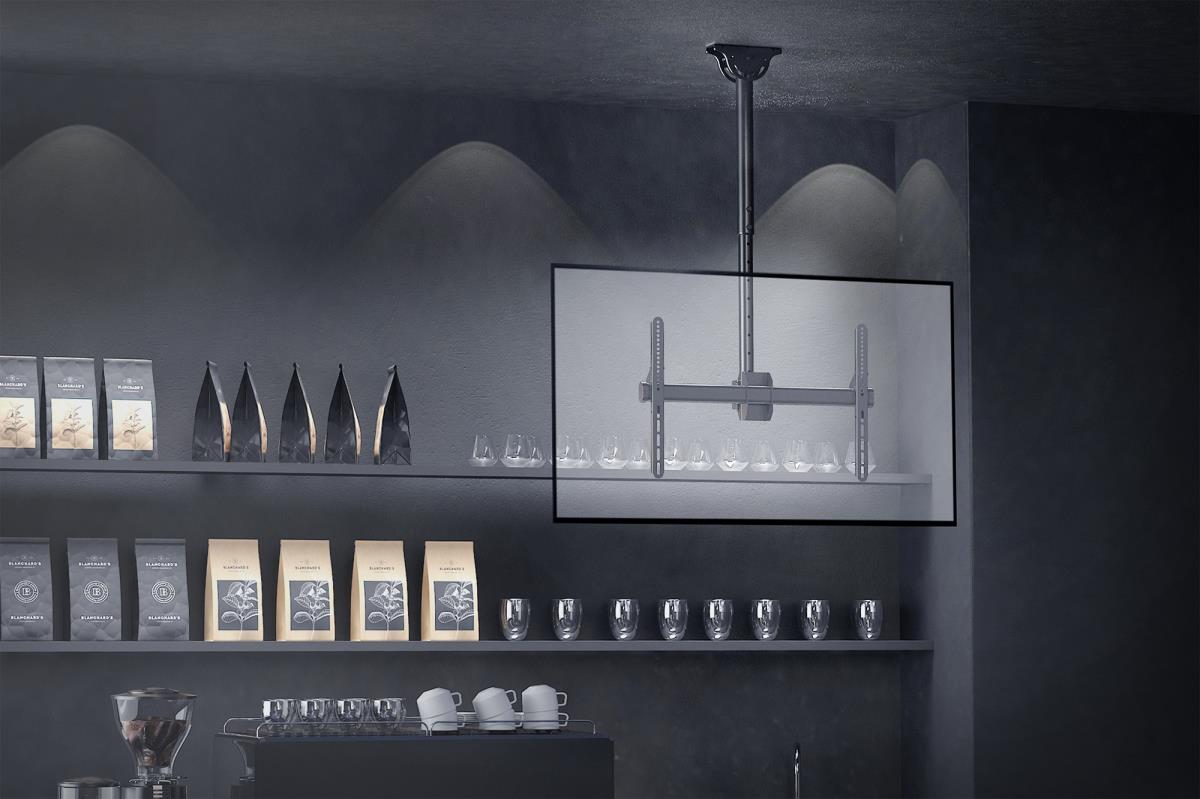

- Perfect for offices, conference rooms, restaurants/cafés, schools or hotels

The fully flexible Universal Ceiling Bracket from DIGITUS® leaves nothing to be desired. It is suitable for flat and curved displays with a screen diagonal from 37” to 70” and a weight of 50 kg. It can be optimally adjusted to different ceiling heights with telescopic height adjustment. The bracket can also be adapted to sloping roofs with an incline of up to 60° and can be swiveled by 360°. An optimal viewing angle is ensured by the variable inclination, which can be adjusted from 0 to -25° depending on the ceiling height and desired viewing angle. Installation is facilitated by the VESA bracket with quick release, as the display is clipped in to the corresponding mounts along with the installed VESA bracket. Clean cable management is provided within the telescopic structure. An integrated level helps with fine-tuning. The ceiling bracket can be used for VESA dimensions 200x200 to 600x400.

Mounting
Minimum screen size 94 cm (37")
Maximum weight capacity 50 kg
Maximum screen size 177.8 cm (70")
Minimum VESA mount 200 x 200 mm
Maximum VESA mount 600 x 400 mm
Panel mounting interface 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Number of displays supported 1
Mounting type Ceiling
Ergonomics
Height adjustment Yes
Height adjustment range 56 - 91 mm
Swivel angle 360ø
Swivel angle range -180 - 180ø
Angle of rotation
Design
Product colour Black
Housing material Steel
Technical details
Country of origin China
Weight & dimensions
Width 680 mm
Depth 435 mm
Height 1130 mm
Weight 5.5 kg
Packaging data
Package width 780 mm
Logistics data
Harmonized System (HS) code 85299097
Other features
Mounting Clamp
Warranty
Base Warranty Non Non
