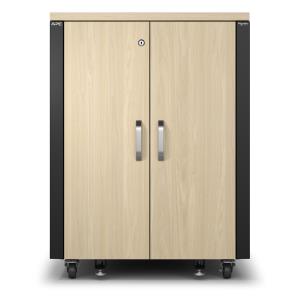

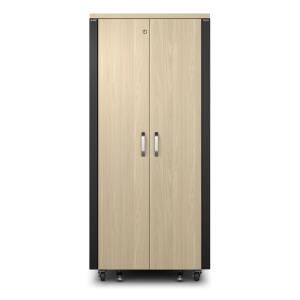

SOUNDproof Cabinet 1000x750x1130 mm, wooden surface maple metal parts black RAL 9005
ITCurry #: M9235825 | Article #: DN-19 17U-SO-M-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DIGITUS® SOUNDproof Rack Series is designed to perform the absorbtion of the created noice from the active equipments housed inside the cabinet.
- Reduces noise from mounted equipment in the inside
- Noise level reduction to 18-21 dB, measured from one meter distance to the enclosure
- Decorative wood finish decor on front door and roof structure
The acoustically insulated 483 mm (19”) cabinets from the SOUNDproof series were designed to absorb the noises of the installed components on the inside. With their excellent noise reduction and wooden design available as maple, teak, walnut, oak or cherry versions, these cabinets are perfect in office environments for example, where they blend seamlessly into the existing interior design. They are equipped with a quiet ventilation system with a maximum volume of 29-30 dB. The overall noise reduction when measured at a distance of 1 meter from the cabinet is 18-21 dB. Integrated cable guides with rings and brushes at the front ensure clean cable management. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring of the steel sheets is done with electrostatic powder coating in the standard color black (RAL 9005). Removable and lockable side walls at the back improve accessibility, together with the lockable doors.
| Features | |
| Rack capacity | 17U |
| Type | Freestanding rack |
| Maximum weight capacity | 1000 kg |
| Product colour | Black |
| Front door construction | Wood veneer |
| Key lock | Yes |
| Cooling type | Active |
| Noise level | 30 dB |
| Soundproof | Yes |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Width | 750 mm |
| Depth | 1130 mm |
| Height | 1000 mm |
| Weight | 138 kg |
| Packaging data | |
| Package width | 800 mm |
| Package depth | 1180 mm |
| Package volume | 991200 cmü |
| Package weight | 139 kg |
| Logistics data | |
| UK Trade Tariff code | 94032080 |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| Warranty | |
| Base Warranty | Non Non |
