Slim Patch cable - CAT6A - U/UTP - Snagless - Cu - 5m - Grey
ITCurry #: M9238065 | Article #: DK-1617-A-050S-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

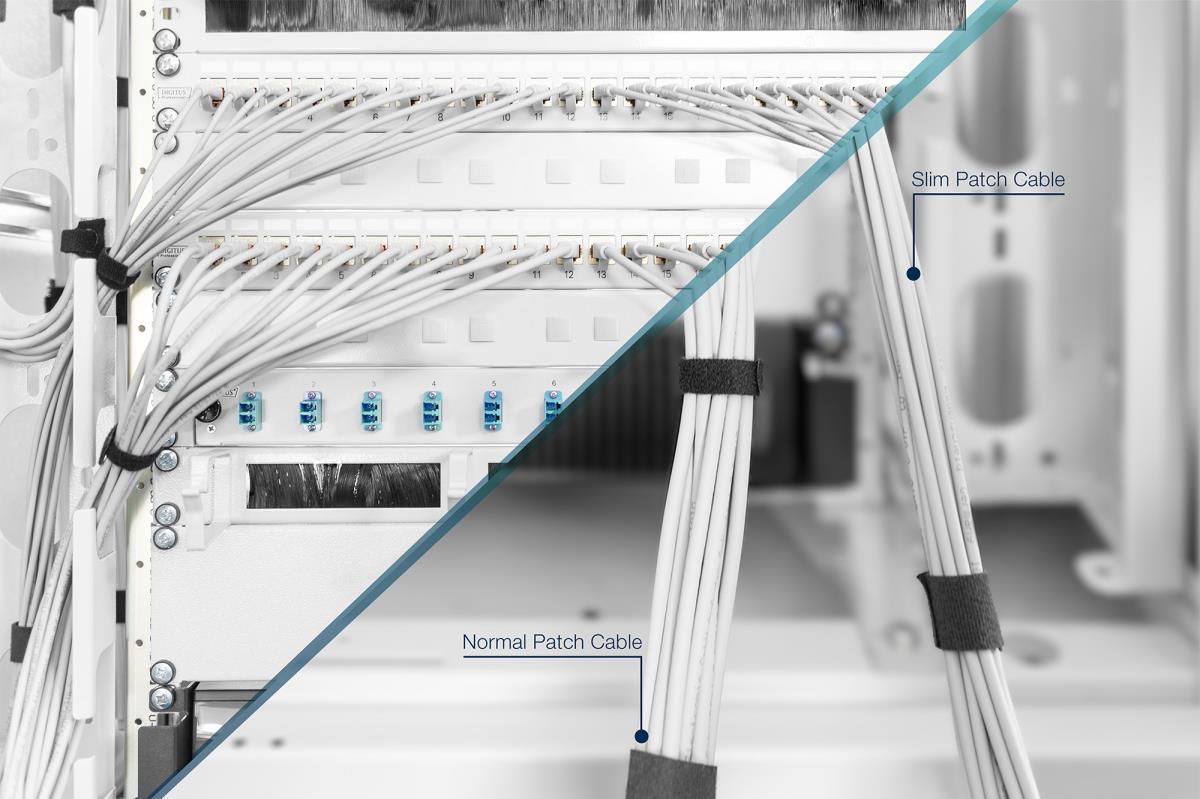

Enables flexible and space-saving cabling in your network

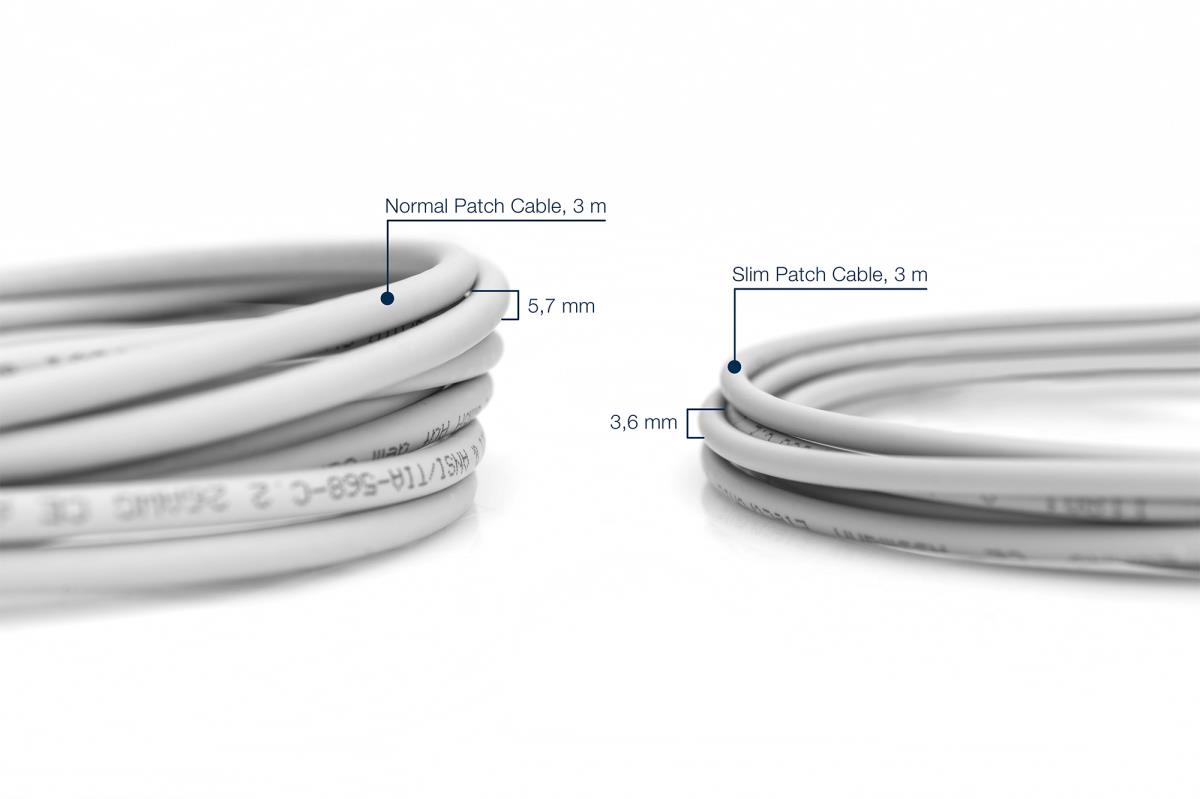

- Small outer diameter of 3.65 mm is suitable for flexible use
- With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission
- Transparent yellow colored plug for easy identification of Category 6A (500 MHz)
- Conductor: Copper (Cu)
DIGITUS® slim patch cords are characterised by their small outer diameter and flexible sheath. Slim design enables versatile use in your network. Moreover, The DIGITUS® Category 6A Class EA patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.
| Features | |
| Product colour | Grey |
| Cable length | 5 m |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector shielding | Yes |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 28/7 |
| Frequency | 500 MHz |
| Molded cable boot | Yes |
| Snagless cable boot | Yes |
| Country of origin | China |
| Weight & dimensions | |
| Outer diameter | 3.65 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 190 mm |
| Package depth | 270 mm |
| Package height | 13 mm |
| Package weight | 89 g |
| Package volume | 615.6 cmü |
| Technical details | |
| Doesn't contain | Halogen |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| UK Trade Tariff code | 85444210 |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case gross weight | 7.3 kg |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case volume | 33600 cmü |
| Warranty | |
| Base Warranty | Non Non |
