Slim Patch cable - CAT6A - U/FTP - Snagless - Cu - 1m - Grey

ITCurry #: M9238078 | Article #: DK-1624-A-010S
Price:
2.09 Ex VAT
Shipping:
FREE Shipping on orders over 100€ Ex VAT.
Delivery in 3 days
Quantity:
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

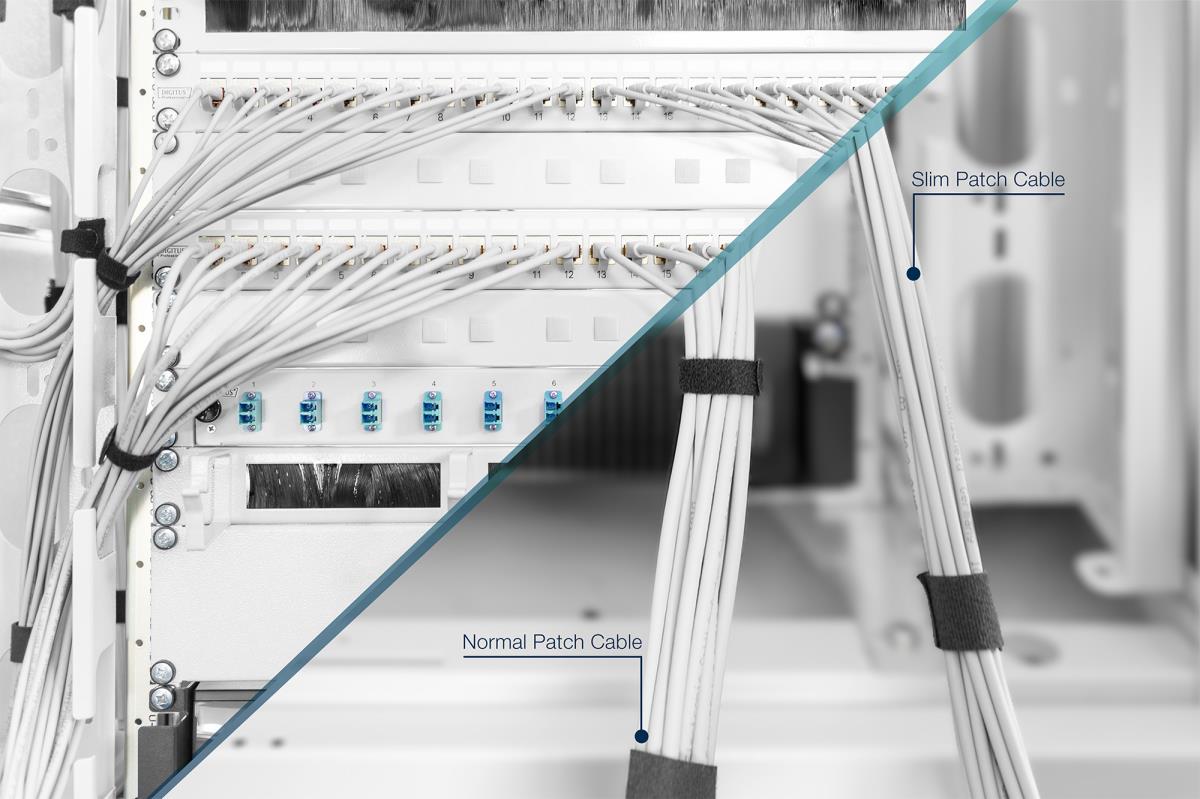

Enables flexible and space-saving cabling in your network

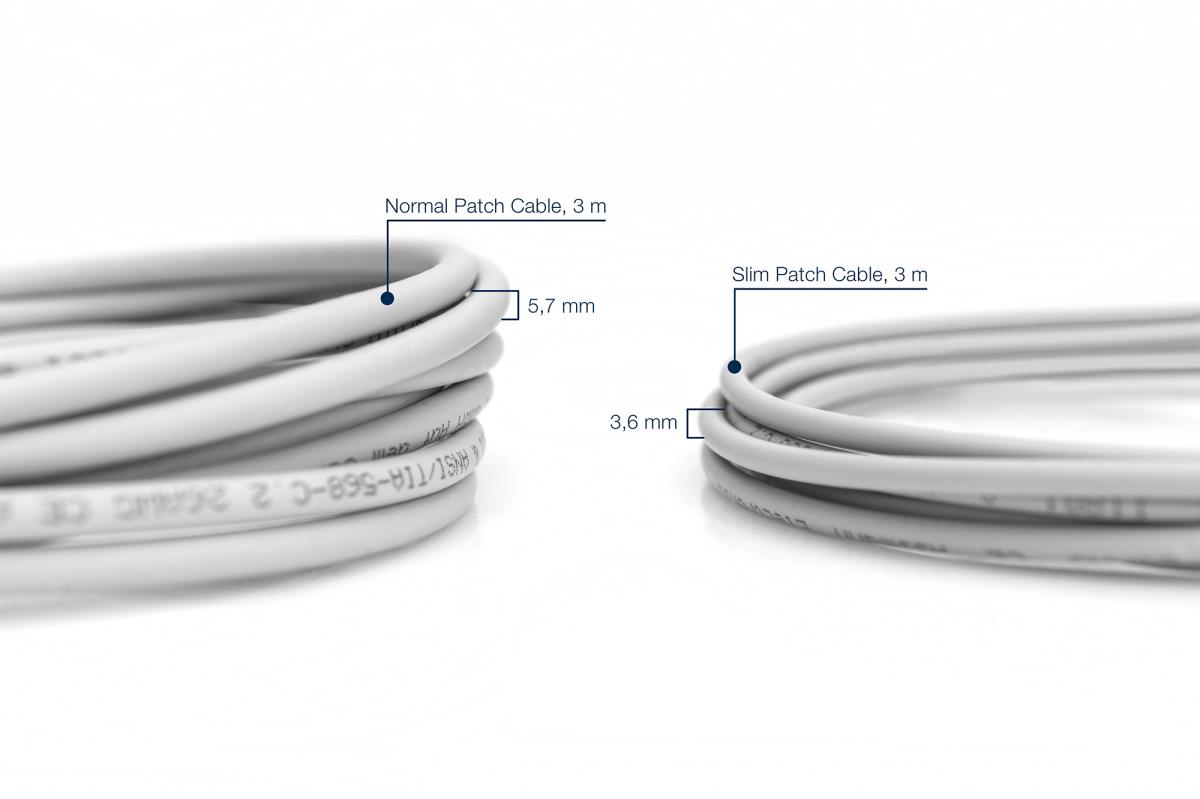

- Small outer diameter of 4.8 mm is suitable for flexible use
- With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission
- Transparent yellow colored plug with metal shielding for easy identification of Category 6A (500 MHz)
- Conductor: Copper (Cu)

DIGITUS® slim patch cords are characterised by their small outer diameter and flexible sheath. Slim design enables versatile use in your network. Moreover, the DIGITUS® Category 6A Class EA patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.

Features
Product colour Grey
Cable length 1 m
Cable standard Cat6a
Cable shielding U/FTP (STP)
Connector 1 RJ-45
Connector 2 RJ-45
Connector 1 gender Male
Connector 2 gender Male
Connector shielding Yes
Jacket material Low smoke zero halogen (LSZH)
Conductor material Copper
AWG wire size 28/7
Frequency 500 MHz
Molded cable boot Yes
Snagless cable boot Yes
Country of origin China
Sustainability
Doesn't contain Halogen
Weight & dimensions
Outer diameter 3.65 mm
Packaging content
Quantity per pack 1 pc(s)
Packaging data
Package width 170 mm
Package depth 250 mm
Package height 7 mm
Package weight 41.333 g
Package volume 297.5 cmü
Logistics data
Harmonized System (HS) code 84733080
UK Trade Tariff code 85444210
Master (outer) case width 500 mm
Master (outer) case length 320 mm
Master (outer) case gross weight 6.2 kg
Master (outer) case height 210 mm
Products per master (outer) case 150 pc(s)
Master (outer) case volume 33600 cmü
Warranty
Base Warranty Non Non
