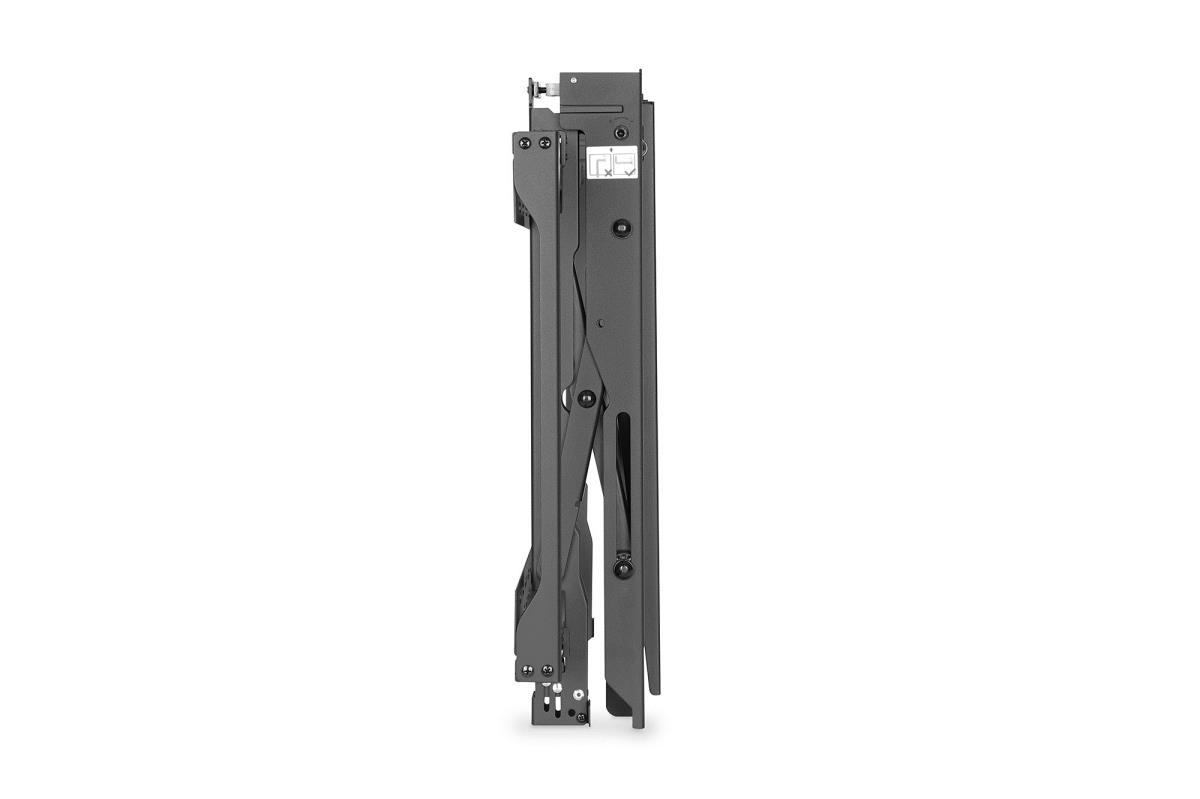

Pop-out Video Wall Mount 45-70in screen size, 70 kg max, anti-theft hole
ITCurry #: M9238815 | Article #: DA-90446-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Pop-out function: Provides quick access for installation and maintenance and allows precise alignment of your video walls
- Pop-out function - Quick access for installation and maintenance
- Supported screen sizes: 45" - 70"
- Maximum load capacity: 70 kg
- Fine adjustment: Depth 20 mm / height 25 mm
- Tilt range: +4° to -2° / Screen level: +3° to -3°
- VESA compatibility: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400
- Precise display alignment: Height/depth adjustment
- Quick lock: Locks/unlocks the display
- Pop-out lock system: Ensures safety by preventing the possibility of accidental pop-out
- Anti-theft lock hole: For added security against unintentional removal (additional padlock required)
"DA-90446 provides a professional video wall solution while being universally compatible with a maximum load capacity of 70 kg / 154 lbs and max. VESA 600x400 hole pattern. Multi-dimensional micro-adjustment allows precise alignment of the video wall configuration including depth, height and tilt. This video wall mount features a quick-lock mechanism for easy installation and maintenance. The quick-lock mechanism holds the screens in place, thanks to a locking and unlocking system. It is the perfect solution for public and commercial displays with an anti-theft design (padlock required).
"
| Mounting | |
| Minimum screen size | 114.3 cm (45") |
| Maximum weight capacity | 70 kg |
| Maximum screen size | 177.8 cm (70") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 4ø |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | Yes |
| Technical details | |
| Country of origin | China |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Weight & dimensions | |
| Width | 670 mm |
| Depth (max) | 52.4 cm |
| Height | 95 mm |
| Weight | 10.6 kg |
| Packaging data | |
| Quantity per pack | 1 pair(s) |
| Package width | 740 mm |
| Package depth | 271 mm |
| Package height | 138 mm |
| Package volume | 27674.5 cmü |
| Package weight | 11.8 kg |
| Logistics data | |
| UK Trade Tariff code | 73269098 |
| Other features | |
| Mounting | Screws |
| Warranty | |
| Base Warranty | Non Non |
