Patch Panel CAT6A shielded,8-Port 1/2U, 10in rack mount, black RAL 9005
ITCurry #: M9238754 | Article #: DN-91608S-SL-EA-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Very space-saving (only 0.5U) - future-oriented standards and high-end quality for your network
- Slim installation height of only 0.5 U
- Complete shielding of housing and shield contacting

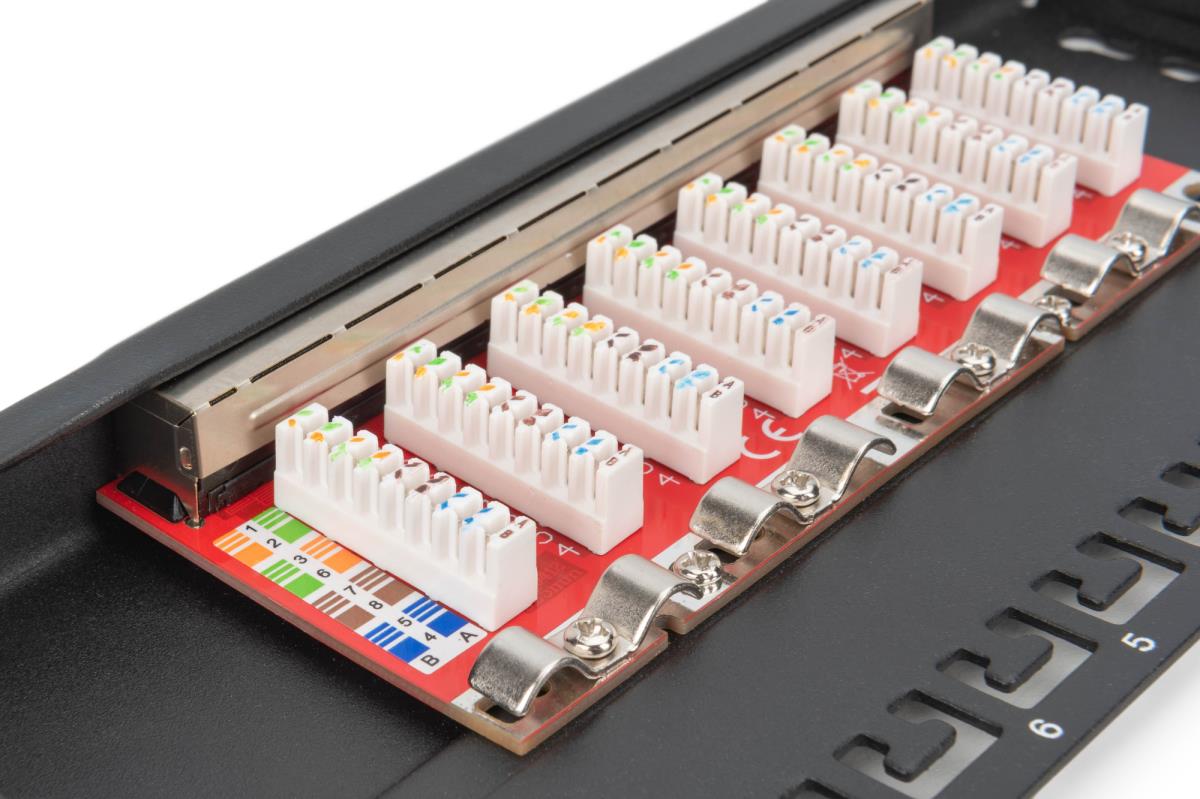

- Cable installation via LSA strips
- Central earthing connection
- Dielectric strength up to 1500 VDC (contact / ground)
- PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+
- 360° shield contacting

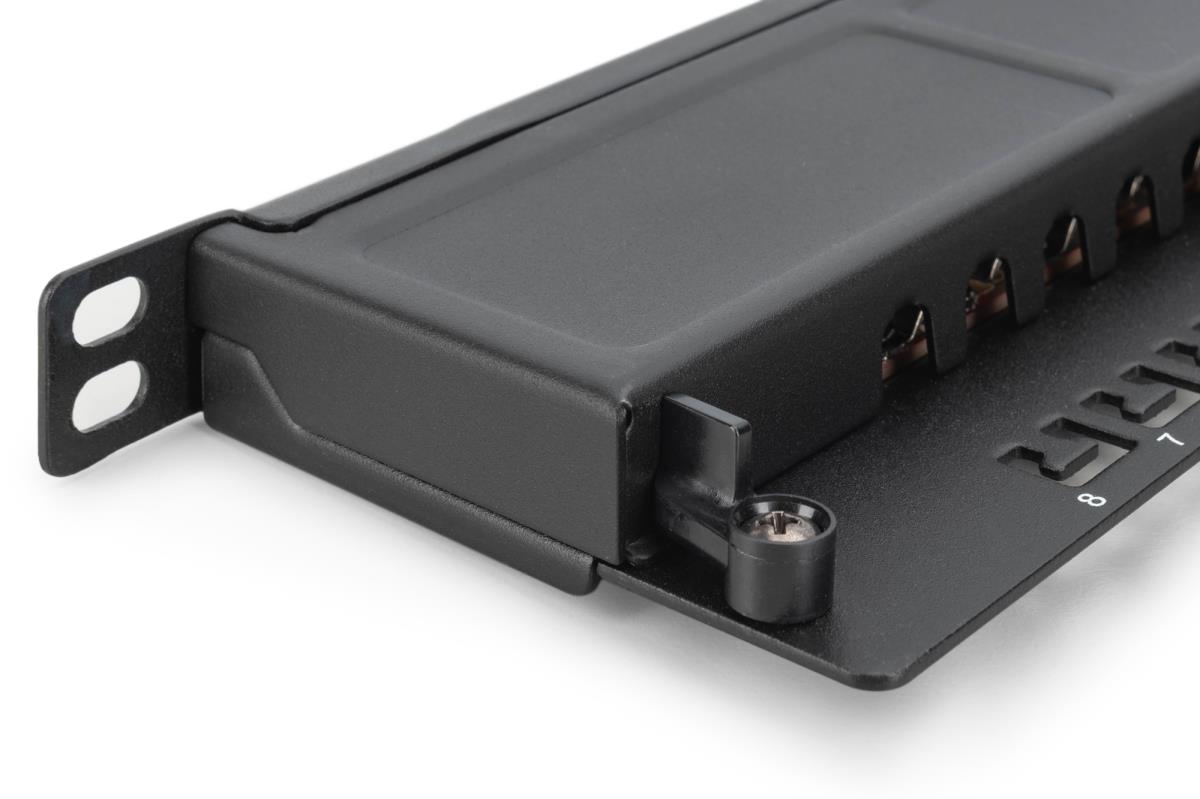

- Quick-release fastener to secure the housing cover
- Wall mounting possible

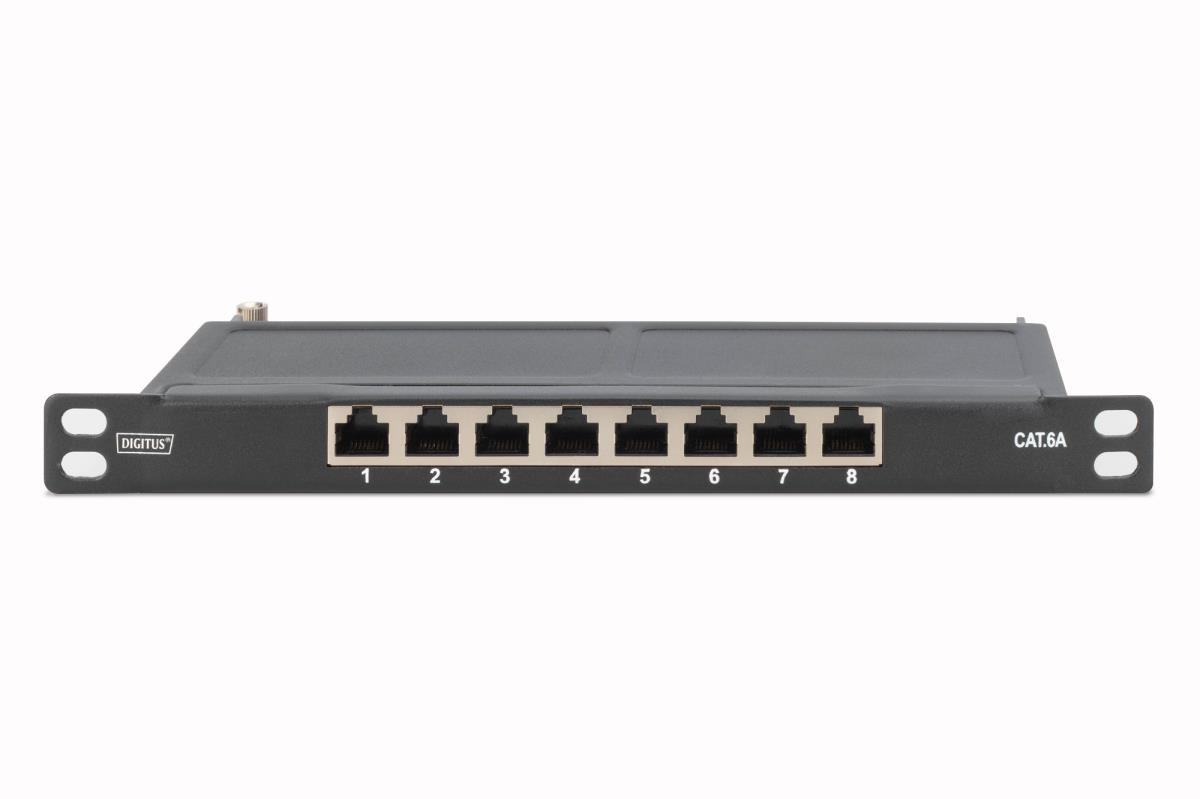

The DIGITUS® 8-Port Patch Panel offers a very high packing density with only 0.5 U. This means that up to 16 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded. The 360° shield contact of the cables ensures the best performance characteristics. The installation cables can be securely fixed with the integrated cable clamps. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals. It complies with the 802.3at PoE+ and the 802.3af PoE standard.
| Network | |
| Cabling technology | 10GBase-T |
| Ethernet interface type | 10 Gigabit Ethernet |
| Maximum data transfer rate | 10000 Mbit/s |
| Ports quantity | 8 |
| Connector(s) | RJ-45 |
| Cable types supported | Cat6a |
| AWG wire size | 22/26 |
| Design | |
| Product colour | Black |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Certificates | |
| Certification | UL |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 øC |
| Packaging data | |
| Package width | 60 mm |
| Package depth | 260 mm |
| Package height | 120 mm |
| Package weight | 890 g |
| Package volume | 1872 cmü |
| Package type | Box |
| Logistics data | |
| UK Trade Tariff code | 85369010 |
| Country of origin | China |
| Harmonized System (HS) code | 85371098 |
| Warranty | |
| Base Warranty | Non Non |
