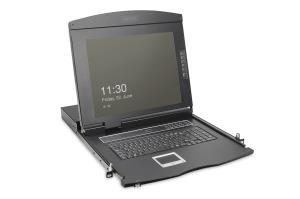

Modularized HD LCD TFT console with 1 port KVM. RAL 9005 black - UK keyboard
ITCurry #: M9239379 | Article #: DS-72220-1UK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Maximum flexibility in the administration of the server farm
- TFT monitor 43.2 cm (17"), with anti-reflective, shatter-proof protective glass pane
- The console can be completely pulled out of the server cabinet and the TFT screen can be tilted by 120 degrees
- Supports various cabinets from 800mm to 1200mm depth
- All KVM cables are included in the scope of delivery
- Full HD 1080P resolution
- 1x USB peripheral port in the console area
- LED display for the connection status
- Contrast ratio: 1000:1
- Supports: 16.7 M colors
- Including 1 port VGA adapter
The Digitus HD LCD KVM console - with a 17" TFT monitor with anti-reflective and shatter-proof protective glass panel. The console can be completely pulled out of the server cabinet and the TFT screen can be tilted by 120 degrees. This console supports various cabinets from 800mm to 1200mm depth and comes complete with all KVM cables. With full HD resolution of 1080P and LED indicator for connection status, this console also features a USB peripheral port in the console area. Enjoy up to 85% more space and a contrast ratio of 1000:1 and support for 16.7 million colors with this console. The package includes a 1-port VGA adapter, a keyboard and a touch-board mouse with two function keys. With a modular and expandable design, this console can also be cascaded.
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1920 x 1080 pixels |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Display type | TFT |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Product colour | Black |
| Rack capacity | 1U |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 1 |
| DC-in jack | Yes |
| Keyboard | |
| Built-in touchpad | Yes |
| Keyboard language | UK English |
| Keyboard layout | QWERTY |
| Weight & dimensions | |
| Width | 360 mm |
| Height | 45 mm |
| Depth | 445 mm |
| Weight | 12.3 kg |
| Mounting depth (min) | 80 cm |
| Mounting depth (max) | 120 cm |
| Packaging data | |
| Package weight | 19.1 kg |
| Package width | 585 mm |
| Package depth | 530 mm |
| Package height | 185 mm |
| Package volume | 57359.25 cmü |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Warranty | |
| Base Warranty | Non Non |
