Modularized HD LCD TFT console,8 Port VGA with 8 port VGA KVM, RAL 9005 black - TR keyboard

ITCurry #: M9239384 | Article #: DS-72220-2TR
Price:
929.99 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

Maximum flexibility in the administration of the server farm

- TFT monitor 43.2 cm (17"), with anti-reflective, shatter-proof protective glass pane

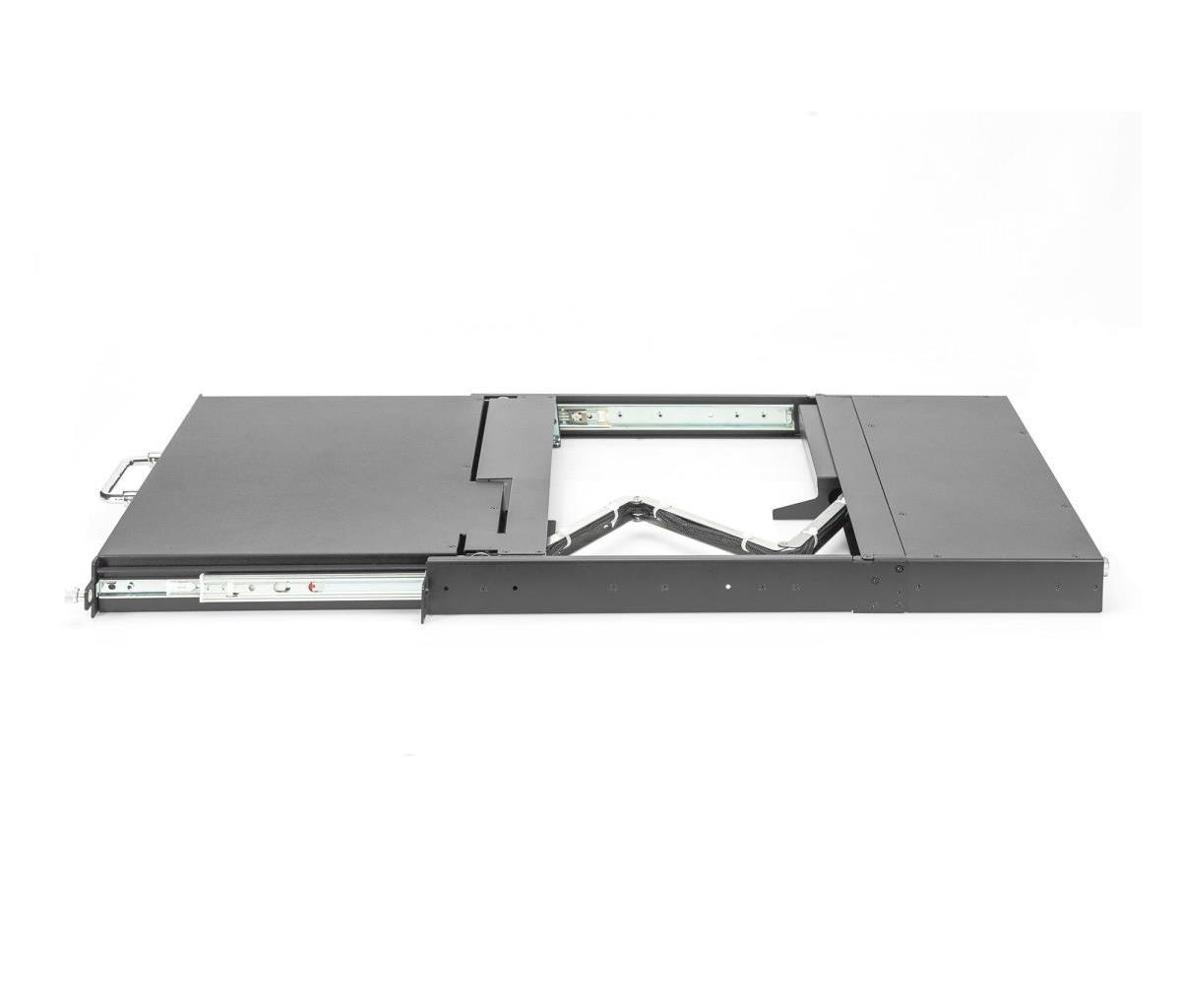

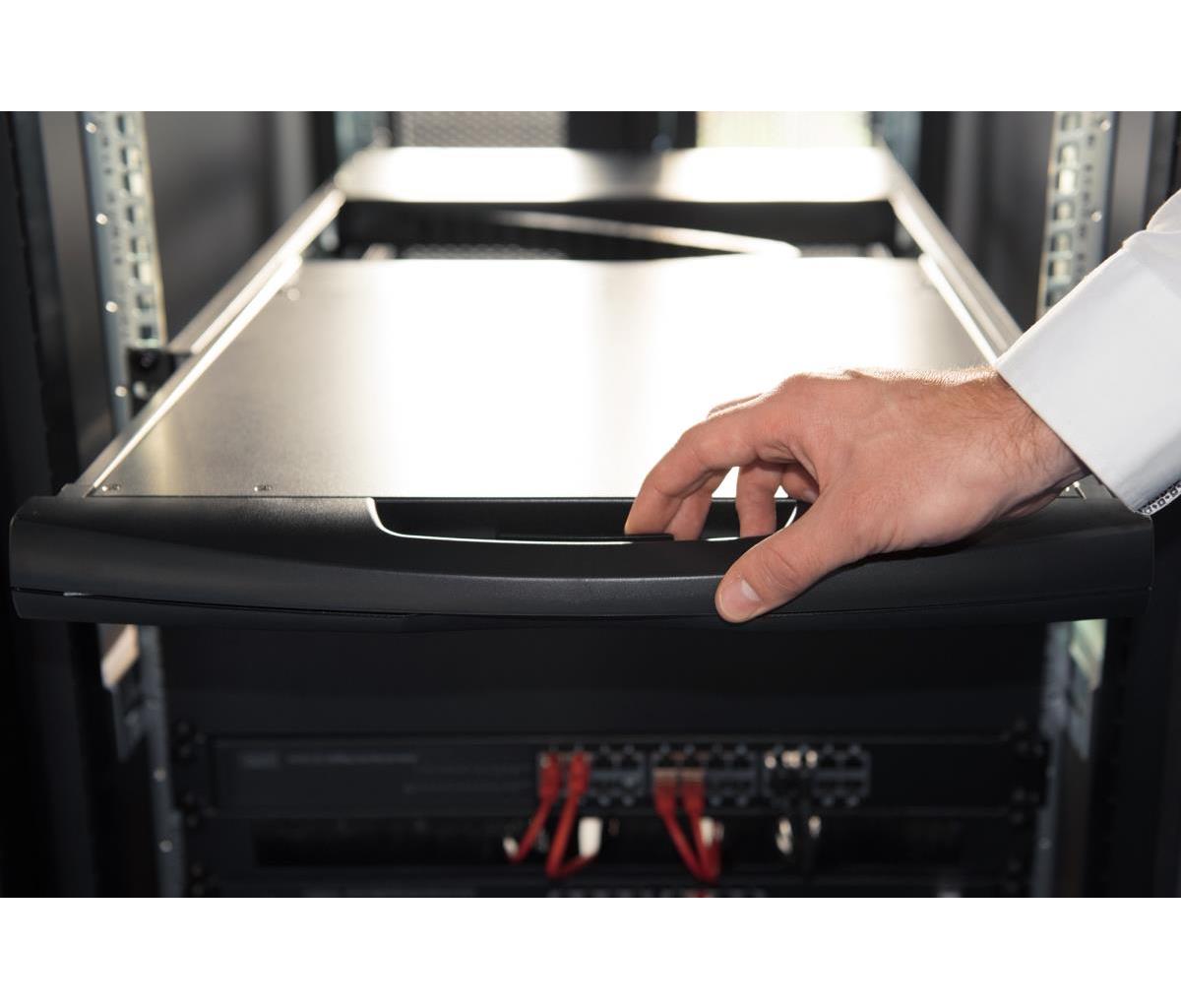

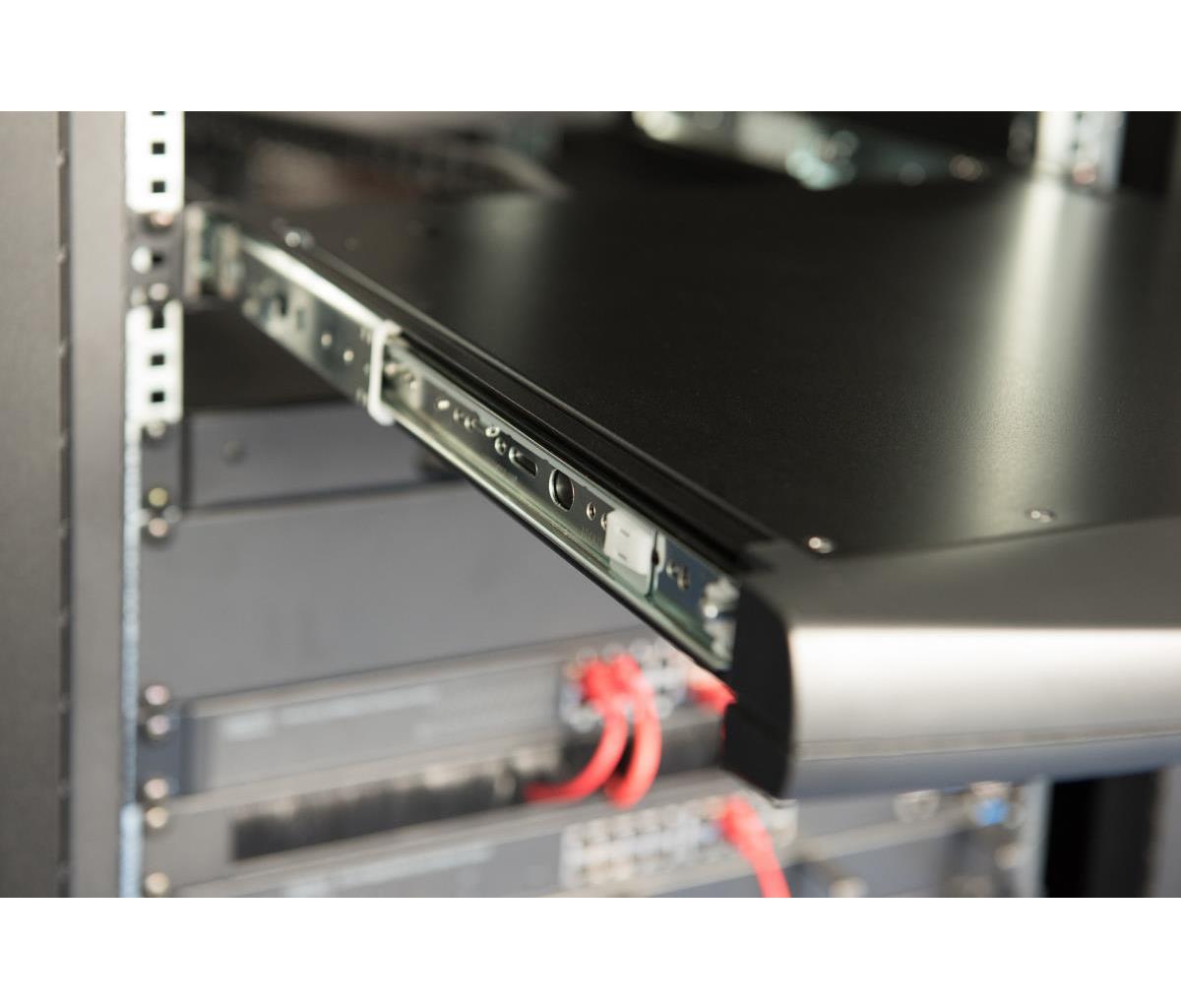

- The console can be completely pulled out of the server cabinet and the TFT screen can be tilted by 120 degrees
- Supports various cabinets from 800mm to 1200mm depth
- All KVM cables are included in the scope of delivery
- Full HD 1080P resolution
- 1x USB peripheral port in the console area
- LED display for the connection status
- TFT monitor 43.2 cm (17"), with anti-reflective, shatter-proof protective glass pane
- The console can be completely pulled out of the server cabinet and the TFT screen can be tilted by 120 degrees

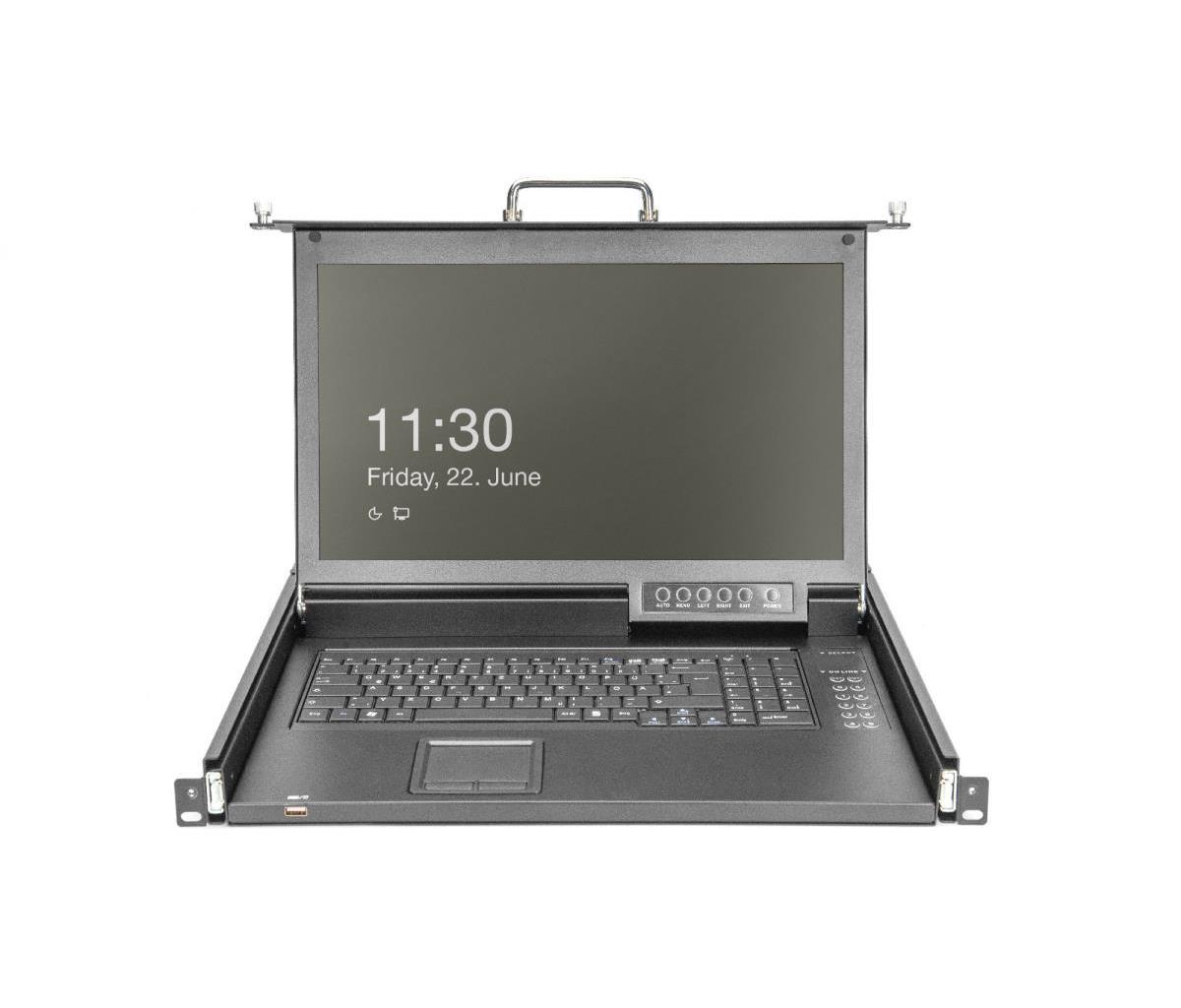

The Digitus HD LCD KVM console - with a 17" TFT monitor with anti-reflective and shatter-proof protective glass panel. The console can be completely pulled out of the server cabinet and the TFT screen can be tilted by 120 degrees. This console supports various cabinets from 800mm to 1200mm depth and comes complete with all KVM cables. With full HD resolution of 1080P and LED indicator for connection status, this console also features a USB peripheral port in the console area. Enjoy up to 85% more space and a contrast ratio of 1000:1 and support for 16.7 million colors with this console. The package includes an 8-port VGA adapter, a keyboard and a touch-board mouse with two function keys. With a modular and expandable design, this console can also be cascaded.

Display
Display diagonal 43.2 cm (17")
Display resolution 1920 x 1080 pixels
Contrast ratio (typical) 1000:1
Aspect ratio 16:9
Display type TFT
Display number of colours 16.78 million colours
Technical details
Product colour Black
Rack capacity 1U
Ports & interfaces
VGA (D-Sub) ports quantity 8
Video port type VGA
USB 2.0 Type-A ports quantity 1
DC-in jack Yes
Keyboard
Built-in touchpad Yes
Keyboard language Turkish
Weight & dimensions
Width 509 mm
Height 45 mm
Depth 445 mm
Weight 13.9 kg
Mounting depth (min) 80 cm
Mounting depth (max) 120 cm
Packaging data
Package weight 19.1 kg
Package width 755 mm
Package depth 625 mm
Package height 186 mm
Package volume 87768.75 cmü
Packaging content
Mounting brackets included Yes
Quick installation guide Yes
AC adapter included Yes
Warranty
Base Warranty Non Non
