Modularized 43,2cm (17in) HD LCD TFT console with 8 port Cat5 KVM 8 Cat5 VGA Dongle - CH keyboard
ITCurry #: M9239399 | Article #: DS-72220-4CH-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

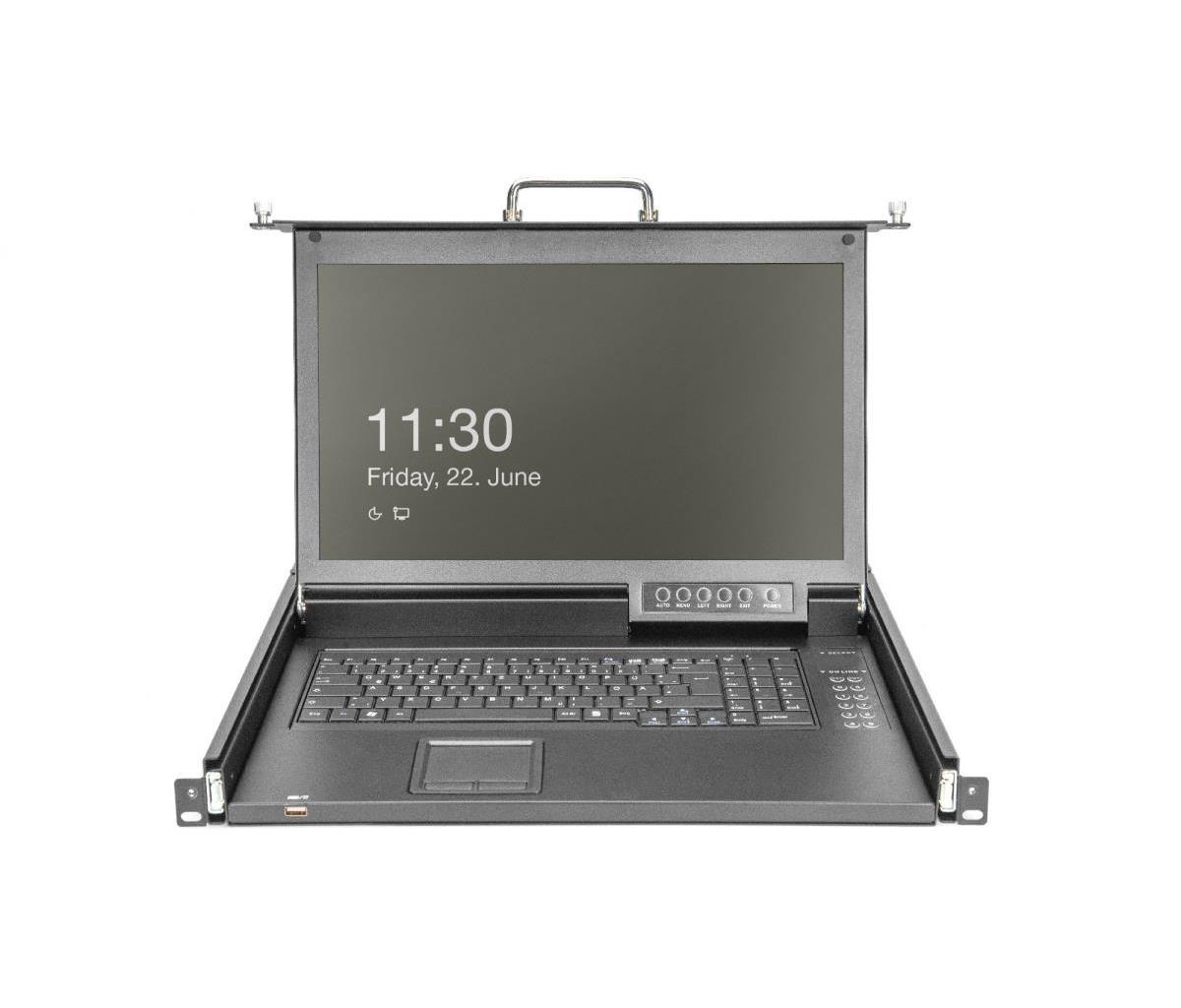

Thanks to its modular design, the DIGITUS® 17" HD TFT Console offers a variety of individual configuration options to adapt to the console’s intended application. This makes the console cost-effective, and it can be expanded or modified with additional modules at any time. This flexible configuration ensures that the console is highly future-proof. The modular console consists of a 17" monitor, 8-port Cat 5 KVM switch and the touchpad.
Display | |
Display diagonal | 43.2 cm (17") |
Display resolution | 1920 x 1080 pixels |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 16:9 |
Display type | TFT |
Display number of colours | 16.78 million colours |
Technical details | |
Product colour | Black |
Rack capacity | 1U |
Ports & interfaces | |
RJ-45 ports quantity | 8 |
USB 2.0 Type-A ports quantity | 1 |
DC-in jack | Yes |
Keyboard | |
Built-in touchpad | Yes |
Keyboard language | Swiss |
Keyboard layout | QWERTZ |
Weight & dimensions | |
Width | 509 mm |
Height | 45 mm |
Depth | 445 mm |
Weight | 13.8 kg |
Mounting depth (min) | 80 cm |
Mounting depth (max) | 120 cm |
Packaging data | |
Package weight | 19.1 kg |
Package width | 755 mm |
Package depth | 625 mm |
Package height | 186 mm |
Package volume | 87768.8 cmü |
Packaging content | |
Mounting brackets included | Yes |
Quick installation guide | Yes |
AC adapter included | Yes |
Warranty | |
Base Warranty | Non Non |
