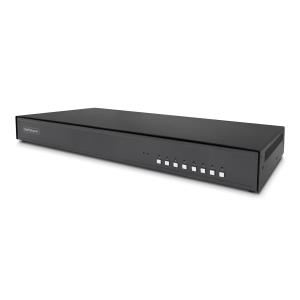

Modular KVM switch 8-port for modularized KVM console
ITCurry #: M9237655 | Article #: DS-72213-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Highest degree of flexibility during the administration of the server farm
- Modular KVM switch for connecting up to 8 servers
- Space-saving casing with 1U design height
- Suitable for modular KVM consoles DS-72210 and DS-72211
The modular DIGITUS® KVM switch offers a multitude of individual configuration possibilities, so that it can be adjusted to the area in which the console is being used. As a result, the console is economical and can be upgraded and/or converted at any time with further modules. Due to the flexible configuration, a high level of future security of the console is thus guaranteed. The modular KVM switch offers the connection of a server via USB or PS/2, as well as VGA. The DIGITUS® 17“ oder 19“ modular console, a keyboard and the appropriate set of cables are required for operation. The high quality KVM switch modules with IP function (optional) are ideal for use in small to mid-sized server rooms in which access by the administrator must be guaranteed from any place at any time. They offer a direct connection from a local console or with the optional IP module with a browser via an existing internet connection. The accessories are offered in the most diverse versions.
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 8 |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Scan interval | 5,90 s |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Cascadable | Yes |
| Display | |
| Built-in display | No |
| Weight & dimensions | |
| Width | 148 mm |
| Depth | 445 mm |
| Height | 45 mm |
| Weight | 3.32 kg |
| Packaging data | |
| Package width | 148 mm |
| Package depth | 445 mm |
| Package height | 220 mm |
| Package volume | 2963.7 cmü |
| Package weight | 3.73 kg |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| UK Trade Tariff code | 84718000 |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 475 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 14.9 kg |
| Master (outer) case volume | 68970 cmü |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
