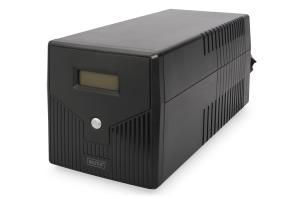

Line-Interact.UPS 2000VA/1200W 12V/9Ah x2 4x CEE7/7 AVR USB
ITCurry #: M9237677 | Article #: DN-170076-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
High performance protection for your business and office computer systems against data loss and damage
- Boost and buck AVR for voltage stabilization
- Fast bridging times in case of power blackout
- Compact enclosure for space saving installation in your IT infrastructure
- Quick charging time
- Produce a low noise level under 40 dB
The DIGITUS® Line-Interactive UPS come with a compact size and an excellent microprocessor control, which guarantees high reliability. With an user friendly operation they provide high performance protection for your business and office computer systems against data loss and damage. Features like overload-, discharge and overcharge protection, cold start functions and energy saving features, as well as an acoustic alarm system are just a few advantages of the DIGITUS® Line-Interactive UPS units.
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1.5 kVA |
| Output power | 1200 W |
| Waveform | Pseudo sine |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 50/60 Hz |
| Output frequency | 50 Hz |
| Output voltage regulation | 10% |
| Automatic Voltage Regulation (AVR) | Yes |
| Transfer time (Line Mode to Battery Mode) | 2 ms |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 0.6 |
| Noise level | 40 dB |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Modem, Network |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Country of origin | China |
| Ports & interfaces | |
| Power plug | Type F |
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery | |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |
| Battery recharge time (90%) | 6 h |
| Cold start | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 380 mm |
| Height | 198 mm |
| Weight | 10.5 kg |
| Package width | 212 mm |
| Package depth | 442 mm |
| Package height | 280 mm |
| Package weight | 11.5 kg |
| Packaging data | |
| Package volume | 26237.1 cmü |
| Logistics data | |
| UK Trade Tariff code | 85044085 |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Warranty | |
| Base Warranty | Non Non |
