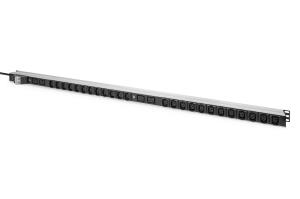

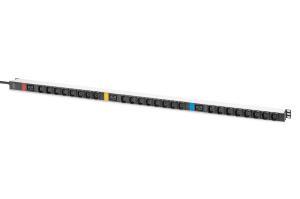

IT BASIC PDU. Vertical. 16A. 24 x C13. 3 x C19 1-phase. 3m cable. IEC309 16A plug
ITCurry #: M9239047 | Article #: DN-95450-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Safe and professional power distribution solution for highly demanding IT requirements in network and server racks
- Optimal design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets
- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging
The DIGITUS® PDU are the perfect solution for your network or server cabinet. With regard to power distribution, it fulfills the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with extract protection. It is optimally designed for vertical installation providing the advantage of saving rack spaces for more equipments. The 27 outlet PDU has excellent physical characteristics and is engineered for an output of up to 4,000 W (250 V AC / 16 A) which helps in achieving best performances with the appropriate load.
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | ABS synthetics, Aluminium |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 27 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Master AC outlets quantity | 24 |
| Slave AC outlets quantity | 3 |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 250 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Block 1 output current | 10 A |
| Block 2 output current | 16 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 3600 VA |
| Number of phases | 1 |
| Maximum power | 4000 W |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 1140.5 mm |
| Height | 60 mm |
| Packaging data | |
| Package weight | 3.35 kg |
| Package width | 145 mm |
| Package depth | 1400 mm |
| Package volume | 14210 cmü |
| Packaging content | |
| Manual | Yes |
| Logistics data | |
| UK Trade Tariff code | 85444290 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
