Gigabit USB-A PoE Splitter USB TYPE A Female
ITCurry #: M9238947 | Article #: DN-95208-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
PoE splitter provides power 5Vdc, 2.5A(max) via USB-A Female connector and data signal at 10/100Mbps
- Provide USB 5V power by PoE splitter
- PoE Input :40-57Vdc PoE 802.3af/at
- USB Power Output: 5Vdc 2.5A(max)
- Data Output Speed: 10/100Mbps (RJ45)
- Wall-moutable
- IP40 rated Protection
- Power output Indicator : Green

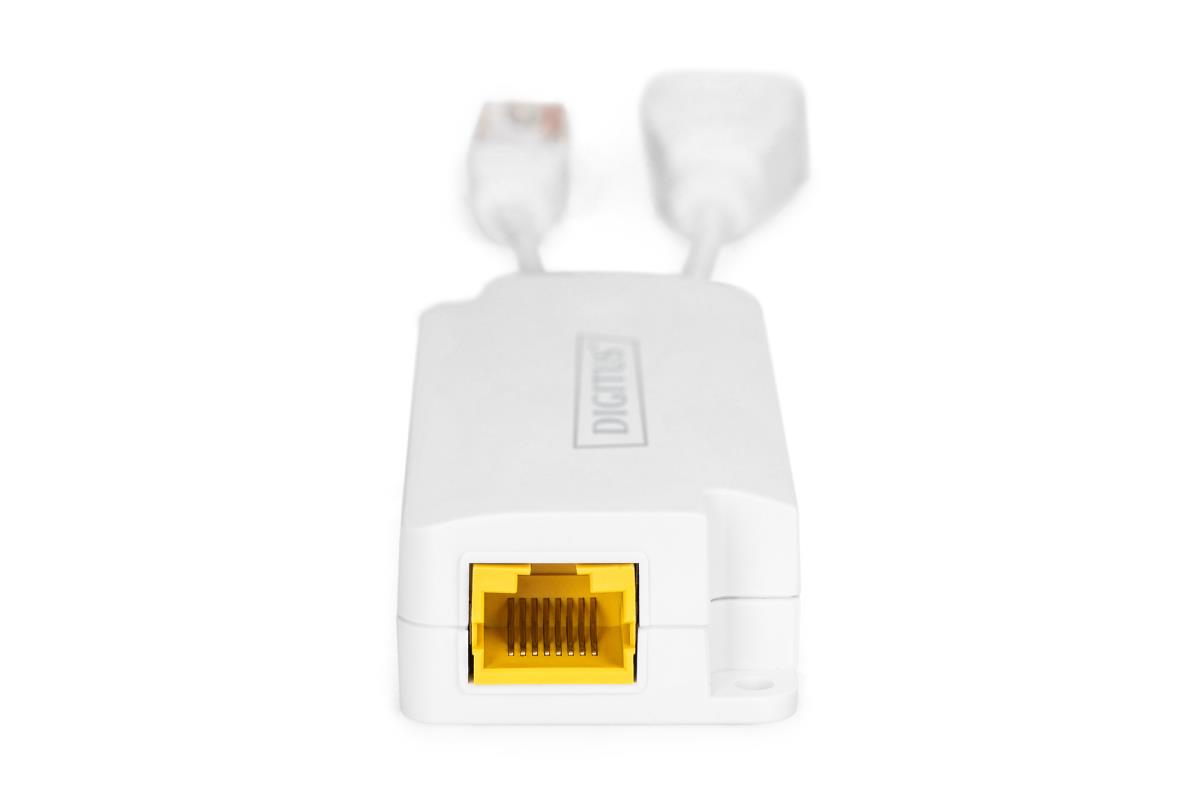

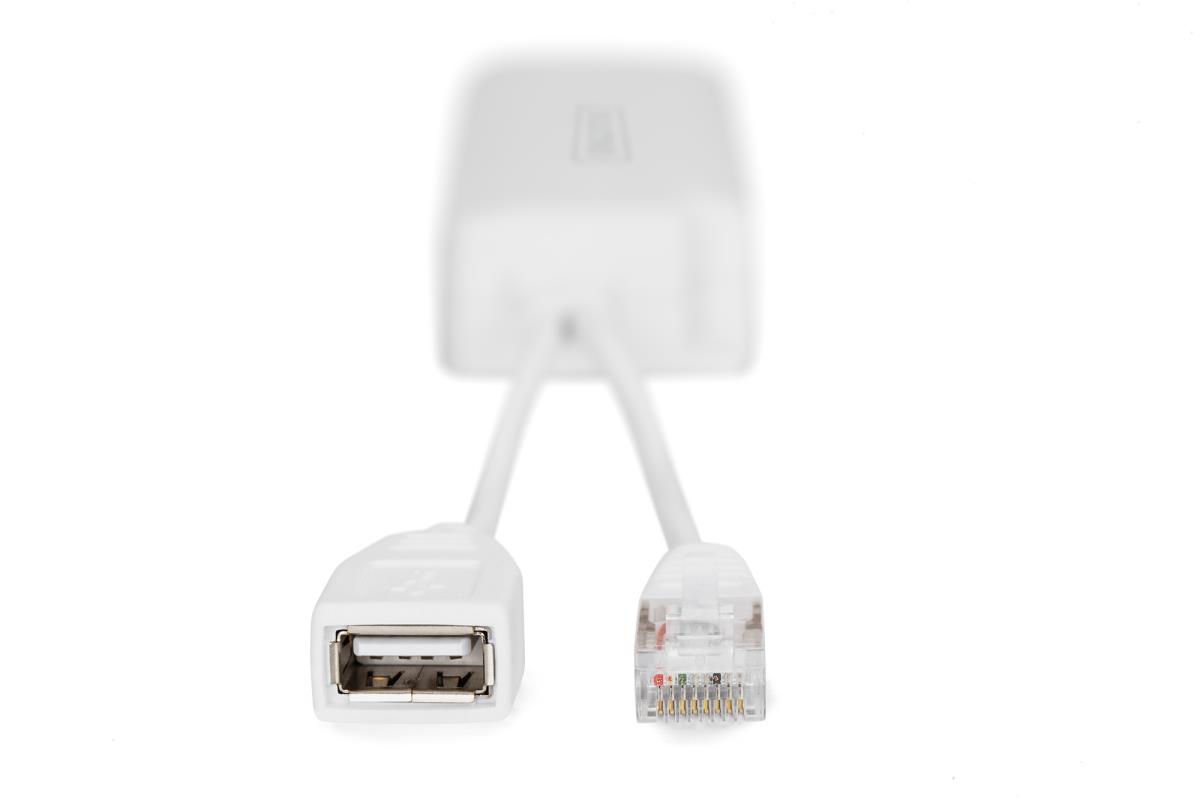

DN-95208 is an indoor rated PoE USB-A splitter specially designed for complex backhaul and networking application. Enclosed in an IP40 fire retardant plastic case with compact design. It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over RJ45 connector then separate power and data to PDs. The output power is 5Vdc, 2.5A(max) via USB-A Female connector to PDs. Such as power communication station, wireless APs, network cameras, Tablet PC, and other USB-A devices. PoE signal into a separate data signal at 10/100Mbps. For planning purposes, the effective distance is 100 meters via Cat5e/Cat6 cables from Ethernet data source to PD.
| Features | |
| Networking standards | IEEE 802.3at |
| Cabling technology | 10/100Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Product colour | White |
| Wall mountable | Yes |
| International Protection (IP) code | IP40 |
| Cable length | 0.124 m |
| Plug and Play | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Weight & dimensions | |
| Width | 82.3 mm |
| Depth | 34.7 mm |
| Height | 19 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 97 mm |
| Package height | 40 mm |
| Package weight | 148.5 g |
| Package volume | 640.2 cmü |
| Power | |
| Input voltage | 40 - 57 V |
| Output voltage | 5 V |
| Output current | 2.5 A |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
