Gigabit Ethernet network PoE switch - 8 port industrial, L2 managed, 4 SFP uplink
ITCurry #: M9239241 | Article #: DN-651139-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

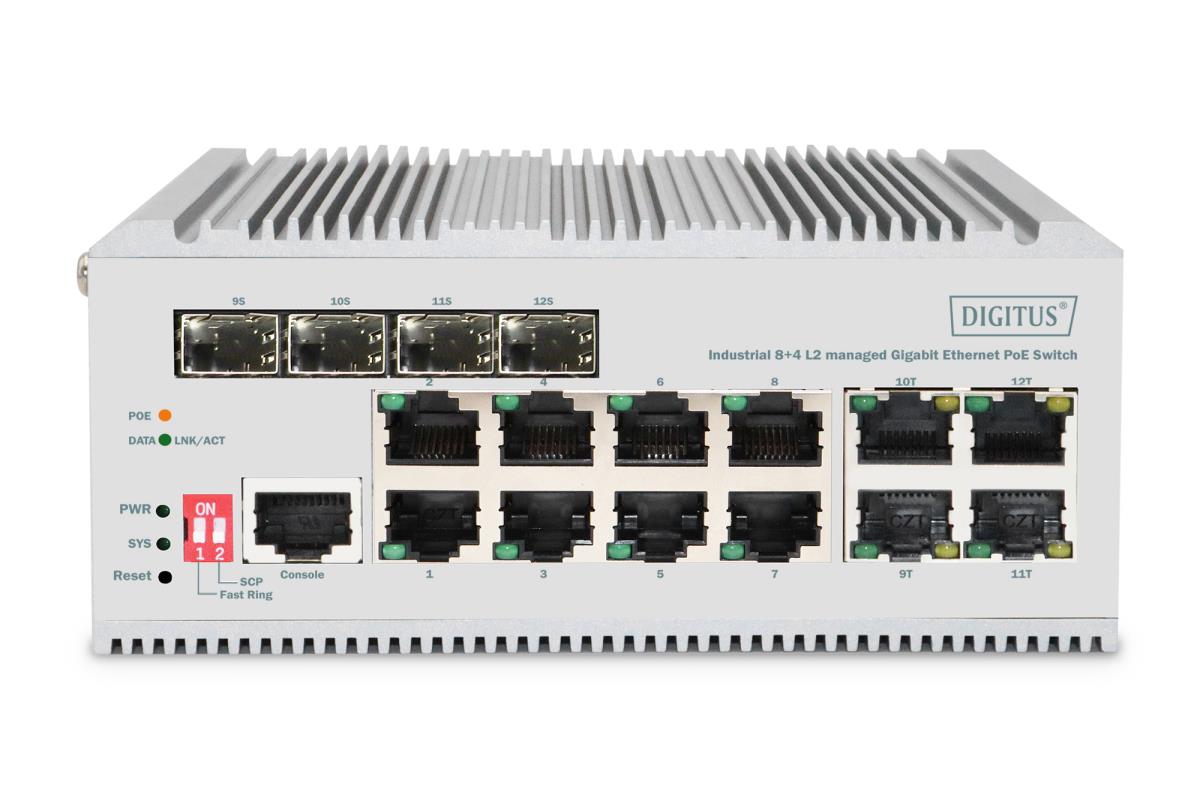

The DN-651139 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports from 1-8 support PoE power supply with a maximum of 30W for each port.
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x standards
- PoE supports IEEE 802.3af/at standards and provides a maximum output of 30W for each port;
- Data transmission and power supply distance is 100 meters.
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control, Panel indicators monitor working status and assist in fault analysis.

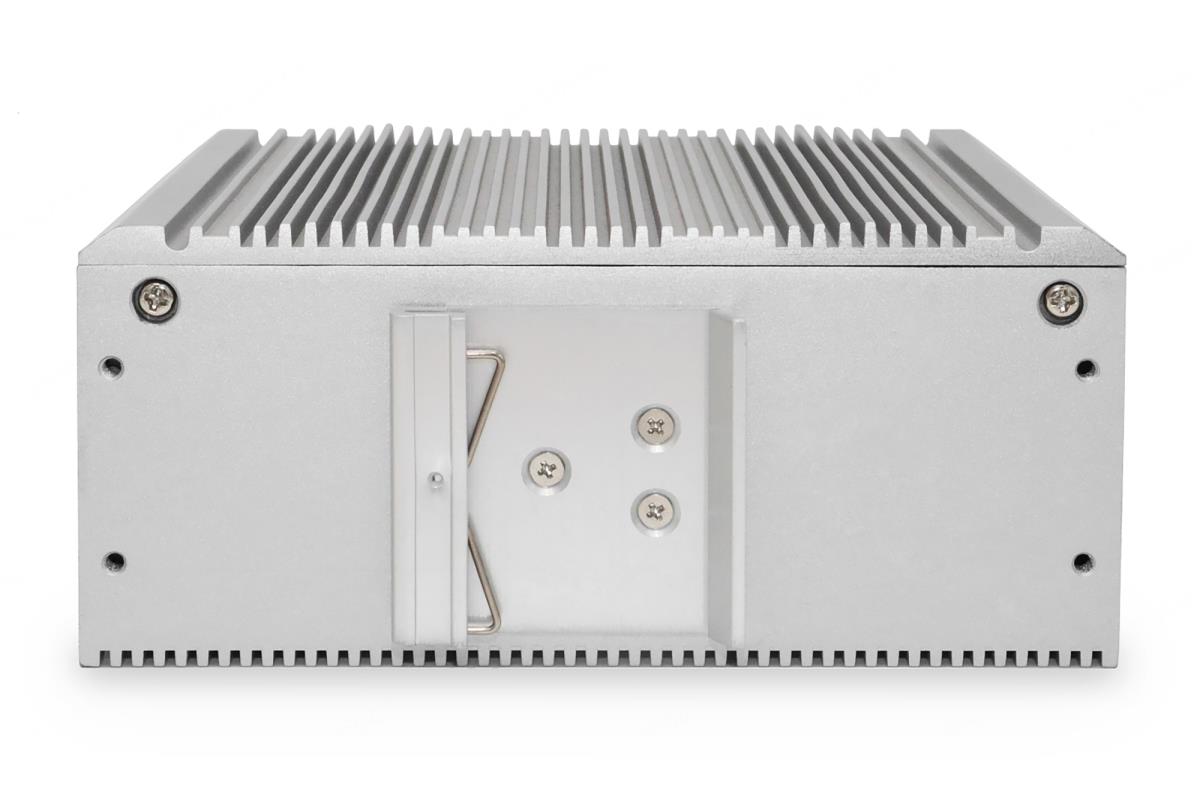

- High energy aluminum alloy roof heat conduction groove design.
- Supports one-click ring network and one-click storm suppression, featuring redundancy and high reliability;
- High reliability design, supporting traditional STP/MSTP/RSTP 2-layer link protection technology.
- Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup.
- Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH.
- Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel. Supports file upload and download management through TFTP
The DN-651139 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports from 1-8 support PoE power supply with a maximum of 30W for each port. DN-651139 offers excellent security policy, QoS policy, and rich VLAN function. Additionally, it has a ring network function that allows you to set up a ring network. With this feature, the switches form a ring network topology manually. The ring network is redundant, highly reliable, and won't affect data forwarding in case a link is broken.
The device is designed with a no-fan, low power consumption design, making it easy to use, compact, and beautiful. It is also simple to install. The product meets Ethernet standards, has lightning protection, static protection mechanisms, and operates in a temperature range of -40°C to 75°C. This guarantees stable performance, safety, and reliability. V1 can be widely used in various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, among others.
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| MAC address auto-learning supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| Optical fiber | |
| Transmission distance (max) | 0.1 km |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.86 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| Security | |
| DHCP features | DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3 |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication type | RADIUS, TACACS+ |
| Design | |
| Product colour | Grey |
| Housing material | Aluminium |
| LED indicators | Activity, Link, PoE, Power, System |
| Vandal-proof | No |
| Suitable for outdoor use | No |
| Country of origin | China |
| Performance | |
| Telnet | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Power | |
| Power source | DC/PoE |
| DC input voltage | 48 - 57 V |
| Power consumption (max) | 200 W |
| Surge protection | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 185 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 øC |
| Storage temperature (T-T) | -40 - 80 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 109 mm |
| Depth | 145 mm |
| Height | 62 mm |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 234 mm |
| Package height | 86 mm |
| Package volume | 3823.56 cmü |
| Package weight | 1.48 kg |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Warranty | |
| Base Warranty | Non Non |
