FTTH Drop Cable - Singlemode 4 Fiber LC/APC G.657.A2 30m
ITCurry #: M9239190 | Article #: DK-3904LCA-30-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
High-quality cable offers an excellent option for fiber optic connections in the designated network level 4. Installation is made easier with preassembled connectors for all 4 fibers on one end of cable.
- Significantly reduces installation time

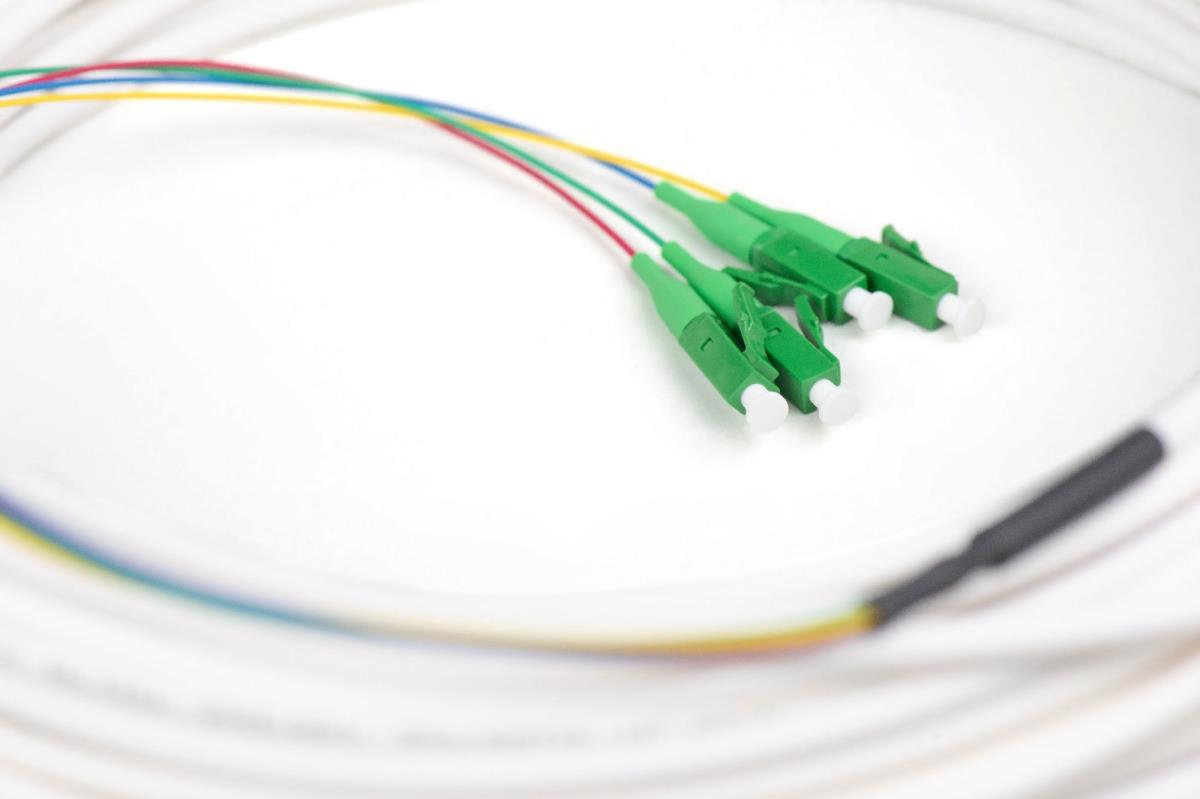

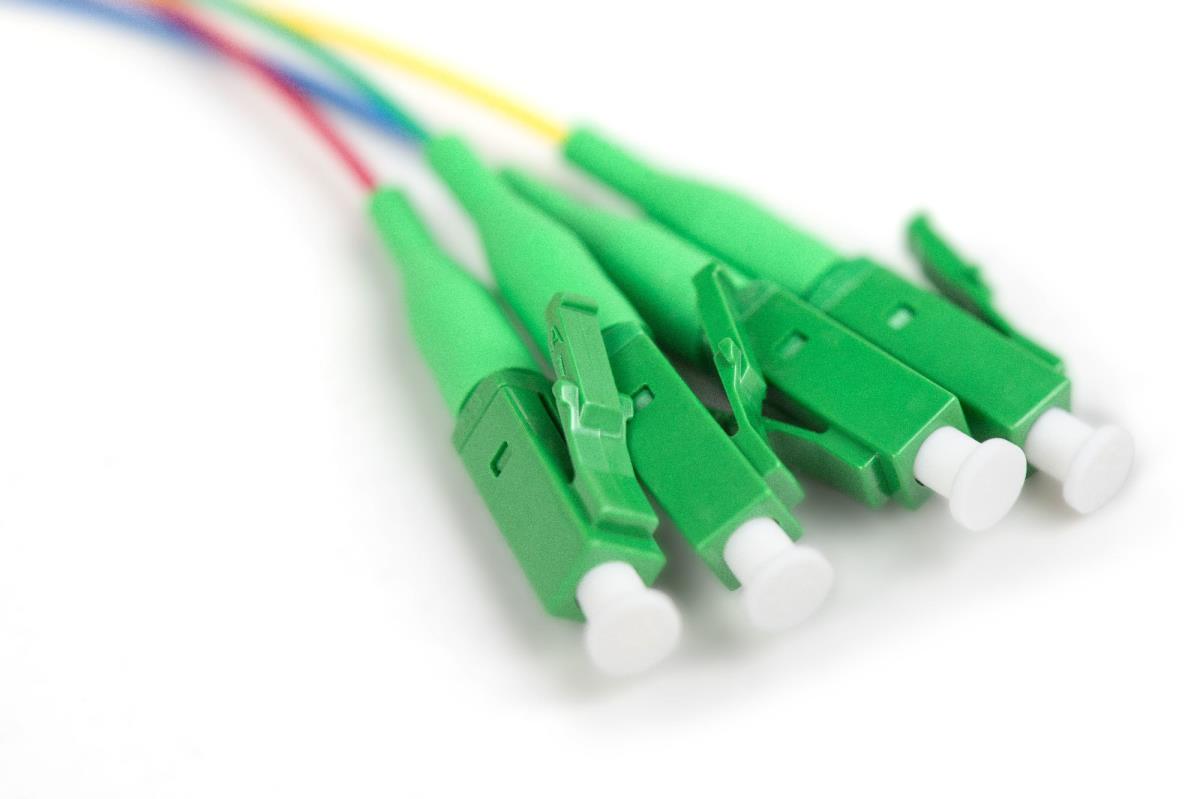

- Pre-assembled with LC/APC connectors on one side
- The open end can simply be pulled in or laid to the house distribution unit
- G.657A2 bend-optimised

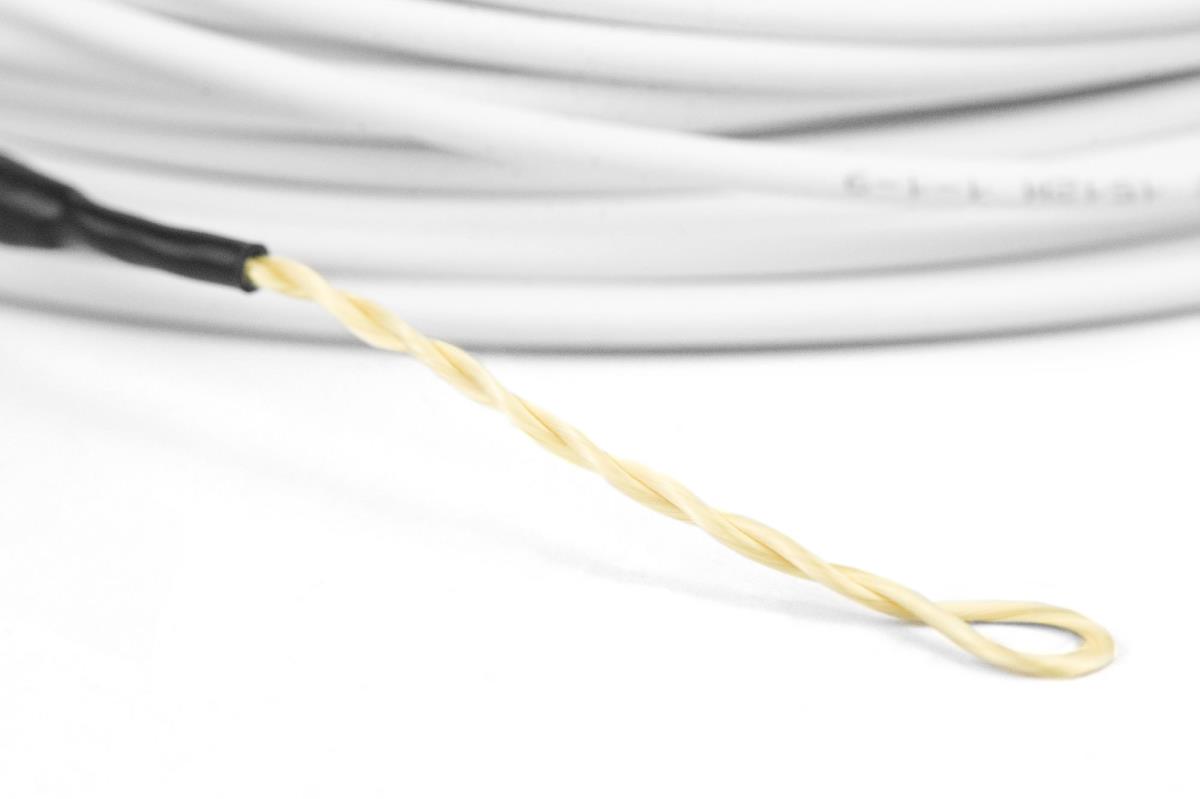

- Stable pulling loop for pulling the cable into duct systems
The growing requirement for extending Fiber networks into the home demands products that enable an easy and effecient installation to realize the network. The Digitus cable offers the possibility to easily extend and complete the fiber network inside the home. The cable is designed to be used as the connection line between building distributor and floor distributor or subscriber termination point in network level 4. The easiness of installation comes from the fact that the cable is preassembled with LC/APC connectors on subscriber end and the open can then be installed through duct to the distributor acting as entry point for fiber network in building.
| Features | |
| Cable length | 30 m |
| Fibre optic type | G.657.A2 |
| Cable shape | Round |
| Connector 1 | 4x LC |
| Connector 2 | No |
| Connector 1 gender | Male |
| Connector 2 gender | No |
| Connector polish type | APC |
| Cable type | LC/APC |
| Product colour | White |
| Core diameter | 9 æm |
| Cladding diameter | 125 æm |
| Fiber mode structure | Single-mode |
| Insertion loss | 0.3 dB |
| Return loss | 60 dB |
| Compressive strength | 1000 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 øC |
| Storage temperature (T-T) | -40 - 80 øC |
| Weight & dimensions | |
| Cable diameter | 4 mm |
| Weight | 630 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
