Ethernet Server adapter - 10Gbps Dual Port Pci-e X8. Intel X540 BT2
ITCurry #: M9238992 | Article #: DN-10163-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

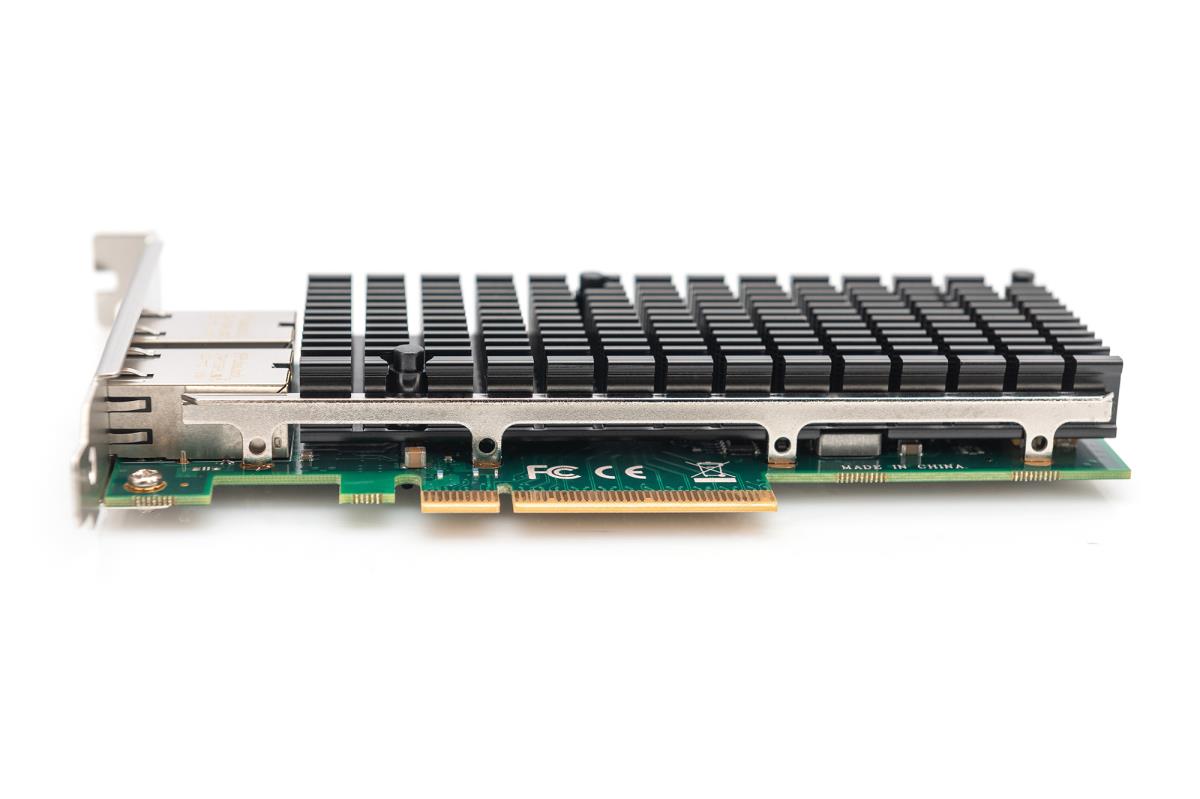

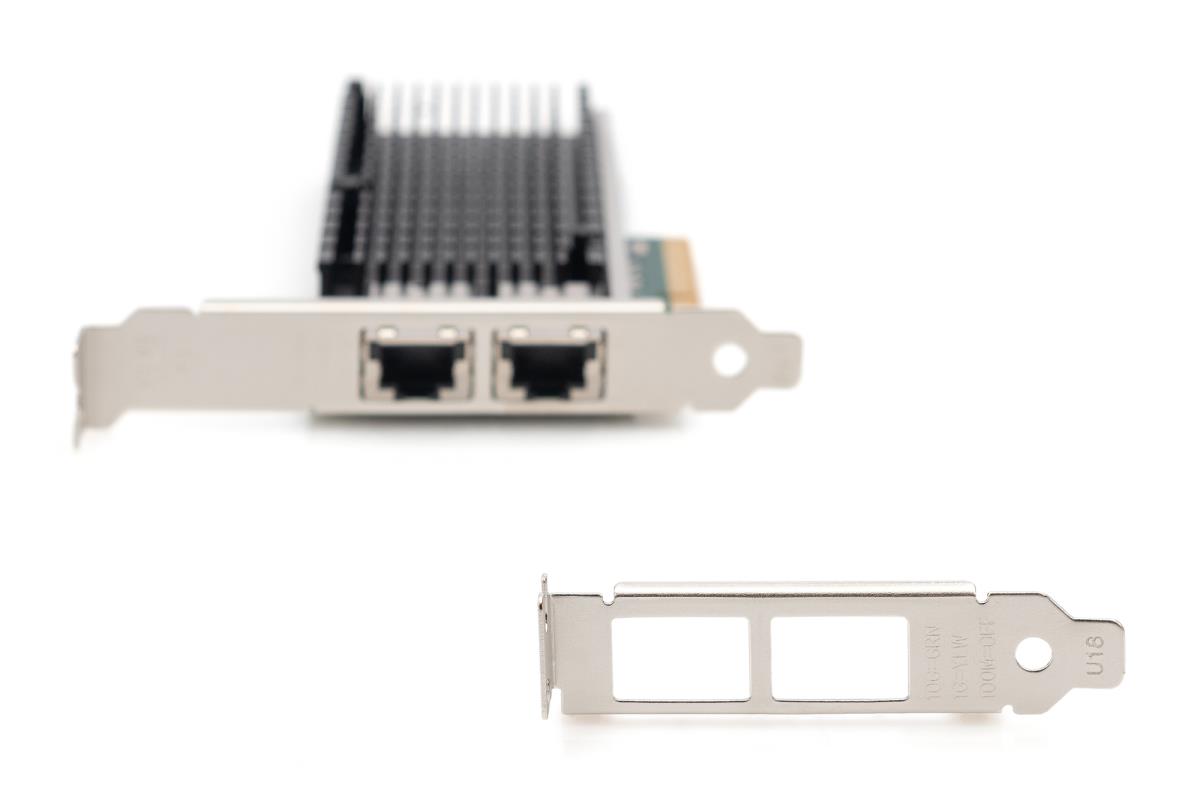

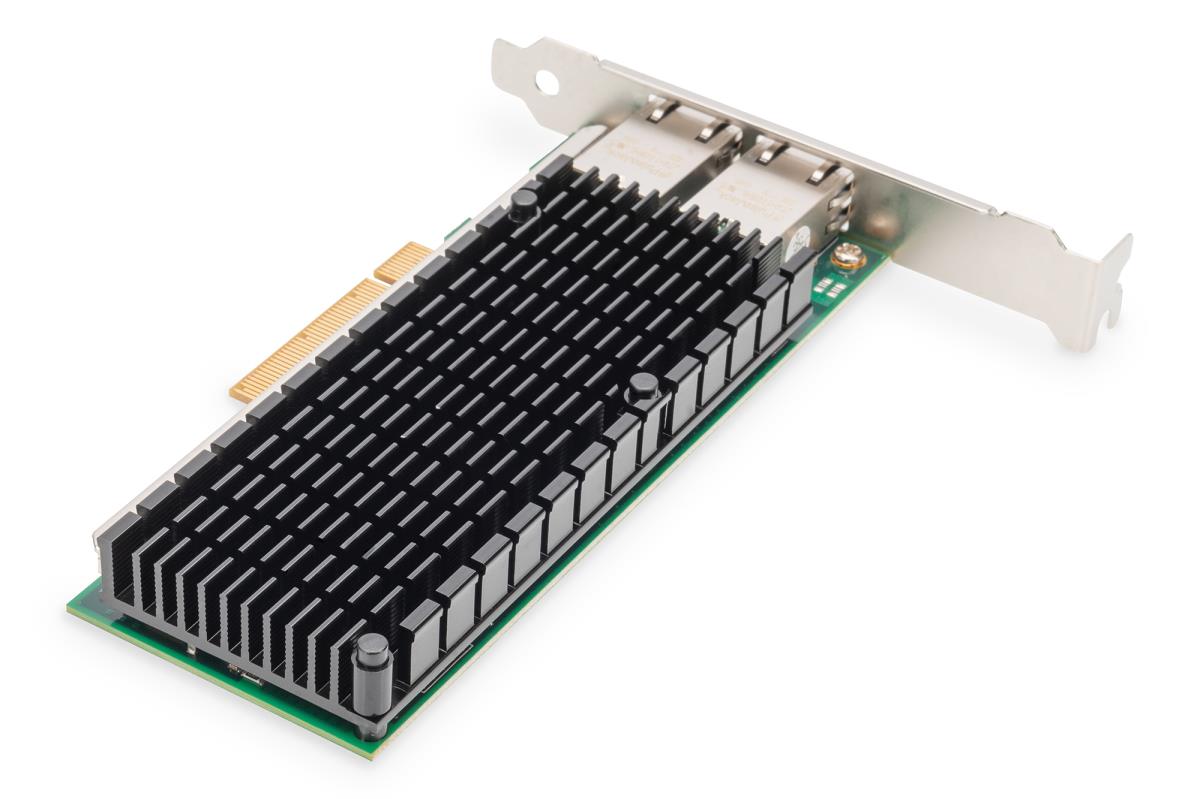

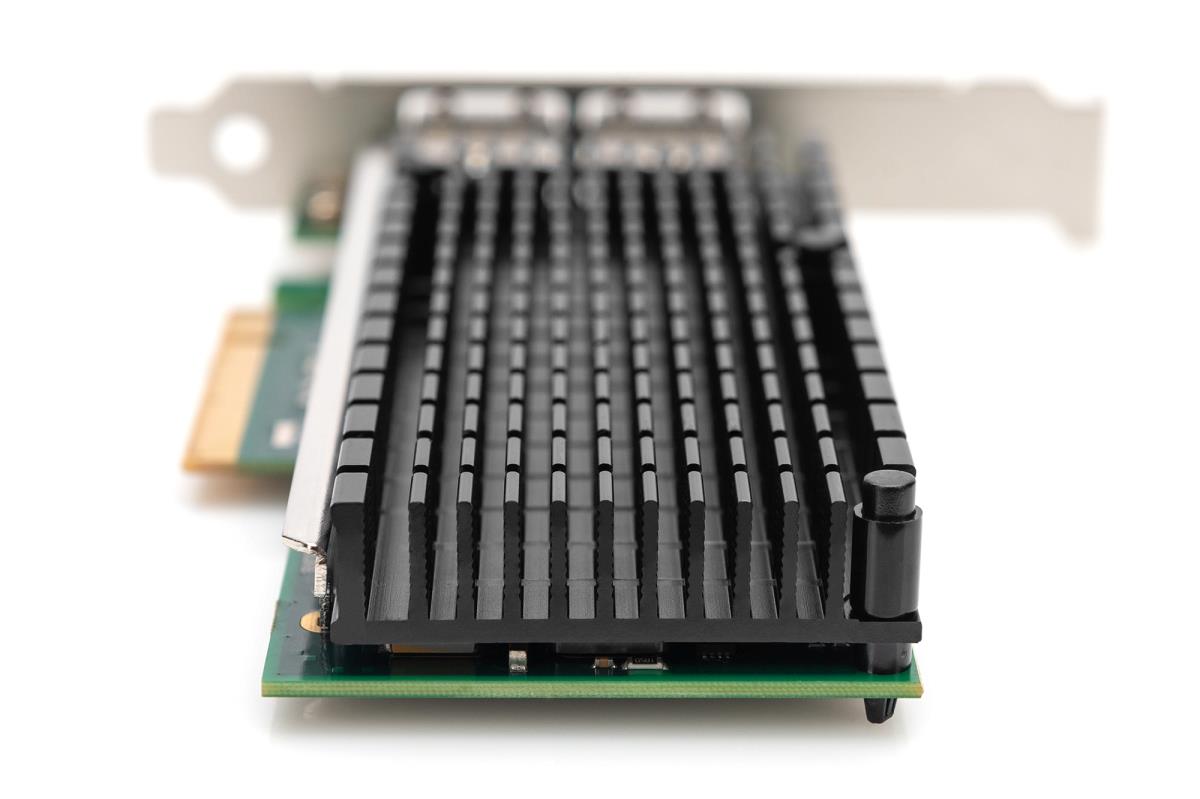

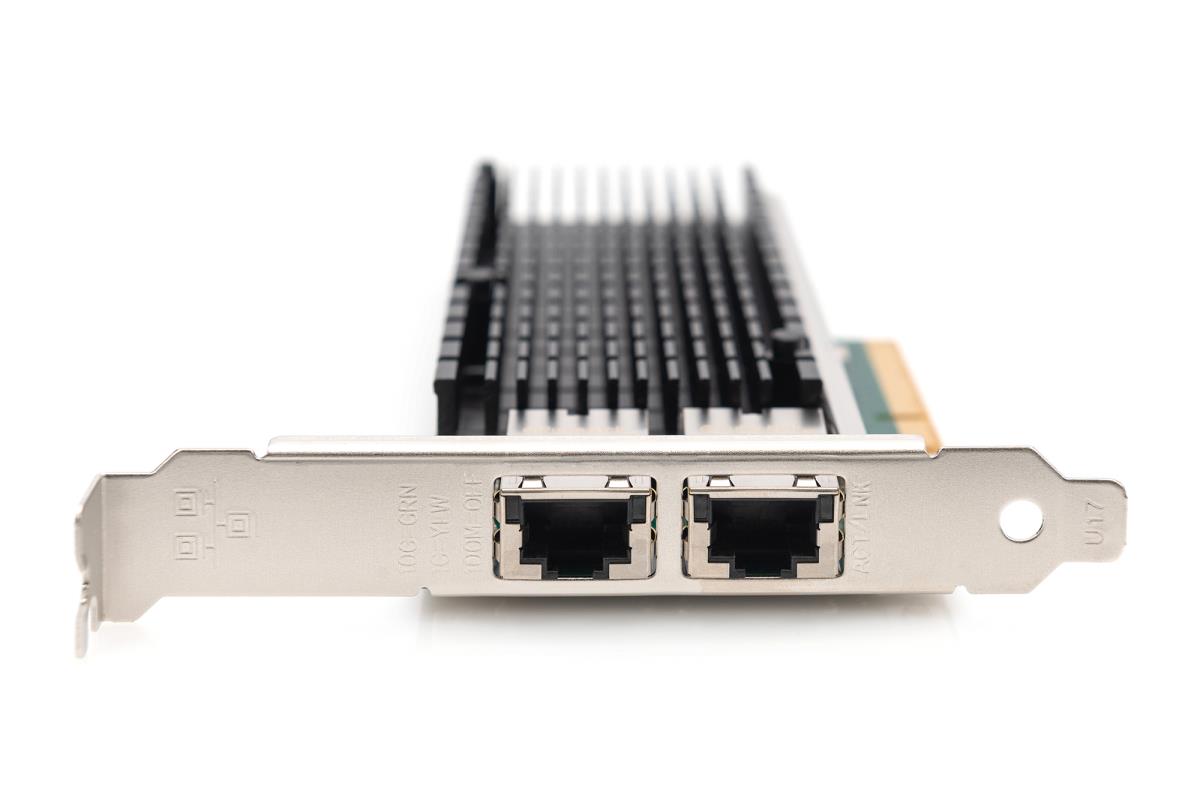

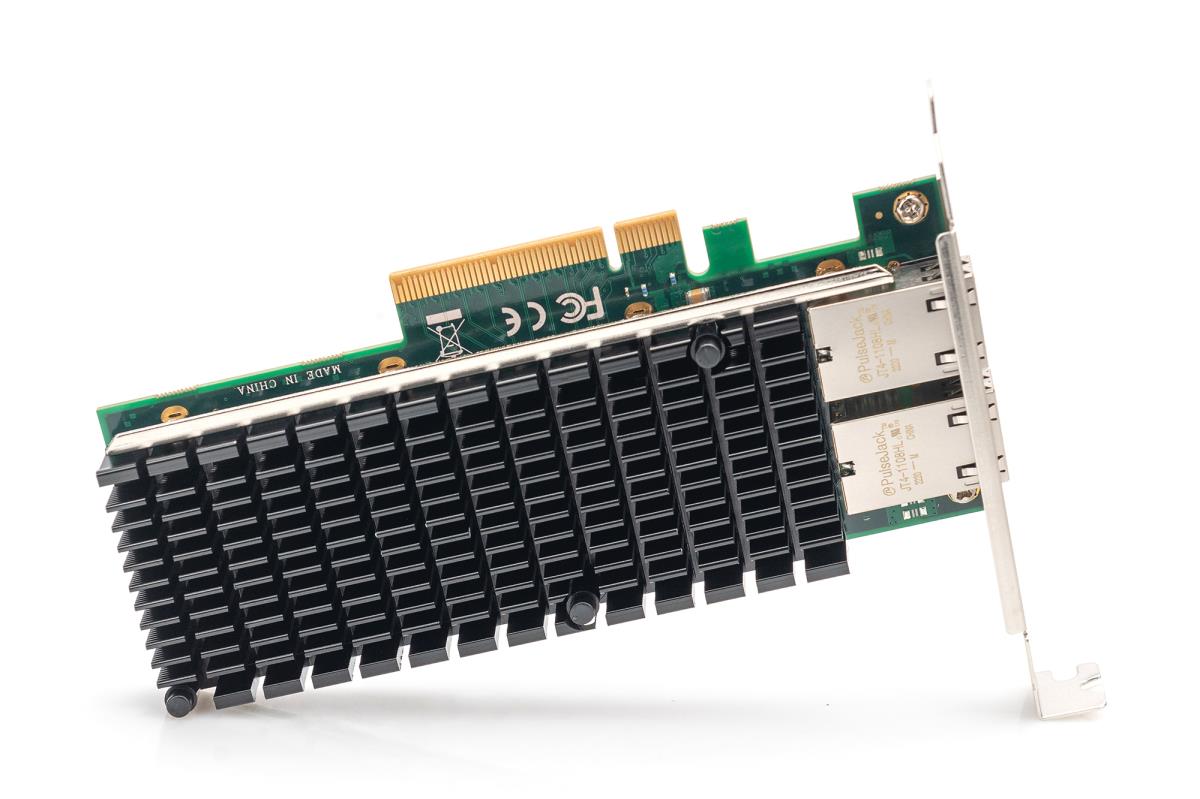

10Gbps Dual Port Ethernet Server adapter, incl. low Profile brackets
- Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center
- Standard CAT-6a cabling with RJ45 connectors
- Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE
- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports
- Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA
- Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY
- Reliable and proven 10 Gigabit Ethernet technology from Intel corporation
- Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCS
DN-10163 is PCI-e 10Gbps Dual RJ45 Port Ethernet Network Card , based on INTEL X540 Chipset, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms. 10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning."
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 2.1 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p |
| Ethernet LAN | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9.5 |
| Data link protocols | TCP/IP, UDP/IP, IPSec, iSCS |
| LAN controller | Intel© X540-BT2 |
| Design | |
| Component for | Server |
| Product colour | Green, Silver |
| Internal | Yes |
| LED indicators | Yes |
| Country of origin | China |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2016 |
| Weight & dimensions | |
| Width | 155 mm |
| Depth | 20 mm |
| Height | 120 mm |
| Weight | 170 g |
| Packaging data | |
| Package width | 218 mm |
| Package depth | 30 mm |
| Package height | 155 mm |
| Package weight | 280 g |
| Packaging content | |
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Manual | Yes |
| Logistics data | |
| UK Trade Tariff code | 84718000 |
| Other features | |
| Package volume | 1013.7 cmü |
| Warranty | |
| Base Warranty | Non Non |
