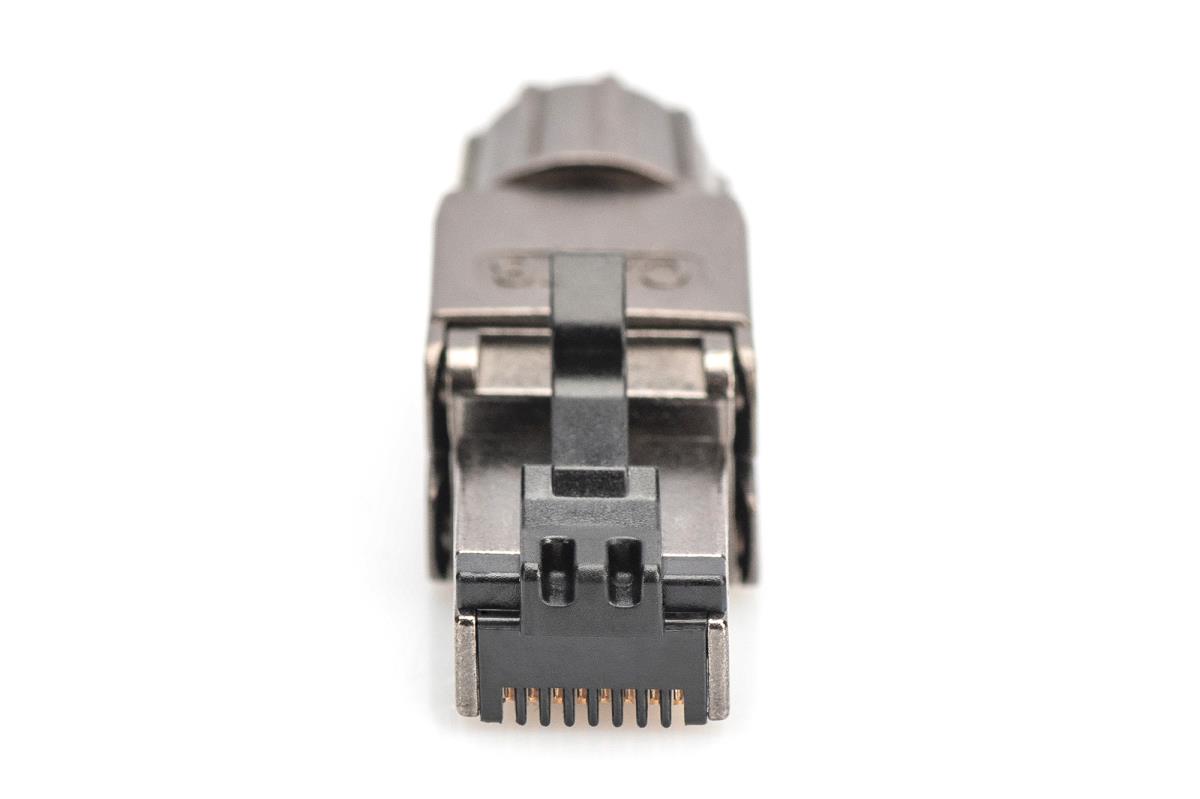

Cat.8.1 Field Termination Plug. shielded. Tool free. Black
ITCurry #: M9239042 | Article #: DN-93837
Related products
Product Information
25/40GBase-Transmission speed in permanent Link up to 24 m and Channel Link up to 30 m. Especially for ToR and MoR cabling in the data center.
- CAT 8.1, 2000 MHz
- 25/40 GBase-T
- Screwable strain relief
- 30 m Channel Link
- Wire manager for easy field assembly (tool-free)
- CAT 8.1 with IDC termination clamp

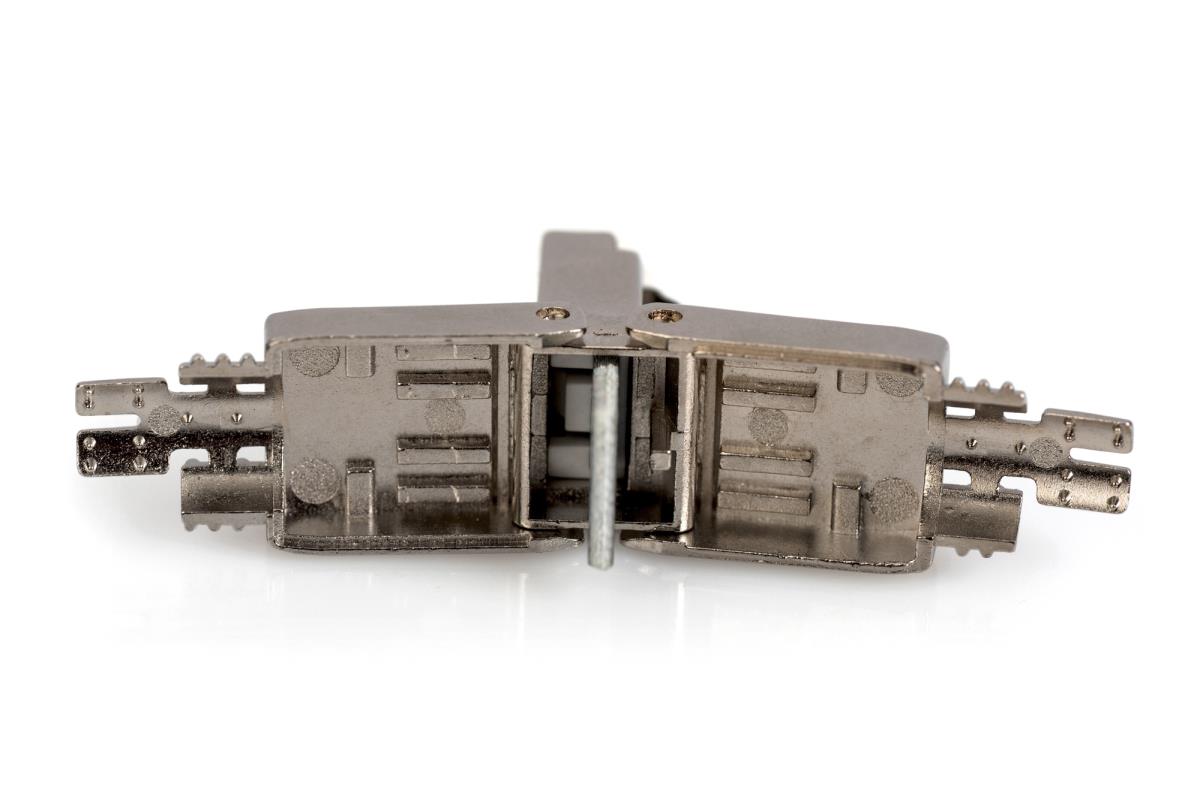

The article "DN-93837" of the brand DIGITUS® is a shielded CAT 8.1 field connector with tool-free mounting connection, which convinces by future-oriented standards and high-end quality for your network. The field connector is suitable for patch cable mounting with solid and stranded conductor cables. It conforms to category 8.I / 25/40GBase-T ISO/IEC 11801, IEC 60603-7-81. The robust metal housing ensures durable, stable connections. The quick assembly without special tools makes this field connector the optimal choice for installation, repair and maintenance.
| Features | |
| Connector(s) | RJ45 |
| Connector gender | Male |
| Connector form factor | Straight |
| Product colour | Metallic |
| Material | Nickel, Zinc |
| Cable standard | Cat8.1 |
| Insertion force | 30 N |
| Weight & dimensions | |
| Weight | 38 g |
| Width | 15 mm |
| Depth | 58.3 mm |
| Height | 19.5 mm |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Packaging data | |
| Package width | 115 mm |
| Package depth | 60 mm |
| Package weight | 24 g |
| Package volume | 134.55 cmü |
| Logistics data | |
| UK Trade Tariff code | 85366990 |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
