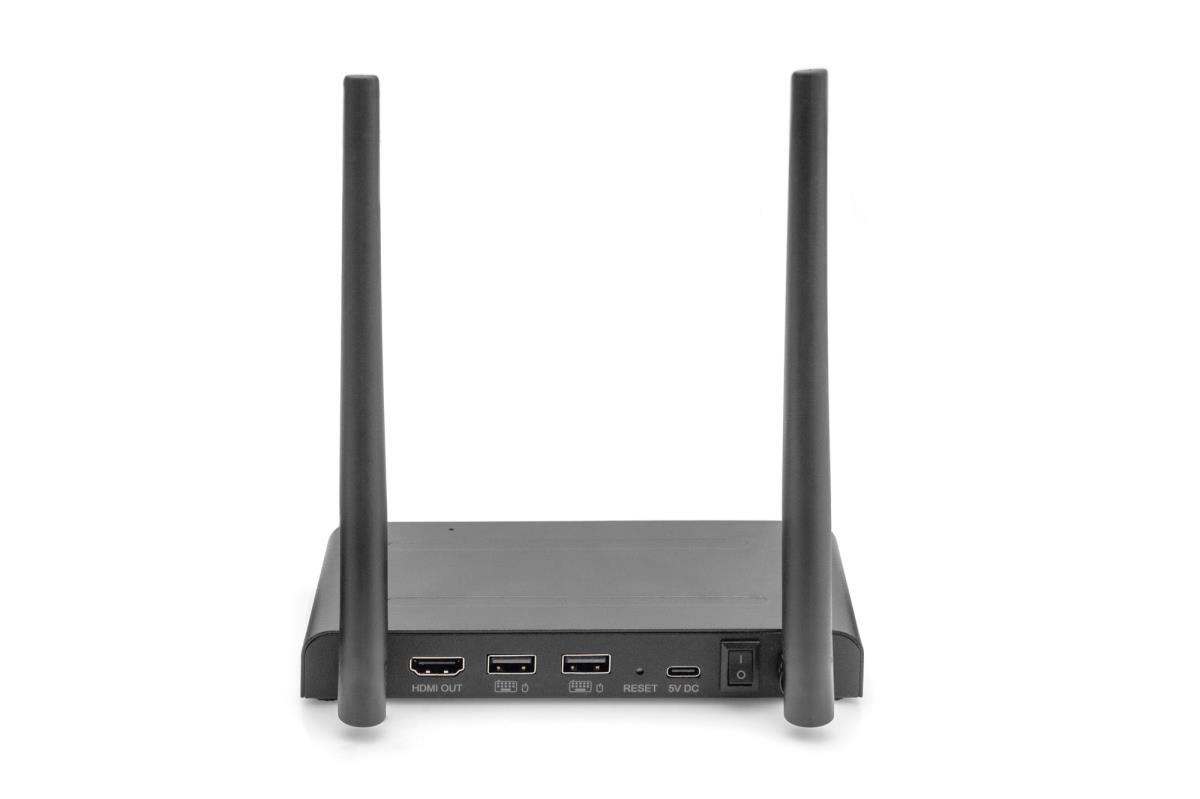

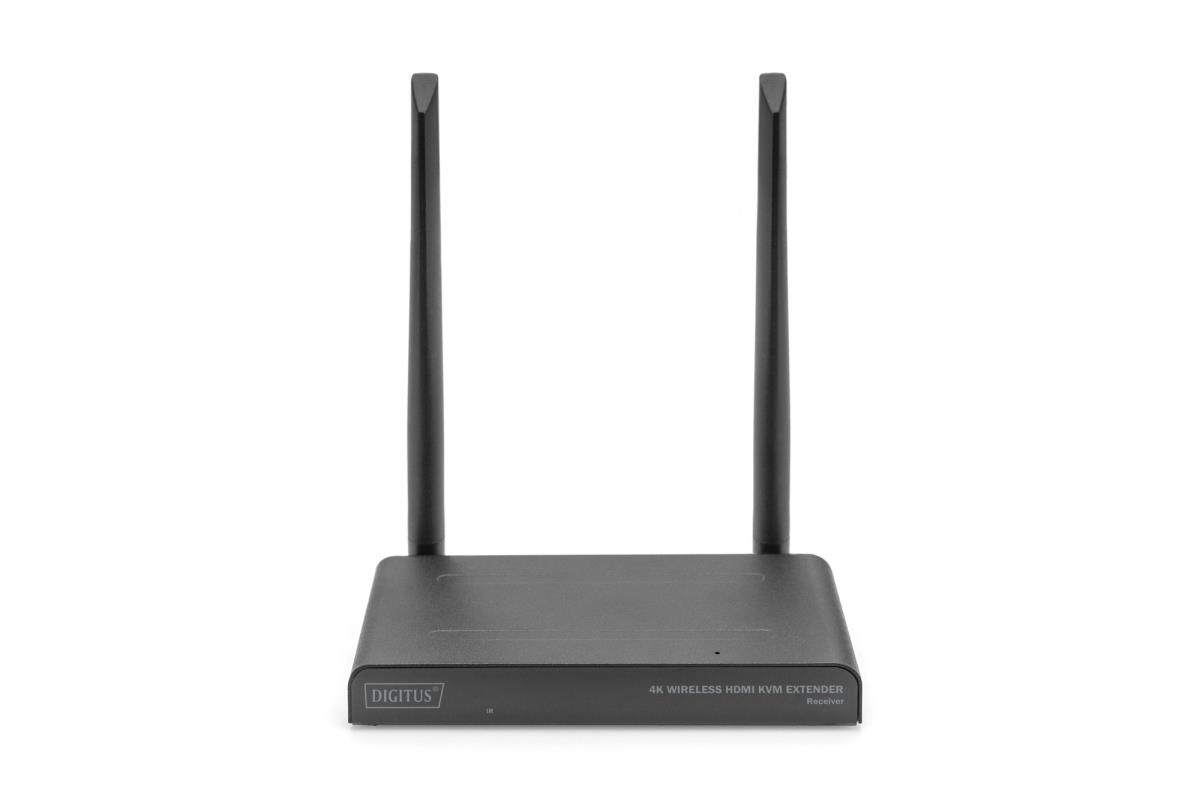

4K Wireless HDMI Receiver (RX) additional unit for DS-55328
ITCurry #: M9239319 | Article #: DS-55329-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Extend the 4K Wireless HDMI® KVM Extender Set (DS-55328) for up to 4 receivers (output devices)
- Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
- Supports wireless AV signal transmission with resolutions up to 4K UHD (2160p/30Hz max.) via transmitter
- Touch Screen Back Control - Supports touch panels (via USB connection on the receiver)
- Wireless channel: IEEE 802.11.b/g/n/ac
- Frequency band: Dual Band, 2,4/5G
- Compression: H.265
- Latency: approx. 100 ms
- AES 128 bit encryption
- Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
- HDMI version: 2.0
With this additional receiver unit, you can extend the 4K Wireless HDMI® KVM Extender Set (DS-55328) for up to 4 receivers (output devices). Distribute your AV signals wirelessly on up to 4 screens.
| Features | |
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 30 Hz |
| LED indicators | Status |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 3840 x 2160, 1920 x 1080 (HD 1080) |
| Security algorithms | WPA2, 128-bit AES |
| Video compression formats | H.265 |
| On/off switch | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Wi-Fi | Yes |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| USB ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power | |
| Power consumption (typical) | 5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Weight & dimensions | |
| Width | 154 mm |
| Depth | 77.5 mm |
| Height | 21 mm |
| Weight | 330 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 235 mm |
| Package depth | 110 mm |
| Package height | 70 mm |
| Package weight | 580 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | HDMI, USB |
| Quick start guide | Yes |
| Warranty | |
| Base Warranty | Non Non |
