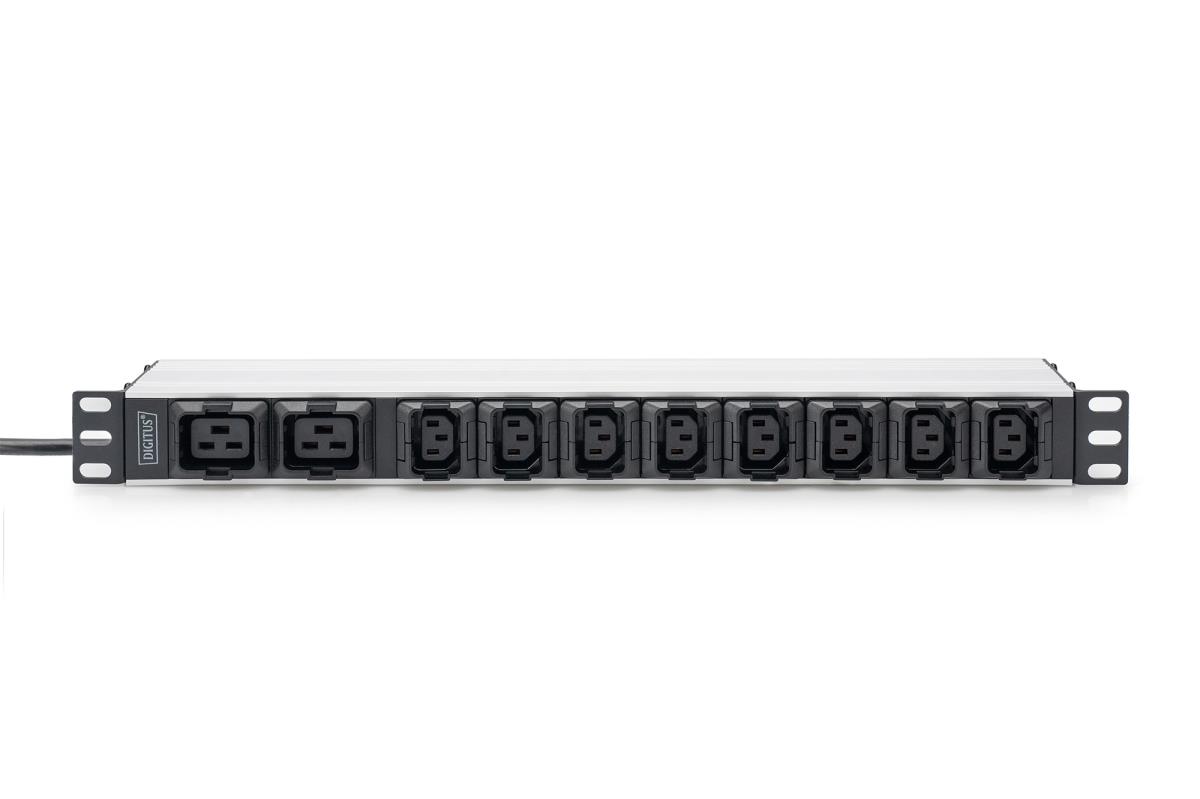

1U Aluminum PDU rackmountable 8x C13 2xC19 16A 230VAC 50/60Hz IEC C20 plug
ITCurry #: M9238900 | Article #: DN-95427-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Safe and professional current supply in the 19" range
- Perfect current distribution for your network and IT rack

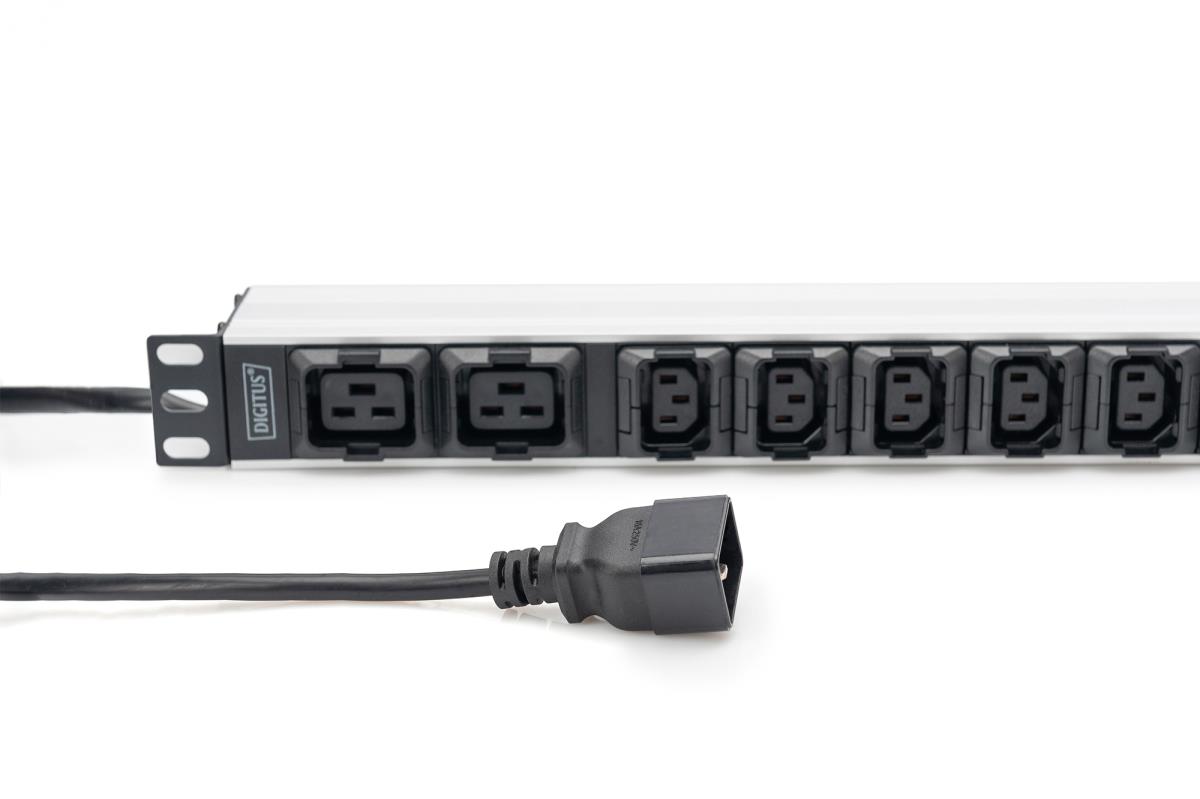

- Optimal current distribution for connection to a UPS (IEC-60320 C20 input connector)
- The jacks offer optimal space management and easy access

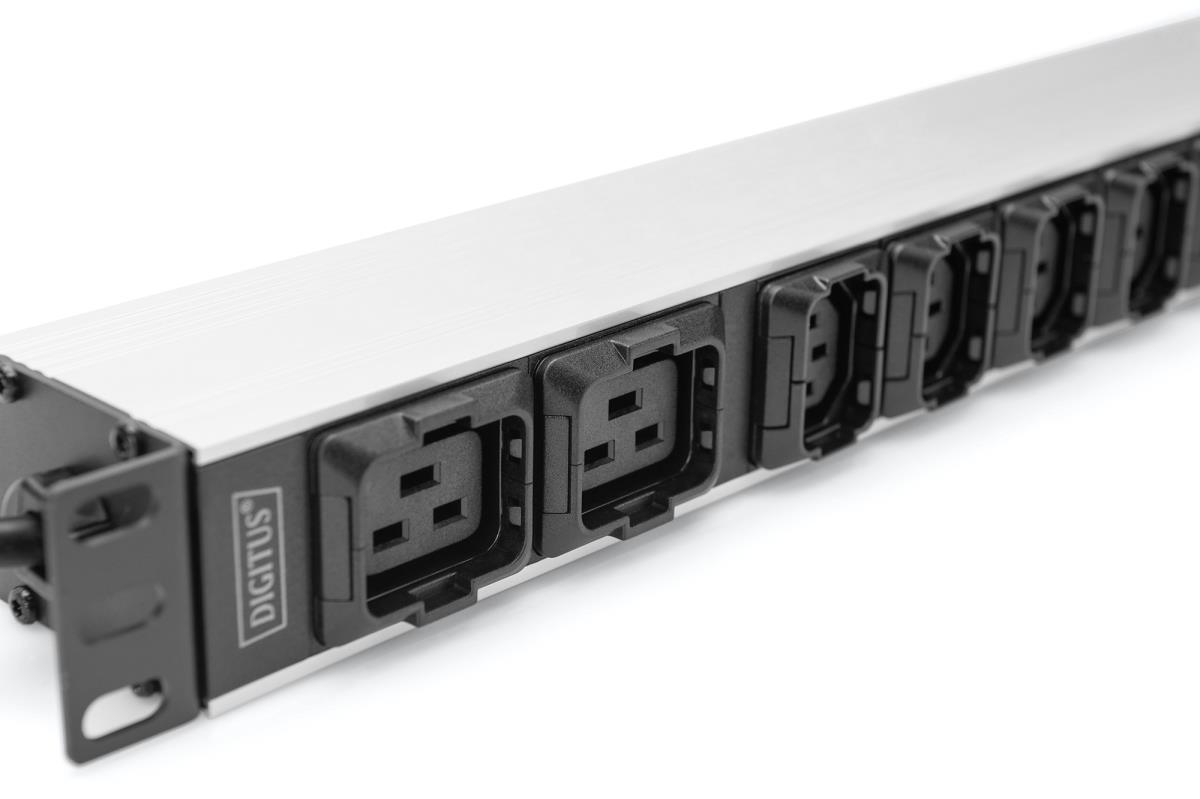

- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging
The DIGITUS® socket strips are the perfect solution for your network or server cabinet. With regard to current distribution, the PDU fulfills the requirements of many applications in IT, network technology and laboratories. The PDU can be used ideally with your input connector IEC60320 C13 and C19 as additional 19" distribution for UPS. The individual C13 and C19 outputs are equipped with extraction protection.
| Design | |
| Type | Single-phase |
| Rack capacity | 1U |
| Housing material | Aluminium, Plastic |
| Ports & interfaces | |
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Master AC outlets quantity | 8 |
| Slave AC outlets quantity | 2 |
| Features | |
| Cable length | 2 m |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Output voltage | 250 V |
| Load capacity | 3600 VA |
| Number of phases | 1 |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 60 mm |
| Height | 482.6 mm |
| Weight | 850 g |
| Size (imperial) | 48.3 cm (19") |
| Packaging content | |
| Manual | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
