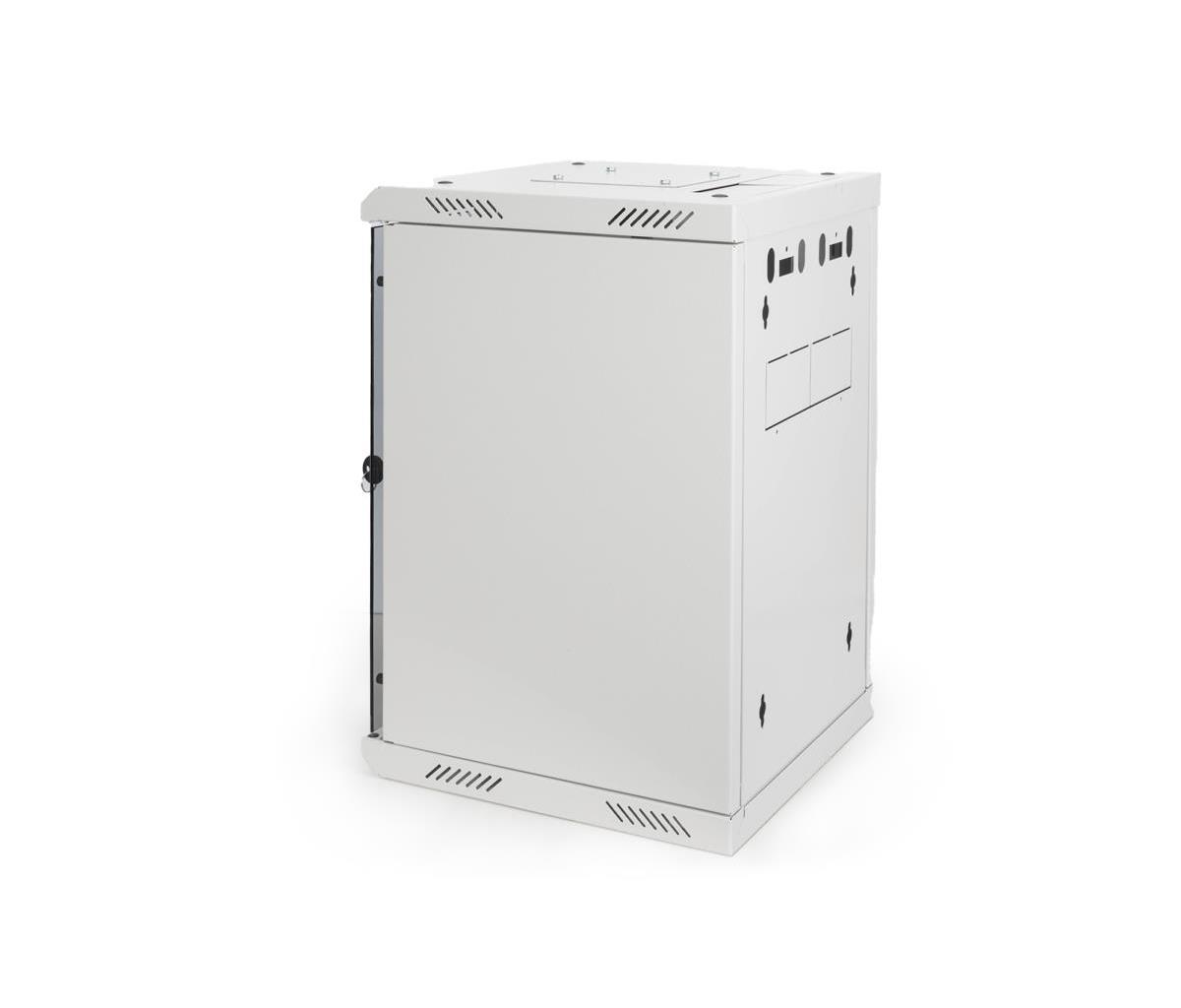

10in and 19in combi wall mounting cabinet 10U horizontal (10in), 5U vertical (19in), grey
ITCurry #: M9237950 | Article #: DN-1019-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.
- Can be used for 254 mm (10") or 483 mm (19") applications
- Round profile frame: 254 mm (10") 10U horizontal or 482.6 mm (19") 5U vertical
- Additional 254 mm (10") 10U profile perforation in the rear area

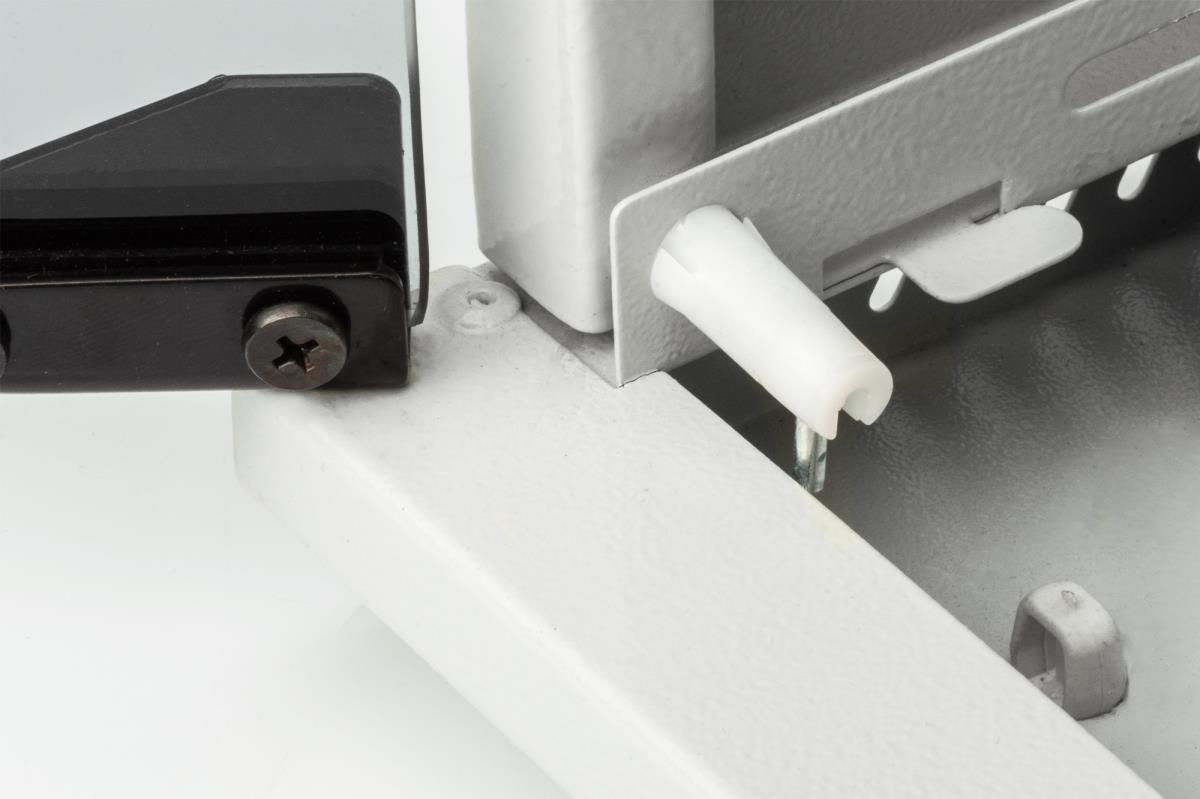

- Removable side panels from the inside
- Ready for immediate use: Delivery is assembled

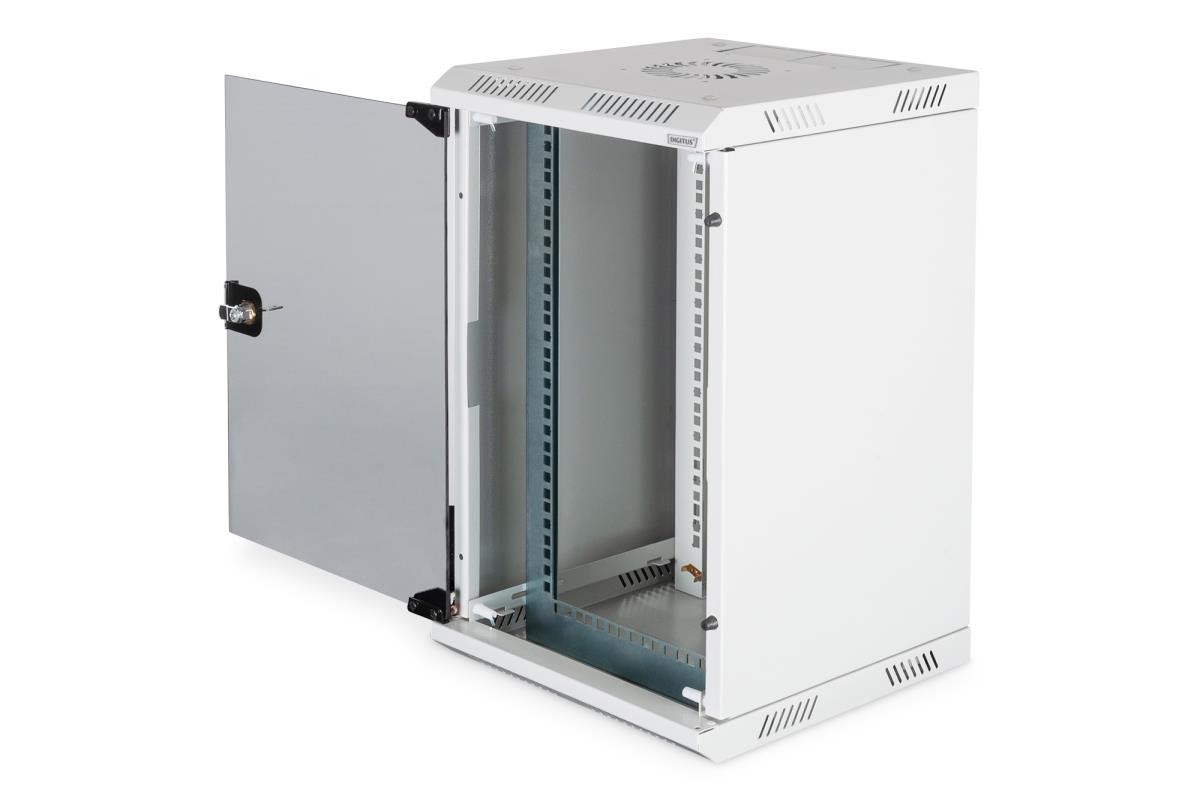

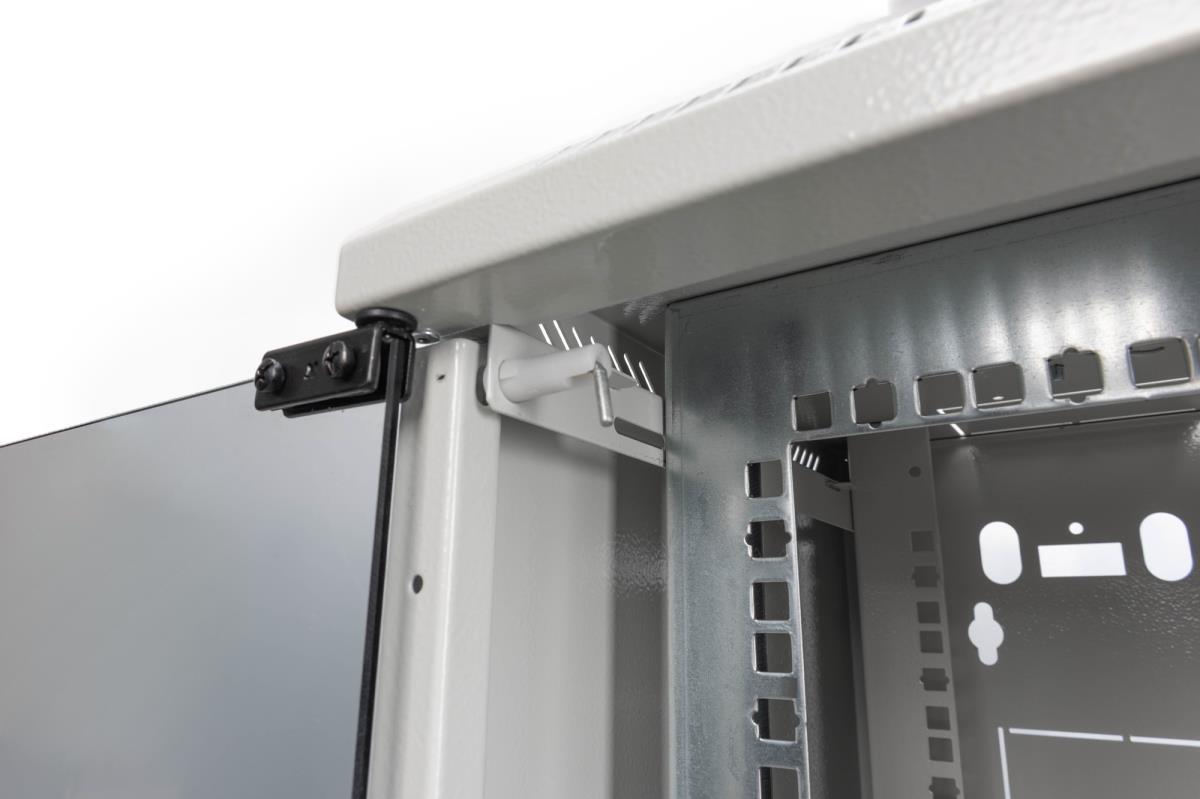

- Lockable safety glass door with 200° door opening angle

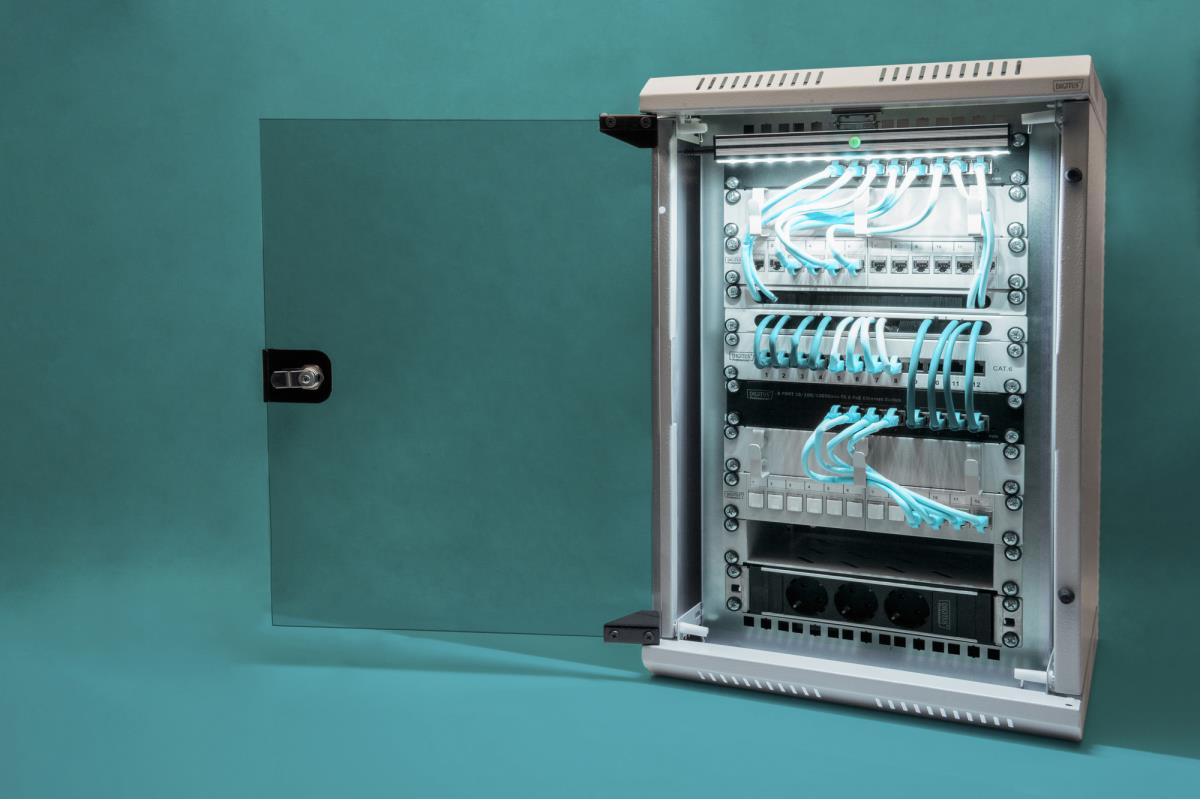

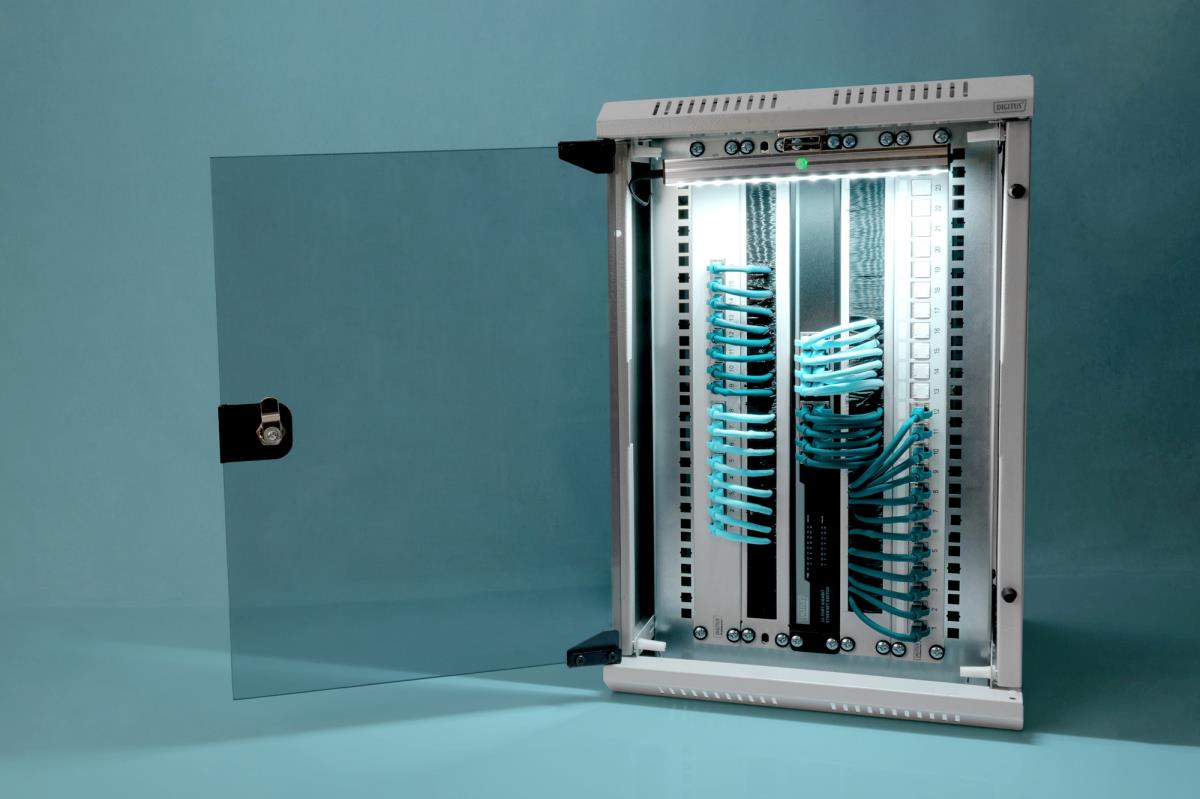

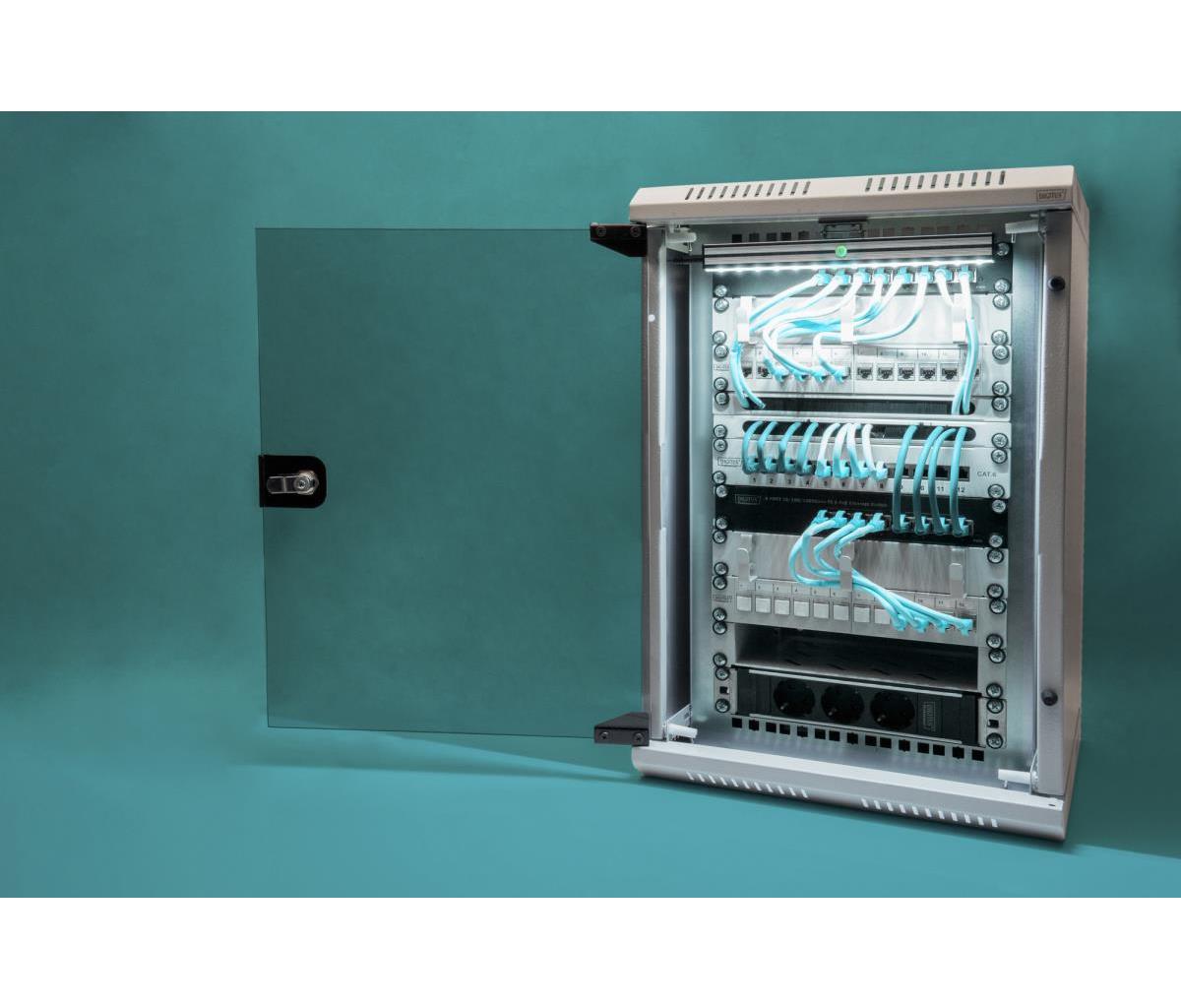

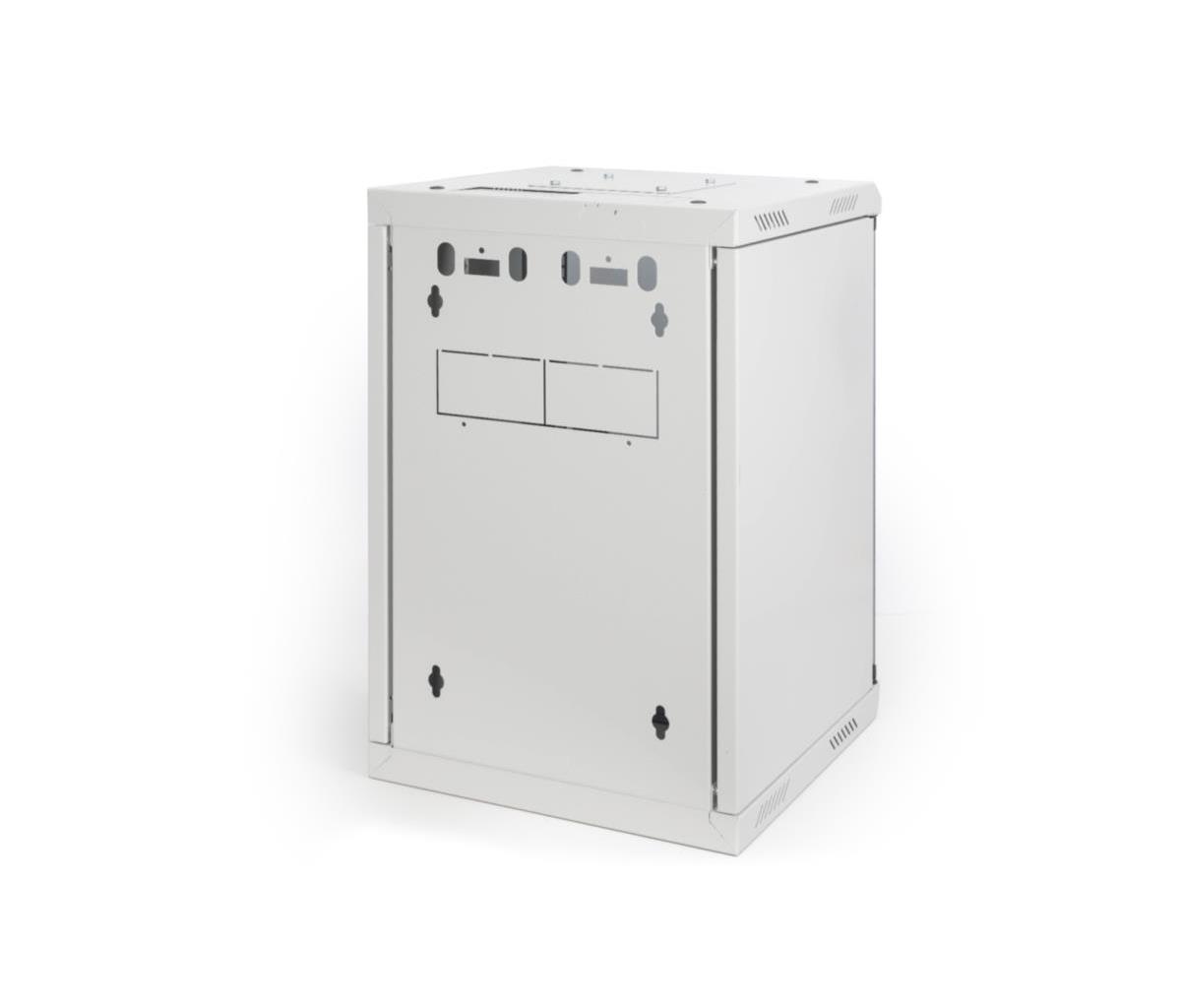

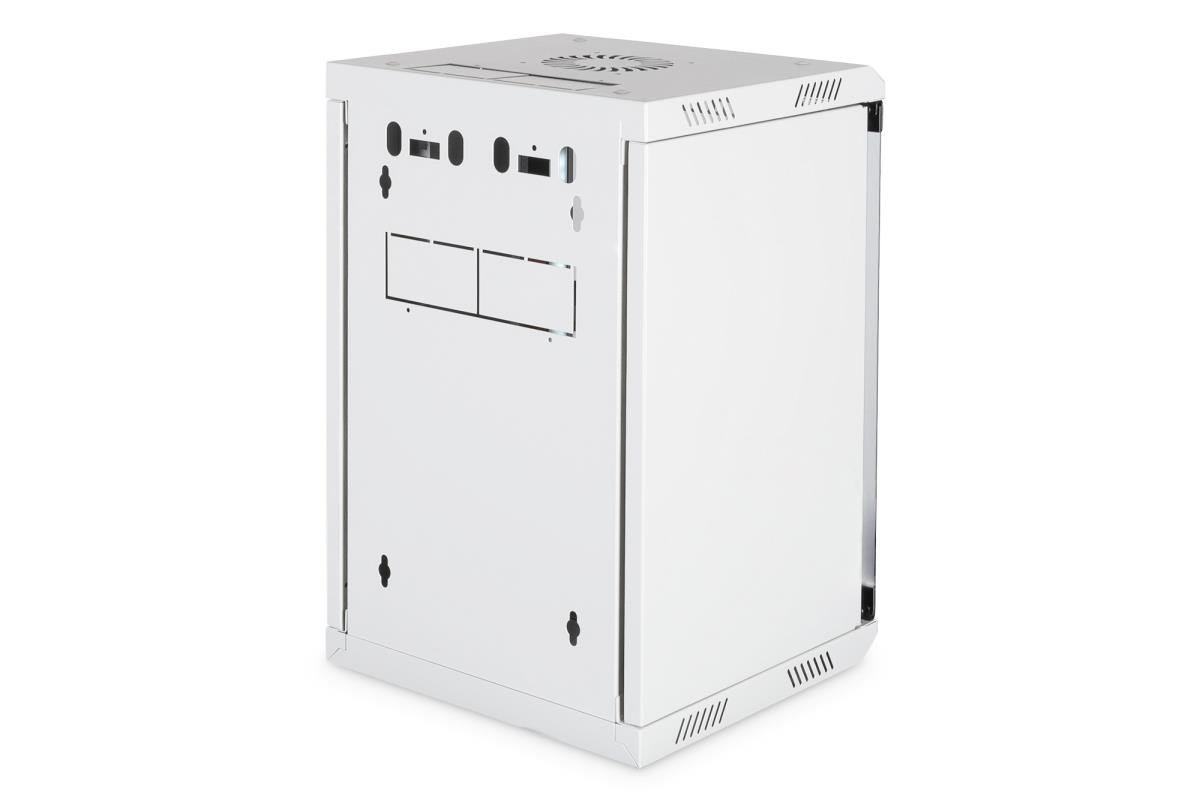

With a round profile frame installed at the front, the wall-mounted enclosure offers the option of horizontal mounting of 254 mm (10") components (10 height units) and, alternatively, vertical mounting of 482.6 mm (19") components (5 height units). The front profile frame is depth-adjustable. There is also a profile hole integrated into the rear section of the enclosure frame for mounting additional components with 254 mm (10") dimensions. The enclosure is made from a robust steel construction. The cable entry openings in the roof, base and rear provide the best options for tidy cable management. The compact enclosure is therefore ideal for all common IT and telecommunications applications, especially where space is limited and in private households.
| Features | |
| Rack capacity | 10U |
| Type | Wall mounted rack |
| Maximum weight capacity | 30 kg |
| Product colour | Grey |
| Material | Steel |
| Frame type | Closed |
| Front door construction | Glass |
| Side panels included | Yes |
| Key lock | Yes |
| Cooling type | Passive |
| Cable management | Yes |
| International Protection (IP) code | IP20 |
| Weight & dimensions | |
| Size (imperial) | 25.4 cm (10") |
| Width | 350 mm |
| Depth | 350 mm |
| Height | 550 mm |
| Weight | 10.3 kg |
| Packaging data | |
| Package width | 355 mm |
| Package depth | 355 mm |
| Package height | 560 mm |
| Package volume | 70574 cmü |
| Package weight | 11.5 kg |
| Logistics data | |
| UK Trade Tariff code | 94032080 |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 355 mm |
| Master (outer) case height | 560 mm |
| Master (outer) case gross weight | 11.5 kg |
| Master (outer) case volume | 70574 cmü |
| Warranty | |
| Base Warranty | Non Non |
