Product Information
Enhance your notebook, tablet or smartphone, utilising USB-C or USB-A connectivity. This Thunderbolt 3 compatible USB-C dual monitor docking station features the latest DisplayLink DL9650 chipset and offers the flexibility of both USB-C and USB-A host interfaces. A connecting cable with both ends (USB-C for C, USB-C for A) is a part of the package. As far as the docking station is connected either to a laptop or to a tablet that supports charging-up at its USB-C or Thunderbolt™ 3 port, then it is able to provide the power supply (Power Delivery) up to 65W.

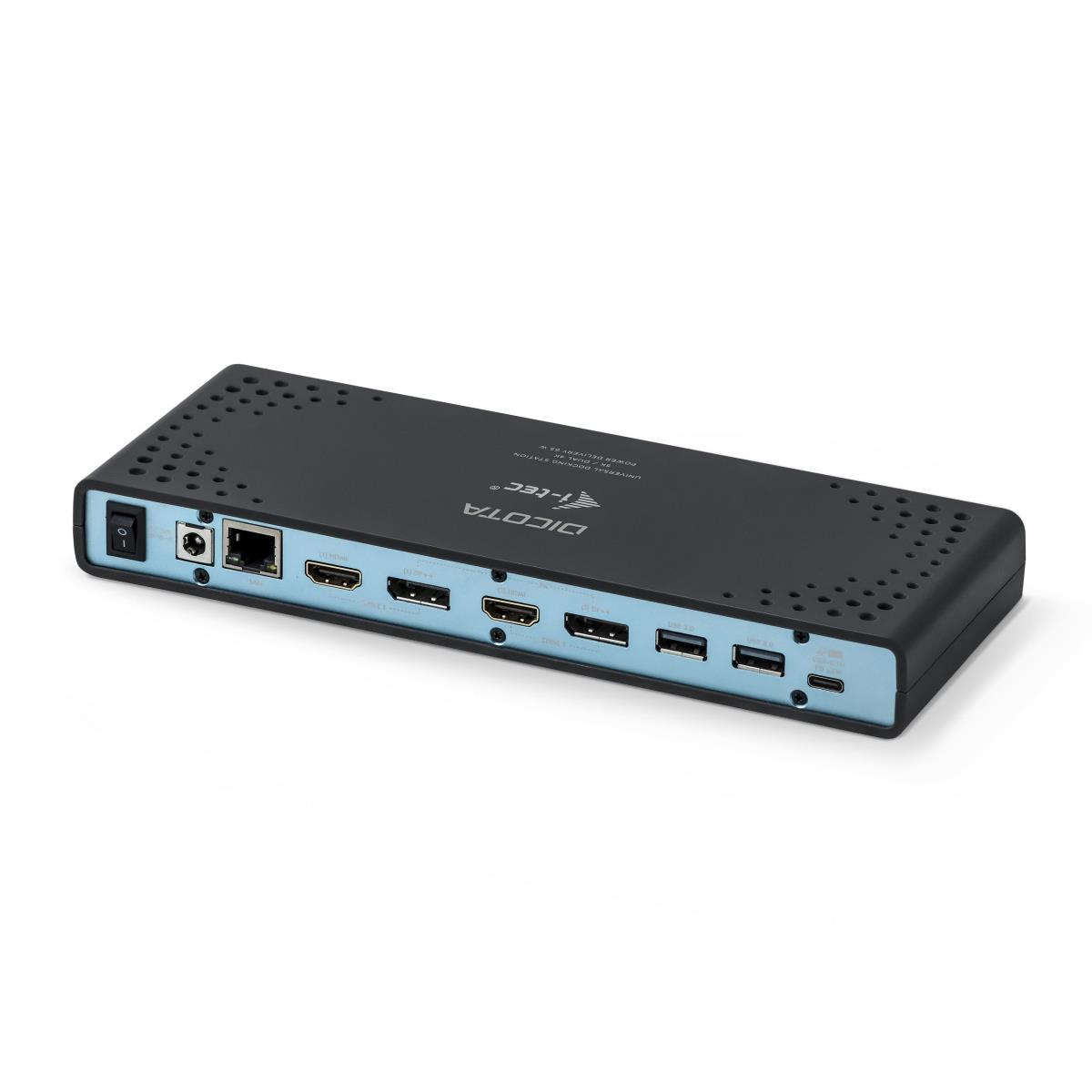

The unit is equipped with four graphics outputs, 2x HDMI, and 2x DisplayPort. Connect two monitors simultaneously and enjoy the higher 4096 x 2160 resolution @ 60 Hz, using any interface configuration (DP + DP, DP + HDMI, HDMI + HDMI). 5K resolution (5120 x 2880 @ 60 Hz) is supported when a single monitor is connected via two DisplayPort cables. 4x USB-A 3.0 ports make it easy to connect all of your existing hardware and Gigabit Ethernet RJ45 port provides reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on/off switch can be found on the rear panel.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Thunderbolt 3 ports quantity | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 5120 x 2880 pixels |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| VESA mounting | Yes |
| Product colour | Black |
| On/off switch | Yes |
| Charging function | Yes |
| Power | |
| Compatible power plug types | CH |
| Power cable length | 1.7 m |
| USB cable length | 0.9 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Weight & dimensions | |
| Width | 223 mm |
| Depth | 88 mm |
| Height | 27 mm |
| Weight | 340 g |
| Packaging content | |

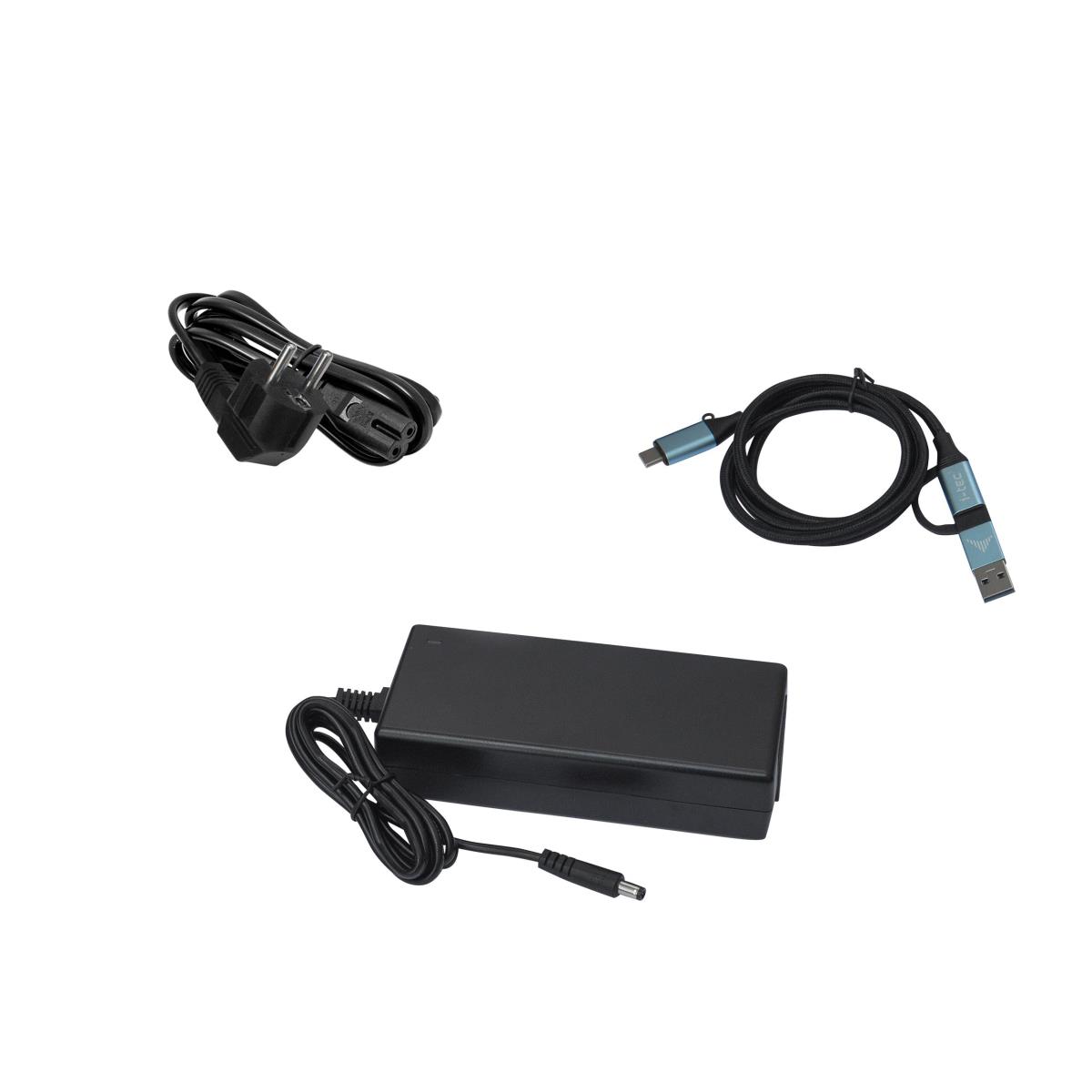

| Cables included | Power, USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| Manual | Yes |
| Other features | |
| Chipset | VIA VL813 |
| Warranty | |
| Base Warranty | Non Non |
