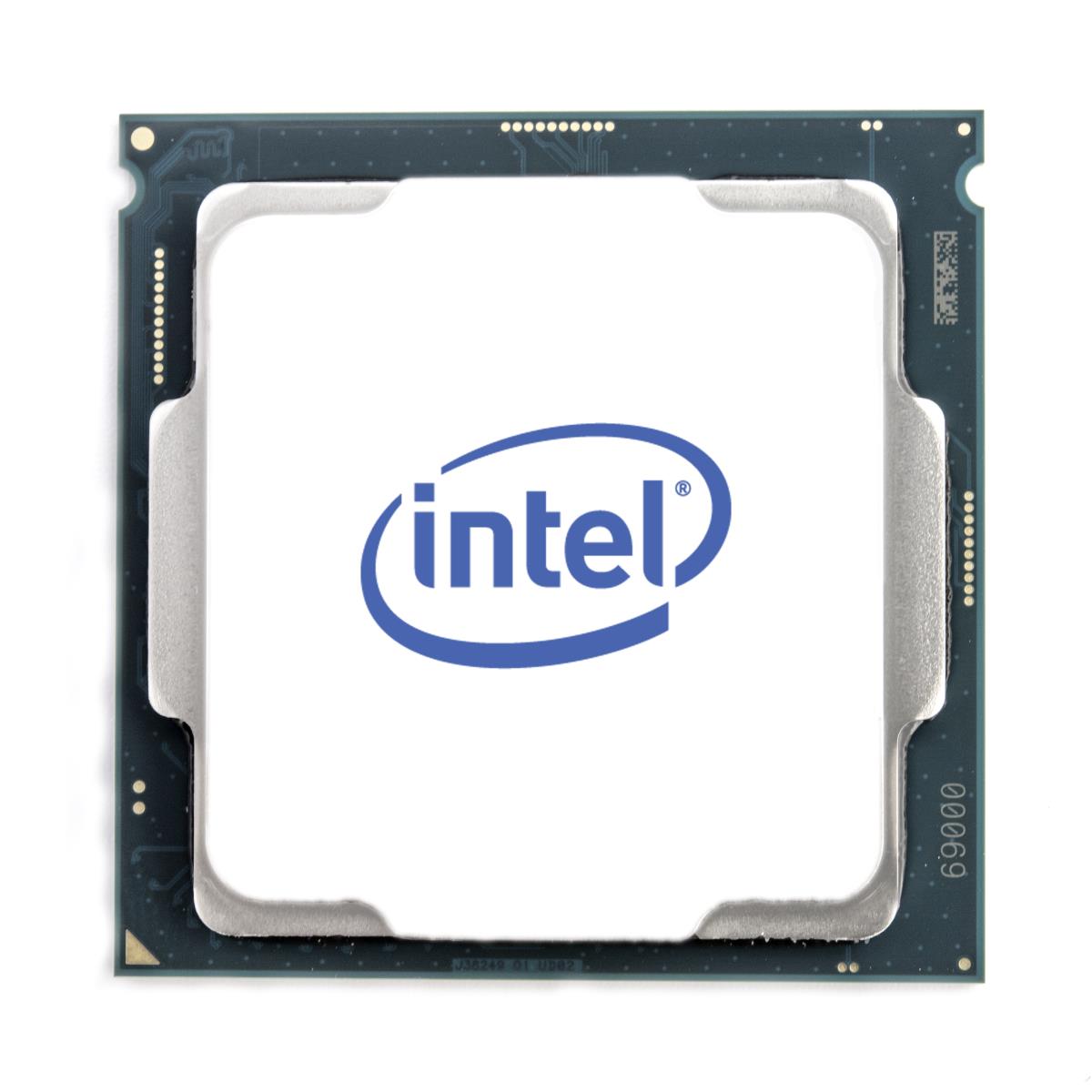

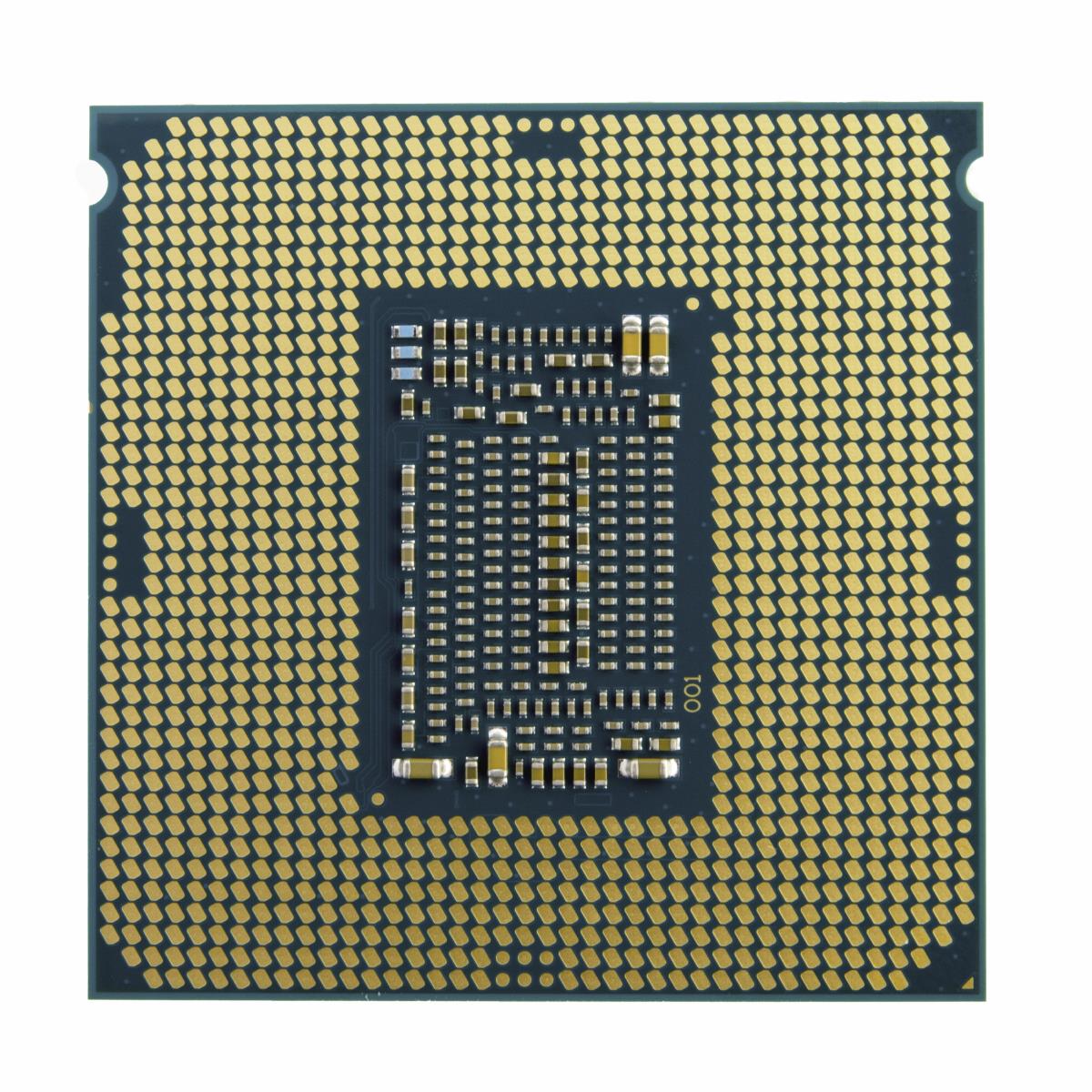

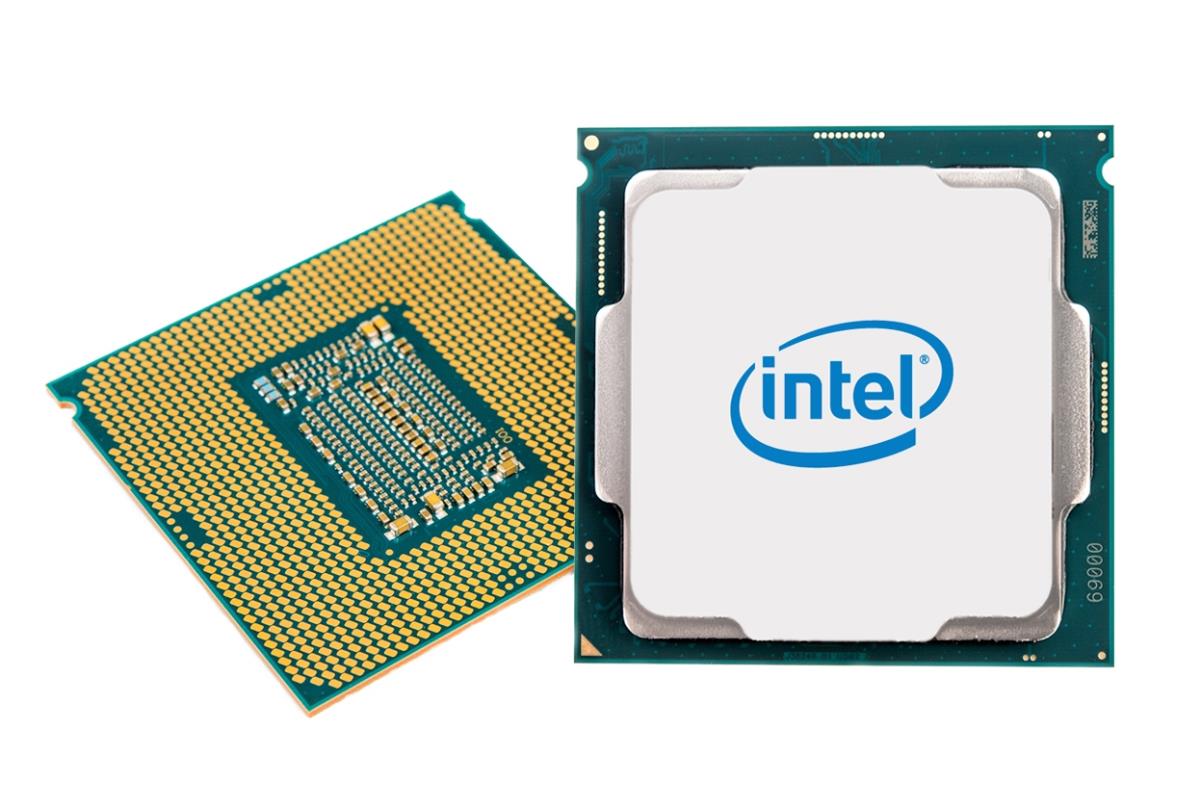

Intel Xeon Silver 4314 2.4GHz Sixteen Core Processor 16c/32t 10.4gt/s 24m Cache Turbo Ht (135w) Ddr4
ITCurry #: 3314V263 | Article #: 338-CBXX
Related products
Product Information
The Intel Xeon® Silver 4314 2.4GHz Sixteen Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Silver 4314 2.4GHz Sixteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
| Processor | |
| Processor manufacturer | Intel |
| Processor generation | 3rd Generation Intel© Xeon© Scalable |
| Processor model | 4314 |
| Processor base frequency | 2.4 GHz |
| Processor family | Intel Xeon Silver |
| Processor cores | 16 |
| Processor socket | LGA 4189 |
| Component for | Server/workstation |
| Processor lithography | 10 nm |
| Processor threads | 32 |
| System bus rate | 10.4 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.4 GHz |
| Processor cache | 24 MB |
| Thermal Design Power (TDP) | 135 W |
| Box | No |
| Cooler included | No |
| Processor codename | Ice Lake |
| Processor ARK ID | 215269 |
| Memory | |
| Maximum internal memory supported by processor | 6.14 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667 MHz |
| Memory channels | Octa-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Discrete graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
| Features | |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 64 |
| PCI Express slots version | 4.0 |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Scalability | 2S |
| Embedded options available | Yes |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G178966 |
| Processor special features | |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel© Speed Shift Technology | Yes |
| Intel© Transactional Synchronization Extensions | Yes |
| Intel© Total Memory Encryption | Yes |
| Intel© Crypto Acceleration | Yes |
| Intel© Platform Firmware Resilience Support | Yes |
| Maximum Enclave Size Support for Intel© SGX | 8 GB |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel© Deep Learning Boost (Intel© DL Boost) on CPU | Yes |
| Intel© Resource Director Technology (Intel© RDT) | Yes |
| Intel© Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel© OptaneT DC Persistent Memory Supported | Yes |
| Operational conditions | |
| Tcase | 86 øC |
| Technical details | |
| Launch date | Q2'21 |
| Status | Launched |
| Supported memory types | DDR4-SDRAM |
| Memory speed (max) | 2667 MHz |
| Number of UPI links | 2 |
| Logistics data | |
| Harmonized System (HS) code | 85423119 |
| Packaging data | |
| Package type | Retail box |
| Weight & dimensions | |
| Processor package size | 77.5 x 56.5 mm |
| Other features | |
| Maximum internal memory | 6 TB |
| Warranty | |
| Base Warranty | Non Non |
