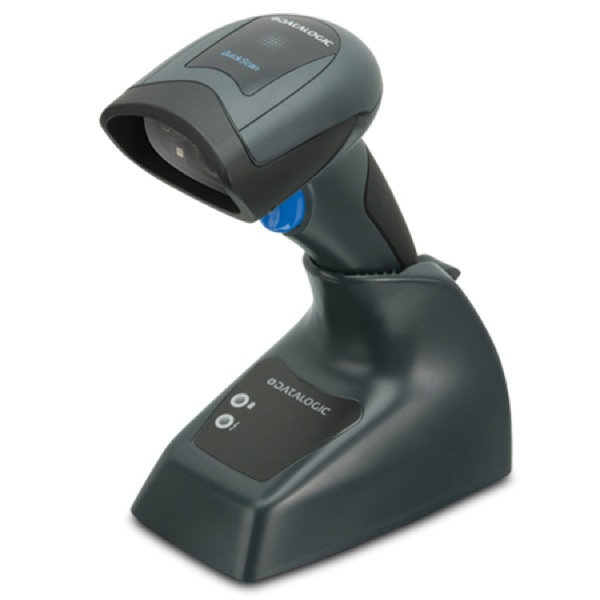

Quickscan Qbt2131 - Bluetooth - With Base Station - Black

ITCurry #: 78555526 | Article #: QBT2131-BK-BTK1
Price:
136.84 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

Product Information

Long bar codes are commonly used in a variety of applications including, utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.
The QuickScan QBT2131 imager's extra-wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.
Featuring Bluetooth® Wireless Technology, the QuickScan QBT2131 imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth compliant device.
The QBT2131 linear imager can also be connected to any tablet using either iOS or Android™ operating systems via the Bluetooth HID profile.

Features
- Extra-wide scan angle and extra-long scan line
- Sharp and highly visible scan line
- Enhanced depth of field for general purpose scanning applications
- Bluetooth® Wireless Technology with up to 25.0 m / 82.0 ft range
- Compatible with Android and iOS devices through the Bluetooth HID profile
- Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
- New battery package allows simultaneous change of charging contacts during battery replacement
- Alternative battery recharging through USB /microUSB cable
- Datalogic's patented 'Green Spot' technology for good-read feedback
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Scanning
Type Handheld bar code reader
Scanner type 1D
Linear (1D) barcodes supported GS1 DataBar Expanded, GS1 DataBar Omnidirectional
2D (matrix & stacked) barcodes supported Not supported
Read rate (max) 400 reads/s
Wavelength 650 nm
Tilt reading angle -45 - 45ø
Pitch reading angle -65 - 65ø
Yaw reading angle -70 - 70ø
Ports & interfaces
Connectivity technology Wired & Wireless
Standard interfaces Bluetooth, USB
Bluetooth version 3.0+HS
Performance
International Protection (IP) code IP42
Buzzer Yes
Product colour Black
Power
Power source type Battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 1400 mAh
Input voltage 4.75 - 14 V
Weight & dimensions
Width 91 mm
Depth 41 mm
Height 163 mm
Weight 190 g
Base weight 221 g
Packaging data
Cables included USB
Charging base Yes
Operational conditions
Operating temperature (T-T) 0 - 50 øC
Storage temperature (T-T) -40 - 70 øC
Operating relative humidity (H-H) 0 - 90%
Logistics data
Harmonized System (HS) code 84716070
Warranty
Base Warranty Non Non
