The PowerScan 9100 linear imagers have an ergonomic shape with well-balanced weight providing optimal operator comfort during scan-intensive operations. The green scanning line has been proven to be the most comfortable color solution for the operator’s eyes during daily operations.
The 9100 imagers also feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback. The ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge and USB.
The PowerScan 9100 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading standards without sacrificing performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.

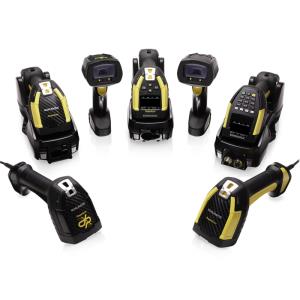

The PowerScan 9100 linear imagers are comprised of the corded PD9130 imager and the cordless PBT9100 / PM9100 imagers. The PBT9100 features Bluetooth® wireless technology and the PM9100 features Datalogic’s STAR Cordless System™ narrow band radio.
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 32, Code 39, Code 39 (ASCII), Code 93, Discrete 2 of 5, GS1 DataBar, IATA, ISBN, Industrial 2 of 5, Interleaved 2 of 5, MSI, PostBar, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Optical sensor resolution (W x H) | 48 x 132 pixels |
| Tilt reading angle | -45 - 45ø |
| Pitch reading angle | -75 - 75ø |
| Yaw reading angle | -70 - 70ø |
| Scanner resolution | 0.0635 mm |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RF Wireless, USB |
| Data transfer rate | 4 Mbit/s |
| Wireless range | 50 m |
| Operating frequency | 910 MHz |
| Performance | |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
| Buzzer | Yes |
| Ambient lighting | Yes |
| Print contrast | 15% |
| Product colour | Black, Yellow |
| Certification | IEC 62471 |
| Power | |
| Power source type | Battery, DC |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3350 mAh |
| Number of reads per charge | 60000 |
| Battery life | 10 h |
| Charging time | 4.5 h |
| Input voltage | 10-30 V |
| Power consumption | 500 mA |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 74 mm |
| Height | 212 mm |
| Weight | 405 g |
| Base dimensions | 240 x 108 x 95 mm |
| Packaging data | |
| External power adapter | Yes |
| Cables included | DC, USB |
| Charging base | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Warranty period | 3 year(s) |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
