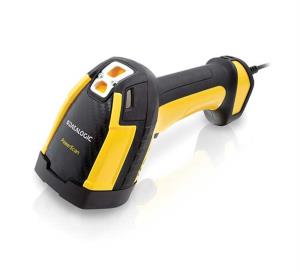

PowerScan PD9630-SR, Standard Range, RS-232 Kit (Kit includes Scanner and RS232 Cable CAB-549)
Ultra-rugged with new balanced ergonomics!
The PowerScan family of bar code readers are the ultimate industrial
handheld scanners designed and constructed to withstand the
toughest environmental conditions. The PowerScan PD9630 imagers
have an ultra-rugged design, an ergonomic shape with well-balanced
weight to reduce operator stress during daily activities and an intuitive
aiming system, allowing the highest first-pass reading rate while
reducing unnatural wrist movement.
Three optic options to fulfill any customer need
The PowerScan PD9630 area imagers are available in three different
optics, to satisfy any customer need. The Standard Range optic is
ideal for most of the applications requiring barcode reading at intuitive
distance; the High Performance optic adds the capability to decode
high density barcodes together with an increased depth of field on
standard 1D/2D codes; the Document Capture model is thought for
Wide Angle code reading and Document Capture applications.
The best feedback to the operator
The PD9630 area imagers also feature Datalogic’s exclusive 3 Green
Lights (3GL™) for superior good-read feedback together with a loud
beeper and vibration. The ‘Green Spot’ technology directly on the
code and dual Good Read LEDs increase visibility at any angle. All
models have multi-interface capabilities featuring the most popular
interfaces: RS-232, USB and offer an optional Ethernet for standard or
industrial uses.
Datalogic’s Motionix™ motion-sensing technology detects the natural
actions of the operator to automatically switch the scanner into the
desired scanning mode (handheld or presentation scanning).
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | China Post, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance | 20 cm |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength | 630 nm |
| Tilt reading angle | 0 - 360ø |
| Pitch reading angle | -52 - 52ø |
| Yaw reading angle | -52 - 52ø |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
| Performance | |
| International Protection (IP) code | IP65, IP67 |
| Protection features | Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant |
| LED indicators | Yes |
| Buzzer | Yes |
| Print contrast | 15% |
| Product colour | Black, Yellow |
| Vibration function | Yes |
| Power | |
| Power source type | RS-232 |
| Input voltage | 5 - 30 V |
| Power consumption | 200 mA |
| Weight & dimensions | |
| Width | 79 mm |
| Depth | 140 mm |
| Height | 190 mm |
| Weight | 318 g |
| Warranty | |
| Base Warranty | Non Non |
| Packaging data | |
| Cables included | RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
