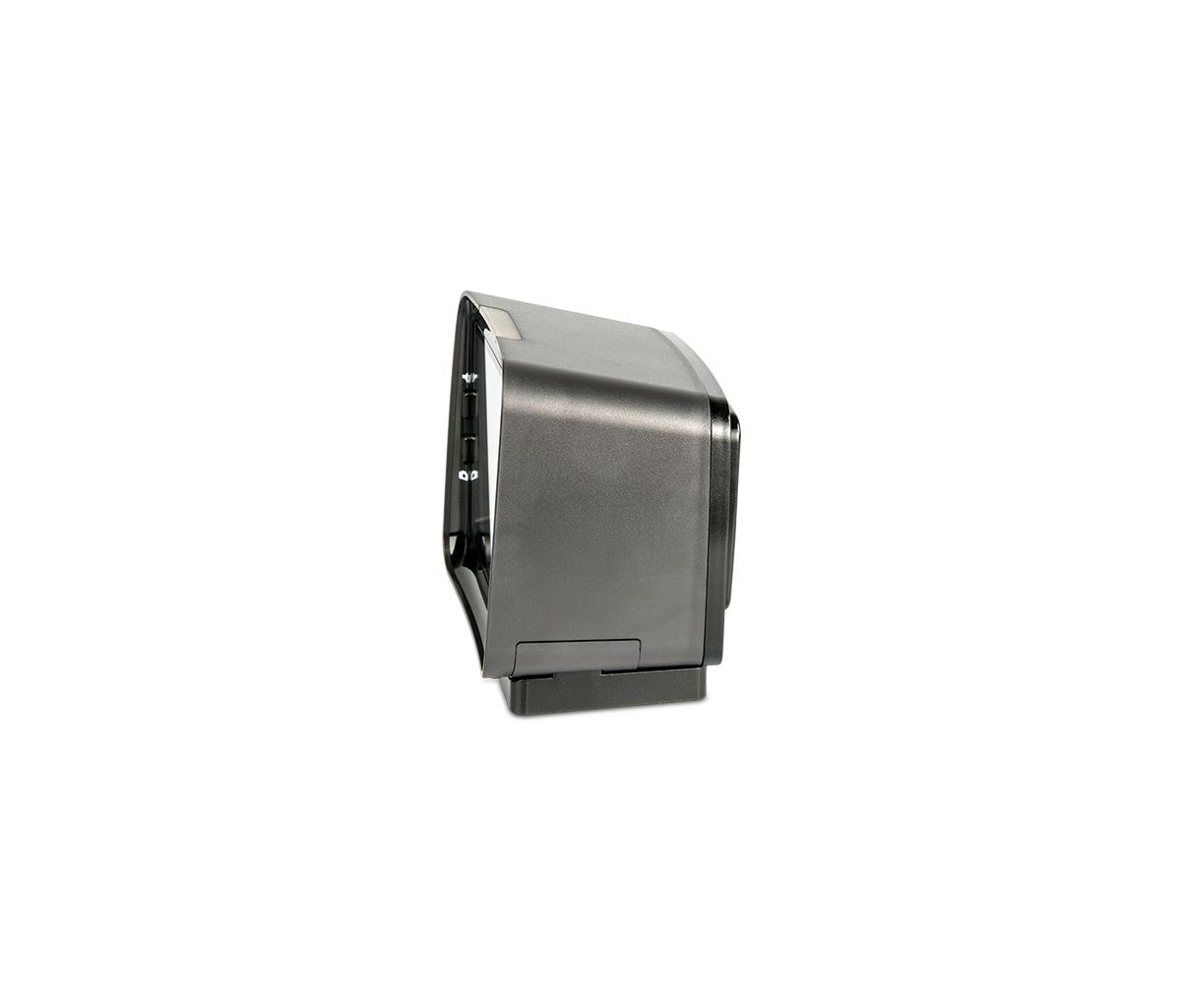

Magellan 3450VSi
The Magellan 3450VSi scanner offers class leading performance on 1D and 2D codes, unmatched reliability and versatility, all in a compact size.
Features
- Class leading performance on 1D, 2D, and Digimarc Barcodes whether printed or displayed on smart phones maximizes productivity
- Object Sense illumination control automatically optimizes LED levels for improved user ergonomics and lower power consumption
- Multiple interfaces in each unit including RS-232, OEM USB, USB Keyboard and USB COM
- The FIRST single plane scanner available to support Digimarc Barcode digital watermarks which increase productivity by up to 30% while improving user ergonomics
- Flexible enterprise management with the on board Micro-SD card slot, Micro-B USB Service port or using popular remote management software applications
- Unmatched reliability for Retail with quality materials, excellent sealing, and an all Solid-State design
Overview
The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.
| Scanning | |
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, QR Code |
| Read rate (max) | 39000000 reads/s |
| Light levels (direct sunlight) | 0 - 86000 lx |
| Tilt reading angle | 0 - 360ø |
| Pitch reading angle | -65 - 65ø |
| Yaw reading angle | -75 - 75ø |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Power source type | AC |
| Power consumption (typical) | 3 W |
| Power consumption (standby) | 2.6 W |
| Input voltage | 100-240 V |
| Input frequency | 50-60 Hz |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 152 mm |
| Depth | 94 mm |
| Height | 137 mm |
| Weight | 600 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
