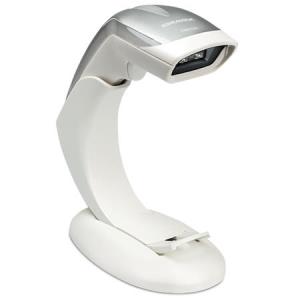

Heron Hd3430 2d Scnr Bar Code Reader
ITCurry #: 78556240 | Article #: HD3430-BKK1S-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
HERON 3400
The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand. The Heron HD3430 area imager provides outstanding 2D reading performance and image capture capability. It also includes the patented 'Green Spot' technology for good-read feedback. User comfort is maximized with the Heron HD3430 white illumination and the highly visible 4-Dot aimer defines a precise reading zone. The aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Tilt reading angle | 0 - 360ø |
| Pitch reading angle | -65 - 65ø |
| Yaw reading angle | -60 - 60ø |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232 |
| USB version | 2.0 |
| Performance | |
| International Protection (IP) code | IP40 |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Programming function | Yes |
| Power | |
| Power source type | Battery |
| Input voltage | 5 V |
| Power consumption | 500 mA |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 68 mm |
| Depth | 153 mm |
| Height | 152 mm |
| Weight | 150 g |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
